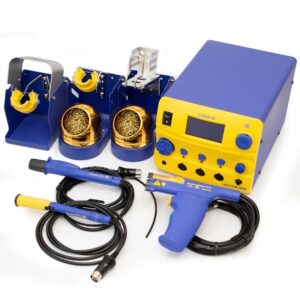

FM-206 Multi-port Combined Soldering, Desoldering and SMD Rework Station

SKU: HFM206-18

Hakko
Availability:

Available for order*


Multi-station that enables soldering, desoldering, and SMD rework all within a single unit
Graphic LCD enables easy viewing and operation
Most Hakko FM range tools are compatible including N2 Systems.
Includes: Single-nozzle hot air handpiece FM2029 for SMD Rework
Includes: Soldering Iron FM2027
Includes: Built in vacuum pump and Desoldering tool FM2024
Does NOT include Tips or Nozzles for the Tools (please see packing list)

£1,757.72 Excl. VAT

Available for order*

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

The FM-206 is a compact multi-port Combined Soldering, Desoldering and SMD Rework Station which includes three ports which can be used for soldering, desoldering or rework tools. It includes a built in pump for desoldering work so no external air source is required and a digital display allowing for easy programming making it the ultimate benchtop station ideal for any workshop or laboratory.

The FM206-18 Multi-port Combined Soldering, Desoldering and SMD Rework Station includes a FM2027 Soldering Iron, FM2024 Desoldering Gun and a FM2029 Hot Air Rework tool as standard, but is suitable for use with most FM range tools (see below). Tips and nozzles for these tools are purchased separately (see Tips Tab)

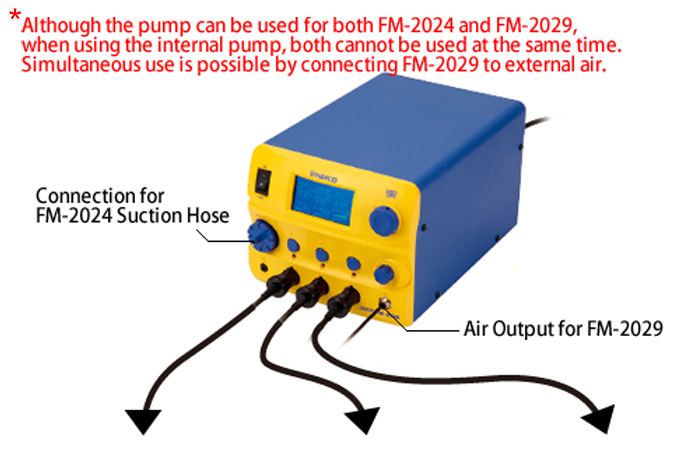

Note: While the table below shows compatibility for each port, not all tools may be used simultaneously due to the power consumption required. This is particularly the case for the FM-2022 and HAKKO FM-2023. This is also the case for the FM-2024 and HAKKO FM-2029 which require the use of the internal pump, however this can be resolved with the use of compressed air.

FM206-18 Multi-port Combined Soldering, Desoldering and SMD Rework Station

H K Wentworth - HAKKO UK and Ireland distributor
FM2024 Desoldering Tool (*1)
(Included with the FM206

H K Wentworth - HAKKO UK and Ireland distributor
FM2024 Desoldering Tool (*1)
(Included with the FM206)

H K Wentworth - HAKKO UK and Ireland distributor
FM2024 Desoldering Tool (*1)
(Included with the FM206)

H K Wentworth - HAKKO UK and Ireland distributor
FM2027 Soldering Iron
(Included with the FM206)

H K Wentworth - HAKKO UK and Ireland distributor

FM2027 Soldering Iron
(Included with the FM206)

H K Wentworth - HAKKO UK and Ireland distributor
FM2027 Soldering Iron
(Included with the FM206)

H K Wentworth - HAKKO UK and Ireland distributor
FM2026 N2 Soldering Iron
(Requires N2 Source such as Hakko generator FX780 )

H K Wentworth - HAKKO UK and Ireland distributor
FM2026 N2 Soldering Iron
(Requires N2 Source such as Hakko generator FX780 )

H K Wentworth - HAKKO UK and Ireland distributor
FM2026 N2 Soldering Iron
(Requires N2 Source such as Hakko generator FX780 )

H K Wentworth - HAKKO UK and Ireland distributor
FM2032 Micro Soldering Iron

H K Wentworth - HAKKO UK and Ireland distributor
FM2032 Micro Soldering Iron

H K Wentworth - HAKKO UK and Ireland distributor
FM2032 Micro Soldering Iron

H K Wentworth - HAKKO UK and Ireland distributor
FM2030 Soldering Iron

H K Wentworth - HAKKO UK and Ireland distributor
FM2030 Soldering Iron

H K Wentworth - HAKKO UK and Ireland distributor
FM2031 N2 Soldering Iron
(Requires N2 Source such as Hakko generator FX780 )

H K Wentworth - HAKKO UK and Ireland distributor
FM2031 N2 Soldering Iron
(Requires N2 Source such as Hakko generator FX780 )

H K Wentworth - HAKKO UK and Ireland distributor
FM2022 SMD Hot Tweezers

H K Wentworth - HAKKO UK and Ireland distributor
FM2029 Hot Air Tool (*2)
(Included with the FM206)

H K Wentworth - HAKKO UK and Ireland distributor
FM2023 SMD Hot Tweezers

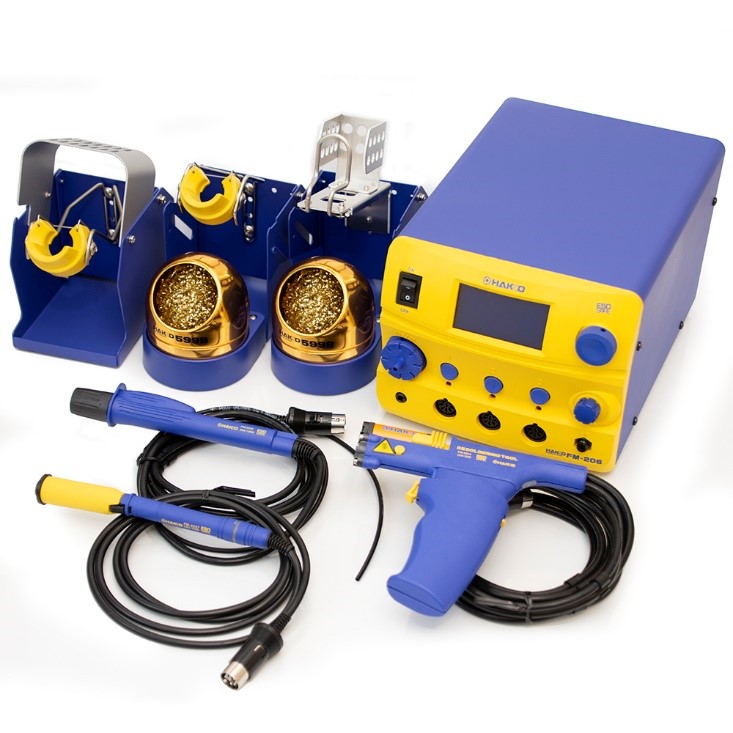

FM206-18 Multi-port Combined Soldering, Desoldering and SMD Rework Station
  1. FM206-18 Station + Instruction manual
  2. British Power Cord
  3. FM2029-02 Conversion Kit
    1. Hot Air Handpiece (FM2029-01)
    2. Iron Holder (C5034)
    3. Connecting Cable (B3253)
*Nozzle NOT included Purchase your required size separately
  1. FM2024-43 Conversion Kit
    1. MODEL FM2024 Desoldering tool (FM2024-02) with Handle (for gun configuration) (B2872)
    2. Iron holder: No.FH200-05 (with HAKKO 599B tip cleaner)
    3. Cleaning drill (for heating element) (B2876)
    4. Filter pipe assembly (A1612)
    5. Ceramic paper filter (10 pcs.) (B2873)
    6. Nozzle remover (B2876)
    7. Connecting cable (B3253)
* Nozzle is NOT included. Purchase your required size separately
  1. FM2027-03
  2. Connector Piece (FM2027-02 )
  3. Yellow Sleeve Assembly (B3216)
  4. Iron Stand and 599B Tip Cleaning Pot (FH200-01)
  5. Heat Resistant Pad (B2300)
  6. Connecting Cable (B3253)
* Nozzle is NOT included. Purchase your required size separately

The FM206 is supplied with the FM2027 Soldering iron which uses T15 Tips. T15 tips include almost 100 varieties of tip shape and size covering any soldering or rework application.

The FM2024 Desoldering Tool supplied with the FM206 uses the N3 Series Nozzles and the FM2029 Heat tool uses N4 Nozzles.

For the full list of tools and associated see below:


Tip Shape

Description

View Options

FM2027

T15 Soldering Iron Tips

View Options

FM2029

N4 Nozzles

View Options

FM2024

N3 Desoldering Nozzles

View Options

FM2022

T16 Heated Tweezer Tips

View Options

FM2023

T9 Heated Tweezer Tips

View Options

FM2026

T17 Soldering Iron Tips + Nitrogen Nozzle

View Options

FM2030

T22 Soldering Iron Tips

View Options

FM2031

T22 Soldering Iron Tips + Nitrogen Nozzle

View Options

FM2032

T30 Soldering Iron Tips

View Options

Options

1. FM2026 Soldering Iron 70W (24V) with Sleeve FM2026-03 FM2026 Soldering Iron 70W (24V) with Sleeve Buy Now
2. FM2023-06 SMD Mini Hot Tweezer Tool (Conversion Kit) FM2023-06 FM2023 SMD Hot Tweezer Conversion Kit Buy Now
3. FM2026-06 FM2026 Nitrogen Soldering Iron Conversion Kit FM2026-06 FM2026 Nitrogen Soldering Iron Conversion Kit (Requires Nitrogen Source) Buy Now
4. FM2031-02 Nitrogen Heavy Duty Soldering Iron Handpiece with Holder FM-2031-02 FM2030 Heavy Duty Soldering Iron Conversion Kit Buy Now
5. FM2031-02 Nitrogen Heavy Duty Soldering Iron Handpiece with Holder FM-2031-02 FM2031 Nitrogen Heavy Duty Soldering Iron Conversion Kit (Requires Nitrogen Source) Buy Now
6. FM2032-52 Conversion kit | HAKKO UK FM2032-52 FM2032 Micro Soldering Iron Conversion Kit Buy Now
7. FA-430 Fume Extractor and Air Purifier FA-430-13 Under Bench Fume Extraction/Filter Unit Buy Now
8. C5028 Rework Fixture C5028 Rework Fixtures / Accessories
9. Qualitek solder wire Qualitek Qualitek Soldering Wire Buy Now
10. C5027 Board Holder C5027 PCB Holder Buy Now
11. FR830-13 PCB Underboard Heater FR-830 Under Board Heater Buy Now
12. FT-700 Soldering Tip Cleaner and Polisher FT-700 Tip Cleaner / Polisher Buy Now

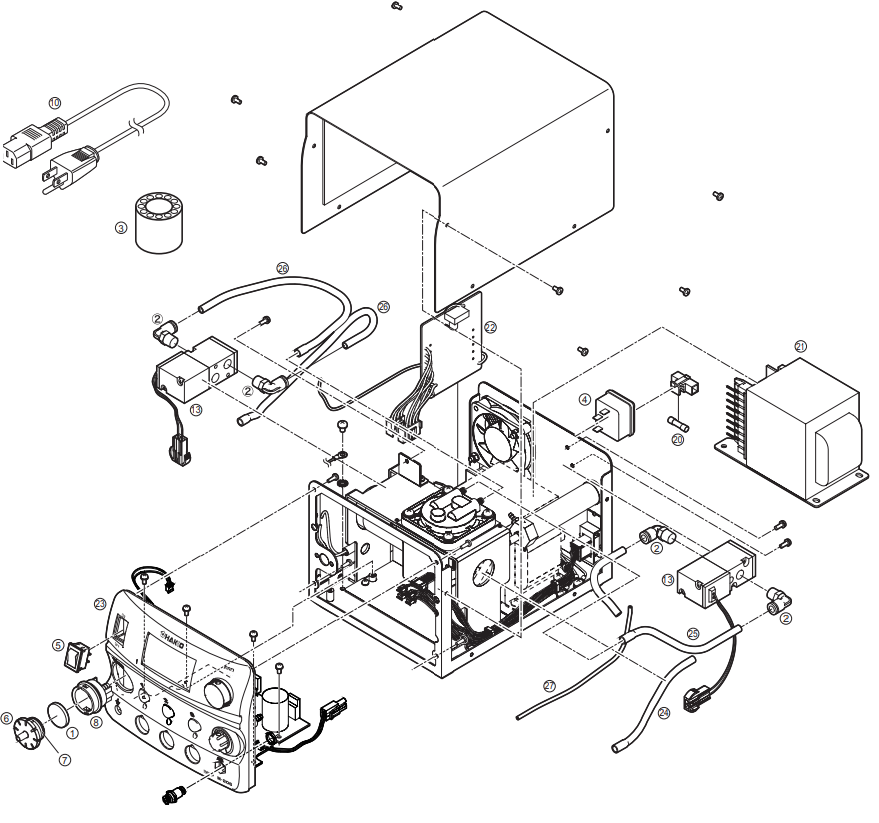

Replacement Parts

1. A1514 Ceramic Paper Filter (Pack of 10) A1514 A1613 Ceramic Paper Filter (Pack of 10) Ceramic Paper Filter (Pack of 10) Buy Now Buy Now
2. B1075 Elbow Union Please Contact Us
3. B2756 Tip Tray / Holder B2756 Tip Tray Buy Now
4. B2384 Power Inlet B2384 Inlet Buy Now
5. B2852 Power Switch B2852 Switch Buy Now
6. b2880 | HAKKO UK Only Authorised distributor B2880 Vacuum Outlet Cap Buy Now
7. B2954 Replacement O-Ring for the FM-204, FM-205. FM-206 B2954 O-Ring Buy Now
8. B3752 Vacuum Outlet Retainer Please Contact Us

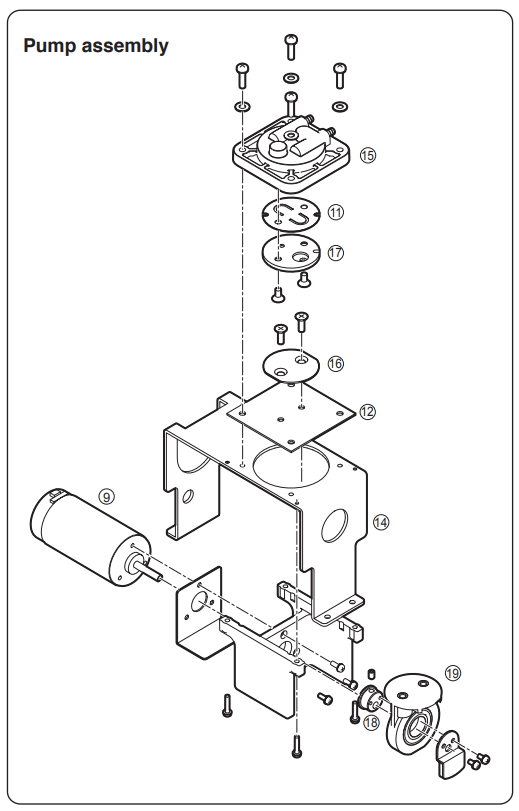

9. B3428 Motor B3428 Motor Buy Now
10. B2425 Hakko British Standard Plug B2425 Power Cord (BS Plug) Buy Now
11. A1583 Valve Plate A1583 Valve Plate Buy Now
12. A1584 Replacement Diaphragm for the FM-206 A1584 Diaphragm Buy Now
13. B3667 Solenoid Valve B3667 Solenoid Valve Buy Now
14. B3668 Pump Frame B3668 Pump Frame Buy Now
15. B3669 Pump Head B3669 Pump Head Buy Now
16. B3670 Diaphragm Setting Plate B3670 Diaphragm Setting Plate Buy Now
17. B3671 Fixing Plate B3671 Fixing Plate Buy Now
18. B3672 Crank Shaft B3672 Crank Shaft Buy Now
19. B3673 Crank B3673 Crank Buy Now
20. B3675 Fuse 220-240V B3675 Fuse 250V / 4A Buy Now
21. B3677 Transformer 220-240V B3677 Transformer 220-240V Buy Now
22. B3678 P.W.B for Transformer B3678 P.W.B for Transformer Buy Now
23. B3679 P.W.B with front panel and Valve for Temperature control and Display B3679 P.W.B / with front panel and Valve for Temperature control + Display Buy Now
24. B3681 Replacement Inner Hose (6mm x 100L) for the FM-206 B3681 Inner Hose (6mm x 100L) Buy Now
25. B3682 Replacement Inner Hose (6mm x 115L) for the FM-206 B3682 Inner Hose (6mm x 115L) Buy Now
26. B3683 Inlet Inner Hose (6mm x 220L) B3683 Inner Hose (6mm x 220L) Buy Now
27. B3684 Inner Hose (3mm x 170L) Buy Now

Other Replacements

Note: For spares and replacements for the hand pieces included with the FM206 please see the individual product pages’ spare parts tabs.
Part No. Description
FM2027-01 Soldering Iron Handpiece Mini Conversion Kit FM2027-01 FM2027 Hand piece with Parts 2, 3, 5 and 6 included Buy Now
HAKKO UK | Only Authorised UK Distributor HKW FM2027-02 FM2027 Connector Assembly Only Buy Now
FM2027-03 Soldering Iron Full Conversion Kit FM2027-03 FM2027 Conversion Kit including Stand Buy Now
Iron Holder (Inc. Cleaning Wire) FH200-01 Iron holder with Cleaning Wire Buy Now
Iron Holder (inc Cleaning Sponge) FH200-02 Iron holder with Cleaning Sponge Buy Now
FM2029-01 Hot Air Tool Hand Piece FM2029-01 Hot Air Tool Hand Piece Buy Now
FM2029-02 Mini Hot Air Tool (Hand Piece Only) FM2029-02 Hot Air Tool Conversion Kit Buy Now
photo:c5034 C5034 Hot Air Tool Iron Holder Buy Now
FM2024-02 Desoldering Tool (Hand Tool Only) FM2024-02 Desoldering Tool (Hand Tool Only) Buy Now
FM2024-43 Desoldering Tool (Conversion Kit w/o DCB) FM2024-43 Desoldering Tool Conversion Kit Buy Now
FH200-05 Desoldering Tool Holder FH200-05 Desoldering Tool Holder With Cleaning Wire Buy Now
FH200-06 Desoldering Tool Holder with Cleaning Sponge FH200-06 Desoldering Tool Holder with Cleaning Sponge Buy Now

Tech Tips

Category Title
Top Tips Top Tips for Successful Soldering and De-Soldering Processes

Manuals

Manual Size
Hakko FM-206 Instruction Manual 2,645kb Download
Weight 11.232 kg
