FM2027-01 Soldering Iron Handpiece Mini Conversion Kit

SKU: HFM2027-01

Hakko
Availability:

Low stock – Order soon


  • Soldering iron in lock-type sleeve assembly
  • Mini Conversion Kit Contains Soldering Iron, Sleeve and Heat Proof Mat (Tips NOT included)
  • Includes LED status indicator light

£93.14 Excl. VAT

Low stock – Order soon

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

FM2027-01 Soldering Iron Handpiece Mini Conversion Kit – Includes Yellow Sleeve (other colours available in options) and Heat Resistant Pad – does NOT include Tips

Model No.
Power consumption 70W (24V)
Temperature range 200 to 450°C
Tip to ground resistance <2Ω
Tip to ground potential
<2mV
Heating element Composite heater
Cord length 1.2m
Total length 188mm (with 2.4D tip)
Weight 30g (with 2.4D tip)

Features

Applicable models HAKKO FM-2027
HAKKO FM-2027
HAKKO FM-2028
HAKKO FM-2028
Connectable station
HAKKO FM-202
HAKKO
FM-202
*Discontinued
HAKKO FM-203
HAKKO
FM-203
HAKKO FM-204
HAKKO
FM-204
HAKKO FM-206
HAKKO
FM-206
HAKKO FX-950
HAKKO
FX-950
HAKKO FX-951
HAKKO
FX-951
HAKKO FX-952
HAKKO
FX-952



Differences between HAKKO FM-2027 and HAKKO FM-2028.
Understand the differences in appearance and functions.



HAKKO FM-2027 and HAKKO FM-2028 could meet customers’ demands for work in various soldering environments, further improving user-friendliness. They have the following four features:
1.The sleeve assembly has employed the lock type.
The lock-type sleeve assembly can be attached securely to the connector cover.
To remove the sleeve assembly, draw it out while holding down the lock part.

Lock-type sleeve assembly attachment

To remove the sleeve assembly, draw it out in the arrow direction
while holding down both the lock parts.

Removing the sleeve assembly

2.When you insert the tip into the sleeve assembly, you will hear it click!
If you don’t hear it click, the tip is not inserted securely.

Removing the tip from the sleeve assembly

3.A green sleeve assembly has been added.
The sleeve assembly variation has now increased to four colors:
yellow, orange, blue, and green.

Sleeve assemby is available in four colors

Why are the four colors prepared?
Tip shapes are identified by color, saving the time needed to check the shapes before work. Identifying the tip shapes by color prevents you from using the wrong tip carelessly. This identification method is especially useful when the shapes are the same but differ in size and because the C type differs from the CF type.
Example of different colored sleeve assemblies used to distinguish soldering irons
  • Connector Piece (FM2027-02 )
  • Yellow Sleeve Assembly (B3216)
  • Heat Resistant Pad (B2300)

T15 Soldering Iron Tips

T15 tips are used with the FM2027 and FM2028 Soldering irons used with stations FX951, FX952, FM203, FM204 and FM206. The T15 Series includes almost 100 varieties of tip shape and size covering any soldering or rework application. They are organised into groups by “shape”:


Tip Shape

Description

View Options

T15  "B Shape"

Standard conical tips for everyday use

View Options

T15  "BC / C  Shape"

This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece.

It is used for drag soldering and pre-tinning of lead wires.

View Options

T15  "D Shape"

Chisel shaped tips used for line and face soldering as well as narrow pitch.

View Options

T15 "I Shape"

Fine shaped tips for small workpieces.

View Options

T15  "J Shape"

Angled tip for face and point soldering

View Options

T15 "K Shape"

Knife Shape for line, face and point soldering. It is used for soldering at narrow pitches, correction of bridging and drag soldering.

View Options

T15 "R Shape"

Specialist “Slot” or Concave shape for through hole soldering. It is effective to avoid insufficient PTH fill.

View Options

T15  "SB Shape"

Specialist conical shapes

View Options

T15  "SMD Type Quad"

SMD type for removing QFPs

View Options

T15  "SMD Type Spatula"

SMD type for thermo-compression of P.W.B. and soldering shield cases or connectors

View Options

T15 "SMD Tunnel"

SMD type for removing SOPs

View Options

T15 "Special Applications"

Long chisel shape

View Options

Option

Part No. Name
photo:B3216 B3216 Yellow Anti-Bacterial Sleeve Buy
photo:B3217 B3217 Orange Anti-Bacterial Sleeve Buy
photo:B3218 B3218 Blue Anti-Bacterial Sleeve Buy
photo:FT8003-82 B3219 Green Anti-Bacterial Sleeve Buy
photo:FT8003-82 B2300 Heat Resistant Pad Buy
photo:FT8003-82 B3253 Connecting Cord for FX951 & FX838 Buy
photo:b2756 B2756 Tip Holder Tray Buy
photo:Qualitek Soldering Wire Qualitek Soldering Wire Buy
photo:611 611-1 Solding Wire Holder Buy
photo:FG100B FG100B Soldering Iron Tip Thermometer Buy
photo:FH200-01 FH200-01 Soldering Iron Stand with Cleaning Wire / pot Buy
photo:FH200-02 FH200-02 Soldering Iron Stand with Cleaning Sponge Buy
photo:b2936 B2936 Iron Socket With Thermister, Condensor Buy
photo:B3215 B3215 B3215 Replacement Cover For FM2027 Buy

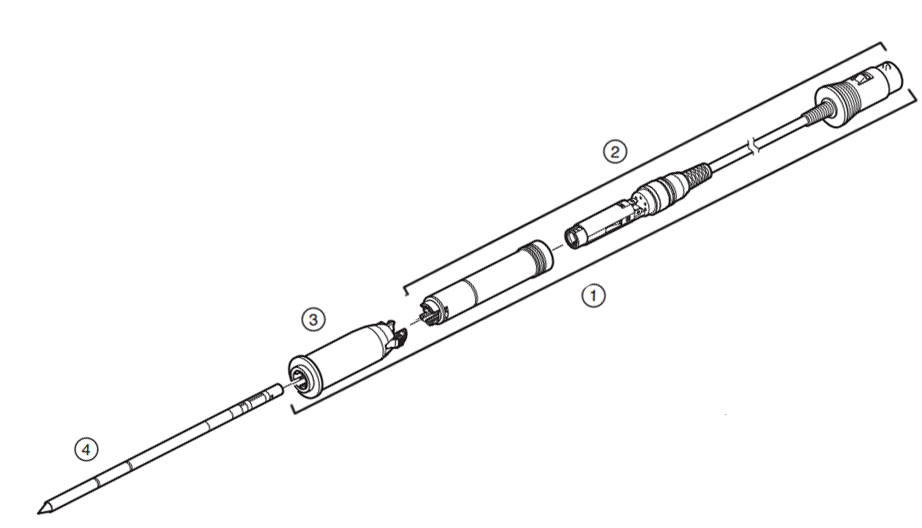

Replacement Parts

Replacement Parts
Part No. Description
1. photo:FM2027-01 FM2027-01 FM2027 Hand piece with Parts 2, 3, 5 and 6 included Buy
2. photo:FM2027-02 FM2027-02 FM2027 Connector Assembly Only Buy
3. photo:B3216 B3216 Yellow Anti-Bacterial Sleeve (not included with FM2027-02 Buy
4. T15 Series Tips T15 Series Tips Please see the Tips Tab for T15 Series

Tech Tips

Category Title
How to use Select Tip Shape
How to use Difference between BC/C type and BCF/CF type
How to use Combinations of handpieces and soldering tips for the FM/FX series
Maintenance Why doesn't solder flow evenly onto a tip though it is brand-new?
Maintenance If solder does not flow onto the tip...
Maintenance Tip life
Maintenance Why do tips oxidize easily when they are used with lead-free solder?
Top Tips Top Tips for Successful Soldering and De-Soldering Processes

Videos

Preview Title
HAKKO FM-2027/FM-2028; removing/inserting a tip removing/inserting a tip
Weight 0.1213 kg
