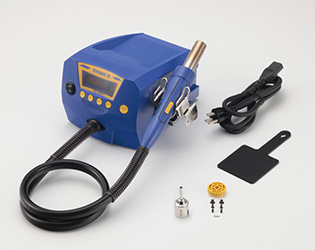

FR-810B High power Hot Air Rework Station.

SKU: HFR810B-17

Hakko
Availability:

Available for order*


  • 670W high power and large volume hot air improves work efficiency.
  • Vacuum pick up function for easy and safe removal of components.
  • Possible to make a simple thermal profile by Chain Presets function

£671.78 Excl. VAT

Available for order*

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

For customers in the Republic of Ireland, please contact us for a quote including shipping and customs charges.

Request quote

FR810B Hot Air Rework Station a tool that can provide powerful hot airflow for repairing high heat capacity circuit boards that require high output

FR810B-17 High power Hot Air Rework Station Features

High power and large air volume
Further evolution of SMD rework station

High power and large volume hot air for quick removal of components

A tool that can provide powerful hot airflow for repairing high heat capacity circuit boards that require high blow volume and high output, and sufficient hot airflow for appropriate blow volume and high output for high-density mounting substrates.

High power and large air volume

Efficiency improvement

The high volume airflow and high output of HAKKO FR810B Hot Air Rework Station. make it possible to perform the same work in only one-third of the time required when using a conventional model. This reduces the thermal impact on boards and components.

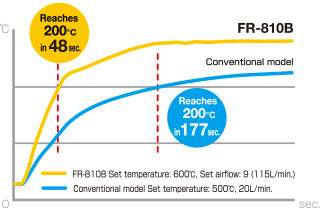

graph

* Examination of time taken for connector sections soldered onto a ceramic board to be heated to 200°C with maximum temperature and airflow settings selected.

* Single nozzles with an approximately 4mm diameter were used.

Improvements

On top of the features of HAKKO FR810, high power and large air volume, the new functions of vacuum pickup and pickup indicator have been given to HAKKO FR810B Hot Air Rework Station.
The 2 new functions make it possible to remove a component without damaging PWB.

New type of nozzles for improvement of temperature characteristics
The new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzle)New type of nozzles for improvement of temperature characteristics
Vacuum pickup function
The vacuum pickup function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints.
This can avoid an error to peel off the land by removing a component with excessive force.
Vacuum pickup function
Pickup indicator
By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible.Pickup indicator

Use conventional HAKKO nozzles

Align the projection part, attach the conventional nozzle to the heater pipe.

Use conventional HAKKO nozzles

*The heater pipe of HAKKO FR810 (discontinued) has two projection parts. In order to use the conventional nozzle, put the conversion adaptor on the heater pipe that was included in your purchased HAKKO FR810 as one of standard accessories.

Simple nozzle removal and easy maintenance

Nozzles can be quickly changed for many different types of components.
In addition, conventional nozzles are compatible. Heaters can also be easily and securely replaced.

Quick-change N51 nozzlesSimple heater replacement
Quick-change N51 nozzlesSimple heater replacement
Simple, tool-free removal and attachment.Simply remove four screws to replace heater.

Timer function

Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.

Chain presets function for making a simple thermal profile

The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps) This can improve work efficiency a lot by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.

Chain presets function for making a simple thermal profile
Chain presets function for making a simple thermal profileChain presets function

Auto sleep and auto shutoff features

FR810B-17 High power Hot Air Rework Station.To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically.
If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off.
Access to settings can be restricted by the password function.

With the use of Grip fixture, HAKKO C5027 Board holder and HAKKO Bottom heater, work conditions can be controlled even more strictly.

A low cost rework system can be assembled with a bottom heater, a grip fixture, and a HAKKO C5027 Board holder.

FR810B-17 High power Hot Air Rework Station.

FR810B-17 Hot Air Rework Station - Grip Fixture MGrip Fixture M

Recommended if a bottom heater is not required or in case of use of a bottom heater other than the dedicated model for FR-811.

FR810B-17 Hot Air Rework Station - Board HolderHAKKO C5027 Board holder

Makes it easy to set and remove a PWB and to make fine adjustments after setting.

FR810B-17 Hot Air Rework Station - Board ClipBoard Clip

Accepts even irregular-shaped PWB.

FR810B-17 Hot Air Rework Station - Board Support UnitBoard Support Unit

Supports PWB from underneath to minimize warping.

Packing List

Model No.Packing List
FR-810BStation with handpiece, Nozzle (Φ 4 mm), Handpiece holder, Vacuum pipe control knob L (with screw), Pads (qty 2 each of Ø3 mm, Ø5 mm, Ø7.6 mm), Heat resistant pad, Power Cord, Temperature distribution chart, Instruction manual FR-810B

Specifications

Model No.FR-810B
Power consumptionAC100V:700W AC110V:840W AC120V:820W AC220V:1,100W AC230V:1,200W AC240V:1,300W
Temperature range50 to 600ºC

Station

Power consumption30W
Air flow1-9 (5 to 115L/min)
Dimensions160(W)×145(H)×220(D)mm
Weight1.5kg

Handpiece (Hot air)

Power consumptionAC100V:670W AC110V:810W AC120V:790W AC220V:1,070W AC230V:1,170W AC240V:1,270W
Standard nozzleΦ4mm (No.N51-02)
Total length250mm
Weight180g
* Total length and weight for handpiece (w/o cord, standard nozzle) * Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.

FR-811 Hot Air Tool Nozzles

N51 Series

ImagePart No.DescriptionAvailability
N51-50 Nozzle SET (Includes N51-01, N51-03, N51-04, N51-05)N51-50Nozzle SET (Includes N51-01, N51-03, N51-04, N51-05)Buy Now
N51-01 Nozzle/Single 2.5mmN51-01Nozzle/Single 2.5mmBuy Now
N51-02 Nozzle/Single 4mmN51-02Nozzle/Single 4mmBuy Now
N51-03 Nozzle/Single 5.5mmN51-03Nozzle/Single 5.5mmBuy Now
N51-04 Nozzle/Single 7mmN51-04Nozzle/Single 7mmBuy Now
N51-05 Nozzle/BENT SingleN51-05Nozzle/BENT SingleBuy Now
N51-10 Nozzle/BGA 4mmX4mmN51-10Nozzle/BGA 4mmX4mmBuy Now
N51-11 Nozzle/BGA 6mmX6mmN51-11Nozzle/BGA 6mmX6mmBuy Now
N51-12 Nozzle/BGA 8mmX8mmN51-12Nozzle/BGA 8mmX8mmBuy Now
N51-13 Nozzle/BGA 10mmX10mmN51-13Nozzle/BGA 10mmX10mmBuy Now
N51-14 Nozzle/BGA 12mmX12mmN51-14Nozzle/BGA 12mmX12mmBuy Now
N51-15 Nozzle/BGA 14mmX14mmN51-15Nozzle/BGA 14mmX14mmBuy Now
N51-16 Nozzle/BGA 15mmX15mmN51-16Nozzle/BGA 15mmX15mmBuy Now
N51-17 Nozzle/BGA 17mmX17mmN51-17Nozzle/BGA 17mmX17mmBuy Now
N51-18 Nozzle/BGA 18mmX18mmN51-18Nozzle/BGA 18mmX18mmBuy Now
N51-19 Nozzle/BGA 20mmX20mmN51-19Nozzle/BGA 20mmX20mmBuy Now
N51-20 Nozzle/BGA 22mmX22mmN51-20Nozzle/BGA 22mmX22mmBuy Now
N51-21 Nozzle/BGA 24mmX24mmN51-21Nozzle/BGA 24mmX24mmBuy Now
N51-22 Nozzle/BGA 27mmX27mmN51-22Nozzle/BGA 27mmX27mmBuy Now
N51-23 Nozzle/BGA 29mmX29mmN51-23Nozzle/BGA 29mmX29mmBuy Now
N51-24 Nozzle/BGA 35mmX35mmN51-24Nozzle/BGA 35mmX35mmBuy Now
N51-25 Nozzle/BGA 38mmX38mmN51-25Nozzle/BGA 38mmX38mmBuy Now
N51-26 Nozzle/BGA 40mmX40mmN51-26Nozzle/BGA 40mmX40mmBuy Now
N51-01 Nozzle/Single 2.5mmN51-01Nozzle/Single 2.5mmBuy Now
N51-02 Nozzle/Single 4mmN51-02Nozzle/Single 4mmBuy Now

Conventional Type

Note: Conventional Nozzles require the adaptor B5058
ImagePart No.DescriptionAvailability
B5058 Adaptor for Conventional Type NozzlesB5058Adaptor for Conventional Type NozzlesBuy Now
A1124B Nozzle/Single 2.5mmA1124BNozzle/Single 2.5mmBuy Now
A1125B Nozzle/QFP 10mmX10mmA1125BNozzle/QFP 10mmX10mmBuy Now
A1126B Nozzle/QFP 14mmX14mmA1126BNozzle/QFP 14mmX14mmBuy Now
A1127B Nozzle/QFP 17.5mmX17.5mmA1127BNozzle/QFP 17.5mmX17.5mmBuy Now
A1128B Nozzle/QFP 14mmX20mmA1128BNozzle/QFP 14mmX20mmBuy Now
A1129B Nozzle/QFP 28mmX28mmA1129BNozzle/QFP 28mmX28mmBuy Now
A1130 Nozzle/Single 4.4mmA1130Nozzle/Single 4.4mm
A1131 Nozzle/SOP 4.4mmX10mmA1131Nozzle/SOP 4.4mmX10mmBuy Now
A1132 Nozzle/SOP 5.6mmX13mmA1132Nozzle/SOP 5.6mmX13mmBuy Now
A1133 Nozzle/SOP 7.5mmX15mmA1133Nozzle/SOP 7.5mmX15mmBuy Now
A1134 Nozzle/SOP 7.5mmX18mmA1134Nozzle/SOP 7.5mmX18mmBuy Now
A1135B Nozzle/PLCC 17.5mmX17.5mm (44PINS)A1135BNozzle/PLCC 17.5mmX17.5mm (44PINS)Buy Now
A1136B Nozzle/PLCC 20mmX20mm (52 PINS)A1136BNozzle/PLCC 20mmX20mm (52 PINS)Buy Now
A1137B Nozzle/PLCC 25mmX25mm (68 PINS)A1137BNozzle/PLCC 25mmX25mm (68 PINS)Buy Now
A1138B Nozzle/PLCC 30mmX30mm (84 PINS)A1138BNozzle/PLCC 30mmX30mm (84 PINS)Buy Now
A1139B Nozzle/PLCC 12.5mmX7.3mm (18PINS)A1139BNozzle/PLCC 12.5mmX7.3mm (18PINS)Buy Now
A1140B Nozzle/PLCC 11.5mmX11.5mm (28PINS)A1140BNozzle/PLCC 11.5mmX11.5mm (28PINS)Buy Now
A1141B Nozzle/PLCC 11.5mmX14mm (32 PINS)A1141BNozzle/PLCC 11.5mmX14mm (32 PINS)Buy Now
A1142B Nozzle/BENT SingleA1142BNozzle/BENT SingleBuy Now
A1180B Nozzle/BQFP 17mmX17mmA1180BNozzle/BQFP 17mmX17mmBuy Now
A1181B Nozzle/BQFP 19mmX19mmA1181BNozzle/BQFP 19mmX19mmBuy Now
A1182B Nozzle/BQFP 24mmX24mmA1182BNozzle/BQFP 24mmX24mmBuy Now
A1183 Nozzle/SOJ 15mmX8mmA1183Nozzle/SOJ 15mmX8mmBuy Now
A1184B Nozzle/SOJ 18mmX8mmA1184BNozzle/SOJ 18mmX8mmBuy Now
A1185B Nozzle/TSOL 13mmX10mmA1185BNozzle/TSOL 13mmX10mmBuy Now
A1186B Nozzle/TSOL 18mmX10mmA1186BNozzle/TSOL 18mmX10mmBuy Now
A1187B Nozzle/TSOL(TSOP) 18.5mmX8mmA1187BNozzle/TSOL(TSOP) 18.5mmX8mmBuy Now
A1188B Nozzle/PLCC 9mmX9mm (20PINS)A1188BNozzle/PLCC 9mmX9mm (20PINS)Buy Now
A1189B Nozzle/PLCC 34mmX34mm (100PINS)A1189BNozzle/PLCC 34mmX34mm (100PINS)Buy Now
A1190 Nozzle/DUAL Single 2.5mmX9.5mm PITCHA1190Nozzle/DUAL Single 2.5mmX9.5mm PITCHBuy Now
A1191 Nozzle/SIP 25LA1191Nozzle/SIP 25LBuy Now
A1192 Nozzle/SIP 50LA1192Nozzle/SIP 50LBuy Now
A1203B, BQFP-196, 35x35mm Hot Air NozzleA1203BNozzle/QFP 35mmX35mmBuy Now
A1214B, SOJ, 27x12mm Hot Air NozzleA1214BNozzle/SOJ 10mmX26mmBuy Now
A1215B, QFP, 42.5x42.5mm Hot Air NozzleA1215BNozzle/QFP 42.5mmX42.5mmBuy Now
A1257B, SOP, 21.0x11.7mm Hot Air NozzleA1257BNozzle/SOP 11mmX21mmBuy Now
A1258B, SOP, 11.7x8mm Hot Air NozzleA1258BNozzle/SOP 7.6mmX12.7mmBuy Now
A1259B, SOP, 29.0x13.5mm Hot Air NozzleA1259BNozzle/SOP 13mmX28mmBuy Now
A1260B, SOP, 19.0x8.7mm Hot Air NozzleA1260BNozzle/SOP 8.6mmX18mmBuy Now
A1261B Nozzle/QFP 20mmX20mmA1261BNozzle/QFP 20mmX20mmBuy Now
A1262B, QFP, 12.2x12.2mm Hot Air NozzleA1262BNozzle/QFP 12mmX12mmBuy Now
A1263B, QFP, 27.9x39.9mm Hot Air NozzleA1263BNozzle/QFP 28mmX40mmBuy Now
A1264B, QFP, 40.4x40.4mm Hot Air NozzleA1264BNozzle/QFP 40mmX40mmBuy Now
A1265B, QFP, 32.2x32.2mm Hot Air NozzleA1265BNozzle/QFP 32mmX32mmBuy Now
A1470, BGA, 9x9x12.4(h)mm Hot Air NozzleA1470/BGA 8mmX8mmBuy Now
A1471, BGA, 13x13x12.4(h)mm Hot Air NozzleA1471/BGA 12mmX12mmBuy Now
A1472 /BGA 13mmX13mmA1472/BGA 13mmX13mmBuy Now
A1473 /BGA 15mmX15mmA1473/BGA 15mmX15mmBuy Now
A1474 /BGA 18mmX18mmA1474/BGA 18mmX18mmBuy Now
A1475A1475/BGA 27mmX27mmBuy Now
A1476/BGA 35mmX35mmBuy Now
A1477/BGA 38mmX38mmBuy Now
A1478/BGA 40mmX40mmBuy Now
A1325, Dual, 1.5x5-10mm Adjustable Hot Air NozzleA1325/5-10mm Adjustable PitchBuy Now

Recommended Extras for the FR-810B

ImagePart NumberDescriptionAvailability
B5058 Adaptor for Conventional Type NozzlesB5058Adaptor for Traditional NozzlesBuy Now
Traditional Nozzle Holder
C5024 UnderBoard Heater for the FR811C5024Underboard HeaterBuy Now
C5027 Board HolderC5027Board HolderBuy Now
C5028 Rework FixtureC5028Grip Fixture SBuy Now
C5029 Rework FixtureC5029Grip Fixture LBuy Now
B5059 Adaptor / for fixture (C1392B)B5059Adaptor / for fixture (C1392B)Buy Now
B5127 Thermocouple 0.1mmB5127Thermocouple 0.1mmBuy Now
B5130 Heat Resistant TapeB5130Heat Resistant TapeBuy Now
FG100B Digital Thermometer
Hot Air Station Probe
FG-100B
C1541
Thermometer
Hot Air Station Probe
Buy Now
Buy Now
Tweezers TweezersFT640 / FT641TweezersBuy Now
Buy Now
106 Series Wire Processing Tools106 SeriesWire Processing ToolsBuy Now
SMF012P Flux PenSMF012PFlux PenBuy Now
FLU400DB Flux Cleaning SolventFLU400DBFlux Cleaning SolventBuy Now
Desolder BraidVariousDesolder BraidBuy Now
FA-430 Fume Extractor and Air PurifierFA-430Fume Extractor and Air PurifierBuy Now
Vacuum Pump Pick Up Tool393Vacuum Pump Pick Up ToolBuy Now
394-01 Battery Powered Vacuum Pump Pick Up Tool394Battery Powered Vacuum Pump Pick Up ToolBuy Now
FR830-13 PCB Underboard HeaterFR-830Under Board HeaterBuy Now

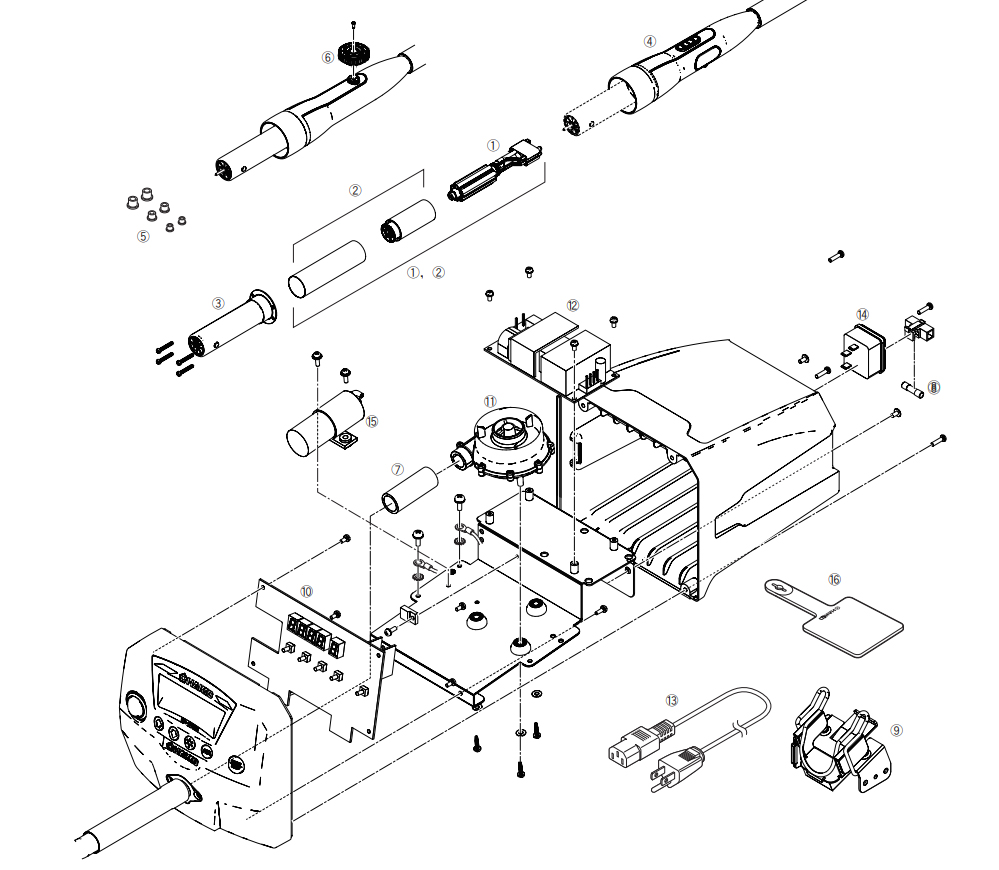

FR-810B Hot Air Station Spares and Replacement Parts

FR-810B Hot Air Station Spares and Replacement Parts
Ref.ImagePart No.DescriptionAvailability
1+2Heating Element AssemblyA5007Heating Element AssemblyBuy Now
1.A5024 Heating Element 220-240VA5024Heating Element 220-240VBuy Now
2.B5049 Mica with Heater Protection SleeveB5049Mica with heater protection sleeveBuy Now
3.B5045 PipeB5045PipeBuy Now
4.B5107 Handle With Cord AssemblyB5107Handle With Cord AssemblyBuy Now
5.Pad φ3mm
Pad φ5mm
Pad φ7.6mm
A1520
A1439
A1438
Pad φ3mm
Pad φ5mm
Pad φ7.6mm
Buy Now
Buy Now
Buy Now
6.B3023	Vacuum Pipe adjustment knob (L)B3023Vacuum Pipe adjustment knob (L)Buy Now
7.B5043 Joint HoseB5043Joint HoseBuy Now
8.B5060 Fuse 250V-6.3AB5060Fuse 250V-6.3ABuy Now
9.B5048 Handpiece HolderB5048Handpiece HolderBuy Now
10.B5108P.W.B 220-240VPlease Contact Us
11.B5052 FanB5052FanBuy Now
12.B5053 Power UnitB5053Power UnitBuy Now
13.B2425 Hakko British Standard PlugB2425Power Cord (British Plug)Buy Now
14.B2384 Power InletB2384Power InletBuy Now
15.B5092 PumpB5092PumpBuy Now
16.B2300 Heat Resistant PadB2300Heat Resistant PadBuy Now

Tech Tips

CategoryTitle
Top TipsTop Tips for Successful Soldering and De-Soldering Processes
Weight2.925 kg
