FA-430 HEPA Compact Fume Extraction Unit

SKU: HFA430-13

Hakko
Availability:

In stock


  • Compact and Quiet Fume Extraction Unit.
  • HEPA filter (High Efficiency Particulate Air Filter)
  • Filters out 99.97% of particles greater than 0.3m
  • Recommended for quiet laboratory and office
  • Duct Set NOT included, please purchase separatel

£794.35 Excl. VAT

In stock

Duct set (HAKKO C1571 Duct Set Rectangular Nozzle/HAKKO C1572 Duct Set Round Nozzle) is not included in FA-430 unit. Please purchase Duct set(s) when you order FA-430 unit.

FA-430 Compact Fume Extraction Unit

The Hakko FA430-13 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area using a HEPA (High Efficiency Particulate Air filter).

Its light, compact design and quiet operation make it ideal for laboratories or office spaces providing powerful fume extraction where full scale extraction is not an option.

Optional parts are available to negate the effect of air conditioning on the extraction airflow to further improve efficiency.

HEPA filter captures 99.97% of particles greater than 0.3m

FA430 Compact Fume Extraction Unit provides excellent filtering efficiency, 99.97% of particles greater than 0.3m, by HEPA filter.

FA430-13 HEPA Compact Fume Extraction Unit

FA430-13 HEPA Compact Fume Extraction UnitFA430-13 HEPA Compact Fume Extraction Unit

Quiet operation and powerful suction.

Exhaust noise has been reduced without sacrificing suction performance by the addition of a silencer unit to the exhaust outlet to ensure smooth air outflow. A high-performance motor with 1,500 Pa of static pressure provides powerful suction and quiet operation.

Noise level dB (A) Air volume m3/min
HIGH 53 4.7
MEDIUM 50 3.7
LOW 44 2.8
FA430-13 HEPA Compact Fume Extraction Unit

*Values measured when the unit was used with a 60 Hz power supply.

Catch harmful smoke with freestanding ducts and adjustable air volume to suit your working environment

Is your smoke absorber affected by air conditioning Are you fed up with having to re-adjust ducts after every line change The HAKKO FA-430 fume extractor is the answer to your problems.

Airflow adjustment

Three airflow modes are available: High, Medium, and Low. Significantly improve your working environment by using an airflow volume that suits the worksite and the job.

  • Low mode: Not easily affected by the surrounding environment. For use in small, quiet locations. (For when low-noise operation is a priority.)
  • Medium mode: For normal use.
  • High mode: For use in locations that are significantly affected by the surrounding environment. (For when suction performance is a priority.)

What do you mean by “surrounding environment”

Smoke flows in unexpected directions due to a variety of factors; not just because of the influence of air conditioning. High mode is recommended if your worksite is situated near a doorway, in a spot where people continuously pass by, near the exhaust outlet of a large machine, or in a similar location. It is possible to use low mode in laboratories and other places where these kinds of influences are limited.

Freestanding ducts

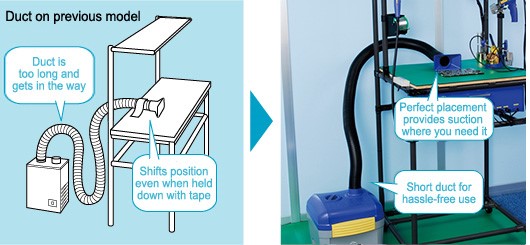

Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed. Say goodbye forever to ducts that are long, heavy, and hard-to-handle.

Length Weight
Duct for HAKKO FA-430 1.2m 0.6kg
FA430-13 HEPA Compact Fume Extraction Unit H K Wentworth - HAKKO UK and Ireland distributor
Photo above:
Bends and stretches freely for perfect placement!
Lightweight and compact, the HAKKO FA430 Compact Fume Extraction Unit weighs only 7.5 kg. Built-in handles allow the fume extractor to be moved easily, facilitating line changeovers.*HAKKO FA430 Compact Fume Extraction Unit weighs 35% less than previous models
H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor
If the duct is mounted directly above, it can be difficult to see the workpiece Duct is mounted on the worktable to provide excellent suction performance

H K Wentworth - HAKKO UK and Ireland distributor

Usage/Application

Proper installation of the pre-filter

  • Proper installation

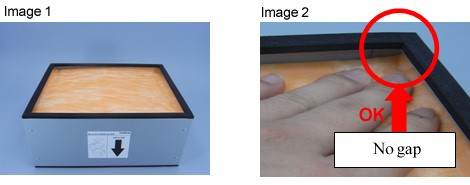

    Install the pre-filter inside the frame of the main filter as shown in image 1.
    Be sure to check that there are no gaps at the corners as shown in image 2.
    H K Wentworth - HAKKO UK and Ireland distributor
  • Improper installation

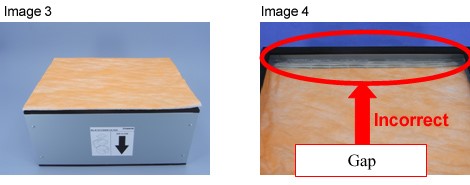

    If the pre-filter is not installed properly as shown in images 3 and 4, the main filter will degrade its original performance quickly.H K Wentworth - HAKKO UK and Ireland distributor

Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA430.

Packing List

Model No. Packing List
FA-430
  • Main unit,
  • Power cord (B2425)
  • Cap (B3619)
  • Main filter (A1573)
  • Pre-filters (x10) (A1572)
  • Instruction manual
Duct set (C1571/C1572) is NOT included in FA-430 unit. Please purchase Duct set(s) when you order FA-430 unit.
Model No. Packing List
Duct Set C1571 (With rectangular nozzle)
  • Duct (Φ 55mm x 1.2m)
  • Adapter (B3620)
  • Rectangular nozzle (B3622)
  • Net (B3625)
  • Instruction manual
Buy Now
Duct Set C1572 (With round nozzle)
  • Duct (Φ 55mm x 1.2m)
  • Adapter, (B3620)
  • Round nozzle (B3623)
  • Net, (B3625)
  • Instruction manual
Buy Now

Specifications

Model No. FA-430
Power consumption 110W
Noise level 50dB (MEDIUM mode)
Maximum suction capacity with single duct : MAX. 4.1m3/min. (145cfm) with two ducts : MAX. 4.7m3/min. (167cfm)
Filtering efficiency 99.97% 0.3µm (LOW, MEDIUM mode) 99.96% 0.3µm (HIGH mode)
Static pressure 1,500Pa
Duct set (sold separately) Length of duct : Φ55mm×1.2m (ESD SAFE)
Dimensions 330(W)×366(H)×343(D)mm
Weight 7.5kg
* Filtering efficiency is an initial value of collection efficiency based on counting method for airborne dust collected by a single plate of filter (unfolded). * Noise level is measured at a distance of 1 m from the face of unit in an anechoic room. * Net in duct sets are not protected against electrostatic discharge.

Optional / Recommended Extras

Images Part Number Description Availability
C1571 Duct Set Rectangular Nozzle C1571 Duct set with rectangular type nozzle Buy Now
C1572 Duct Set Round Nozzle C1572 Duct set with round type nozzle Buy Now
B3642 Duct φ55mmx1.2m B3642 Duct Φ55mm×1.2m Buy Now
B3620 Adapter B3620 Adapter Buy Now
B3621 Adapter 3 inch B3621 Adapter 3 inch Buy Now
B3622 Nozzle/rectangular type B3622 Nozzle/rectangular type Buy Now
B3623 Round Type Nozzle For the FA-430 B3623 Nozzle/round type Buy Now
B3625 Net (qty 5) B3625 Net (qty 5) Buy Now
B2410 Duct φ75mm x 2m B2410 Duct/2m Φ75mm×2m Buy Now
B2416 Duct band (qty 2) B2416 Duct band (qty 2) Buy Now
B2418 Bench Top Hood / Plenum Clear B2418 Bench top plenum/clear Buy Now
-When using an independent duct
Part No. Part Name Notes
B3642 Duct ø55 x 1.2 m photo:FH800-03SV Buy Now
B3620 Adapter For attaching duct to main unit. photo:FH800-03SV Buy Now
-Choose from one of 2 types of nozzles for the independent duct.
Part No. Part Name Notes
B3622 Nozzle, rectangular For absorbing smoke from the side. photo:FH800-03SV Buy Now
B3623 Nozzle, round For absorbing smoke from above photo:FH800-03SV Buy Now
B3625 Net (5 per pack) For preventing contaminants from being absorbed. (Mesh dimensions: Approx. 10 mm × 10 mm)photo:FH800-03SV Buy Now

-When using a bench top hood The benchtop hood detailed below requires the separate purchase of a different sized duct, duct band, and 3-inch adapter.
Part No. Part Name Notes
B2418 Benchtop hood For stopping smoke from escaping upwards without being affected by air conditioning. photo:FH800-03SV *Requires ø75 duct, duct band (B2416), and 3-inch adapter (B3621). Buy Now
B2410 Duct Required when using benchtop hood. photo:FH800-03SV *ø75 x 2 m. Not freestanding. Buy Now
B2416 Duct band Required when using benchtop hood. photo:FH800-03SV Buy Now
B3621 Adapter (for 3-inch duct) Required when using benchtop hood and ø75 duct. photo:FH800-03SV Buy Now

Replacement Parts

photo:FH800-03SV

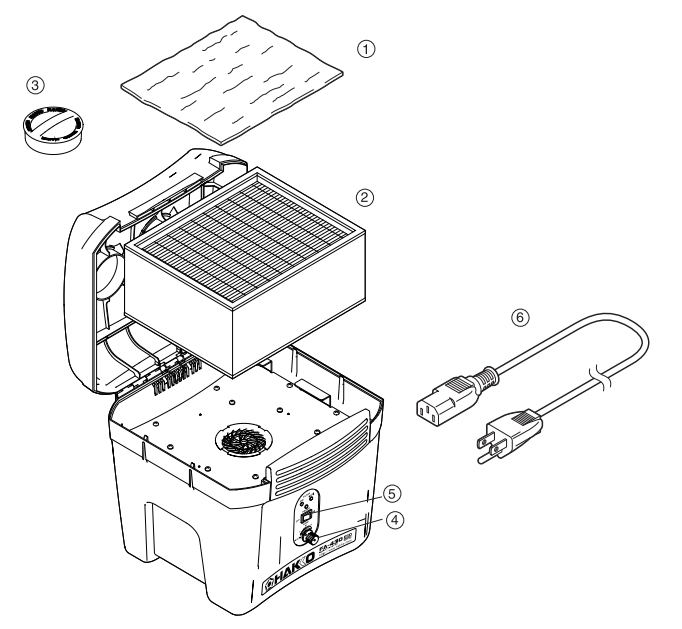

Part No. Name
A1572 Pre-Filters for the FA-430 (10 Pack) 1. A1572 Pre-filter (qty 10) Buy Now
A1573 Main Filter for the FA430 2. A1573 Main filter Buy Now
B3619 Cap 3. B3619 Cap Buy Now
photo:FH800-03SV 4. B1486 Knob
B2852 Power Switch 5. B2852 Power Switch Buy Now
B2425 Hakko British Standard Plug 6. B2425 Power Lead BS Plug Buy Now
Weight 10.369 kg
