FM2024-43 Desoldering Tool (Conversion Kit w/o DCB)

SKU: HFM2024-43

Hakko
Availability:

Low stock – Order soon


Conversion Kit for the FM203, FM204 and FM206 Stations
Includes FM2024 Desoldering tool and accessories (see packing list)
Integrated desoldering unit equipped with built-in heater provides excellent thermal recovery
Nozzle can be replaced with simple one-touch operation
May be Used together with an FM Series desoldering stations
Nozzles NOT Included, please purchase separately

£204.33 Excl. VAT

Low stock – Order soon

Integrated heater realizes great thermal recovery.
Nozzle can be replaced with simple pulling-out operation.
Choose station to suit the operation
Specifications vary by station combined.
– Vacuum pump type desoldering tool
HAKKO FM-204 Vacuum pump type
HAKKO FM-206(3-handpiece insertion, optional soldering, SMD rework possible)
– Distribution equipment for plant air or other type of compressed air is required.
HAKKO FM-202 (Discontinued Products)
HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)
Distribution equipment for plant air or other type of compressed air is required.
Two power receptacles are required.
One unit can serve dual usage of Gun/Straight configurations
The composite nozzle ensures superior thermal recovery
Lightweight design
ESD safe by design
H K Wentworth - HAKKO UK and Ireland distributor
Gun configuration
H K Wentworth - HAKKO UK and Ireland distributor
Straight configuration
Nozzle cartridge can be replaced even before the nozzle becomes cool.
H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor
Detach the nozzle remover. Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture. Pull the nozzle remover with the nozzle cartridge in one stroke.
2024-43 1. Iron holder: No.FH200-05 (with HAKKO 599B tip cleaner) 2. Cleaning drill (for heating element) 3. Filter pipe assembly (A1612) 4. Ceramic paper filter (10 pcs.) (B2873) 5. MODEL FM-2024 Desoldering tool (FM2024-02) 6. Handle (for gun configuration) (B2872) 7. Nozzle remover (B2876) 8. Connecting cable (B3253) * Nozzle is not included. Purchase your required size separately FM-202 FM-203 FM-204 FM-206

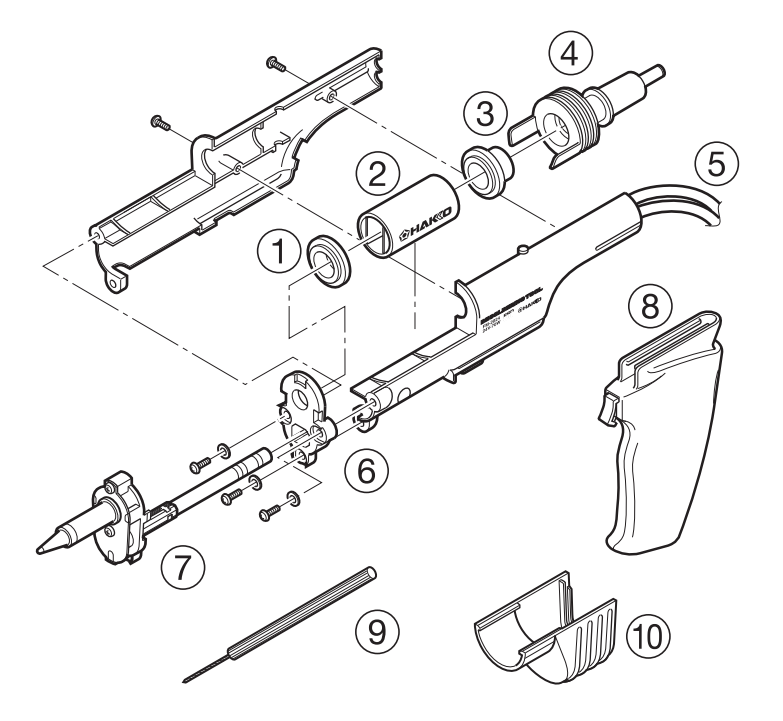

Part Number Description
photo:B2873 FM2024-02 Includes 1, 2, 3, 4, 5, 8 + 10 Buy
photo:A1512 1. A1512 Front Holder Buy
photo:A1512 2. A1612 Filter Pipe Buy
photo:B2873 3. A1513 Back Holder Bushing Buy
photo:B2873 4. B2878 Back Holder Buy
photo:B2873 5. B2877 Hose Buy
photo:B2873 6. B2879 Flange Buy
7. N3 Nozzle See Nozzles Tab
photo:B2872 8. B2872 Detachable Handle for Gun Buy
B2873 9. B2873 Heating Element Cleaning Drill Buy
photo:B2876 10. B2876 Nozzle Remover Buy
photo:B2936 B2936 Iron Socket With Thermister, Condensor Buy
B3238 Transformer 230V For the FM-2024 Buy

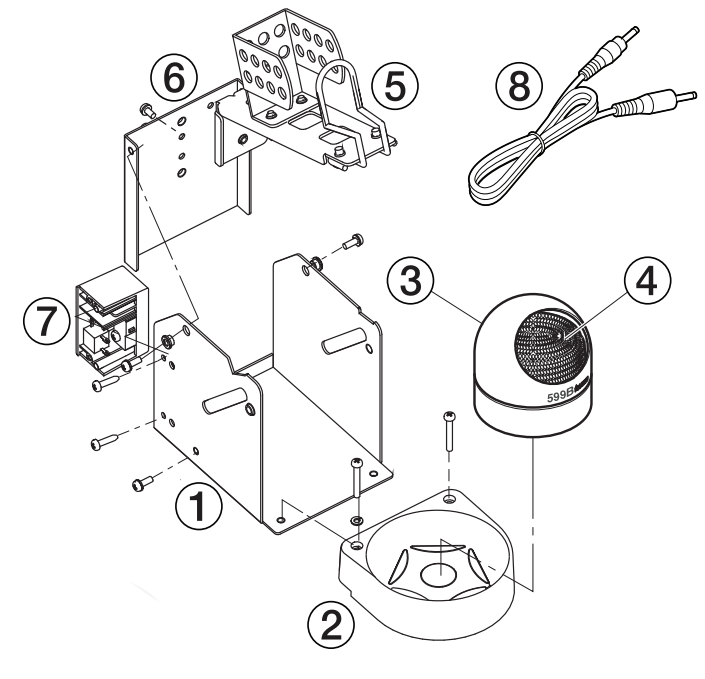

Part Number Description
photo:fh200-05 FH200-05 Includes 1-7 Buy
photo:fh200-05 1. B3251 Iron Holder Base Buy
photo:fh200-05 2. B3249 Cleaner Base Buy
photo:599B 3. 599B-02 Tip Cleaner Buy
4. 599-029 Cleaning Wire Buy
photo:B2873 5. B3413 Iron Holder Assembly Buy
photo:B2873 6. B3250 Stay Buy
photo:B2873 7. B3252 Switch Case Assembly Buy
photo:B2873 8. B3253 Connecting Cable Buy

Tech Tips

Category Title
Top Tips Top Tips for Successful Soldering and De-Soldering Processes
Weight 0.914 kg
