FM2026-06 Nitrogen Soldering Iron (Conversion Kit)

SKU: HFM2026-06

Hakko
Availability:

Available for order*


FM2026 Nitrogen Soldering Iron Conversion Kit
Used together with HAKKO FM-202, FM-203, FM-204, FM-205, FX-950, FX-951 and FX-952
Requires Nitrogen Source

£175.61 Excl. VAT

Available for order*

Note: Tips not included. Requires Nitrogen Source to function.

Conversion Kit :

Can be used in combination with your existing soldering station, the HAKKO FM-202, HAKKO FM-203, HAKKO FM-204, HAKKO FM-206,HAKKO FX-950, HAKKO FX-951, or with HAKKO FX-952.

The N2 gas and preheating effect have achieved significant improvement in soldering work!

N2 soldering iron providing 70W high output

Preheating effect
The hot N2 gas is effective for preheating.

Oxidation prevention

Nitrogen Generators sold separately:

N2 System
Can be used in combination with the HAKKO FX-780 and HAKKO FX-791 to create an N2 System.

Model No.

FM2026-02

FM2026-03

FM2026-04

Power consumption

70W (24V)

Temperature range

200 to 450°C

Tip to ground resistance

<2

Tip to ground potential

<2mV

Heating element

Composite heater

Cord length

1.2m

Total length

205mm (with 2.4D tip)

Weight

45g (with 2.4D tip and nozzle assembly C)

* Total length and weight (w/o cord, tube)
* Do not set the temperature over 400°C.

Part No.

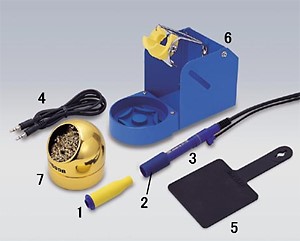

Packing List

No.FM2026-06

1. Sleeve assembly (B2769D)
2. Sleeve cover (B2974)
3. Connector assembly (FM2026-02)
4. Connecting cable (B3253)
5. Heat resistant pad (B2300)
6. Iron holder (FH200-01)
7. Cleaning wire 599B
8. Instruction manual (No photo)

NOTE:

This unit does not include neither a soldering tip nor a nozzle assembly. When purchasing this unit, please buy your desired soldering tip and with nozzle assembly together.

T17 Series

The soldering iron cannot be used alone.

NOTE:

Tip

Nozzle Required

Shape

Part Number

Nozzle Assembly

Part Number

2BC Bevel 2mm/45° x 11.5mm
2BCF Bevel 2mm/45° x 11.5mm
2BCM Concave 2mm/45° x 11.5mm

T17-BC2
T17-BCF2
T17-BCM2

Buy

Buy

Buy

A

B2706

Buy

0.2J Bent R0.2mm/30° x 3.5mm x 12mm

T17-J02

Buy

B

B2707

Buy

1.6D Chisel 1.6 x 10mm.
0.5B R0.5 x 10mm
2.4D Chisel 2.4mm x 10mm

T17-D16
T17-B2
T17-D24

Buy

Buy

Buy

C

B2708

Buy

0.8D Chisel 0.8 x 9.5mm

T17-D08

Buy

D

B2709

Buy

BL Long Conical Tip R0.2 x 12mm

T17-BL

Buy

E

B2898

Buy

1BC Bevel 1mm/45° x 11.5mm
1BCF Bevel 1mm/45° x 11.5mm

T17-BC1
T17-BCF1

Buy

F

B2899

Buy

3BC Bevel 3mm/45° x 10mm
3BCF Bevel 3mm/45° x 10mm
3BCM Concave 3mm/45° x 10mm

T17-BC3
T17-BCF3
T17-BCM3

Buy

Buy

Buy

G

B2900

Buy

KU Knife 3mm/45° x 11mm

T17-KU

Buy

H

B2901

Buy

KR Knife 4.7mm/45° x 15mm

T17-KR

Buy

I

B2902

Buy

KF Knife 4.7mm/45° x 17mm

T17-KF

Buy

J

B2923

Buy

Soldering Tip / Nozzle

T17 Series

Shape BC/C

T18-C05
T17-BC1 Bevel Soldering Tip 1mm/45° x 11.5mm
T18-C05
T17-BC2 Bevel Soldering Tip 2mm/45° x 11.5mm
T18-C05
T17-BC3 Bevel Soldering Tip 3mm/45° x 10mm

Shape B

T17-B2 Conical Soldering Tip R0.5 x 10mm
T17-BL Long Conical Tip R0.2 x 12mm

Shape BCM/CM

T18-C05
T17-BCM2 Concave Bevel Soldering Tip 2mm/45° x 11.5mm
T18-C05
T17-BCM3 Concave Bevel Soldering Tip 3mm/45° x 10mm

Optional / Recommended Extras

Part Number

Description

1. FX-780

Nitrogen Generator

Available to Buy: Contact Us

2. FX-791

Nitrogen Flow Meter

Available to Buy: Contact Us

3. FH200-01

Iron Holder

Buy

4. B2974

Sleeve Cover

Buy

5. B2769D

Sleeve Assembly Blue

Buy

6. B2300

Heat Resistant Pad

Buy

7. 599B

Tip Cleaner Wire

Buy

8. B3253

Connecting Cable

Buy

9. FG-100B

Digital Thermometer

Buy

10. FX-301B

Solder Bath

Buy

B2936

Iron Socket With Thermister, Condensor

Buy

Replacement Parts: FM2026-06

Part Number

Description

1. FM2026-02

Connector

Buy

2. B2974

Sleeve Cover

Buy

3. B2765D

Sleeve Assembly Yellow

Buy

3. B2769D

Sleeve Assembly Blue

Buy

4. -

T17 Tip

See Tips Tab

5. -

Nitrogen Tip Nozzle

See Tips Tab

6. B3253

Connecting Cable

Buy

6. B2300

Heat Resistant Pad

Buy

6. B3022

Nitrogen Tubing

Buy

Tech Tips

Category Title
How to use Select Tip Shape
How to use Difference between BC/C type and BCF/CF type
How to use HAKKO N2 system
How to use Combinations of handpieces and soldering tips for the FM/FX series
Maintenance Why doesn't solder flow evenly onto a tip though it is brand-new?
Maintenance If solder does not flow onto the tip...
Maintenance Tip life
Maintenance Why do tips oxidize easily when they are used with lead-free solder?
Top Tips Top Tips for Successful Soldering and De-Soldering Processes
Weight 0.7214 kg
