FM2024-35 Desoldering Tool (Conversion Kit with DCB)

SKU: HFM2024-35

Hakko
Availability:

Low stock – Order soon


  • Conversion Kit for the FM 203 and FM206 Stations
  • Includes FM2024 Desoldering tool and accessories (see packing list)
  • Integrated desoldering unit equipped with built-in heater provides excellent thermal recovery
  • Nozzle can be replaced with simple one-touch operation
  • May be Used together with an FM Series desoldering stations
  • Nozzles NOT Included, please purchase separately

£620.37 Excl. VAT

Low stock – Order soon

Integrated heater realizes great thermal recovery.
Nozzle can be replaced with simple pulling-out operation.
Choose station to suit the operation
Specifications vary by station combined.
– Vacuum pump type desoldering tool
HAKKO FM204 Vacuum pomp type
HAKKO FM206 (3-handpiece insertion, optional soldering, SMD rework possible)
– Distribution equipment for plant air or other type of compressed air is required.
HAKKO FM202 (Discontinued Products)
HAKKO FM203(2-handpiece insertion, optional soldering, SMD rework possible)
Distribution equipment for plant air or other type of compressed air is required.
Two power receptacles are required.
One unit can serve dual usage of Gun/Straight configurations
The composite nozzle ensures superior thermal recovery
Lightweight design
ESD safe by design



FM2024-35 Desoldering Tool (Conversion Kit with DCB)
Gun configuration
FM2024-35 Desoldering Tool (Conversion Kit with DCB)
Straight configuration



Nozzle cartridge can be replaced even before the nozzle becomes cool.
Hot nozzle can be replaced by nozzle cartridge by during work . Hot nozzle can be replaced by nozzle cartridge by during work . Hot nozzle can be replaced by nozzle cartridge by during work .
Detach the nozzle remover. Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture. Pull the nozzle remover with the nozzle cartridge in one stroke.

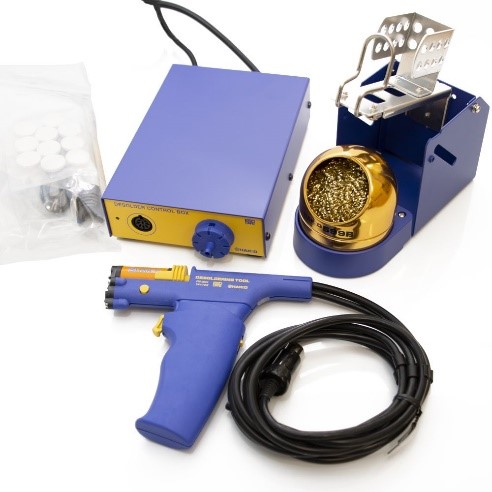

FM2024-35 Desoldering Tool (Conversion Kit with DCB)
  1. FM-2024 Desoldering tool (FM2024-02)
  2. Handle (for gun configuration) (B2872)
  3. Desolder Control Box (C1529)
  4. Iron holder: No.FH200-05 (with HAKKO 599B tip cleaner)
  5. Cleaning drill for heating element (B2873)
  6. Filter pipe assembly (A1612)
  7. Ceramic paper filter (10 pcs.) (B2873)
  8. Nozzle remover (B2876)
  9. Connecting cable (B3253)
* Nozzle is NOT included. Purchase your required size separately.

Soldering Tip / Nozzle

N3 Series

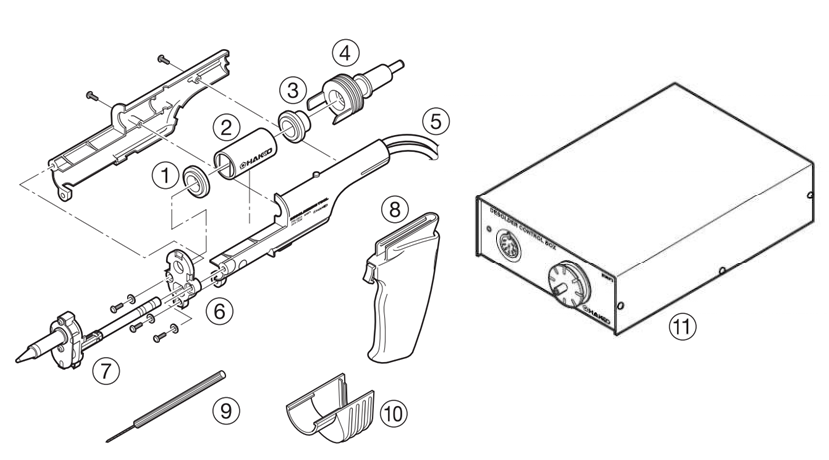

FM2024-35 Desoldering Tool (Conversion Kit with DCB)
Part Number Description
photo:B2873 FM2024-02 Includes 1, 2, 3, 4, 5, 8 + 10 Buy
photo:A1512 1. A1512 Front Holder Buy
A1612 2. A1612 Filter Pipe Buy
photo:B2873 3. A1513 Back Holder Bushing Buy
photo:B2873 4. B2878 Back Holder Buy
photo:B2873 5. B2877 Hose Buy
photo:B2873 6. B2879 Flange Buy
7. N3 Nozzle See Nozzles Tab
photo:B2872 8. B2872 Detachable Handle for Gun Buy
B2873 9. B2873 Heating Element Cleaning Drill Buy
photo:B2876 10. B2876 Nozzle Remover Buy

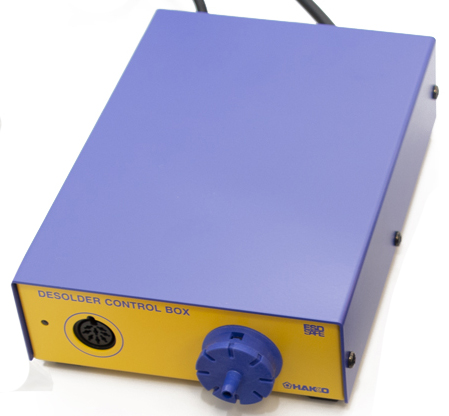

photo:599B 11. C1529 Desolder Control Box (DCB) Buy
photo:B2936 B2936 Iron Socket With Thermister, Condensor Buy
B2936 Iron Socket With Thermister, Condensor B3238 Transformer 230V For the FM-2024 Buy

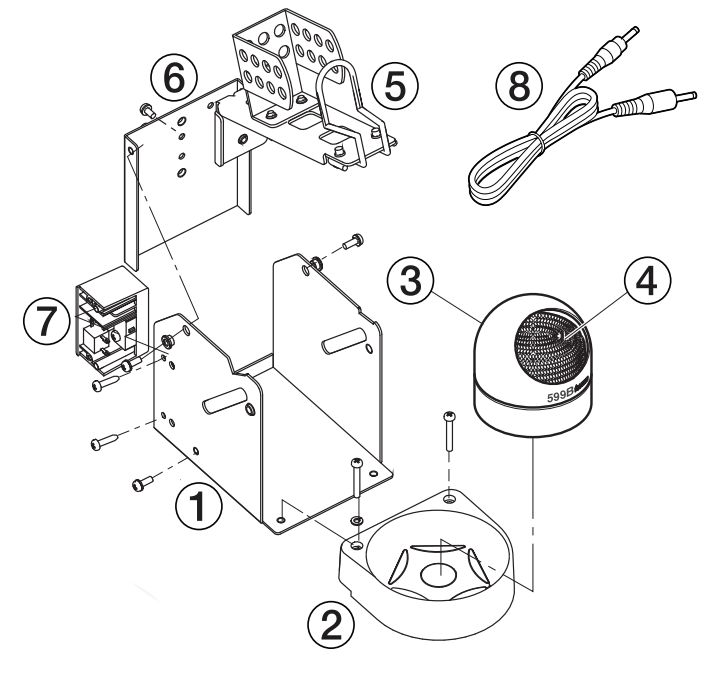

FM2024-35 Desoldering Tool (Conversion Kit with DCB)
Part Number Description
photo:fh200-05 FH200-05 Includes 1-7 Buy
photo:fh200-05 1. B3251 Iron Holder Base Buy
photo:fh200-05 2. B3249 Cleaner Base Buy
photo:599B 3. 599B-02 Tip Cleaner Buy
599B-02 Tip Cleaner 4. 599-029 Cleaning Wire Buy
photo:B2873 5. B3413 Iron Holder Assembly Buy
photo:B2873 6. B3250 Stay Buy
photo:B2873 7. B3252 Switch Case Assembly Buy
photo:B2873 8. B3253 Connecting Cable Buy

Option

Part No. Name Specifications
photo:B2874 B2874 Cleaning pin nozzle Φ0.6mm Buy
photo:B1086 B1086 Cleaning pin nozzle Φ0.8mm Buy
photo:B1088 B1088 Cleaning pin nozzle Φ1.3mm Buy
photo:B1089 B1089 Cleaning pin nozzle Φ1.6mm Buy
photo:B2875 B2875 Cleaning pin nozzle Φ2mm / 2.3mm Buy
photo:599B 599B HAKKO 599B tip cleaner Buy

Tech Tips

Category Title
How to use Combinations of handpieces and soldering tips for the FM/FX series
Top Tips Top Tips for Successful Soldering and De-Soldering Processes
Weight 2.732 kg
