FX951-SET1 Compact Soldering Station and T15 Soldering Tip Set

SKU: HFX951_SET1

Hakko
Availability:

In stock


Compact, high-powered, thermally-controlled soldering Station
75W AC 24V 200 to 450°C
Standard model ensures high thermal recovery needed for lead-free soldering
Comes with a FM2028 Soldering Iron and Iron Stand and 5 Tip set

£362.73 Excl. VAT

In stock

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

The FX951-SET1 Compact Soldering Station and T15 Soldering Tip Set includes a T15 tip set of T15-B2, T15-D12, T15-D16, T15-D32, T15-D52

Included as standard Option Option
Soldering iron
HAKKO FM2028
H K Wentworth - HAKKO UK and Ireland distributor
Powerful thermal recovery allows soldering at lower temperature settings. Lineup includes 85 types of standard soldering tips.Thermal Recovery Graph
(The comparison of HAKKO products)

H K Wentworth - HAKKO UK and Ireland distributor
N2 soldering iron
HAKKO FM2026
H K Wentworth - HAKKO UK and Ireland distributor
Improve solderability and wettability with the HAKKO N2system.N2 system reduces soldering defects!*Requires a variety of equipment in addition to the N2soldering iron.
Micro soldering iron
HAKKO FM2032
H K Wentworth - HAKKO UK and Ireland distributor
Specially designed handle and tip provide improved workability when mounting minute, high-density electronic components.*Can also be used with the following stations:

The FX951-SET1 Compact Soldering Station and T15 Soldering Tip Set includes a Carefully designed station

Our commitment to producing iron holders
H K Wentworth - HAKKO UK and Ireland distributor The angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.
It shows HAKKO’s commitment to soldering iron base stand which is used 100’s of times a day.

Three Features of the Soldering Iron HAKKO FM2028

Product Features

FH-2000
  • Interlock mechanism with the iron holder makes setting of the power-save setting easy.
  • Power-save function allows minute-by-minute setting. (up to 30 minutes)
    0-29mins. — Sleep mode,
    30 mins.— Auto-power, Shutoff
  • Enclosed type iron holder ensures safety.

Carefully designed iron and tip

Uses lock-type Sleeve Assembly soldering iron.
H K Wentworth - HAKKO UK and Ireland distributor

The optional HAKKO FM2026 and HAKKO FM2032 are not lockable

H K Wentworth - HAKKO UK and Ireland distributor
Composite tip
H K Wentworth - HAKKO UK and Ireland distributor The composite tip is a soldering tip integrated with heating element and sensor. Despite its highly compact design, the tip offers superior thermal responsivity and greatly improved thermal recovery.
Used in combination with a smoke absorber
Can be used in combination with the HAKKO 490 smoke cleaner or the HAKKO 494 smoke absorbing system for line-production.
Does not support the HAKKO FM2026 or HAKKO FM2032.
H K Wentworth - HAKKO UK and Ireland distributor

HAKKO 490
Model No. Packing List
No. FX951 Soldering Station (HAKKO FX-951), Soldering Iron (HAKKO FM-2028), Tip Set (T15-B2, T15-D12, T15-D16, T15-D32, T15-D52) Programming Card, Power Cord, Heat Resistant Pad, Iron Holder, Connecting cable, Instruction Manual (One of each unless specified)

Specifications

Model No. FX-951
Power consumption 75W
Temperature range 200 to 450ºC
Temperature stability ±5ºC at idle temperature

Station

Output voltage AC 24V
Dimensions 80(W)×130(H)×131(D)mm
Weight 1.2kg

Soldering Iron

Power consumption 70W (24V)
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 188mm (with 2.4D tip)
Weight 30g (with 2.4D tip)
* Total length and weight (w/o cord)

T15 Soldering Iron Tips

The FX951 is supplied with the FM2028 Soldering iron which uses T15 Tips.

T15 tips are used with the FM2027 and FM2028 Soldering irons used with stations FX951, FX952, FM203, FM204 and FM206. The T15 Series includes almost 100 varieties of tip shape and size covering any soldering or rework application. They are organised into groups by “shape”:


Tip Shape

Description

View Options

T15  "B Shape"

Standard conical tips for everyday use

View Options

T15  "BC / C  Shape"

This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece.

It is used for drag soldering and pre-tinning of lead wires.

View Options

T15  "D Shape"

Chisel shaped tips used for line and face soldering as well as narrow pitch.

View Options

T15 "I Shape"

Fine shaped tips for small workpieces.

View Options

T15  "J Shape"

Angled tip for face and point soldering

View Options

T15 "K Shape"

Knife Shape for line, face and point soldering. It is used for soldering at narrow pitches, correction of bridging and drag soldering.

View Options

T15 "R Shape"

Specialist “Slot” or Concave shape for through hole soldering. It is effective to avoid insufficient PTH fill.

View Options

T15  "SB Shape"

Specialist conical shapes

View Options

T15  "SMD Type Quad"

SMD type for removing QFPs

View Options

T15  "SMD Type Spatula"

SMD type for thermo-compression of P.W.B. and soldering shield cases or connectors

View Options

T15 "SMD Tunnel"

SMD type for removing SOPs

View Options

T15 "Special Applications"

Long chisel shape

View Options



The Below Tools can also be used with the FX951 and take the Tips in the table below:


Tool

Description

View Options

FM2026

T17 Soldering Iron Tips + Nitrogen Nozzle

View Options

FM2032

T30 Soldering Iron Tips

View Options

Hakko FX-951 Recommended Extras / Options

Part No. Name
photo:FM2026-03 FM2026-03 Nitrogen Soldering Iron for more efficient soldering. * *Requires Nitrogen Source such as Hakko Generator FX-780 Buy Now
photo:FM2032-52 FM2032-52 Micro-Soldering Iron Conversion Kit Buy Now
photo:B3217 B3217 Sleeve assembly Buy Now
photo:B3218 B3218 Sleeve assembly Buy Now
photo:B3219 B3219 Sleeve assembly Buy Now
photo:599B 599B-02 Tip Cleaner Buy Now
photo:B2756 B2756 Tip Tray / Holder Buy Now

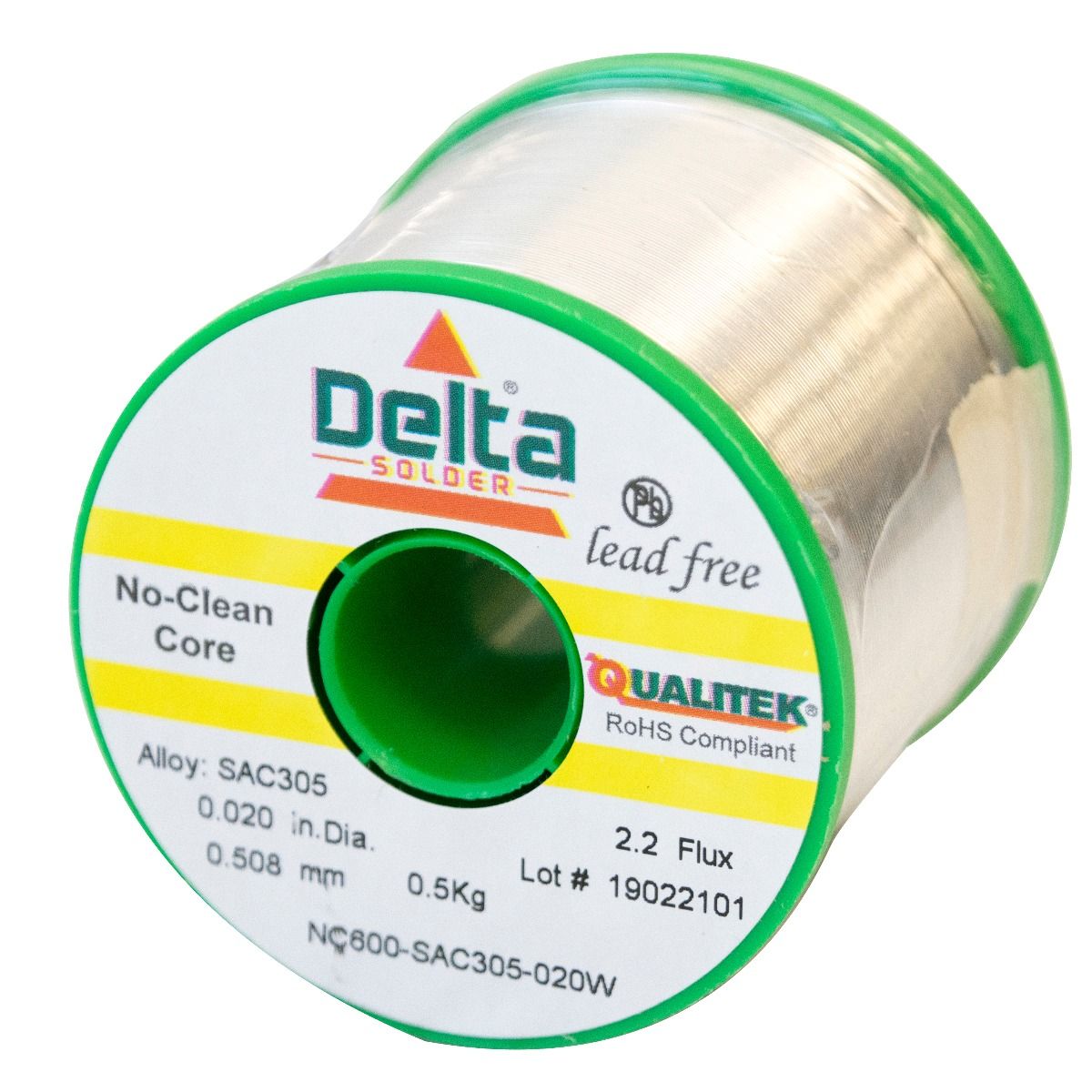

photo:Qualitek Soldering Wire Qualitek Soldering Wire Buy Now
photo:611-1 Soldering Wire Holder 611-1 Soldering Wire Holder Buy Now

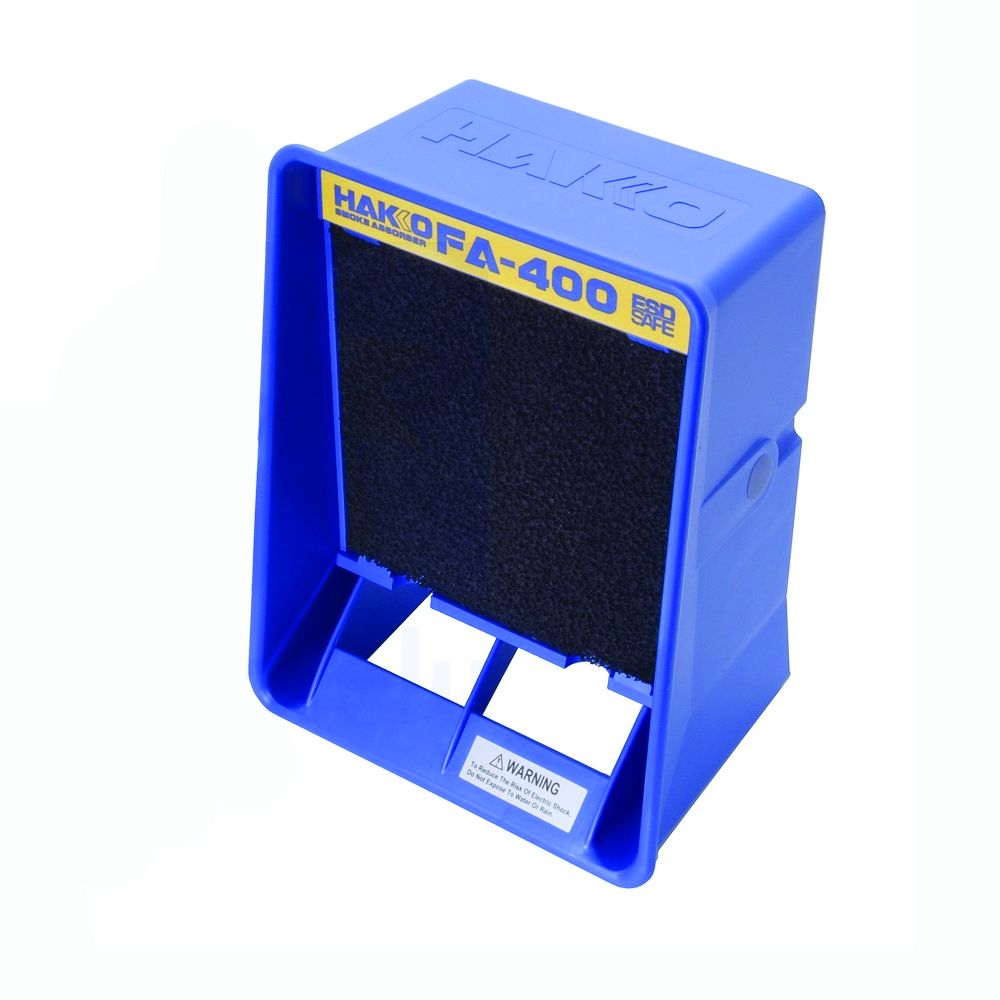

photo:FA-400 FA-400 Desk Top Fume Extractor Buy Now
photo:FG100B FG100B Tip Thermometer Buy Now

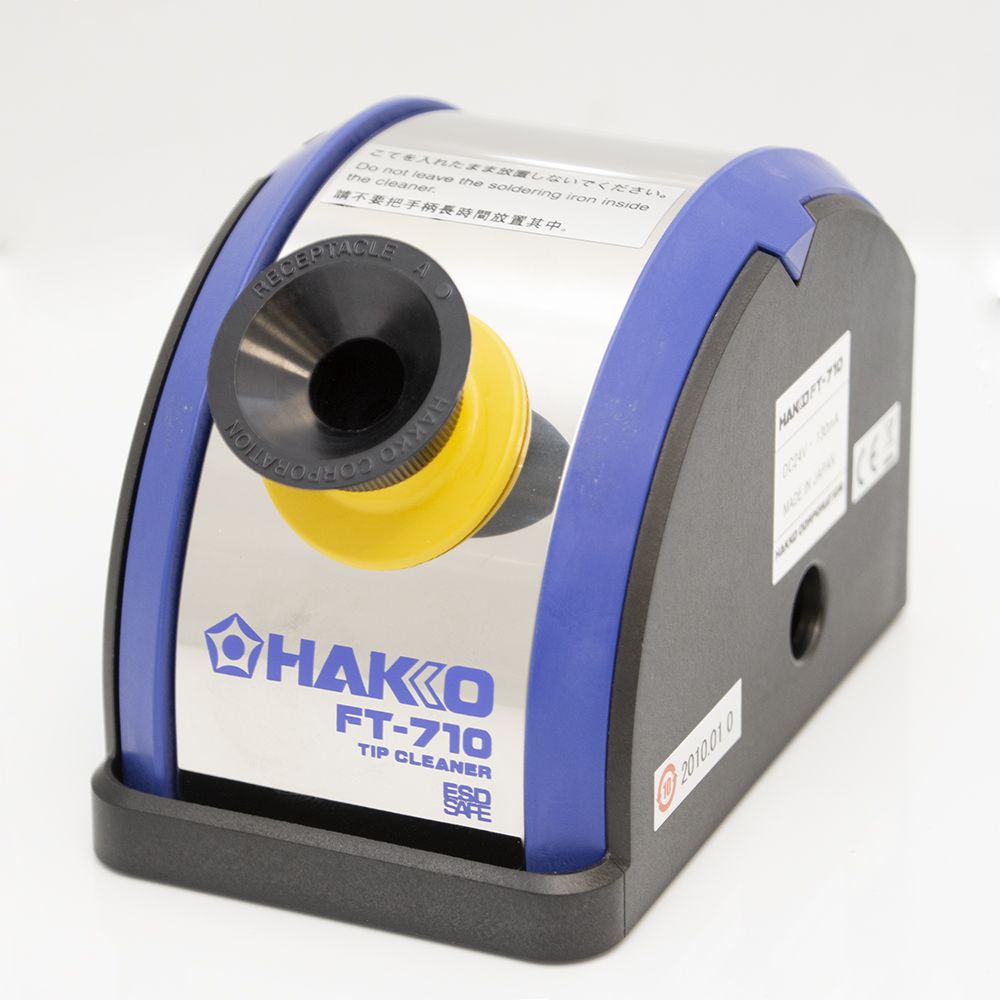

photo:FT-710 FT-710 Tip Cleaner Buy Now

FX951 Station Spare / Replacement Parts

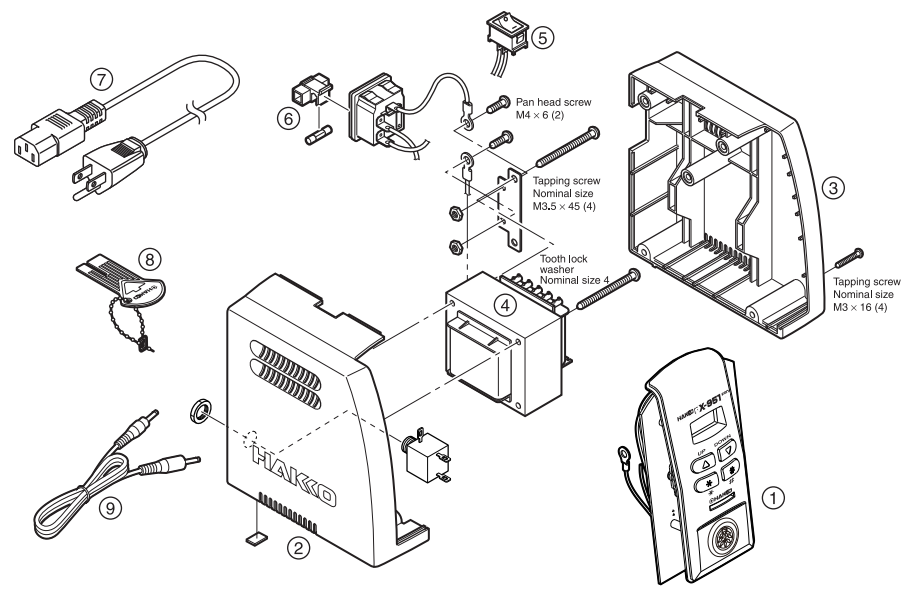

photo:Station
Ref. Image Part No Description Availability

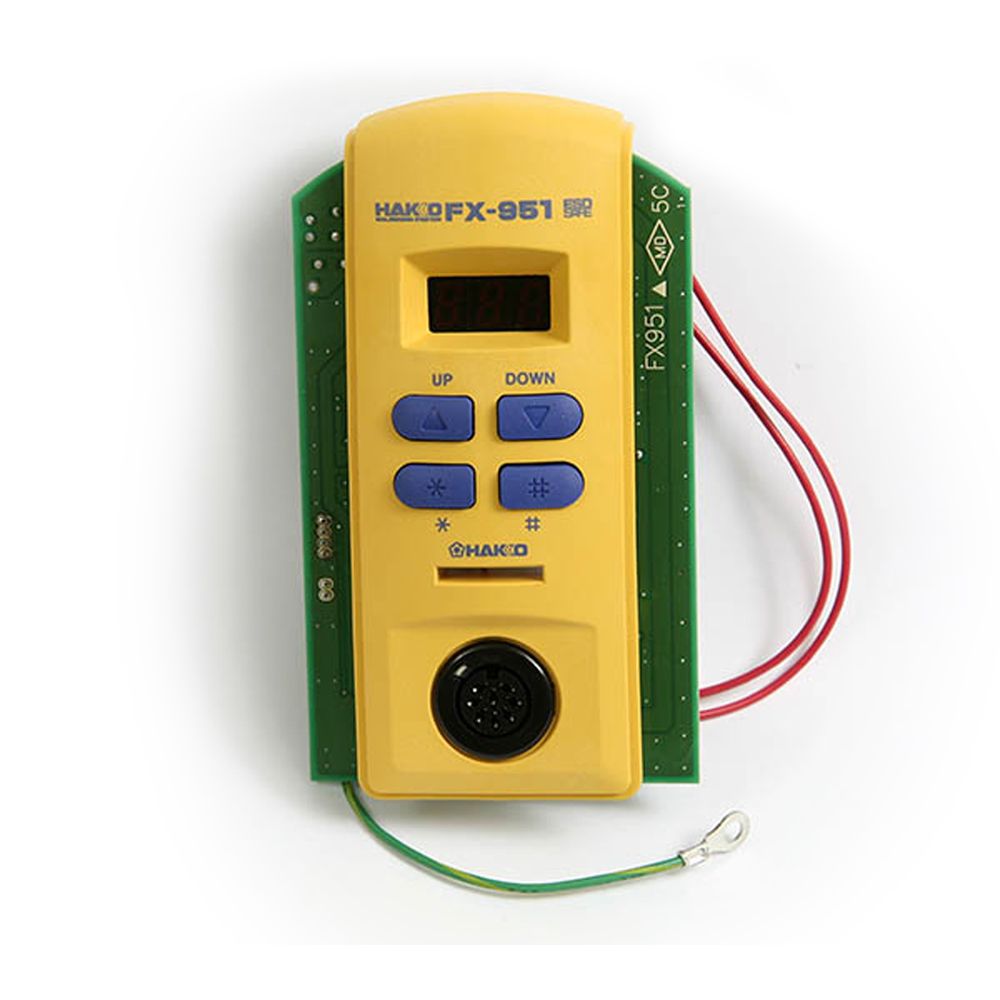

1 photo:b3732 B3732 Front Panel Assembly Buy Now

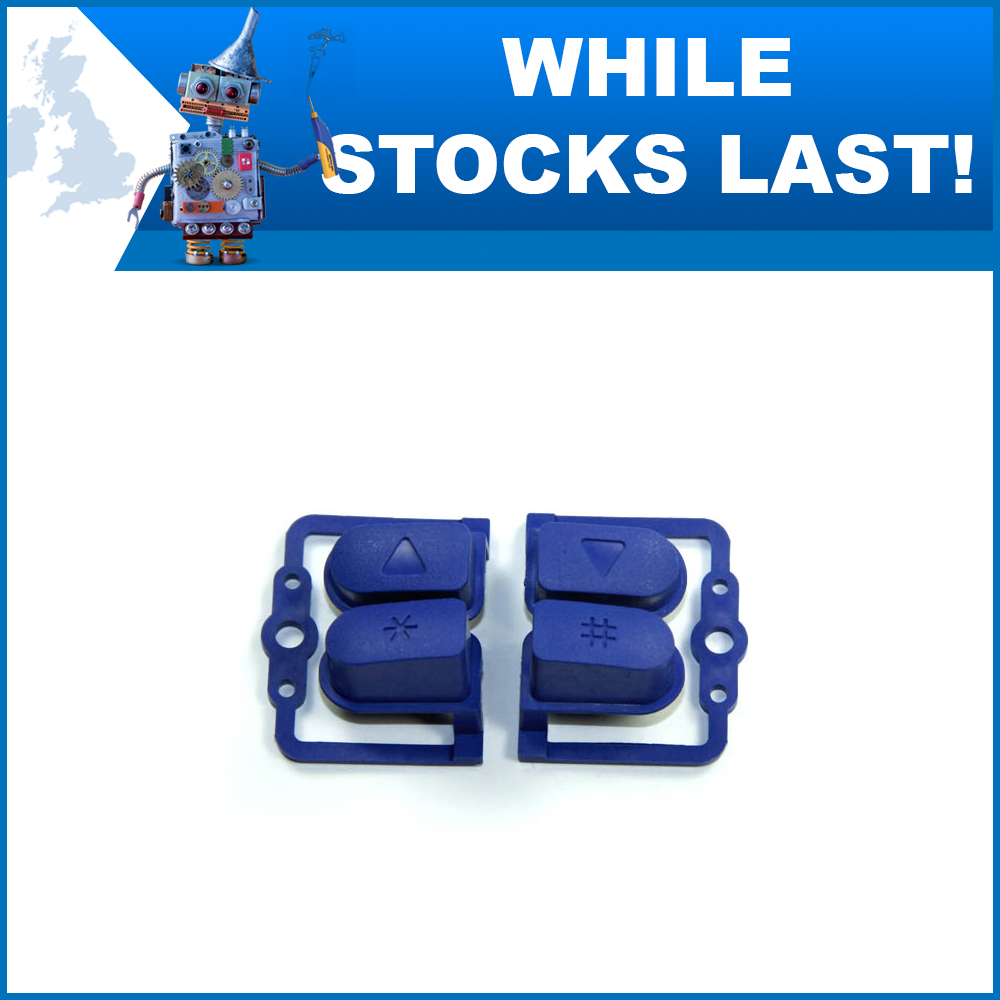

photo:B2982           B2982 Button Set For Front Panel Buy Now

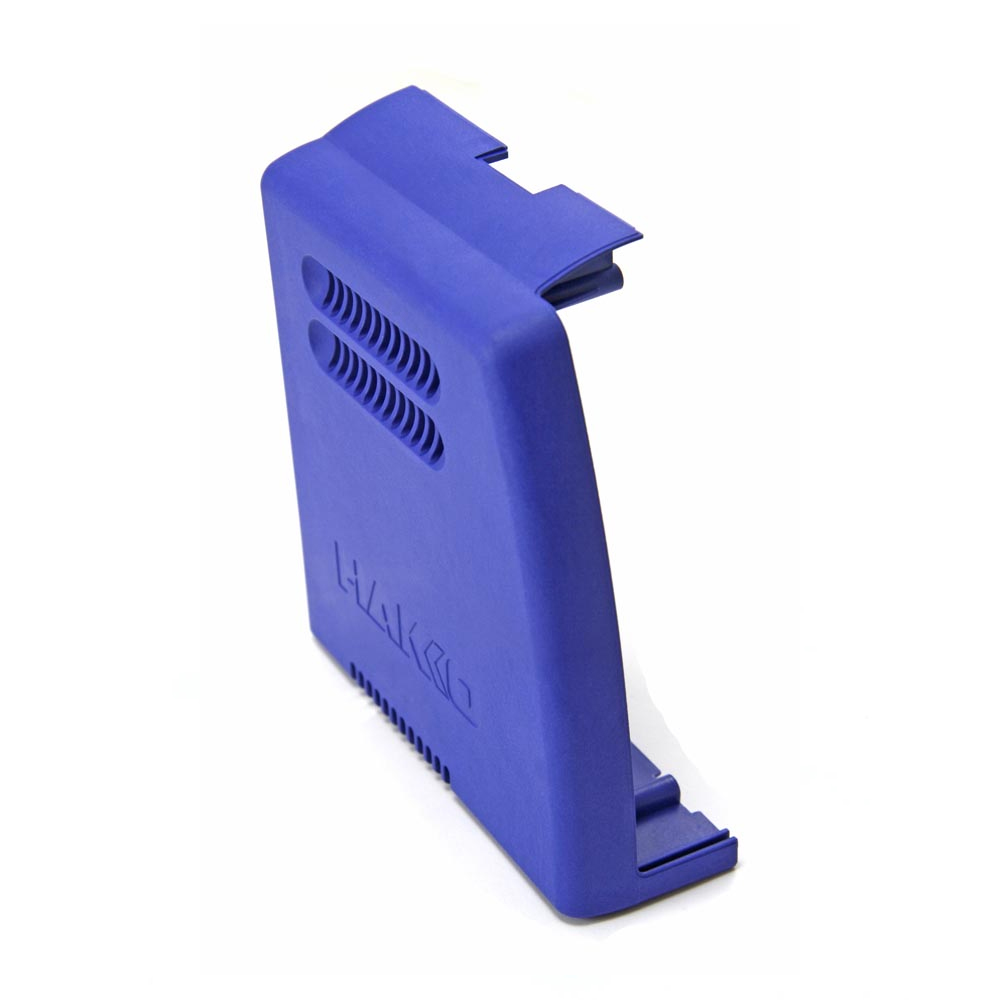

2. photo:B3255 B3255 Case Left Buy Now

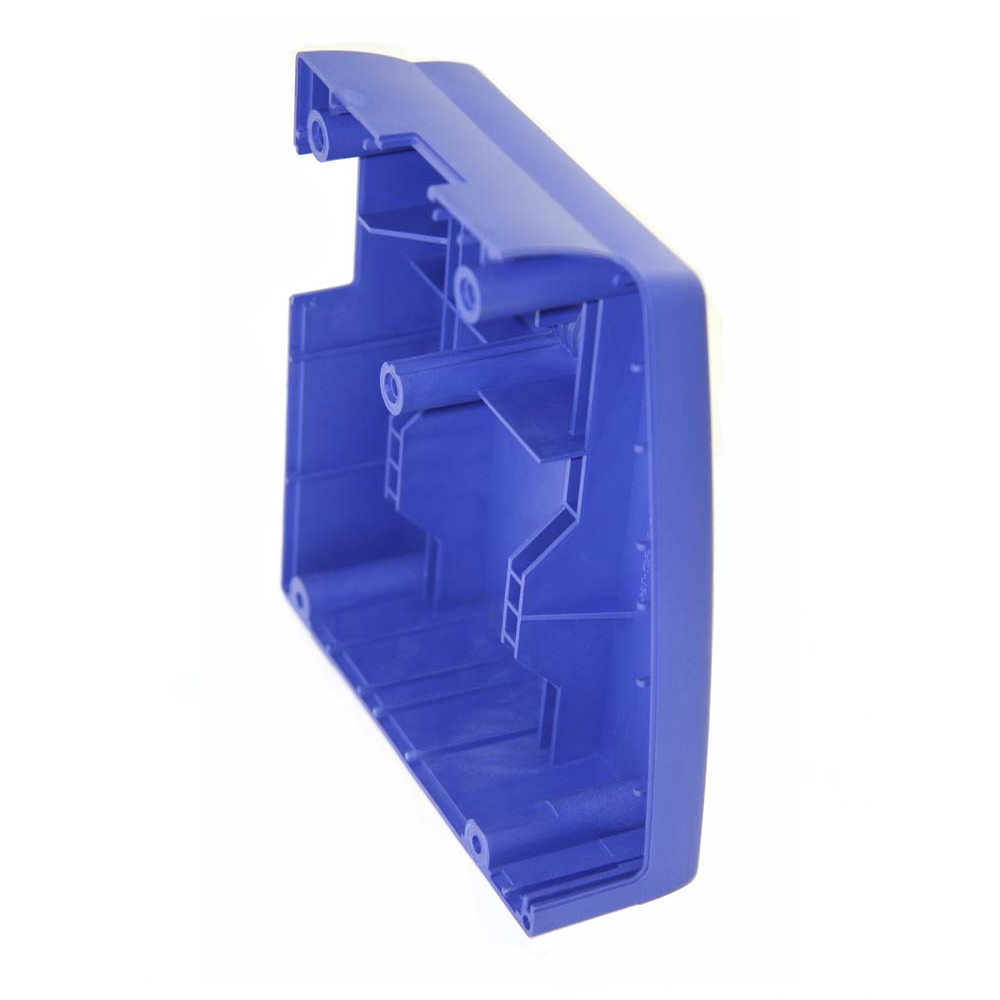

3. photo:B2978 B2978 Case Right Buy Now
4. B2985 for FX951 B2985 Transformer 230V Buy Now

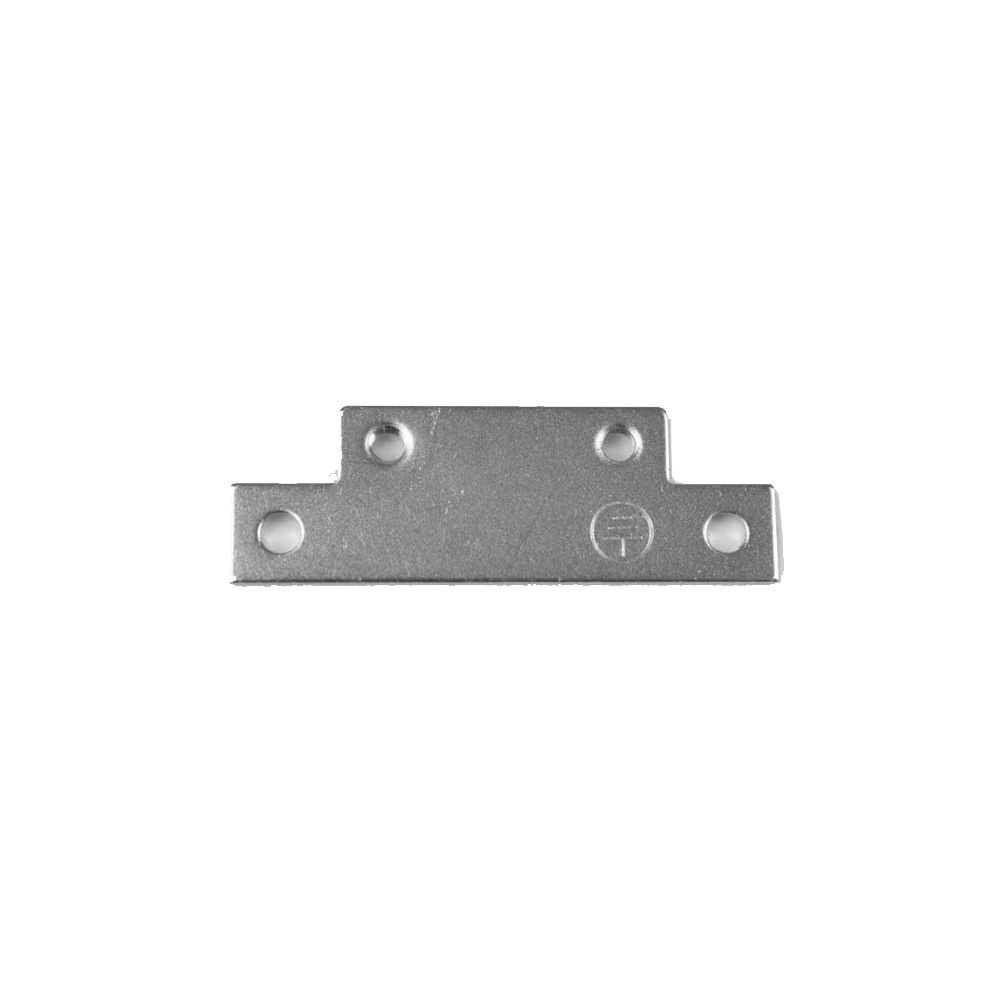

photo:B2227           B2227 Grounding Plate Buy Now

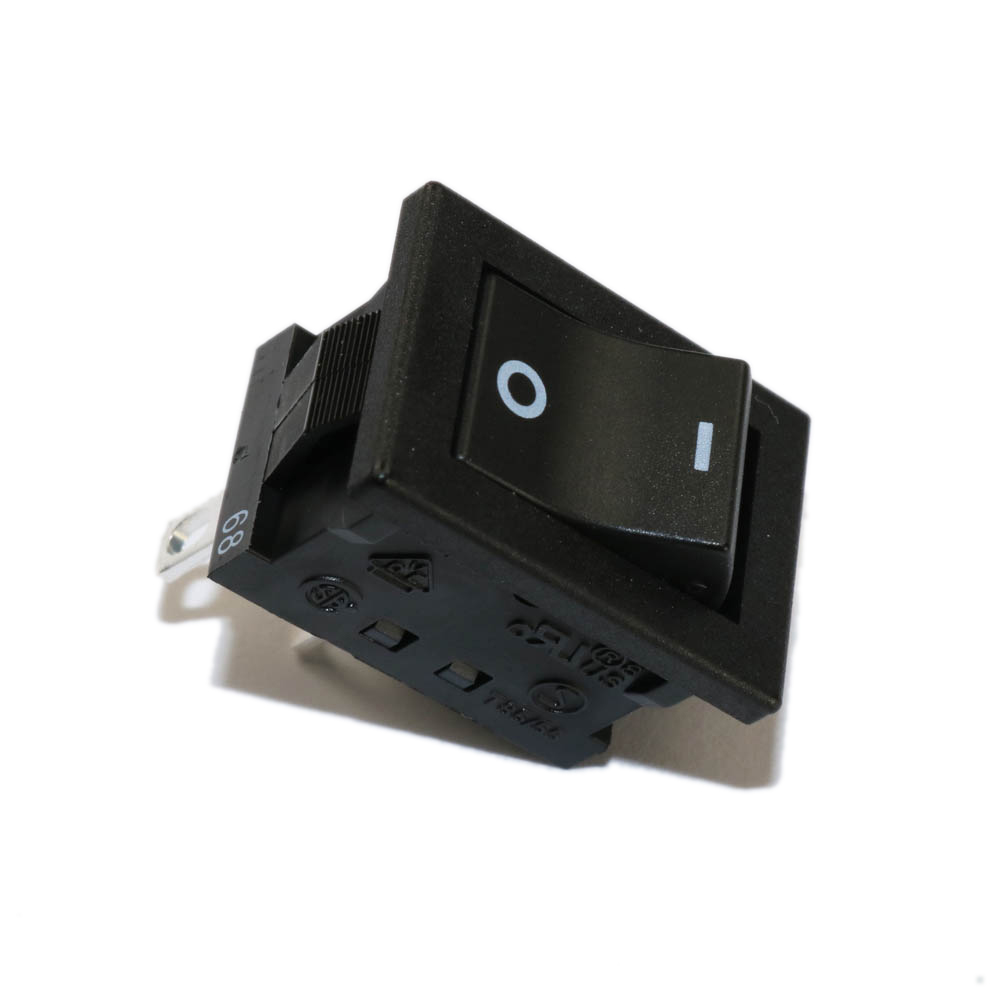

5. photo:B2852 B2852 Power Switch Buy Now

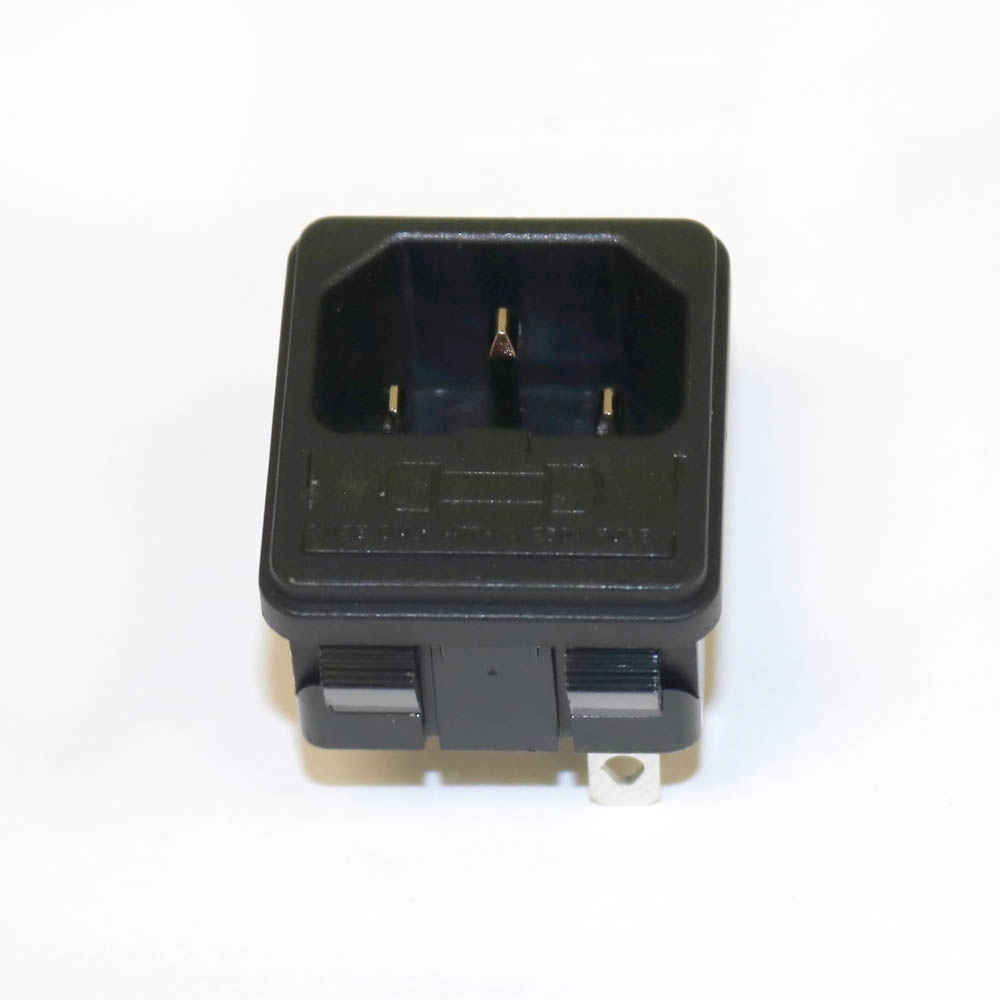

photo:B2384            B2384 Power Inlet Buy Now

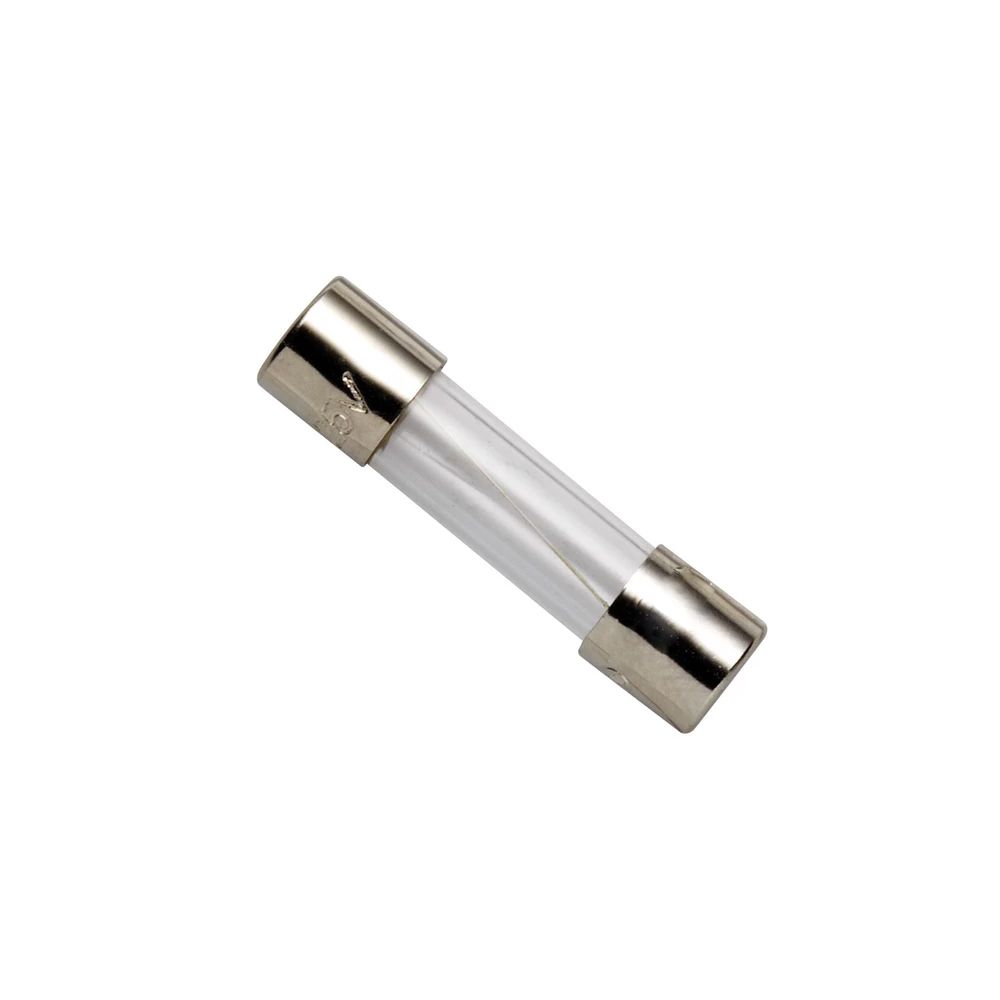

6. photo:B2987 B2987 Fuse 220-240V-1A Buy Now
7. photo:B2425 B2425 Power Cord Buy Now
8. photo:B2972 B2972 Control Card Buy Now

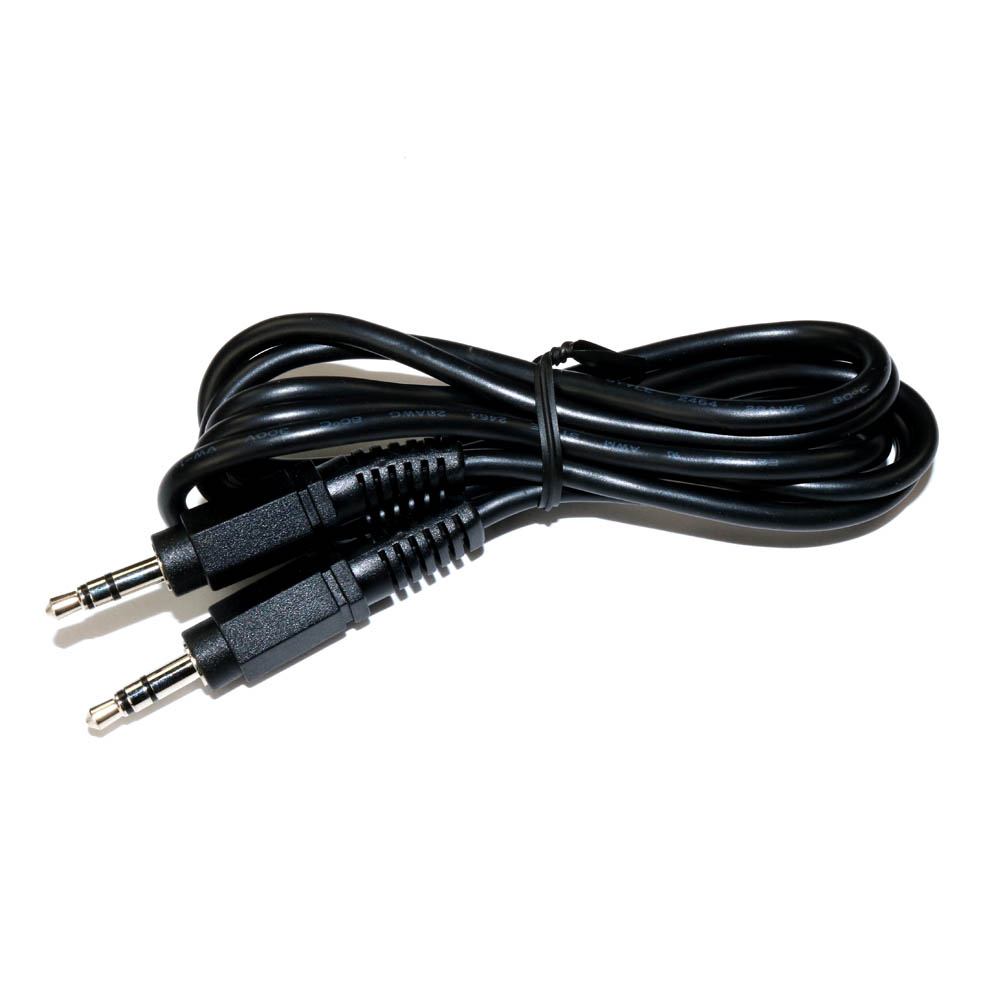

9. photo:B3253 B3253 Connecting Cable Buy Now

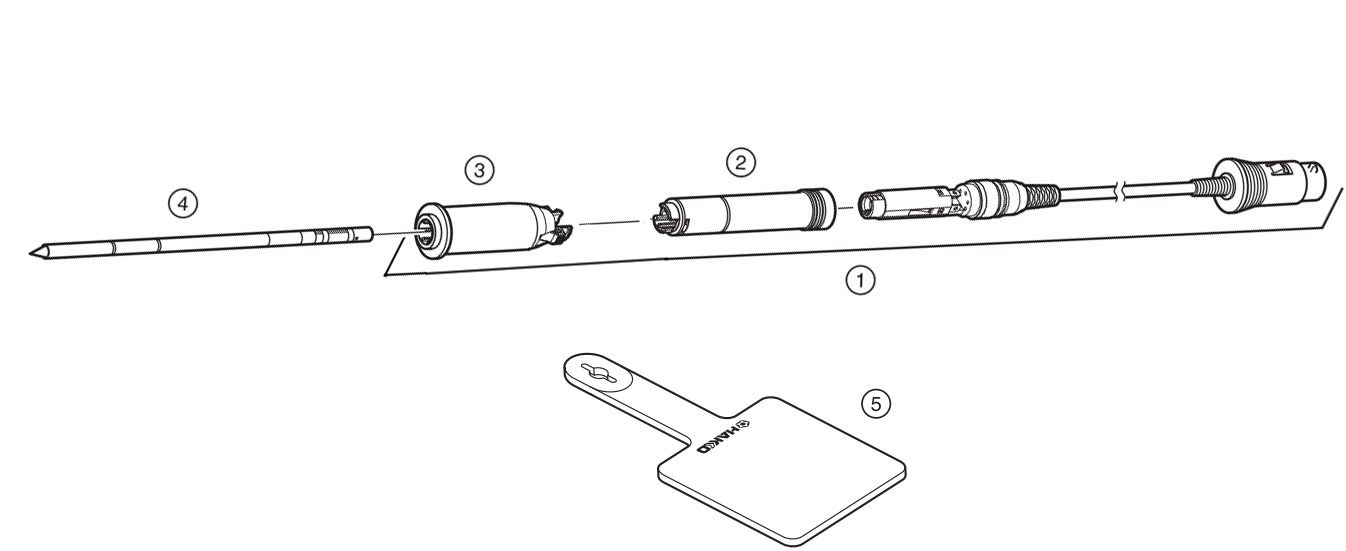

Soldering Iron

photo:Soldering Iron
Ref. Image Part No Description Availability
1. photo:FM2028-02 FM2028-01 FM2028 Soldering Iron with Yellow sleeve Buy Now
1. photo:FM2028-02 FM2028-02 FM2028 Soldering Iron with Blue sleeve Buy Now
3. photo:B3216 B3216 Yellow Sleeve Buy Now
photo:B3217 B3217 Orange Sleeve Buy Now
photo:B3218 B3218 Blue Sleeve Buy Now
photo:B3219 B3219 Green Sleeve Buy Now
4. T15 Tip See Tips Tab
5. photo:B2300 B2300 Heat Proof Mat Buy Now

Iron Holder FH200-01/2:

photo:Iron Holder FH200-01/2
Ref Image Part Number Description Availability

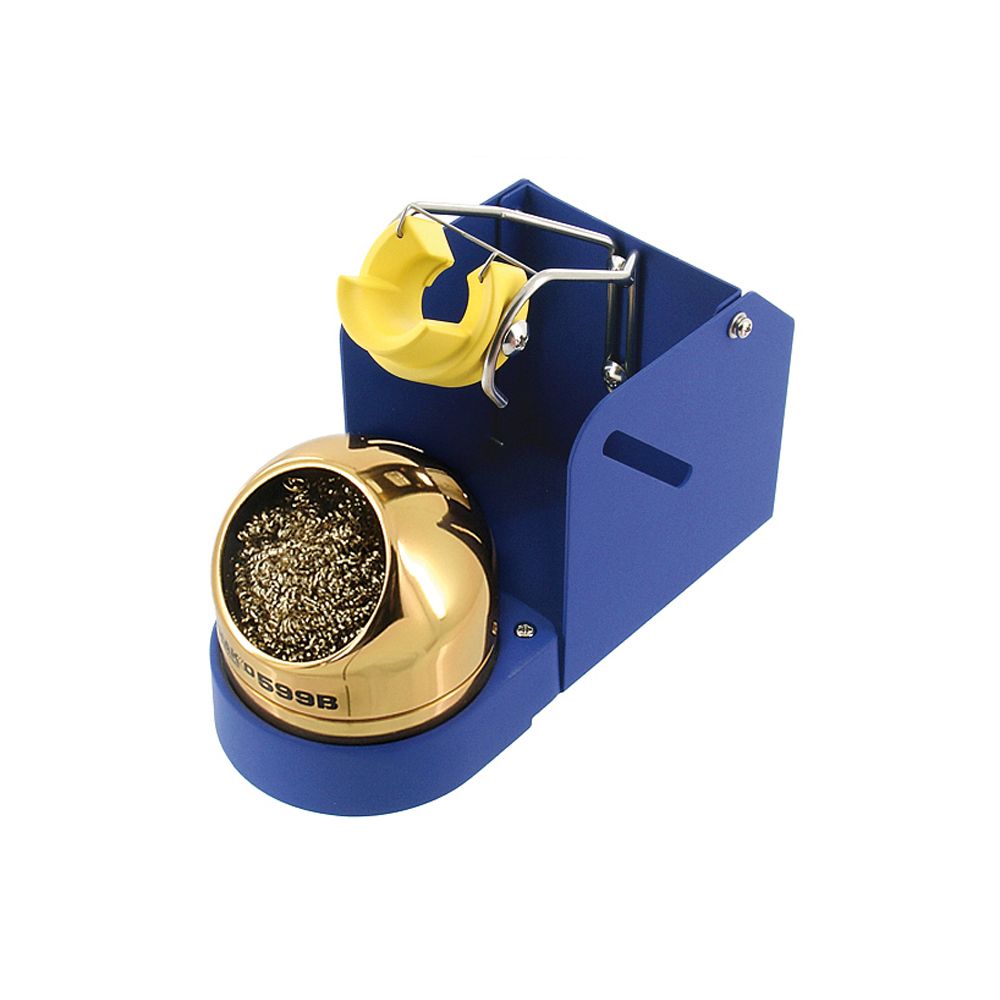

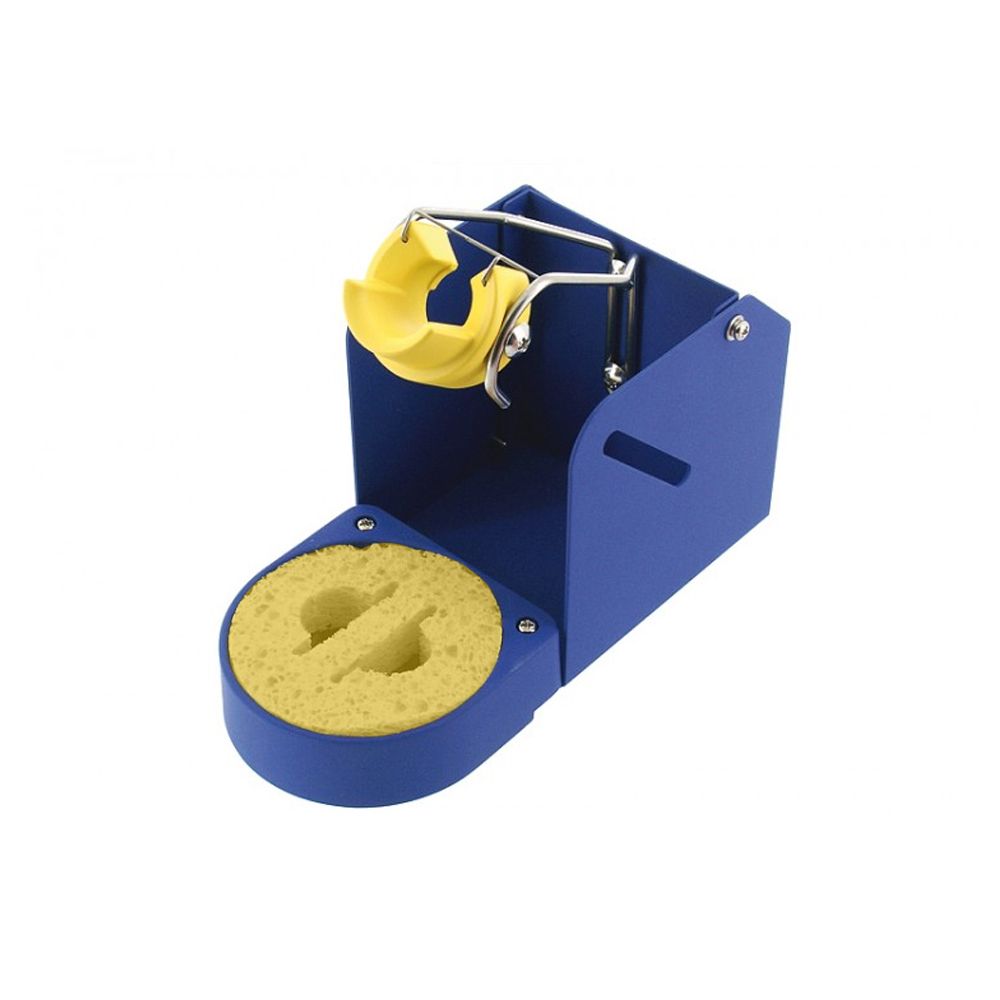

photo:B3219 photo:B3219 FH200-01 FH200-02 Iron Holder (Inc. Cleaning Wire) Iron Holder (Inc. Cleaning Sponge) Buy Buy
1. photo:B3219 B3001 Iron receptacle Buy

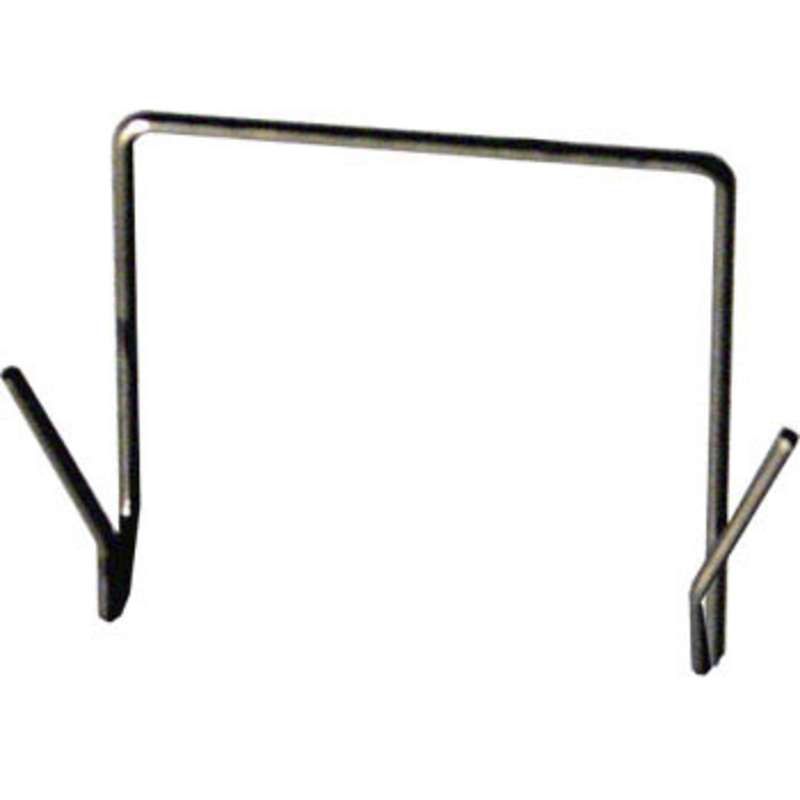

2. photo:B3219 B2791 Retaining Clip Buy
3. photo:B3219 B3248 Receptacle Holder Buy
4. photo:B3219 B3250 Back Plate Buy
5. photo:B3219 B3252 Switch Case Assembly Buy
6. photo:B3219 B3251 Base Buy
7. photo:B3219 B3249 Cleaner Base Buy
8. photo:B3219 A1519 Cleaning Sponge Buy
9. photo:599B 599B-02 599 Wire Holder Buy
10. photo:B3219 599-029 599 Cleaning Wire Buy
Weight 2.15 kg
