FX-888D Silver Digital Soldering Station

SKU: HFX888D-17SV

Hakko
Availability:

In stock


  • Digital model in an analog-model price bracket
  • Features adjustment mode, preset mode, and password function
  • Separable tip/heater design provides excellent value for money
  • Selectable soldering iron for N2 system as usage at your option

£149.26 Excl. VAT

In stock

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

For customers in the Republic of Ireland, please contact us for a quote including shipping and customs charges.

Request quote

Introducing the FX888D-17SV Silver Digital Soldering Station – Reliable digital technology by HAKKO –

Excellent thermal recovery

  • Heater output has been increased by 30% compared to that of the conventional models HAKKO 936/937. The HAKKO FX888D Silver Digital Soldering Station delivers excellent thermal recovery by using T18 series soldering tips for their terrific heat conductivity.
    This allows soldering at a lower set temperature and reducing the thermal impact on components as well as tip oxidation that can shorten tip life.

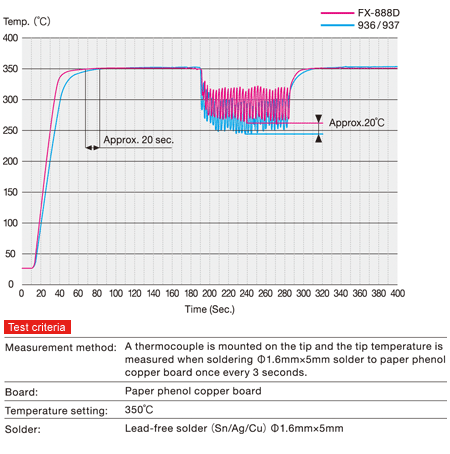

  • Thermal recovery graph
    Rise time to 350°C is 20 seconds faster and tip temperature drop is reduced during continuous work.

Silver Digital Soldering Station - Thermal Recovery Graph

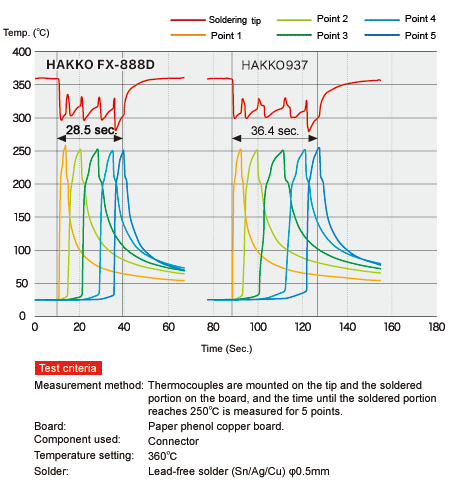

  • HAKKO FX888D Silver Digital Soldering Station – performance comparison graph with conventional stations Able to shorten the time required for the same work and improve work efficiency significantly.

Silver Digital Soldering Station - Performance Graph

Designed to be User-Friendly

  • Small footprint
    Compact station body requires a space of only 100 (W) x 120 (D) mm. What’s more, points that come into contact with the floor are positioned as close to the outer edge of the body as possible to improve stability and make the station difficult to fall over.
  • Simple and easy operation
    With only two operation buttons of UP and ENTER in the center, operation is simple and easy. Even if you’re not familiar with operation of machines, you can operate it without difficulty.

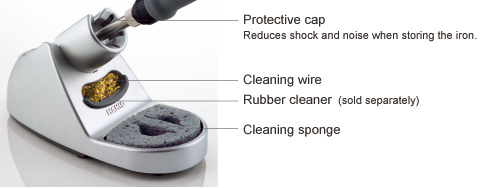

Iron holder with full of functions
An iron holder of the same color of a soldering station comes as a set. The highly functional iron holder not only improves ease of use, but also brings a sense of visual consistency to the work environment.

H K Wentworth - HAKKO UK and Ireland distributor

H K Wentworth - HAKKO UK and Ireland distributor

Strict temperature management

  • Digital display
    The HAKKO FX888D’s digital display makes it easy to check the set temperature at a glance.

H K Wentworth - HAKKO UK and Ireland distributor

  • Password function
    Settings can be locked using a password to prevent them from being changed unexpectedly. Of course, it is possible to restrict all setting changes or prevent users from switching to particular modes. It allows you to choose a style of usage best suited for your worksite.
  • Preset mode
    This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.) Preset mode can save your trouble and improve workability.

H K Wentworth - HAKKO UK and Ireland distributor

  • Adjustment mode
    Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to HAKKO FX888D.
    *Adjust the tip temperature to match the set temperature in case that there is a difference between those temperatures due to tip shape, heater replacement, or other factors.

H K Wentworth - HAKKO UK and Ireland distributor

Measuring tip temperature with a tip thermometer (HAKKO FG100)

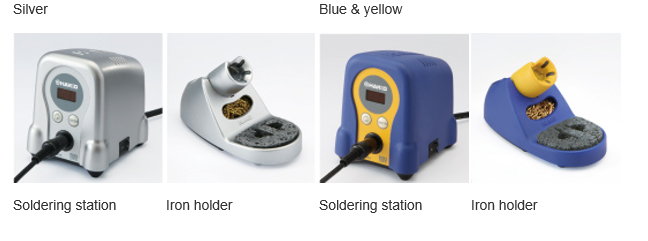

The FX888D is also available in the following configurations:

FX888D-17BY – Blue and Yellow Digital Soldering Station
FX888D-SET1 – Blue and Yellow Digital Soldering Station with T18 Series Tip Set

Packing List

Model No.Unit ColorIron Holder ColorPacking list
FX-888DSilverSilverSoldering station (FX-888D), Soldering iron (FX-8801 with soldering tip type B), Iron holder (with cleaning wire, cleaning sponge), Instruction Manual
Blue-YellowBlue-Yellow
*Rubber cleaner sold separately.

Specifications

Model No.FX-888D
Power consumption70W
Temperature range50 to 480ºC
Temperature stability±1ºC at idle temperature (When set to 200 to 480ºC)

Station

Output voltageAC 26V
Dimensions100(W)×120(H)×120(D)mm
Weight1.2kg

Soldering Iron

Power consumption65W (26V)
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementCeramic heater
Standard tipShape-B (No.T18-B)
Cord length1.2m
Total length217mm (with B tip)
Weight46g (with B tip)
* Total length and weight (w/o cord)

Optional / Recommended Extras

ImagesPart NumberDescriptionAvailability
T18 Series TipsCome in a variety of shapes and sizes for different applications
FX8802-01 Nitrogen Soldering Iron* Requires Nitrogen SourceFX8802-01Nitrogen Soldering Iron* Requires Nitrogen SourceBuy Now
FX8803-02 One Handed Soldering Iron with Solder FeedFX8803-02One Handed Soldering Iron with Solder FeedBuy Now
FX8804-02 SMD Hot TweezersFX8804-02SMD Hot TweezersBuy Now
FX8805 Soldering Iron and TipFX8805-01Heavy Duty Soldering Iron with T19 TipBuy Now
B3474 Rubber Tip Cleaner for FX888 & FX888DB3474Rubber Tip CleanerBuy Now
C1437 Iron Holder (with A1042 Sponge)C1437Iron Stand for FX8803Buy Now
FH800-04 Iron Holder for FX8804 – Blue/yellowFH800-04Iron Stand for FX Soldering IronsBuy Now
599B Dry Tip Cleaner and Holder599BSoldering Tip CleanerBuy Now
FG100B Digital ThermometerFG-100BTip ThermometerBuy Now
611-1 Soldering Wire Reel Holder (Single)611611 Solder Wire HolderBuy Now
FT-700 Soldering Tip Cleaner and PolisherFT700Soldering Iron Cleaner + PolisherBuy Now
FA-400 Desktop Fume ExtractorFA-400Desk Top Fume ExtractorBuy Now
B2300 Heat Resistant PadB2300Heat Resistant PadBuy Now


FX-888D Station Replacement Parts

Ref.ImagePart NumberDescriptionAvailability
1.B3733 FX-888D ChassisB3733ChassisBuy Now
2.B3734 FX-888D Front Panel (Yellow) B3735 FX-888D Front Panel (Silver)B3734 B3735Front Panel / Yellow Front Panel / SilverBuy Now Buy Now
3.B3736 P.W.B Temperature ControlB3736P.W.B Temperature ControlBuy Now
4.B3745 Power Lead (British Plug)B3745Power Cord (BS)Buy Now
5.B3739 FX-888D Transformer 220-240VB3739Transformer 220-240VBuy Now
6.B3750 Cord StopperB3750Cord StopperBuy Now
7.B3450 FX-888D Upper Case (Blue) B3452 FX-888D Upper Case (Silver)B3450 B3452Upper Case Blue Upper Case SilverBuy Now Buy Now
8.B3723 P.W.B 230V for FX-888DB3723P.W.B / 230VBuy Now
9.B3463 Receptacle PlugB3463ReceptacleBuy Now
10.B2852 Power SwitchB2852SwitchBuy Now
11.B2227 Grounding PlateB2227Grounding PlateBuy Now
12.B2405 Rubber Feet (set of 4)B2405Rubber FeetBuy Now


FH800 Iron Holder Replacement Parts

Part NumberDescription
FH800-03BY, FX-8801 Iron Holder FH800-03 Soldering Iron Stand (Silver)FH800-BY FH800-SVIron Holder Blue Iron Holder SilverBuy Now Buy Now
1.A1559 Sponge for FX-888 & FX888DA1559Cleaning SpongeBuy Now
2.B3472 FH800 Base (Blue) B3473 FH800 Base (Silver)B3472 B3473Iron Holder Base Blue Iron Holder Base SilverBuy Now Buy Now
3.B3751 FH800 Bottom Plate and FeetB3751Bottom Plate with Rubber Sheet & FeetBuy Now
4.A1561 Tip Cleaning wireA1561Cleaning WireBuy Now

FX8801 Soldering Iron Replacement Parts

Part NumberDescription
1.B1785 Nut Enclosure for FX8801-01 IRON & FX888B1785Locking NutBuy Now
2.B3469 Tip Enclosure for FX888 & FX8803B3469Tip EnclosureBuy Now
3.TipT19 Series TipSee Tips Tab
4.B2022 Replacement Nipple for Soldering IronsB2022NippleBuy Now
5.B2032 Grounding SpringB2032Grounding SpringBuy Now
6.A1560 Heating ElementA1560Heating Element 26V-65WBuy Now
7.B2028 Power CordB2028Power CordBuy Now
8.B3470 Handle for FX8801 Soldering IronB3470HandleBuy Now
9.B3471 Handle CoverB3471Handle CoverBuy Now
10.B3467 Cord BrushingB3467Cord BrushingBuy Now
11.B3468 Cord AssemblyB3468Cord AssemblyBuy Now

Tech Tips

Tech Tips

CategoryTitle
How to useSelect Tip Shape
How to useDifference between BC/C type and BCF/CF type
How to useHAKKO N2 system
MaintenanceWhy doesn't solder flow evenly onto a tip though it is brand-new?
MaintenanceIf solder does not flow onto the tip...
MaintenanceTip life
MaintenanceWhy do tips oxidize easily when they are used with lead-free solder?
MaintenanceMaintenance and inspection of station-type soldering irons
Top TipsTop Tips for Successful Soldering and De-Soldering Processes

Videos

PreviewTitle
HAKKO FX-888D; changing the display between ℃ and changing the display between ℃ and ?
HAKKO FX-888D; how to set how to set "Password Lock"
HAKKO FX-888D; how to set how to set "Preset Mode"
HAKKO FX-888D; how to use how to use "Adjust Mode"
HAKKO FX-888D; how to use how to use "Parameter Settings"

Manuals

ManualSize
Hakko FX-888D Instruction Manual2,059kbDownload
Weight2.396 kg
