FX8802 N2 Soldering Iron and Tip

SKU: HFX8802-01

Hakko
Availability:

Low stock – Order soon


N2 soldering iron designed exclusively for HAKKO FX-888D, FX-889, FR-701 and FR-702
Comes With T18-B Soldering Tip

£134.58 Excl. VAT

Low stock – Order soon

Operating a Nitrogen Soldering Iron has many benefits over traditional Soldering Irons to improve productivity and extend the process window:

  1. The Nitrogen has a Pre-heating effect on components resulting in faster flow of solder.
  2. Soldering under Nitrogen prevents oxidisation

This aids the operation of the flux in cleaning the surfaces to be joined and opens/widens the process window and aids the flow of the solder thus offering a higher process yield, e.g. Reduced solder bridging, icicling and damage caused by excessive heat application.

  1. Allows higher output and productivity

Traditionally Nitrogen systems have been costly to run, however with the Hakko Nitrogen Generator (FX-780) and flow Meter (FX-791) Hakko have transformed the workspace without the need for large external storage tanks or connection to external sources.

Can be used with your existing HAKKO FX-888(*Discontinued),HAKKO FX-888D, HAKKO FX-889,HAKKO FR-701 or HAKKO FR-702 soldering station.

Specifications

Model No. FX-8802
Power consumption 65W(26V)
Temperature range 50 to 480°C
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element Ceramic heater
Standard tip Shape-B (No.T18-B)
Cord length 1.2m
Total length 190mm(with B tip)
Weight 59g(with B tip and nozzle assembly A)

* Total length and weight (w/o cord, tube)
* The setting temperature range of FX-888 is from 200 to 480°C.
* Do not set the temperature over 450°C

Combination Example
Set example:HAKKO FX-888D

H K Wentworth - HAKKO UK and Ireland distributor

  1. N2 soldering iron FX8802
  2. Soldering tip T18-B (Shape B),
  3. Nozzle assembly A,
  4. Shield plate (for Iron Stand),
  5. Instruction manual

Tip Shape

Tip

Part Number

B, 0.8, 1.2D, 2C

T18-B,

T18-D08,

T18-C2,

T18-CF2

B3662 Nozzle A

Buy

1.6D, 2.4D, 3C

T18-D16,

T18-D24,

T18-C3,

T18-CF3

B3663 Nozzle B

Buy

0.5C, 1C, I

T18-C05,

T18-C1,

T18-CF1,

T18-I

B3664 Nozzle C

Buy

K

T18-K

B3665 Nozzle D

Buy

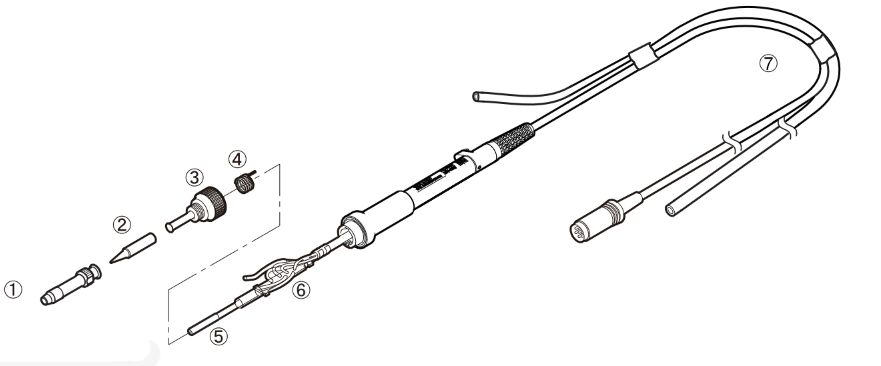

Replacement Part Description
1. Nozzle Assembly See Tips Tab
2. T18 Tip See Tips Tab
3. B2676 Nipple
4. B2032 Grounding Spring Buy
5. A1560 Heating Element Buy
6. B2028 PCB Terminal Board Buy
7. B3022 Urethane Hose Buy
- B3661 Back Plate for Iron Holder

Optional Extras

Replacement Part Description
1.FH800-03BY FH800-03BY, FX-8801 Iron Holder Buy
2.FH800-03SV FH800-03SV Iron holder with Cleaning sponge and cleaning wire for FX888D Buy
3. 599B 599B Dry Tip Cleaner and Holder Buy
4. FX-780
5. FX-781
6. FX-791

Tech Tips

Category Title
How to use Select Tip Shape
How to use Difference between BC/C type and BCF/CF type
How to use HAKKO N2 system
Maintenance Why doesn't solder flow evenly onto a tip though it is brand-new?
Maintenance If solder does not flow onto the tip...
Maintenance Tip life
Maintenance Why do tips oxidize easily when they are used with lead-free solder?
Top Tips Top Tips for Successful Soldering and De-Soldering Processes
Weight 0.2581 kg
