FX8805 Soldering Iron and Tip

SKU: HFX8805-01

Hakko
Availability:

Low stock – Order soon


The FX-8805 is a slender, lightweight ergonomic iron handle for Hakko FX-888D and FX-889 soldering stations.
Comes With T19-B Soldering Tip

£65.16 Excl. VAT

Low stock – Order soon

HAKKO FX-8801 M type soldering iron for use with T18 tip series
HAKKO FX-8805
L type soldering iron for use with T19 tip series

Applicable models

H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor
HAKKO FR-701

with a soldering iron
FX-8801

HAKKO FR-702

with a soldering iron
FX-8801

HAKKO FX-888D

with a soldering iron
FX-8801

HAKKO FX-889

with a soldering iron
FX-8801 for one port

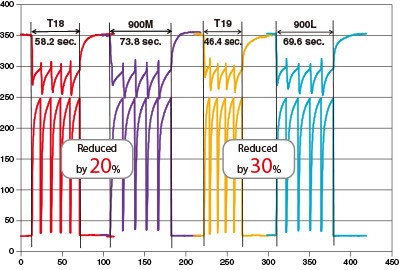

Excellent thermal conductivity

Thermal conductivity has been increased by reviewing external configuration and internal structure of 900 tip series.
Now T18 and T19 tip series are selectable depend on work environment.

Specifications

Model Name FX-8801
Part No. FX8801-02
Power Consumption 65W / 26VAC
Tip T18 Series
Standard Tip T18-D16 (shape 1.6D)
Tip-to-Ground Resistance < 2 ohms
Tip-to-Ground Potential < 2mV
Heating Element Ceramic
Handpiece Length (w/o cord) 8.5 in. (217 mm) with T18-D16 tip
Cord Length/Reach 3.9 ft. (1.2m)
Weight (w/o cord) 0.1 lb (46g) with T18-D16 tip
  1. Soldering Iron FX8805

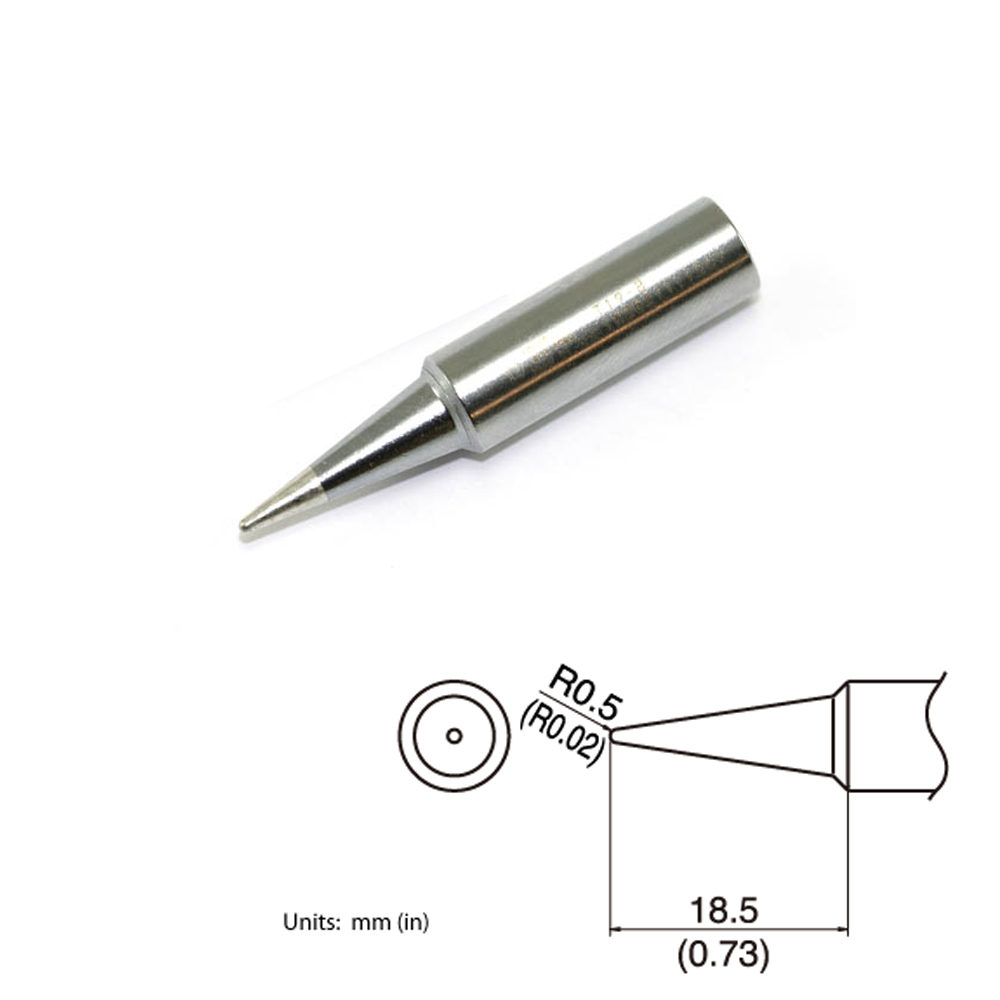

  2. Soldering Tip T19-B

Soldering Tip / Nozzle

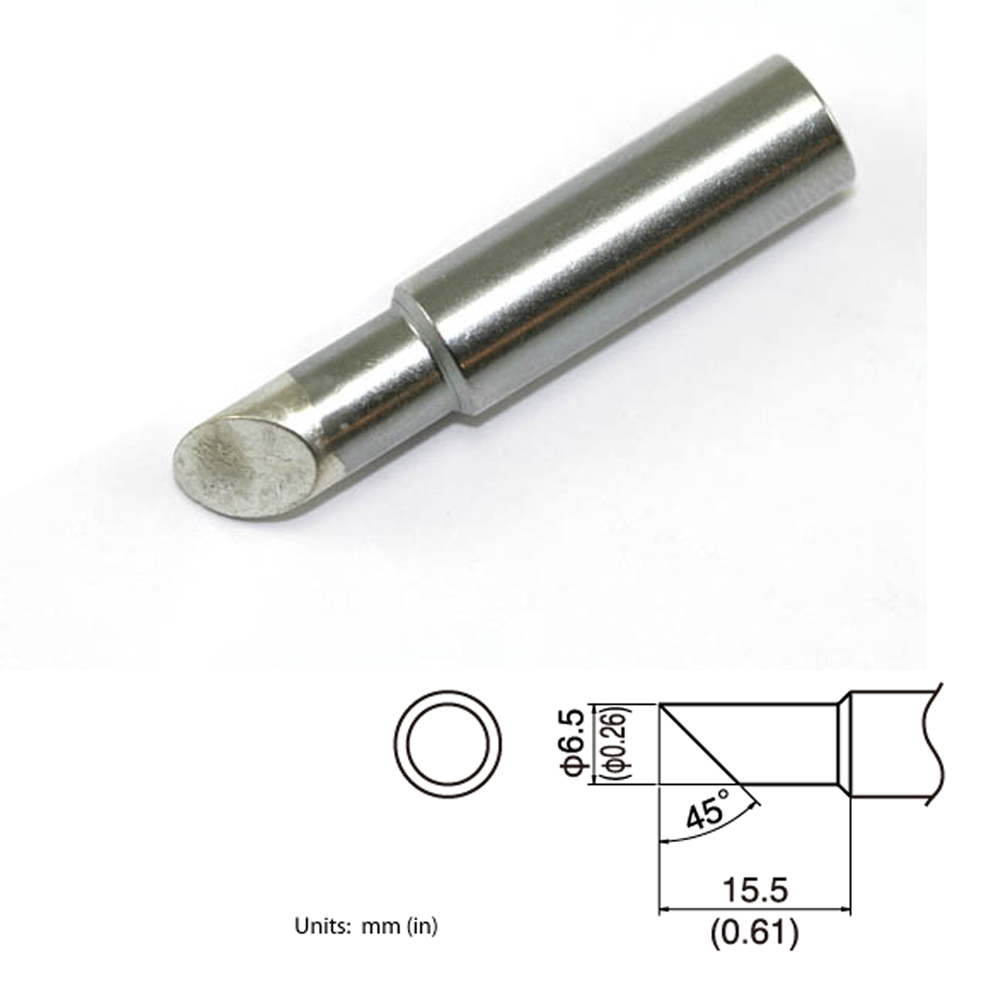

T19 Series

FX8805 Optional / Recommended Extras

  Part Number Description Availability

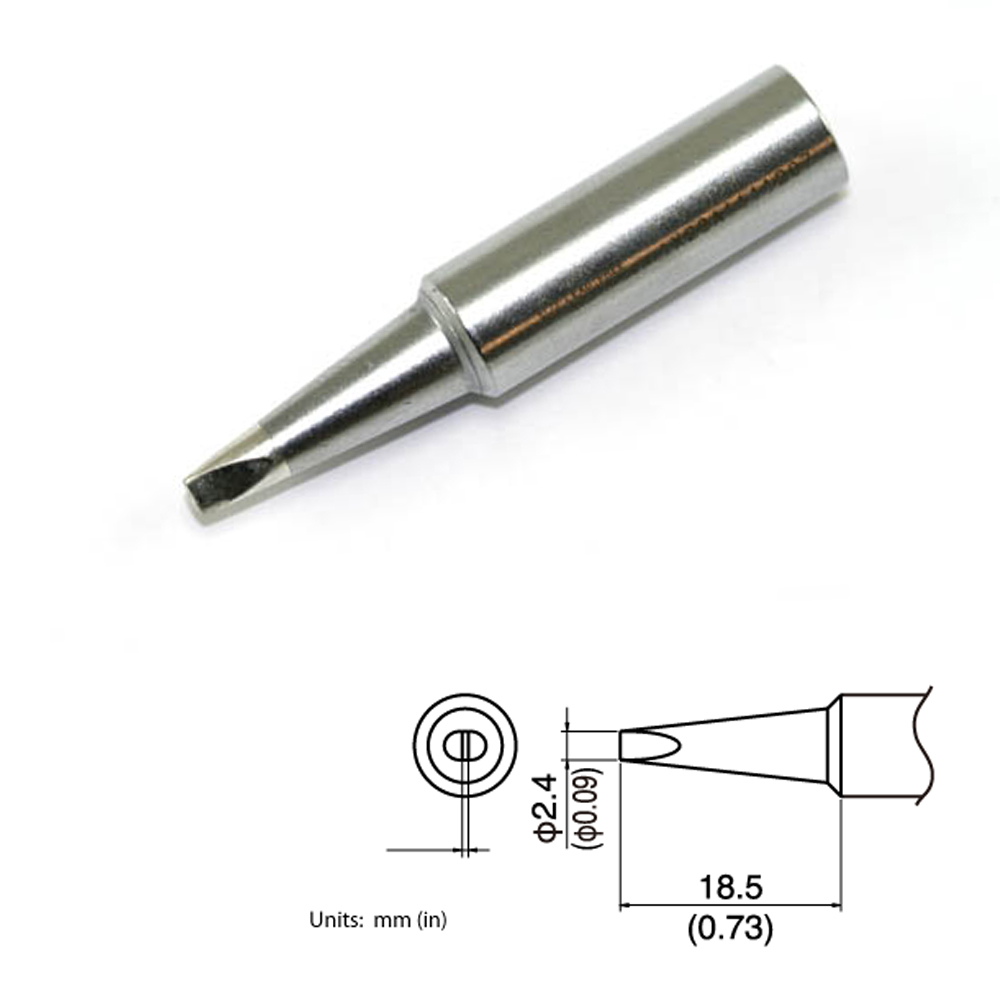

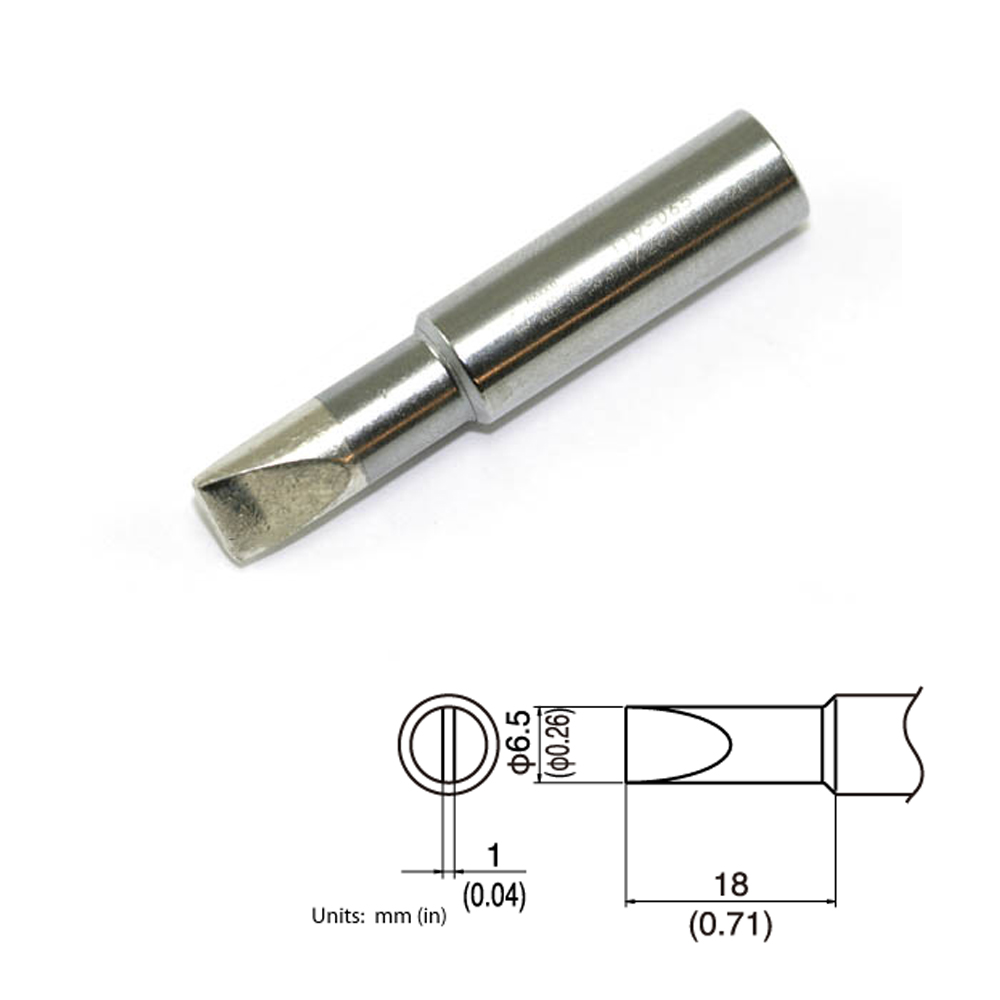

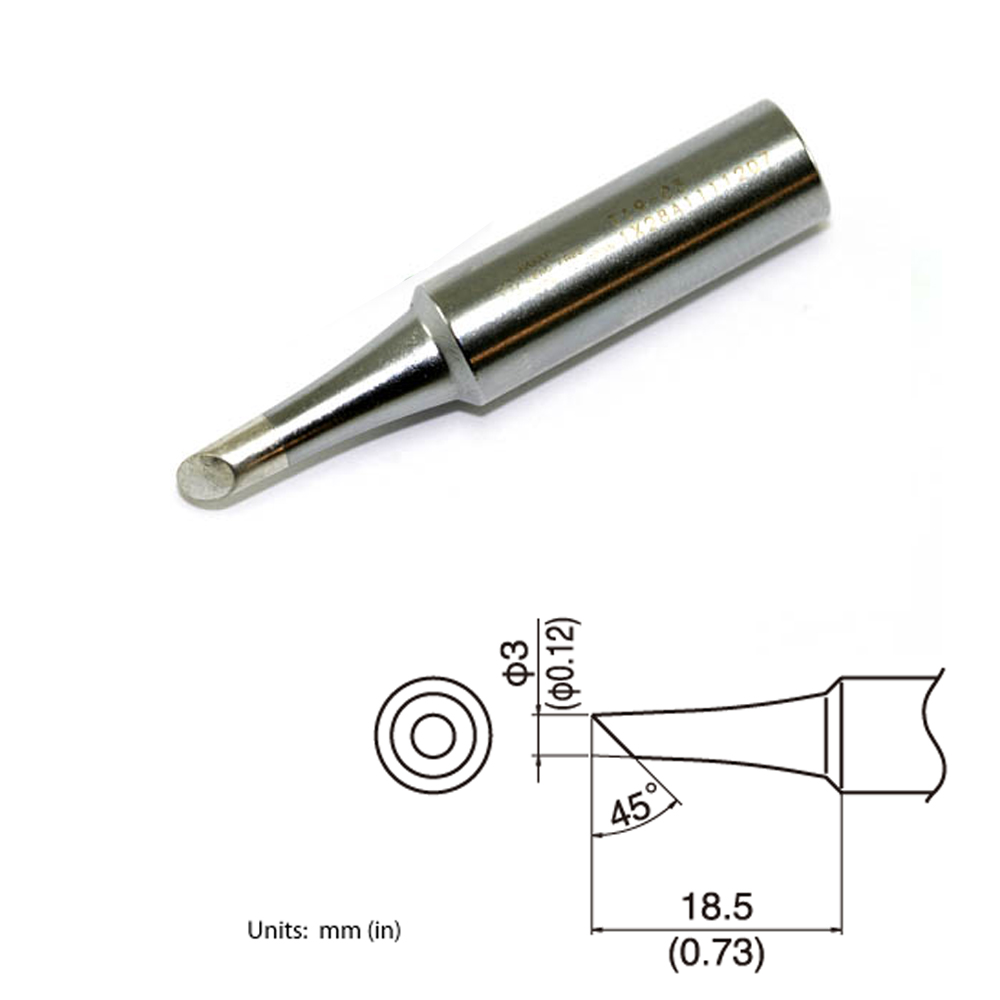

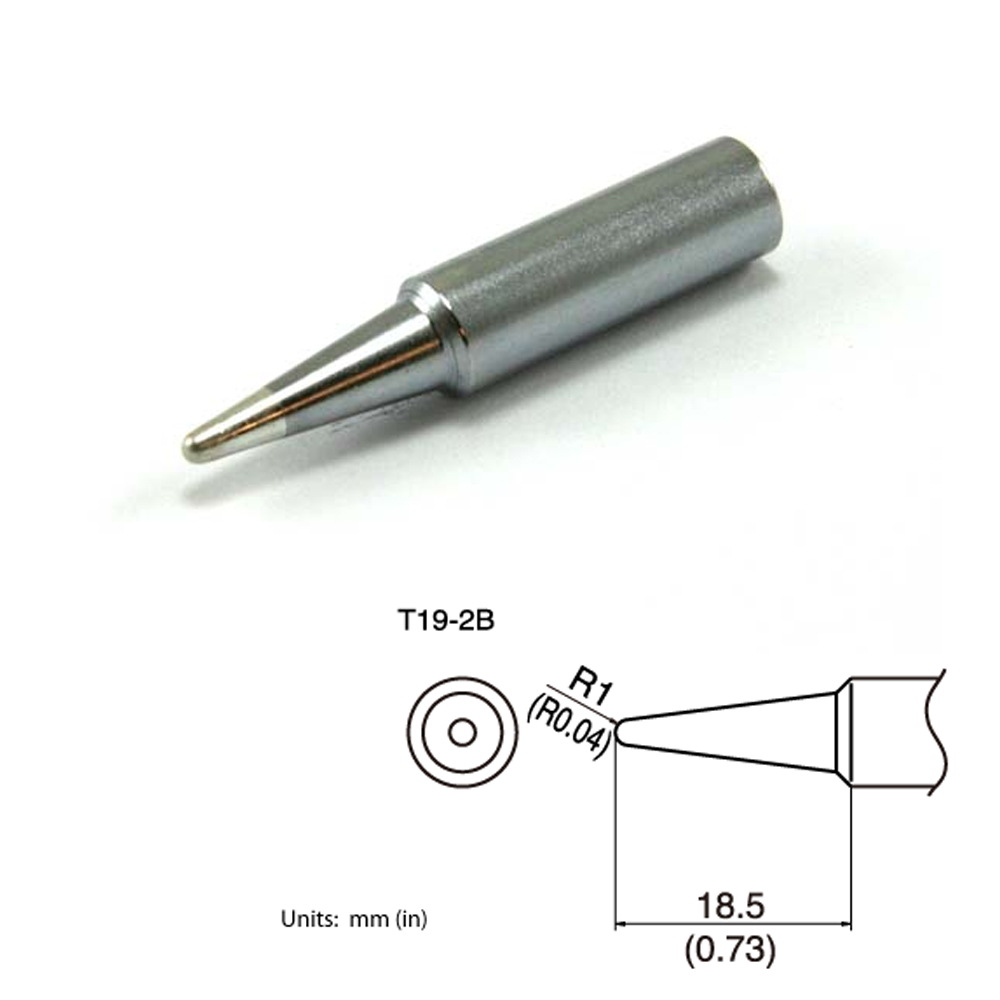

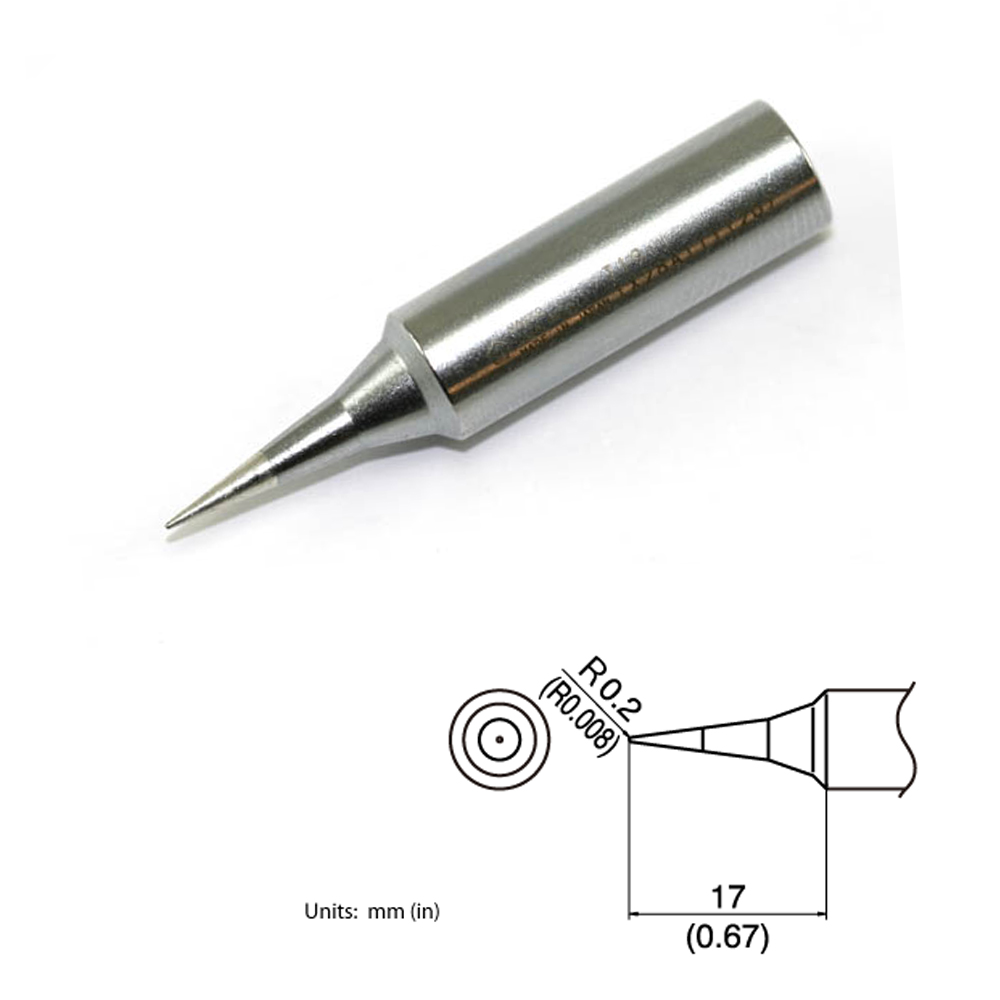

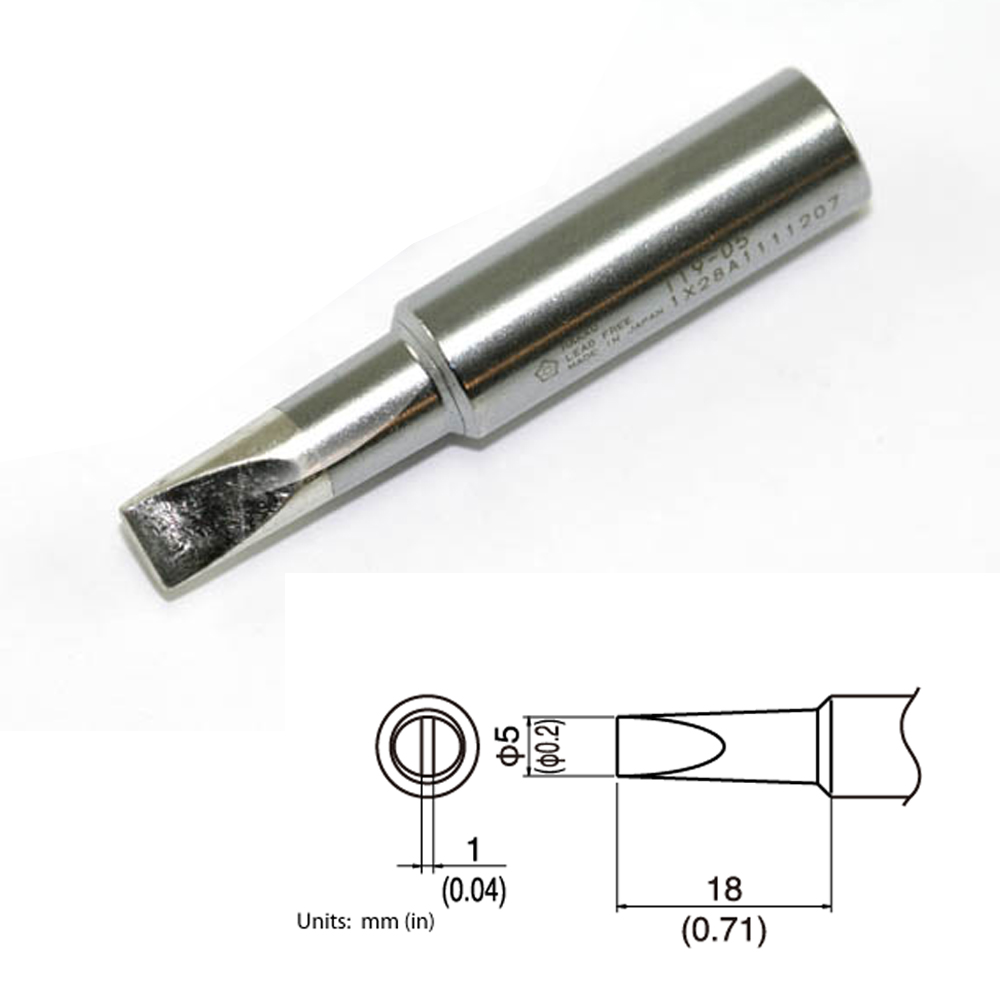

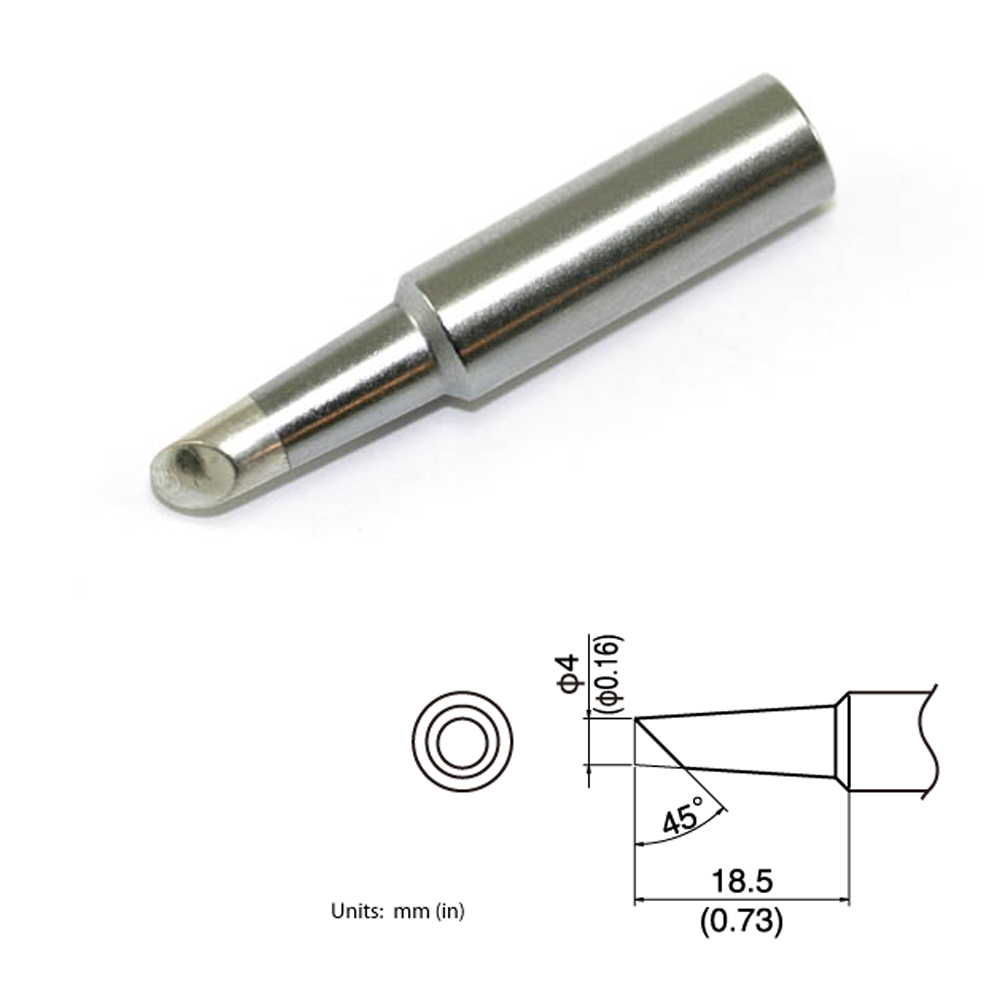

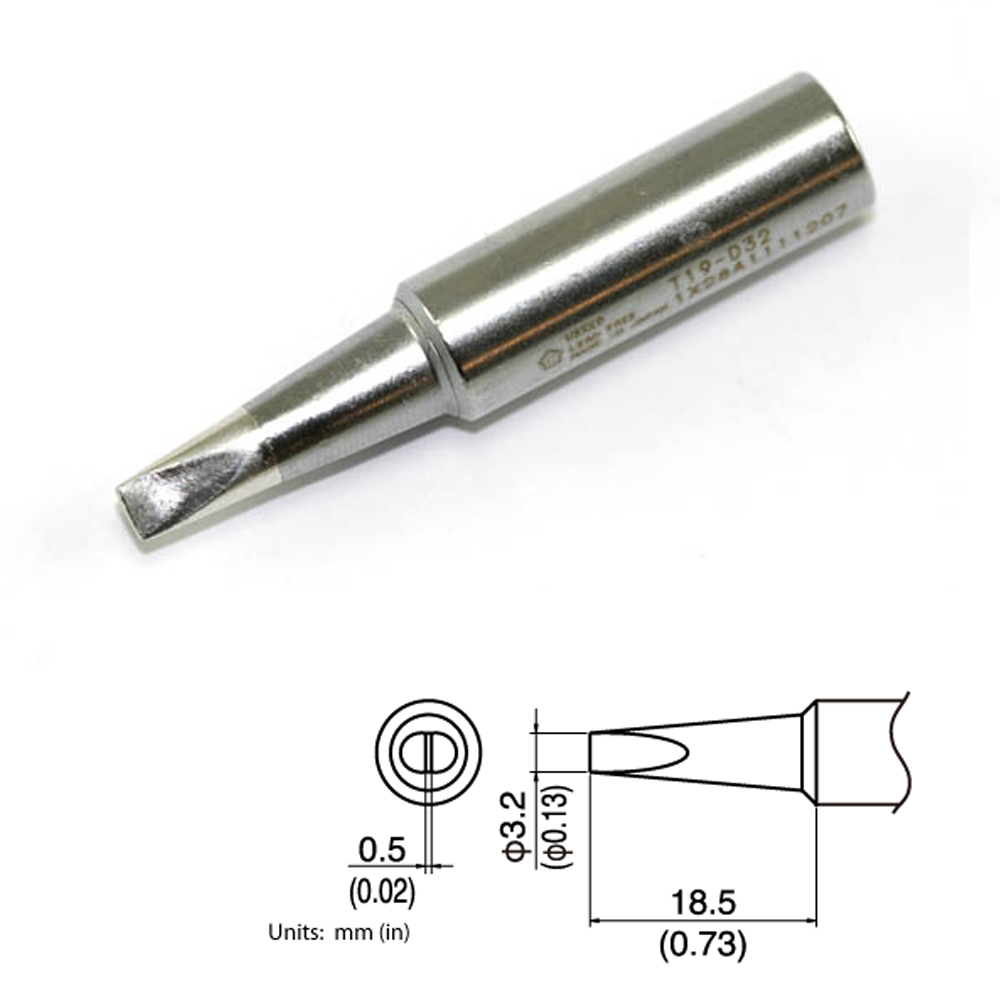

T19 Series Tips Come in a variety of shapes and sizes for different applications See tips tab
Qualitek Soldering Wire – Variety Available
B3474 Rubber Tip Cleaner Buy Now
FH800-03BY FH800-03BY, FX-8801 Iron Holder Buy Now

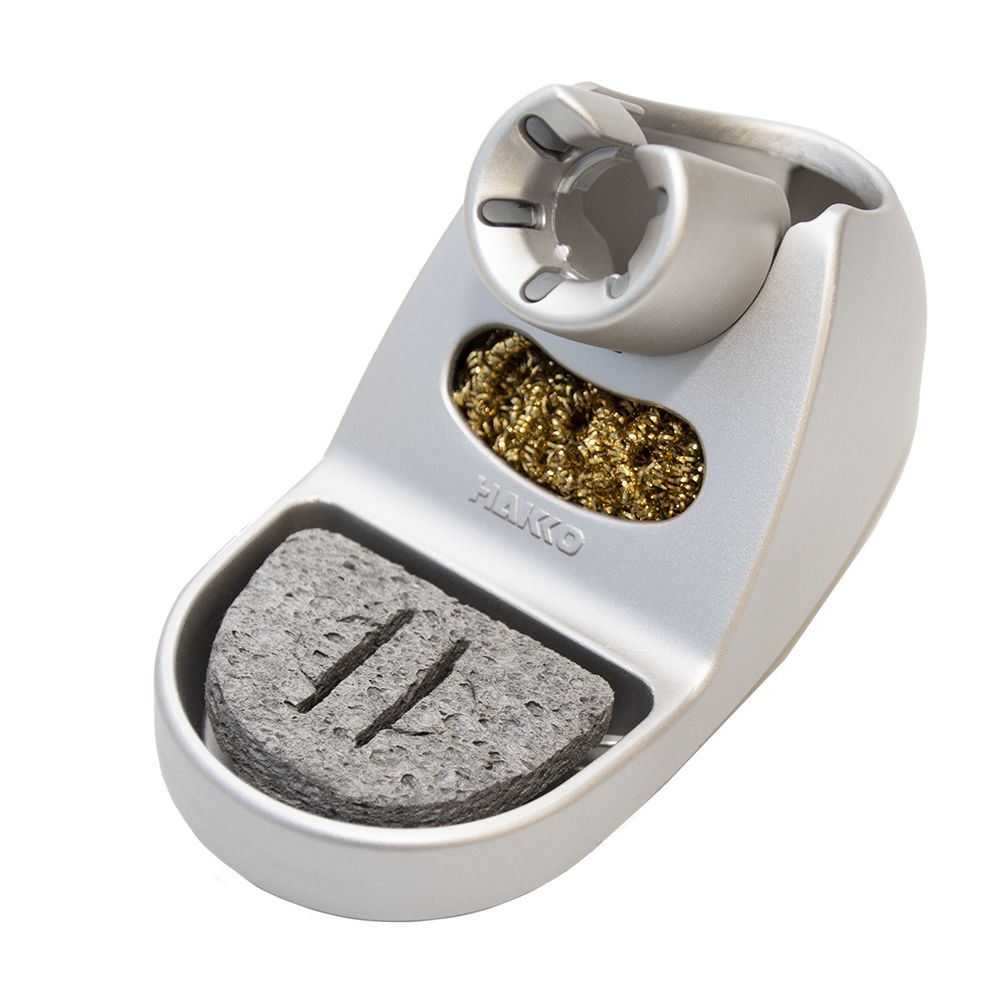

FH800-03SV FH800-03SV Iron holder with Cleaning sponge and cleaning wire for FX888D Buy Now
599B 599B Dry Tip Cleaner and Holder Buy Now
FG-100B Tip Thermometer Buy Now
611 611 Solder Wire Holder Buy Now
FT700 Soldering Iron Cleaner + Polisher Buy Now
FA-400 Desk Top Fume Extractor Buy Now
B2300 Heat Resistant Pad Buy Now

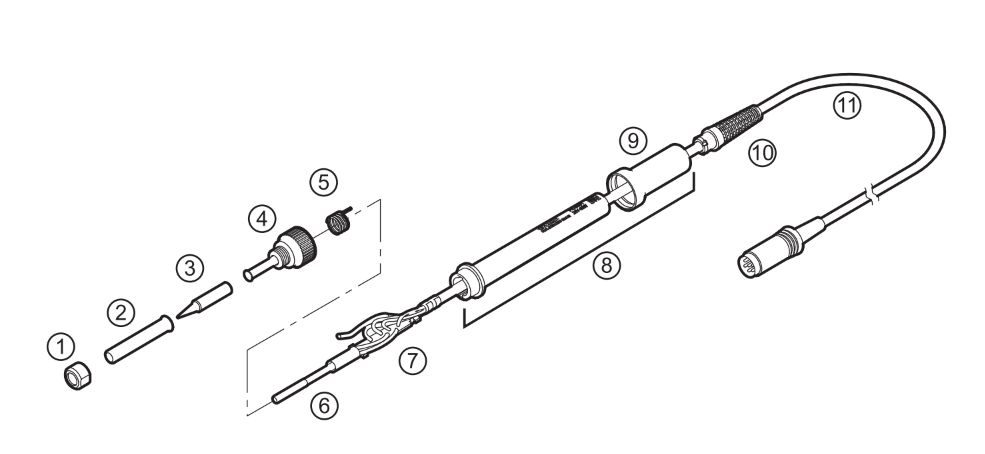

FX8805 Spare and Replacement Parts

    Part Number Description
1. B1785 Locking Nut Buy Now

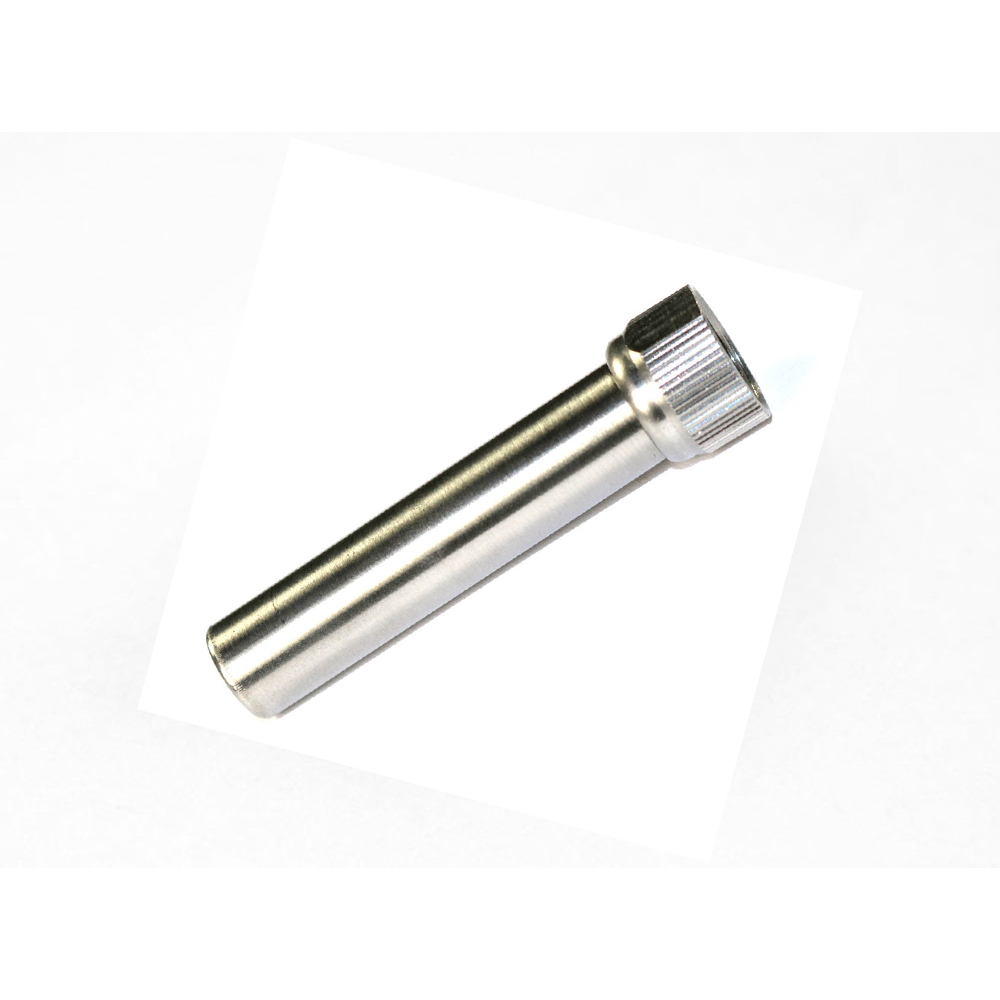

2. B5122 Tip Enclosure Buy Now
3. Tip T19 Series Tip See Tips Tab
4. B2022 Nipple Buy Now
5. B2032 Grounding Spring Buy Now
6. A1560 Heating Element 26V-65W Buy Now

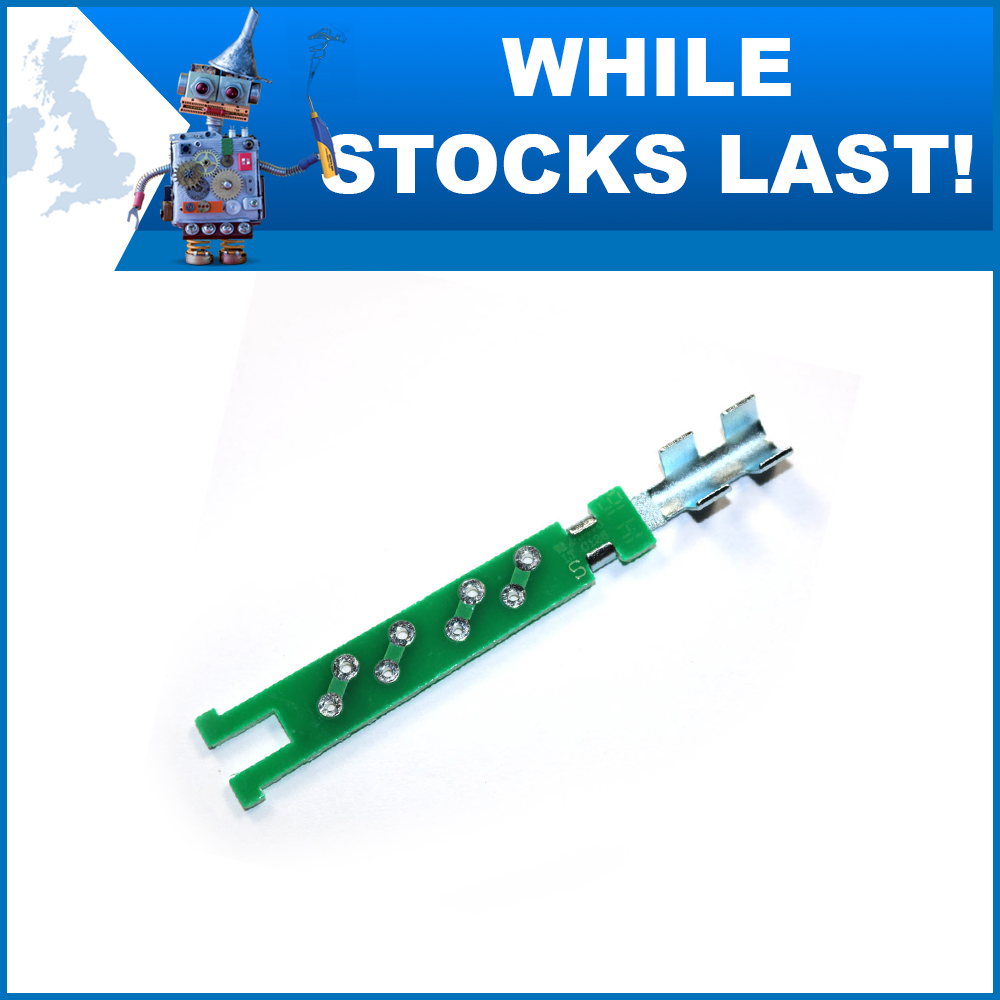

7. B2028 Power Cord Buy Now
8. B3470 Handle With Cover Buy Now

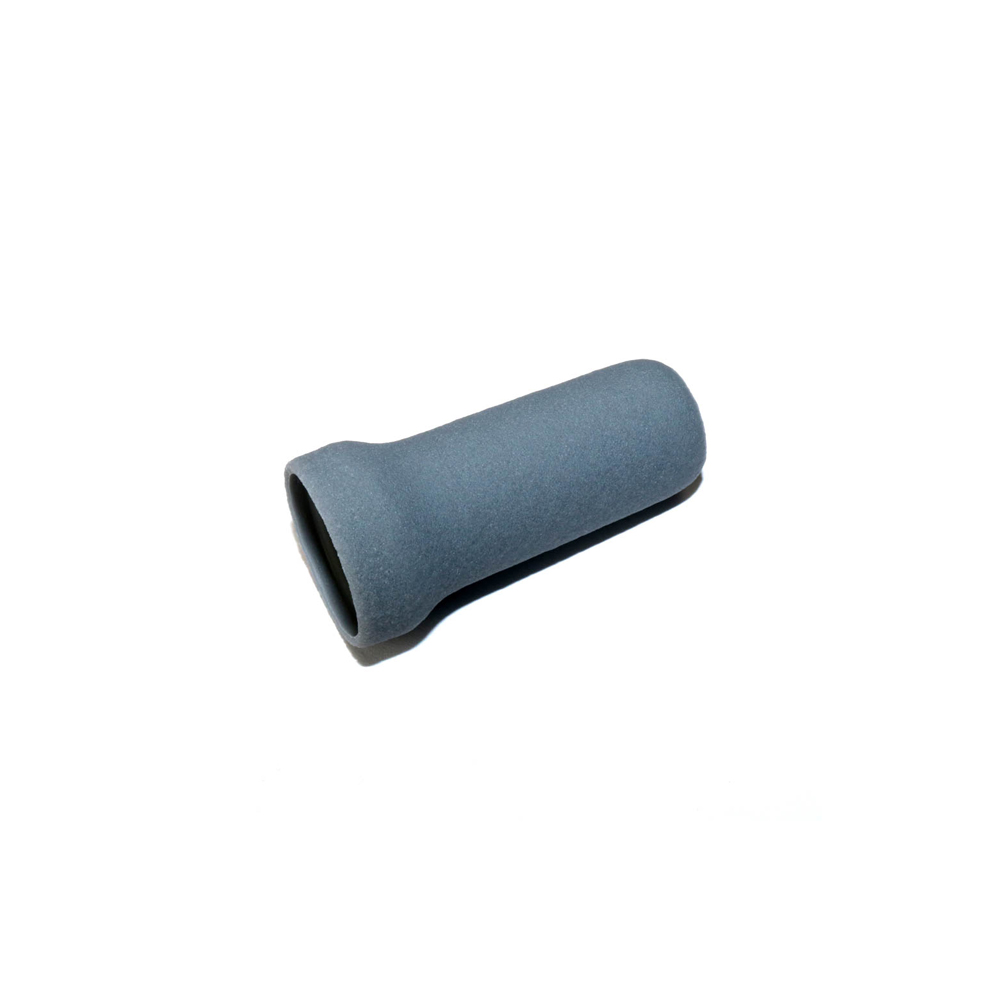

9. B3471 Handle Grip Buy Now
10. B3467 Cord Brushing Buy Now

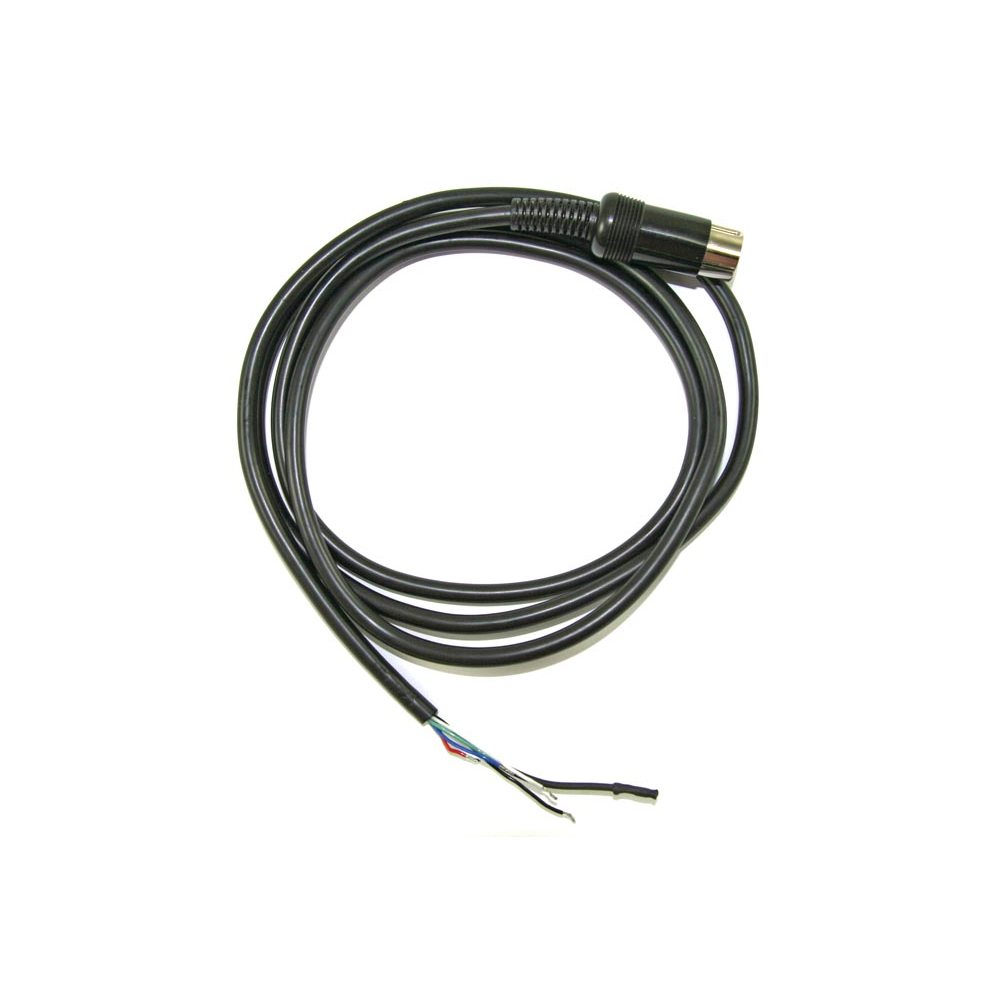

11. B3468 Cord Assembly Buy Now

Tech Tips

CategoryTitleHow to useSelect Tip ShapeHow to useDifference between BC/C type and BCF/CF typeHow to useHAKKO N2 systemMaintenanceWhy doesn't solder flow evenly onto a tip though it is brand-new?MaintenanceIf solder does not flow onto the tip...MaintenanceTip lifeMaintenanceWhy do tips oxidize easily when they are used with lead-free solder?Top TipsTop Tips for Successful Soldering and De-Soldering Processes
Weight 0.1351 kg
