FR-410 Desoldering tool

SKU: HFR410-72

Hakko
Availability:

In stock


  • Desoldering tool with built-in vacuum pump
  • 140 W high power enables perfect desoldering on multi-layer PWB
  • New type nozzle can fit onto micro land patterns and narrow space
  • New functions allow the improvement of maintainability and reliable desoldering

£689.28 Excl. VAT

In stock

FR410-72 Desoldering tool with 140 W high powers enable perfect desoldering for the components on multi-layer PWB

Increasing the power to 140 W from 50 W of our previous models (HAKKO 474/475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.

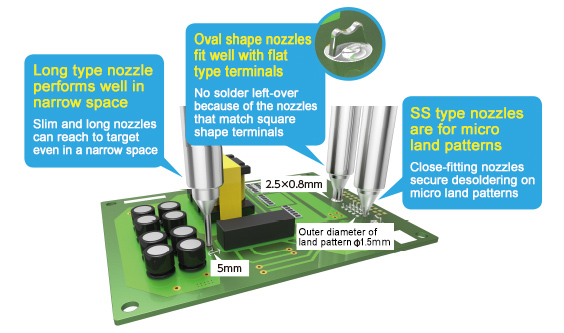

A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.

Applicable to even micro lands, components in a narrow space or flat type terminals on the PWB of downsized devices like mobile phone.

H K Wentworth - HAKKO UK and Ireland distributor

Secure desoldering, valve function that suctions with high pressure

Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.

Secure desoldering, valve function that suctions with high pressure

Reduction of solder clogging

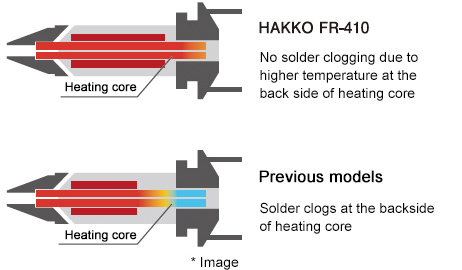

Improvement in heating FR410-72 Desoldering tool core

Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.

Improvement in heating core

Featuring ACF (Anti Clogging Function)

ACF (Anti Clogging Function) ensures suctioned solder be carried to filter pipe by keeping the pump running for a certain period of time (1 to 5 seconds) automatically after releasing trigger.

Improvement in maintainability

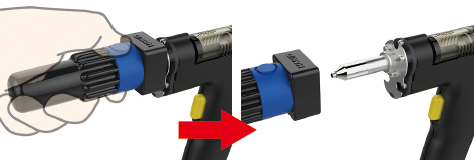

Easy nozzle replacement

The dedicated wrench allows safe, easy and smooth nozzle replacement.

Easy nozzle replacement

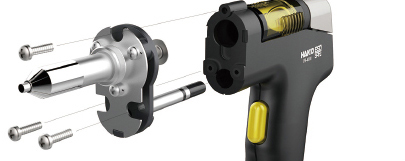

Easy heater replacement

Easy heater replacement by removing 3 screws on the part of heating core.

Easy heater replacement

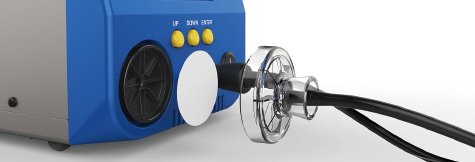

Larger filer and more transparency

Filter size has been increased to protect the pump from contaminants, and transparent filter cover allows quick visual check of the filter condition.

Larger filer and more transparency - FR410-72 Desoldering tool

Tool box

FR410 comes with a tool box that contains of maintenance tools to keep nozzles and heater in a good condition.

Tool box - FR410-72 Desoldering tool

Featuring a large LCD display

Very easy to see temperature on the large LCD display
Vacuum indicator to check clogging

Featuring a large LCD display

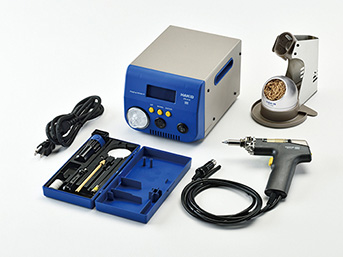

Packing list

Model No. Packing List
FR-410(w/No.FR-4103) Station, Desoldering tool (FR-4103), Power cord, Iron holder (with cleaning wire), Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]), Instruction manual
Packing List

Specifications

Model No. FR-410(Desoldering tool: FR-4103)
Power consumption 190W
Temperature range 330 to 450ºC
Temperature stability ±5ºC at idle temperature

・Station

Output voltage AC 24V
Vacuum generator Vacuum pump, double cylinder type
Vacuum pressure Max. 80kPa (600mmHg)
Suction flow 15L/min.
Dimensions 165(W)×137(H)×244(D)mm
Weight 4.8kg

・Desoldering Tool

Power consumption 140W (24V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Standard nozzle Φ1.0mm S type (No.N61-05)
Cord length 1.2m
Total length 168mm (with Φ1.0mm S type nozzle)
Weight 190g (with Φ1.0mm S type nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

Soldering Tip / Nozzle

* These nozzles are not compatible with the discontinued HAKKO FR-300 handy desoldering tool.

N61 Series

SS type

S type

Standard type

Long type

Oval type

Optional & Recommended Extras for the Fr-410


Part No.

Description

Availability

B1085

Various

Nozzle Cleaning Pins / Drills

Buy Now

C5045 Nozzle Quick Changer for N60 Series

C5045

Nozzle Quick Changer

Buy Now

FR830-13 PCB Underboard Heater

FR-830

Underboard Heater

Buy Now

FA-430 Fume Extractor and Air Purifier

FA-430

Fume Extractor / Air Purifier

Buy Now

C1390C Omnivise PCB Holder

C1390C

Omnivise PCB Holder

Buy Now

C5027 Board Holder

C5027

PCB Stand

Buy Now

Tweezers

Tweezers

FT640

FT641

Tweezers

Buy Now

Buy Now

Desolder Braid

Various

Desolderbraid

Buy Now

SMF012P Flux Pen

SMF12P

Flux Pen

Buy Now

FLU400DB Flux Cleaning Solvent

FLU400DB

Flux Cleaner

Buy Now

FG100B Digital Thermometer

FG100B

Tip Thermometer

Buy Now

106 Series Wire Processing Tools

106 Series

Wire Processing Tools

Buy Now

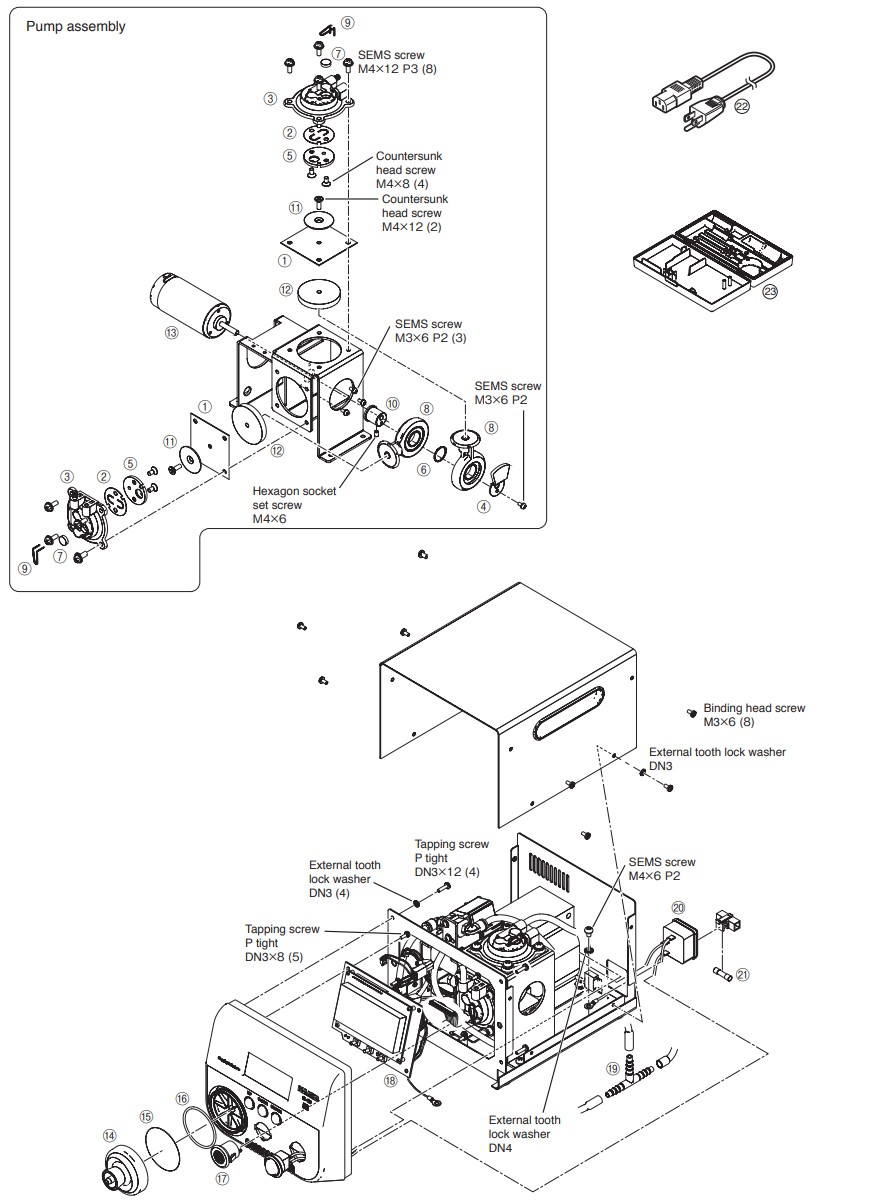

FR-410 Unit Spare Parts and Replacements

Ref.


Part No.

Description

Availability

1.

A1013  Diaphragm

A1013

Diaphragm

Buy Now

2.

 A1014 Valve Plate

A1014

Valve Plate

Buy Now

3.

B1050  Pump Head

B1050

Pump Head

Buy Now

4.

B1053  Balance Weight

B1053

Balance Weight

Buy Now

5.

B1056 Fixing Plate

B1056

Fixing Plate

Buy Now

6.

B1057 Ring for Bearing

B1057

Ring for Bearing

Buy Now

7.

B1059 Exhaust Filter

B1059

Exhaust Filter

Buy Now

8.

B1312 Crank

B1312

Crank

Buy Now

9.

B1313 Filter Retaining Pin

B1313

Filter Retaining Pin

Buy Now

10.

B2060 Crank Shaft

B2060

Crank Shaft

Buy Now

11.

B2085 Diaphragm Setting Plate

B2085

Diaphragm Setting Plate

Buy Now

12.

B2506 Damper

B2506

Damper

Buy Now

13.

B3428 Motor

B3428

Motor

Buy Now

14.

B3428 Motor

B5076

Vacuum Outlet Cap

Buy Now

15.

B5020 Filter

B5020

Filter

Buy Now

16.

B5077 O-Ring

B5077

O-Ring

Buy Now

17.

B5100 Receptacle Assembly

B5100

Receptacle Assembly

Buy Now

18.

B5099 P.W.B for Control

B5099

P.W.B for Control

Buy Now

19.

B3414 Inner Hose Joint

B3414

Inner Hose Joint

Buy Now

20.

B2384 Power Inlet

B2384

Power Inlet

Buy Now

21.

B3675 Fuse 220-240V

B3675

Fuse 250V-4A

Buy Now

22.

B2425 Hakko British Standard Plug

B2425

Power Cord (British Standard Plug)

Buy Now

23.

C5030 Tool kit

C5030

Maintenance Tool Box

(see packing list for components)

Buy Now

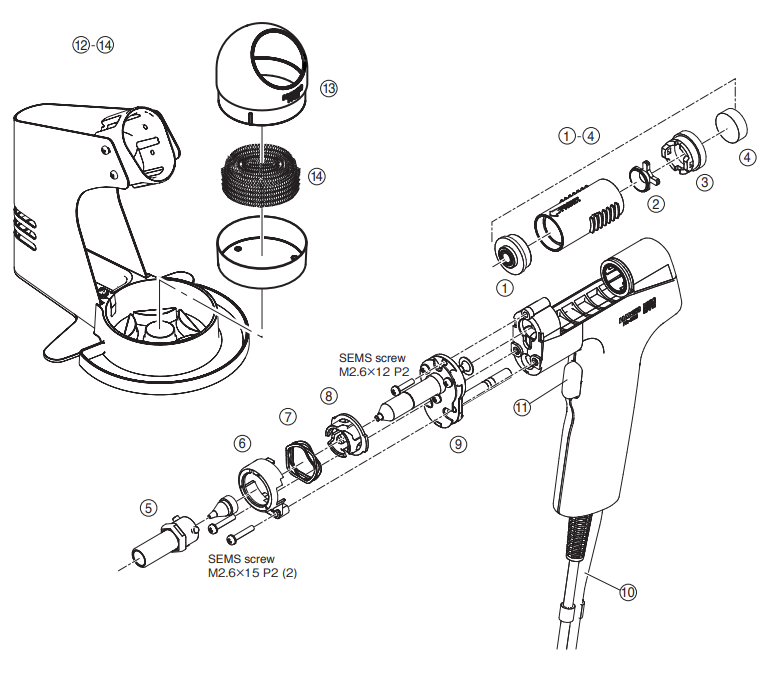

FR4103 and FH410 Spare Parts and Replacements

photo:C5030

Ref.


Part No.

Description

Availability

1-11

FR4103 Desoldering Tool

FR4103

Desoldering Tool

Buy Now

1-4

B5185 Filter Assembly

B5185

Filter Assembly

Buy Now

1.

A5030 Front holder

A5030

Front Holder

Buy Now

2.

B5104

B5104

Pre-Filter

Buy Now

3.

A5031

A5031

Filter Holder

Buy Now

4.

A5044 - Ceramic paper filter-L (qty 10) * The replacement for A1033.

A5044

Ceramic Paper Filter

Buy Now

5.

B5222 Enclosure Pipe

B5222

Enclosure Pipe

Buy Now

6.

B5224 Joint Cover

B5224

Joint Cover

Buy Now

7.

B5064 Wave Spring

B5064

Wave Spring

Buy Now

8.

B5063 Moveable Joint

B5063

Moveable Joint

Buy Now

9.

A5055 Heating Element

A5055

Heating Element

Buy Now

10.

B5101 Hose

B5101

Hose

Buy Now

11.

B5258

Trigger

12-14

FH410-82 Iron Holder with cleaning wire pot

FH410-82

Iron Holder with cleaning wire pot

Buy Now

13.

FT410-81

Cleaning Wire and Pot

14.

599-029 599 Cleaning Wire

599-029

Cleaning Wire

Buy Now

Tech Tips

Category Title
Top Tips Top Tips for Successful Soldering and De-Soldering Processes
Weight 7.4335 kg
