FR4103 Desoldering Tool

Name: FR4103 Desoldering Tool
SKU: HFR4103-81
Price: 314.5900 GBP
Availability: InStock

SKU: HFR4103-81

Availability:

In stock

FR4103 Desoldering Tool 140W (24 V)
The replacement for FR4101
Desoldering tool with built-in vacuum pump

£314.59 Excl. VAT

In stock

140 W high power enables perfect desoldering on multi-layer PWB while the vacuum pump extracts the expired solder and collects inside the desolder tool.
New type nozzle can fit onto micro land patterns and narrow space
Using the gun handpiece in conjunction with the Nozzle Quick Changer C5046), nozzles can be changed with a simple twist!

Handpiece

Model FR-4103
Part No. FR4103-81
Power Consumption 140W (24 V)
Nozzle-to-Ground Resistance < 2 ohms
Nozzle-to-Ground Potential < 2 mV
Heater Composite Ceramic Cartridge
Nozzles N61 Series
Standard Nozzle (Included) N61-05 (1.0 mm / 0.04 in.)
Cord Length 1.2 m (4 ft.)
Total Length (w/o Cord)1 168 mm (6.6 in.)
Weight (w/o Cord)1 190 g (0.42 lb.)
1As measured with N61-05 nozzle installed

Soldering Tip / Nozzle

* These nozzles are not compatible with the discontinued HAKKO FR-300 handy desoldering tool.

N61 Series

SS type

N61-01 Nozzle SS type: Size Φ0.6

N61-02 Nozzle SS type: Size Φ0.8

N61-03 Nozzle SS type: Size Φ1.0

S type

N61-04 Nozzle S type: Size Φ0.8

N61-05 Nozzle S type: Size Φ1.0

N61-06 Nozzle S type: Size Φ1.3

Standard type

N61-07 Nozzle Standard type: Size Φ0.8

N61-08 Nozzle Standard type: Size Φ1.0

N61-09 Nozzle Standard type: Size Φ1.3

N61-10 Nozzle Standard type: Size Φ1.6

Long type

N61-11 Nozzle Long type: Size Φ0.8

N61-12 Nozzle Long type: Size Φ1.0

N61-13 Nozzle Long type: Size Φ1.3

N61-14 Nozzle Long type: Size Φ1.6

Oval type

N61-15 Nozzle Oval type: Size 3×1 mm

N61-16 Nozzle Oval type: Size 4×1 mm

Replacement Parts

Part No.	Name
C5030	C5030 Tool box	Buy
A5031	A5031 Replacement Filter holder	Buy
A5044	Ceramic paper filter-L (qty 10) * The replacement for A1033.	Buy
A5055	A5055 Replacement Heating element 140W (24V), for FR4101 / FR4103	Buy

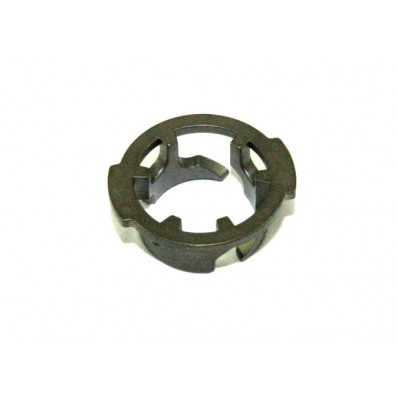

B5063	Motive Joint Replacement	Buy

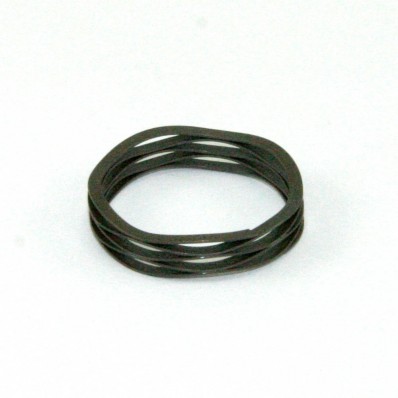

B5064	Wave Spring Replacement	Buy
B5101	B5101 ESD Hose for FR-4101 Desoldering Tool	Buy

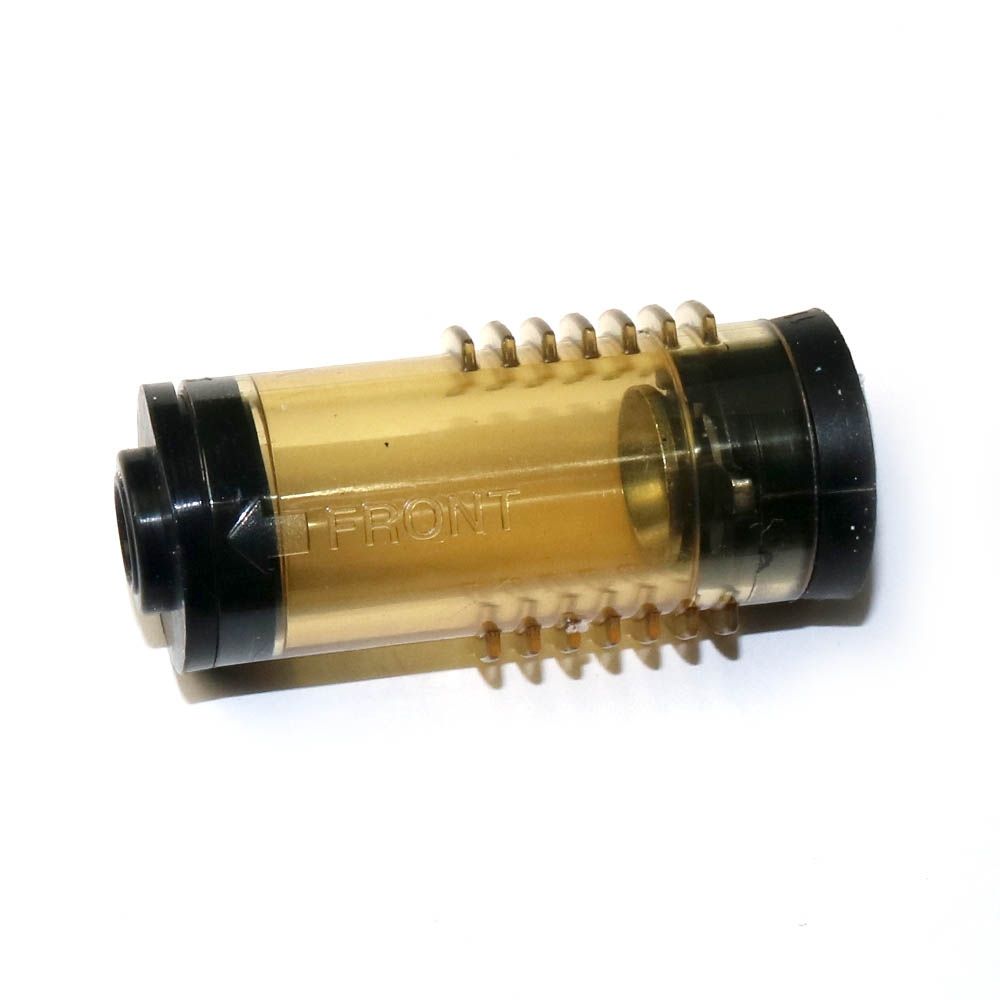

B5185	B5185 Filter pipe assembly with ceramic paper filter and related parts	Buy
B5222	B5222 Enclosure pipe for FR-4103	Buy

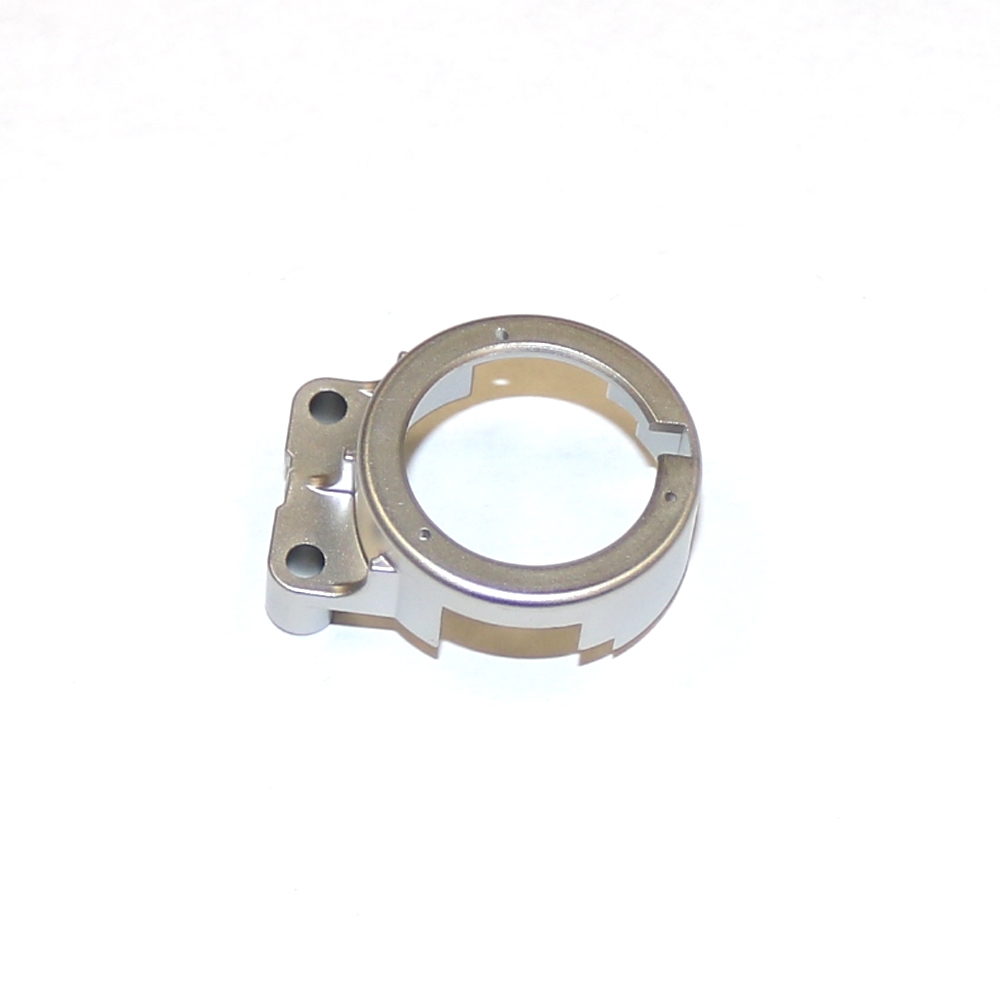

B5224	B2224 Joint Cover for FR-4101 Desoldering Tool	Buy
