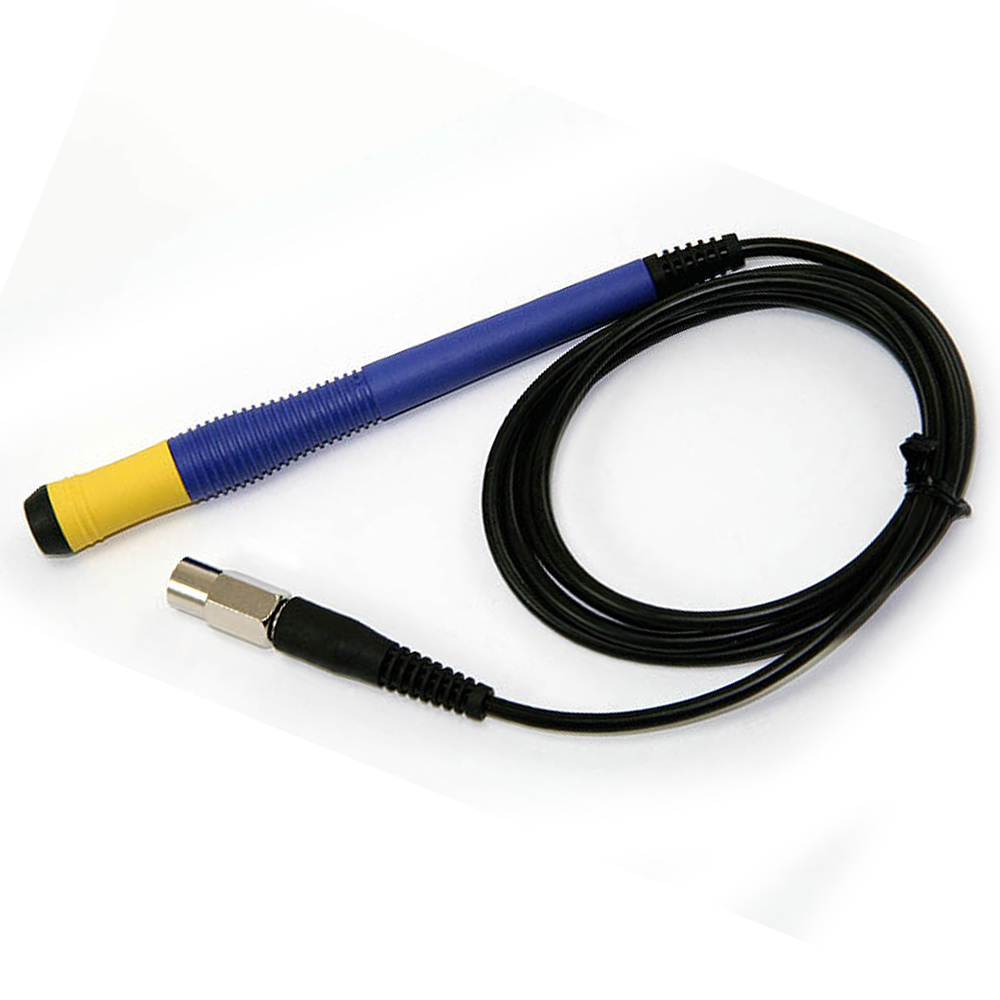

FX1001 Induction Heating (RF) Soldering Iron (Hand Piece)

SKU: HFX1001-81

Hakko
Availability:

Low stock – Order soon


Induction (RF) Heating Soldering Iron (Hand Piece)
No calibration or system settings required
Tips Not included

£39.72 Excl. VAT

Low stock – Order soon

Suitable for use with Induction Soldering Station HAKKO FX-100

Contains hand piece only does not include Tip

Features

H K Wentworth - HAKKO UK and Ireland distributor

Recommended for use with high heat capacity, high-density circuit boards.

H K Wentworth - HAKKO UK and Ireland distributor

Temperature setting 350°C: T31-03 Series
400°C: T31-02 Series
450°C: T31-01 Series

* Shapes and sizes are identical throughout the different series

What is IH (High-Frequency Induction Heating)

Unlike resistance-based heating systems that control temperature by turning heater power on and off via a sensor, with an induction heating system the soldering tip itself produces heat and maintains a constant temperature, enabling a small soldering tip to handle high thermal capacity, high-density substrates.

H K Wentworth - HAKKO UK and Ireland distributor

Packing list

Part No. Packing list
FX1002−82 (Conversion kit) 1. FX1001-81 Handpiece2. Yellow sleeve Assembly (B5006)3. Instruction manual (No photo)
A soldering tip is not included with this product. The desired tips should be purchased separately. This soldering iron cannot be used as a stand-alone unit.

Specifications

Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element IH (Induction heating)
Cord length 1.3m
Total length 190mm (with No.T31-02D24 or T31-03D24) 193mm (with No.T31-01D24)
Weight 31g (with No.T31-02D24)
* Total length and weight (w/o cord)

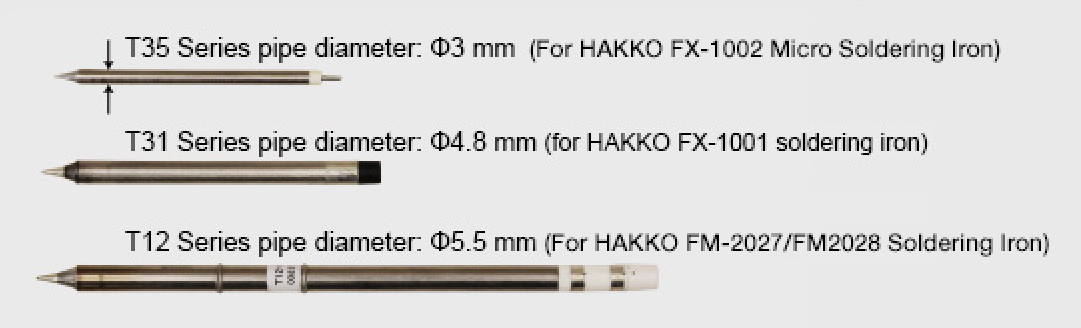

Soldering Tip / Nozzle

T31 Series

Optional / Recommended Extras

Part Number Description

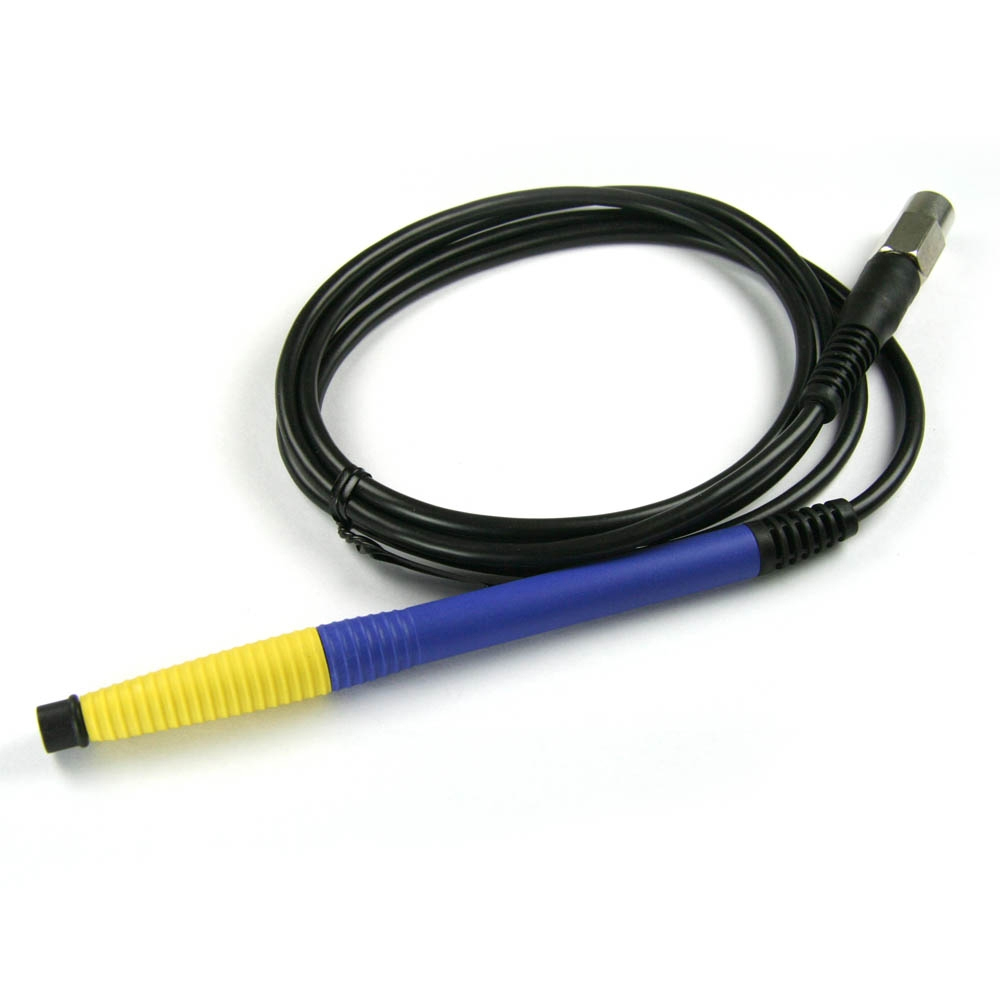

1. FX1002-81 Micro-Soldering Iron Hand piece Buy

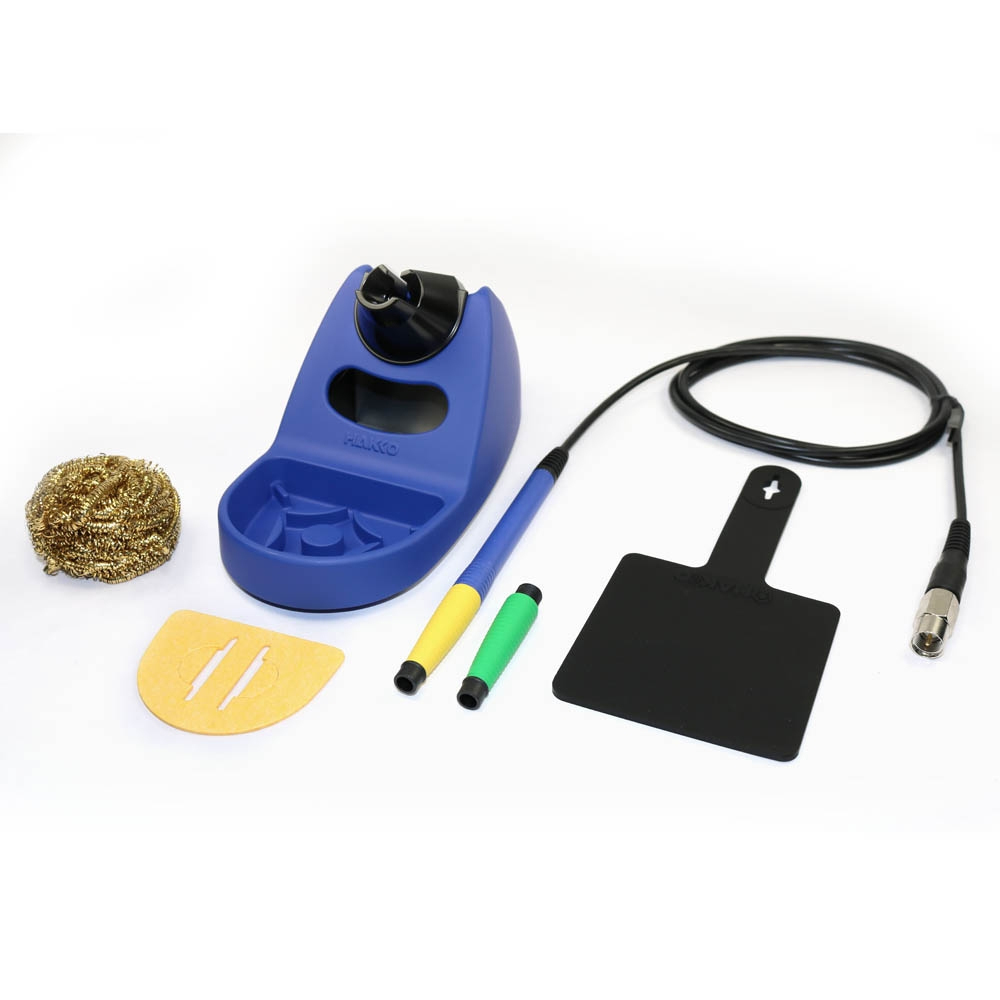

2. FX1002-82 Micro-Soldering Iron Conversion Kit Buy

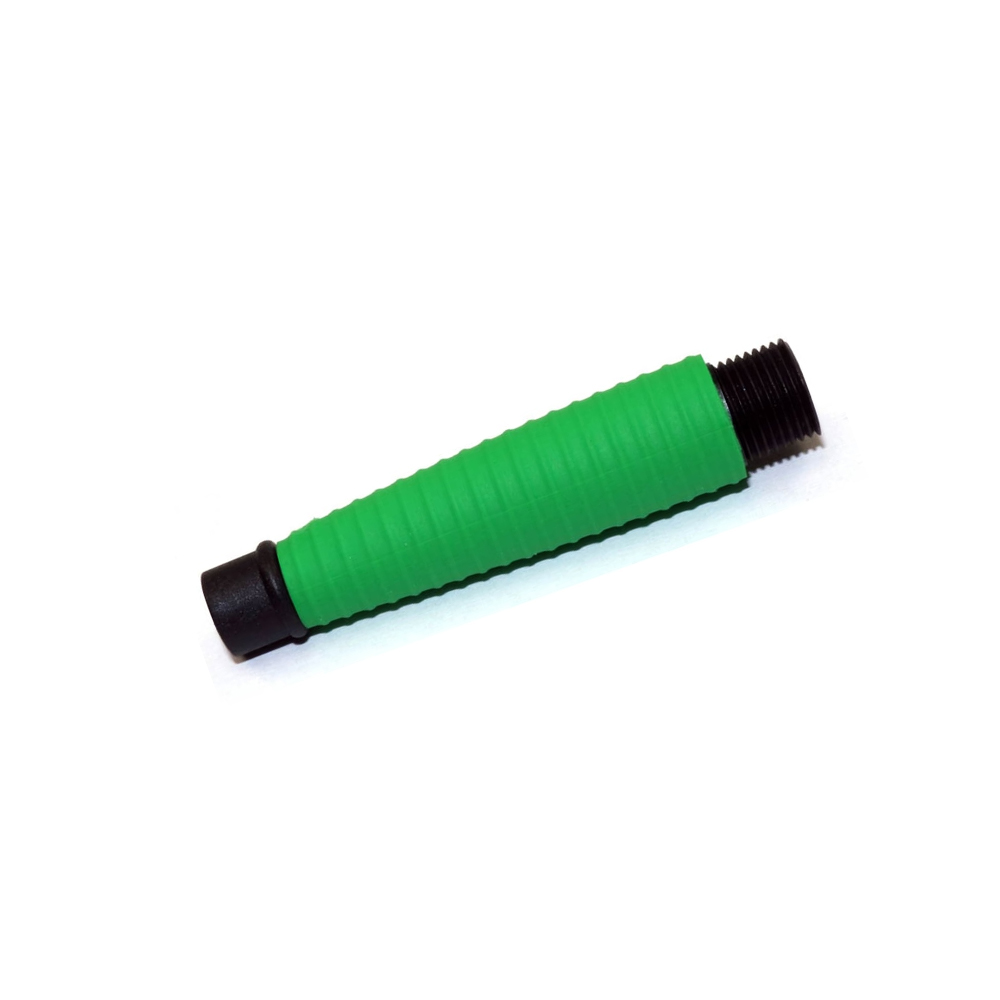

3. B5180 Green Sleeve Assembly for FX1002 Buy
4. FG-100B Tip Thermometer Buy

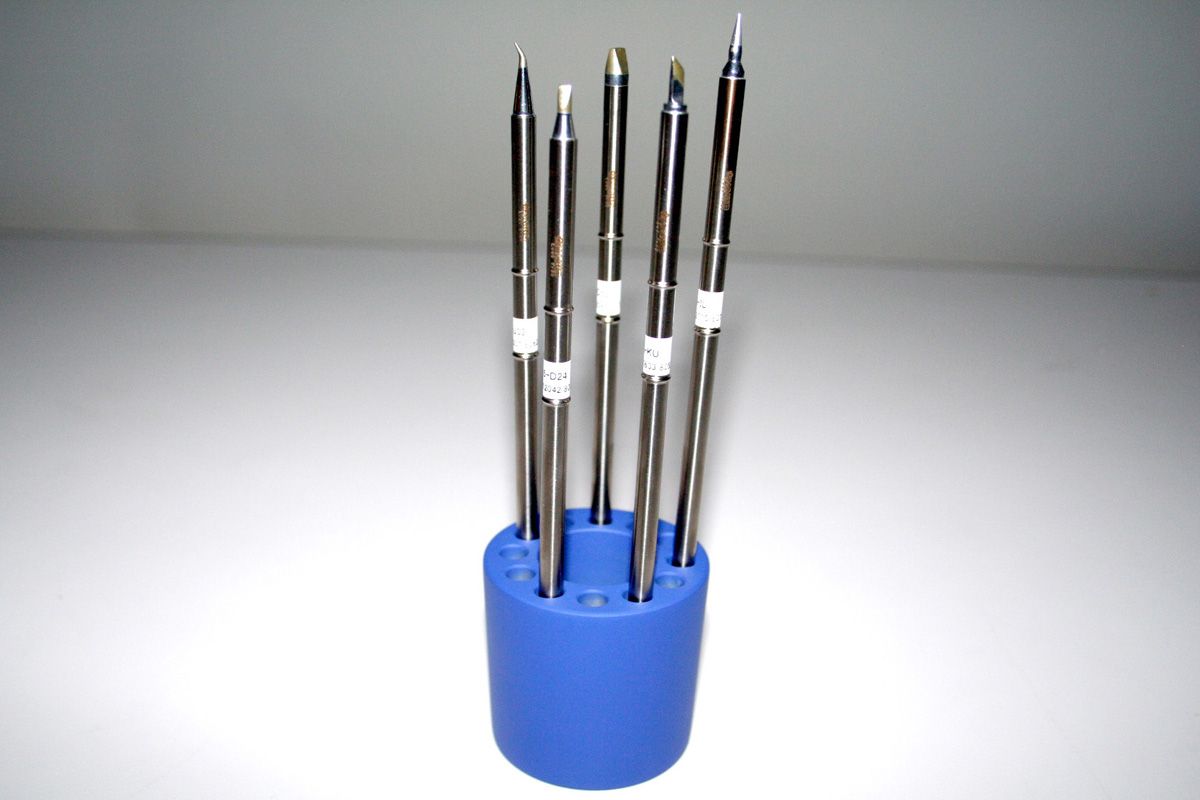

5. B2756 Tip Holder Buy

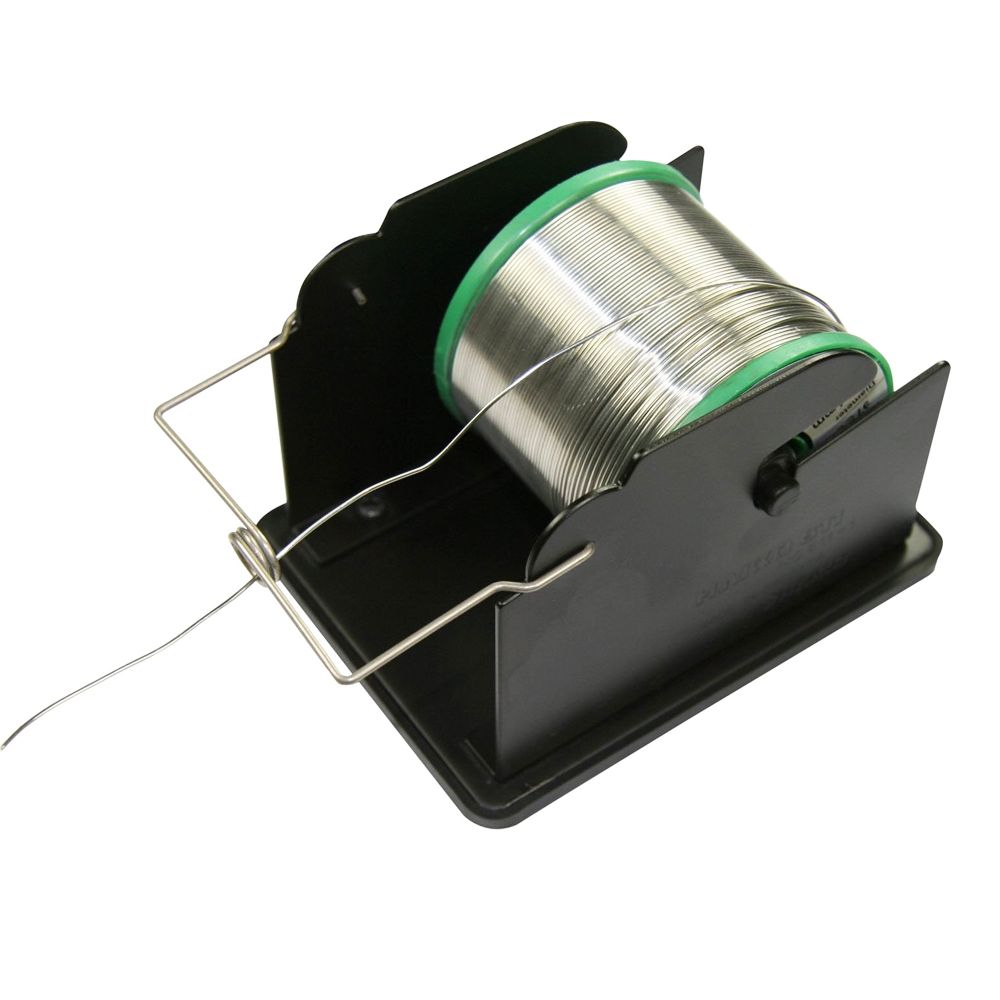

6. 611-1 Solder Wire Holder Buy

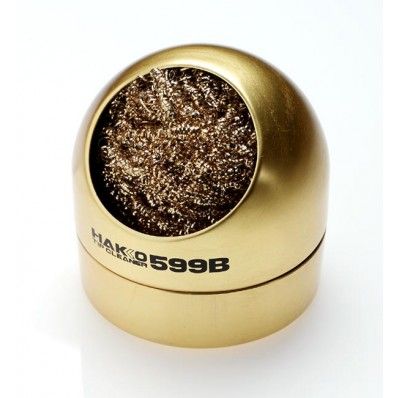

7. 599B Tip Cleaner Buy
8. B3474 Rubber Tip Cleaner Buy

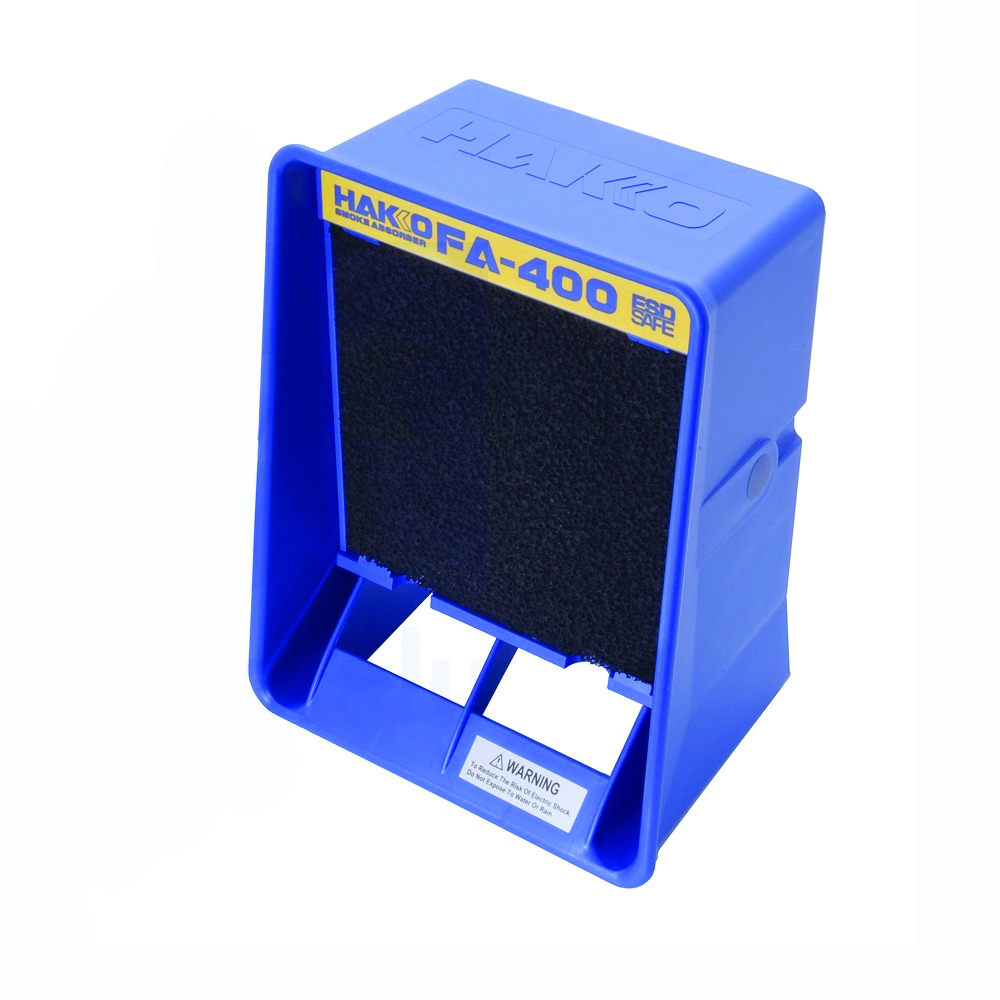

9. FA-400 Desktop Fume Extractor Buy

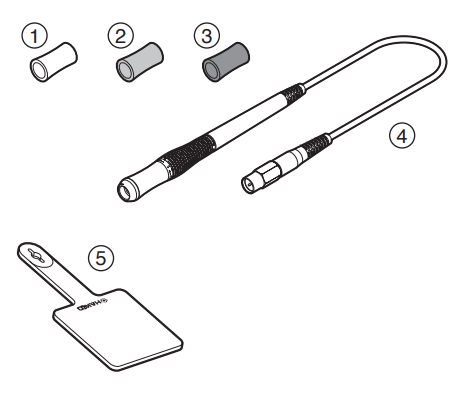

Replacement Parts FX1001

Replacement Parts FX1001
Part Number Description

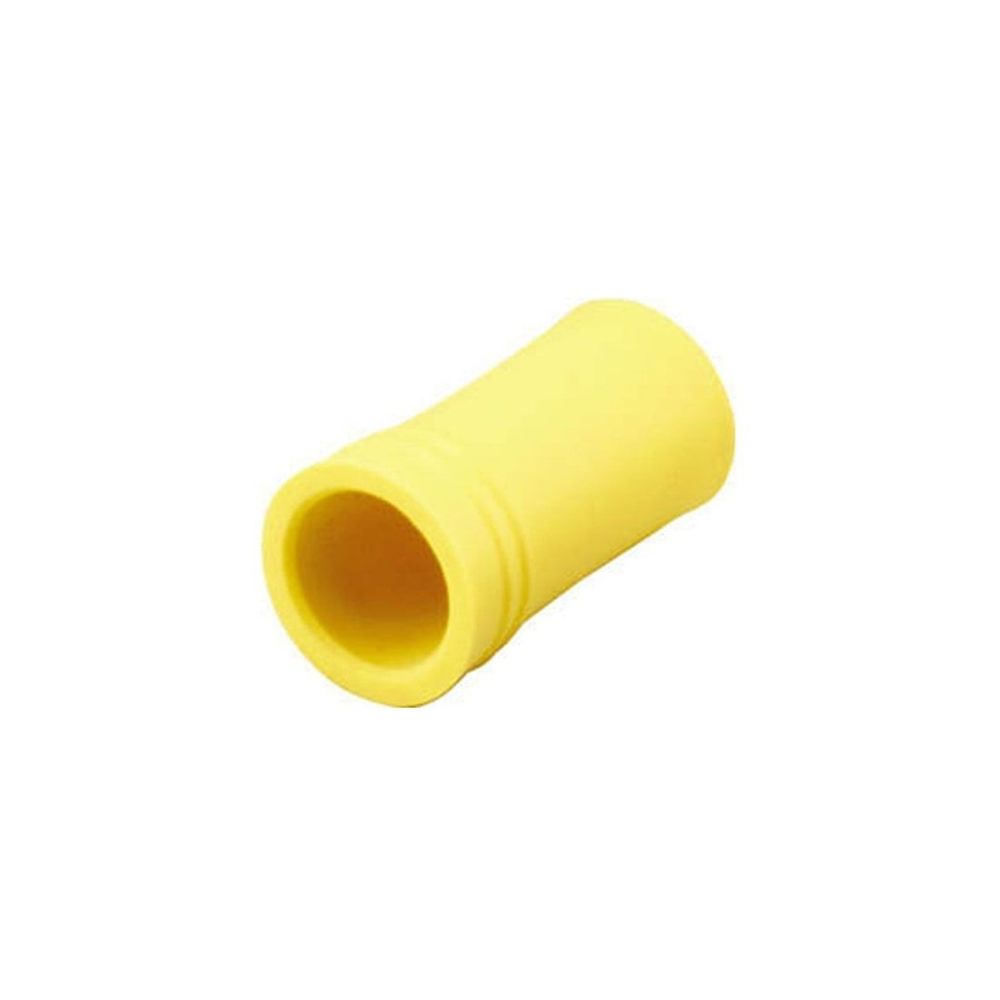

1. B5006 Sleeve Assembly Yellow Buy

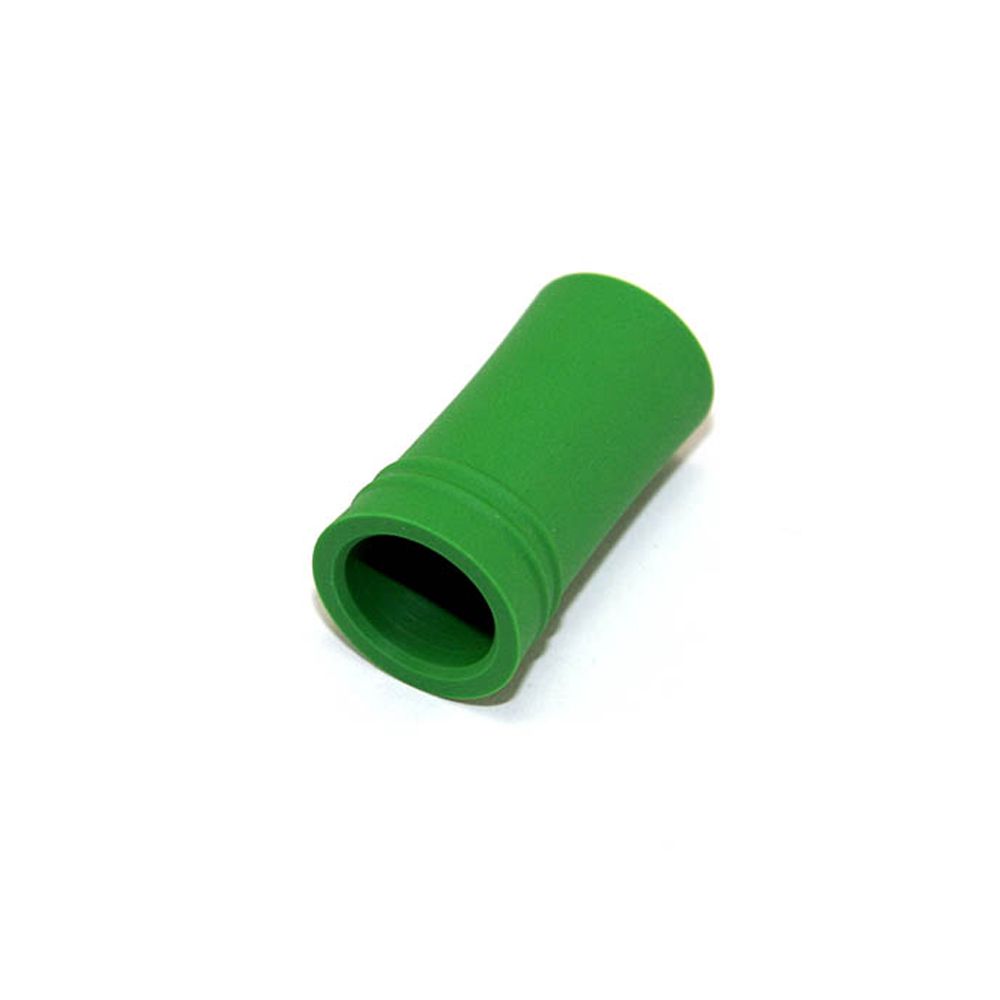

2. B5007 Sleeve Assembly Green Buy

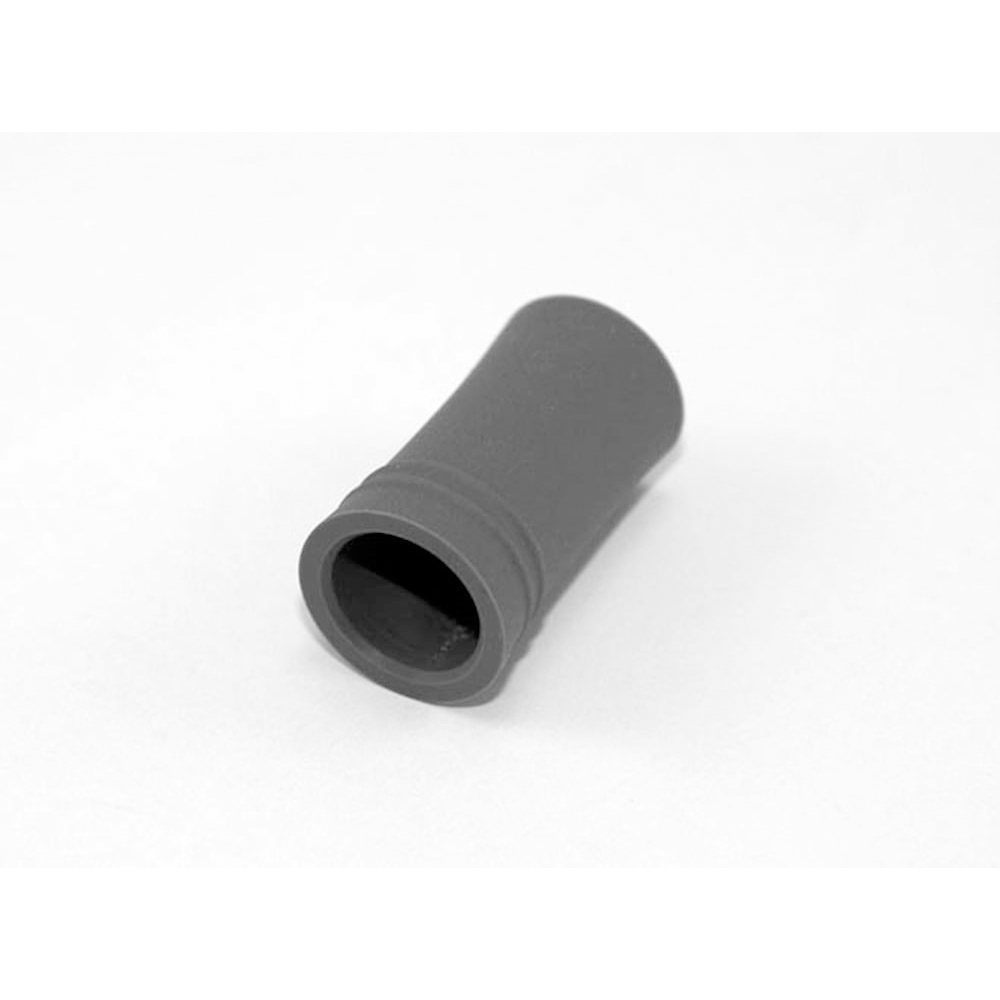

3. B5008 Sleeve Assembly Grey Buy
4. FX1001-81 FX1001 Soldering Iron Buy
5. B2300 Heat Proof Mat Buy

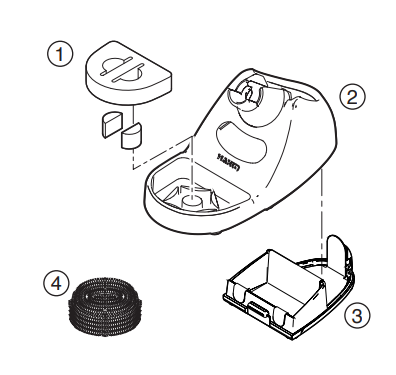

Replacement Parts FH800

  Part Number Description

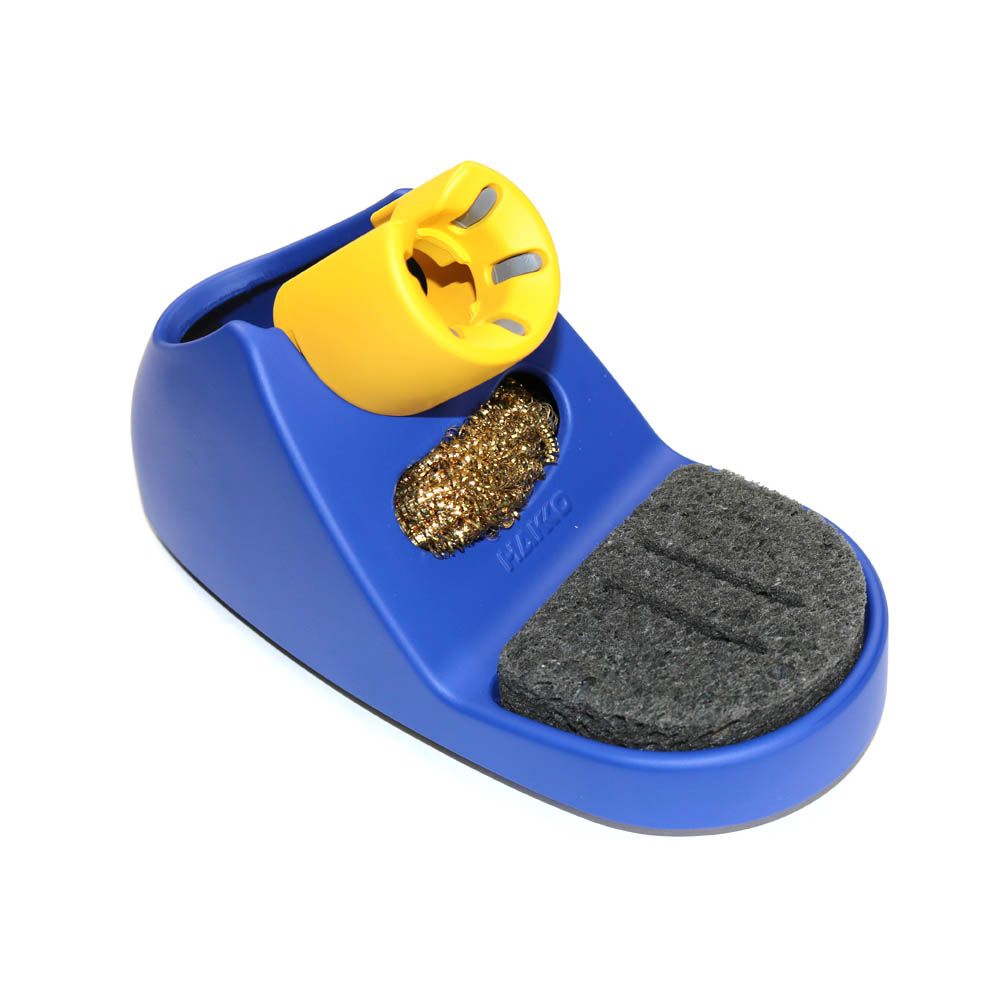

FH800 Full Iron Holder Buy
1.       B5038 Cleaning Sponge Available to Buy: Contact us
2.       B5009 Holder Top Available to Buy: Contact us
3.       B3751 Holder Base Available to Buy: Contact us

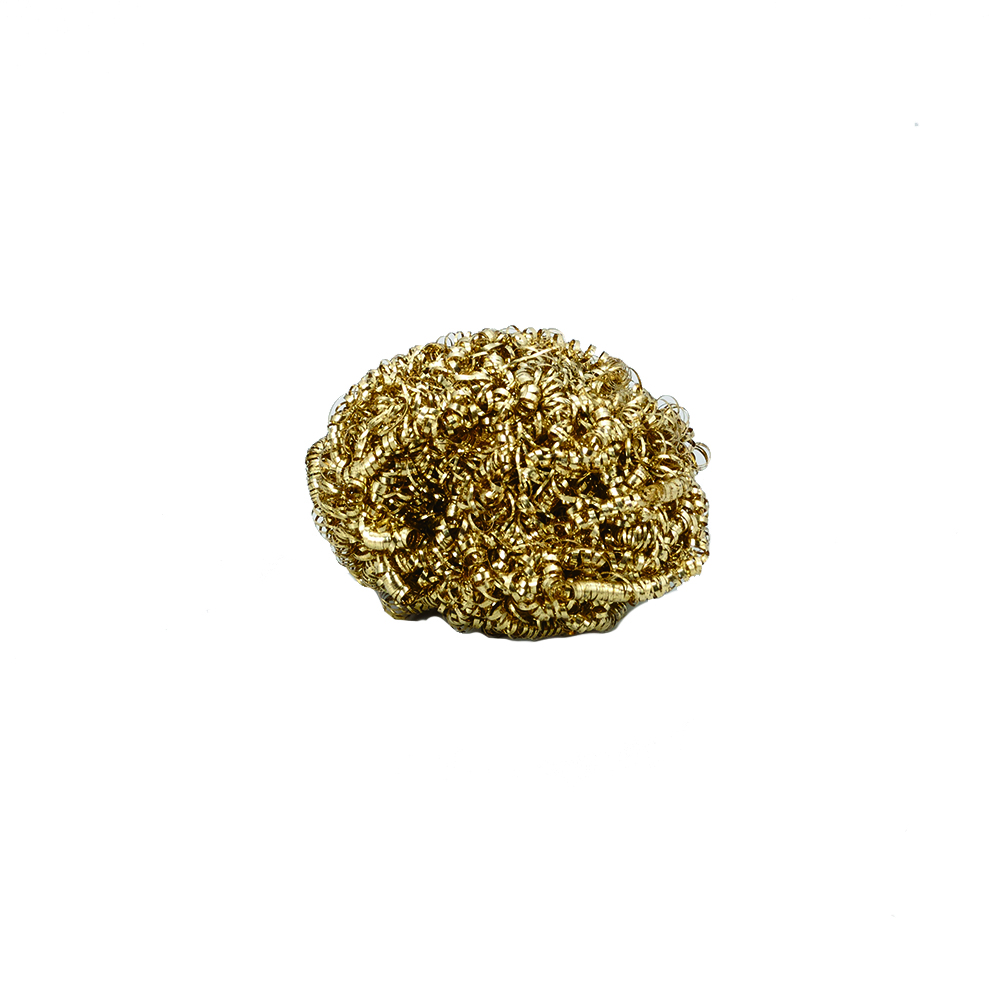

4.       B1561 Cleaning Wire Buy

Tech Tips

Category Title
Top Tips Top Tips for Successful Soldering and De-Soldering Processes
Weight 0.1042 kg
