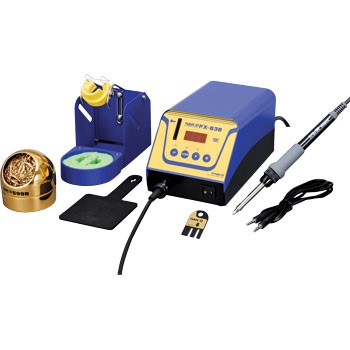

|FX838-19 High Power Soldering Station (150W) enjoys the various applications from large to fine components.|
|Great thermal recovery improves the soldering environment.(Refer to the graph bellow.)|
|It allows soldering at lower set temperatures.
It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.(Refer to the graph bellow.)
It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but for microsoldering.
|Operate at Maximum Temperature of 500 Degrees.|
|It enables soldering power-supply boards easily because high power 150W hand piece can provide great thermal recovery.|
|High Power but Safety design of low voltage.|
|This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.|
|Easy to replace tips.|
|Cartridge style Integrated heater makes thermal conductivity improve.
Available 20 different shape as replacement, some of which are suitable for fine components.
|HAKKO FX-838 replacement Tip List (T20 series)|
|Temperature preset mode saves time and effort.|
|It allows you to input three frequently-used temperatures in advance and recall them with one push of a button.
It saves the troublesome setting condition, tailored to the tip-shape, component and work.
|Combination of optional handpiece allows use of N2 system.
|Great thermal recovery|
|150W hand piece provides great thermal recovery, which allows soldering at lower set temperatures to!!minimize concern about the influence of heat on components and tip life.|
|High power saves the working time.|
|The high power shortens the working time.|
– Test Condition
|Test method||Solder at 5 points and measure the time until temperature of the workipiece reaches 250 degrees.|
|Board used||Bakelite board|
|Solder||Lead-free solder (Sn/Ag/Cu) 0.5|
|HAKKO FX838||With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual.(Not necessary to purchase this unit if you have it.)|
|Iron holder||With HAKKO 599B|
|With cleaning sponge|
|N2 Soldering Iron|
|T20 Series||Select the tip appropriate for work.|
|Nozzle assembly||Select the nozzle assembly applicable to the tip.|
|With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally.
|N2 Flow Meter|
Air tube Outer diameter: 6mm
|* The others are not provided by HAKKO|
