FR-400 Heavy Duty Desoldering Station (300W)

SKU: HFR400-72

Hakko
Availability:

In stock


Heavy-duty Desoldering Tool with built-in vacuum pump (300W)
Quick and secure desoldering even on high heat capacity and high heat dissipation PWB with super power
Secure desoldering with valve function
Solder clogging was reduced featuring Anti Clogging Function

£1,214.48 Excl. VAT

In stock

FR400-72 Heavy Duty Desoldering Station (300W) tremendous power enables nearly impossible desoldering on PWB with high heat capacity and high heat dissipation property.

H K Wentworth - HAKKO UK and Ireland distributor

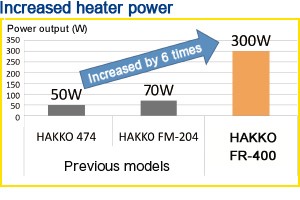

300 W tremendous power makes incredible heating.

H K Wentworth - HAKKO UK and Ireland distributorH K Wentworth - HAKKO UK and Ireland distributor

Secure desoldering, valve function that suctions with high pressure

Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
Reduction of solder clogging

Improvement in heating core

Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.

Featuring ACF (Anti Clogging Function)

ACF ensures suctioned solder be carried to filter pipe by keeping pump running for a second after releasing trigger.

Improvement in maintainability

Featuring new filter pipe 3 times larger than the previous model

The new filter pipe is 3 times larger than the previous model and applicable to operation on large components. This is not disposal type and for repeatable use.

H K Wentworth - HAKKO UK and Ireland distributor

Easy heater replacement

Easy heater replacement by removing 3 screws on the part of heating core.

H K Wentworth - HAKKO UK and Ireland distributor

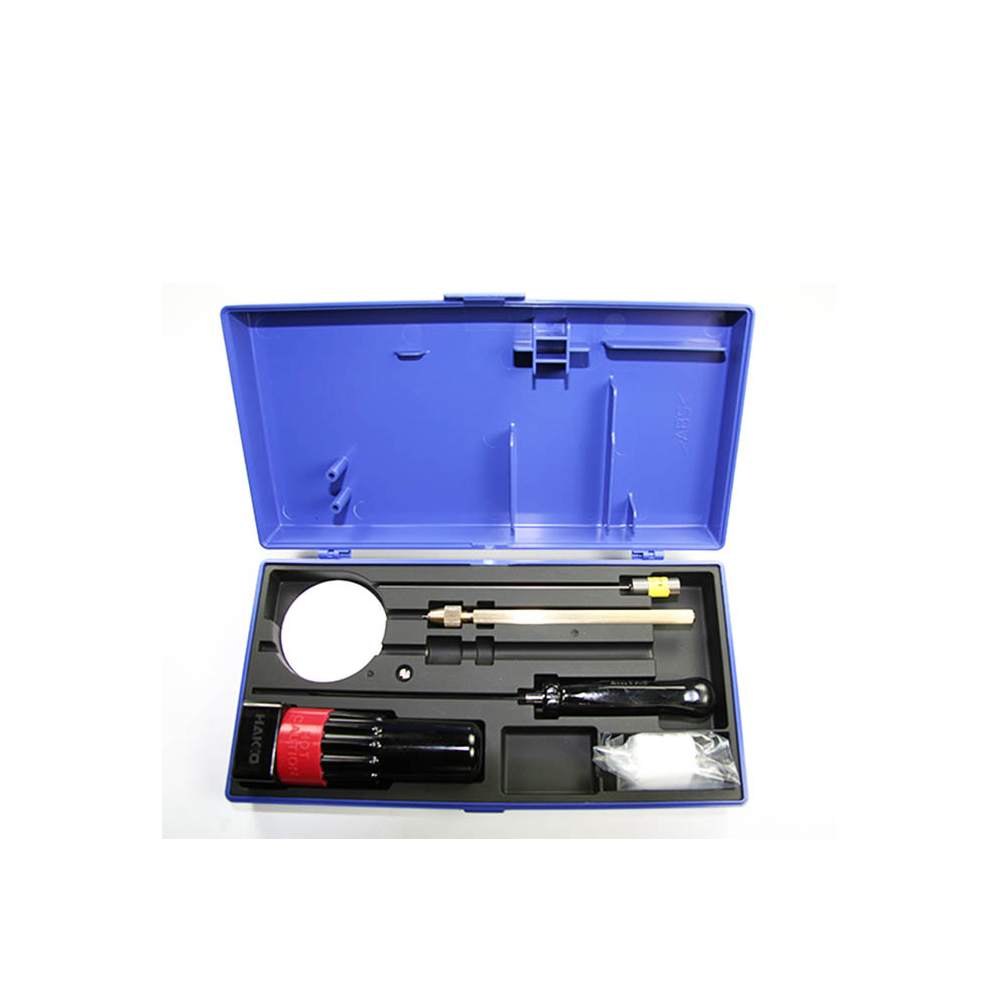

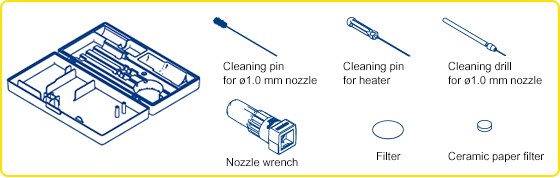

Tool box for maintenance kit

A tool box that contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.

H K Wentworth - HAKKO UK and Ireland distributor

Larger filer and more transparency

H K Wentworth - HAKKO UK and Ireland distributor

When desoldering, flux is also suctioned. Flux can cause degradation of suction performance if it enters inside the pump. To avoid the degradation, filter is attached on the front panel. The new filter is larger than the previous type to enhance greater adsorption property. Also the transparent filter cover makes it easy to check filter condition.

Featuring a large LCD display

Very easy to see temperature on the large LCD display
Vacuum indicator to check clogging

H K Wentworth - HAKKO UK and Ireland distributor

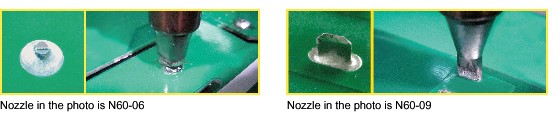

Lineup of nozzles for large components

Nozzles applicable to shapes like 2 mm or larger diameter lead or flat termination are lined up.

H K Wentworth - HAKKO UK and Ireland distributor

Model No.

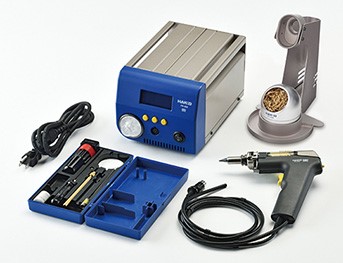

Packing List

FR-400(w/No.FR-4003)

1. FR-400 Station + Instruction manual

2. Power cord (B2425)

3. Desoldering tool(FR-4003)

4. Iron holder FH400 (with cleaning wire 599-029)

5. Tool box (C5011)

Includes:

Cleaning pin for ø1.0 mm (B1087),

Cleaning pin for heater, (B1215)

Cleaning drill for ø1.0 mm, (B1303)

Nozzle wrench, (B5082)

Filter [qty 2], (A5020)

Ceramic paper filter [qty 4]), (A5045)

Model No.

FR-400 (Desoldering tool: FR-4003)

Power consumption

320W

Temperature range

350 to 500ºC

Temperature stability

±5ºC at idle temperature

・Station

Output voltage

AC 29V

Vacuum generator

Vacuum pump, double cylinder type

Vacuum pressure

Max. 80kPa (600mmHg)

Suction flow

15L/min.

Dimensions

166(W)×137(H)×264(D)mm

Weight

5.7kg

・Desoldering Tool

Power consumption

300W (29V)

Nozzle to ground resistance

<2Ω

Nozzle to ground potential

<2mV

Heating element

Composite heater

Standard nozzle

Φ1.0mm type (No.N60-02)

Cord length

1.2m

Total length

183mm (with Φ1.0mm nozzle)

Weight

270g (with Φ1.0mm nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

N60 Nozzles for the FR-4003

N60-01

0.8mm

Buy Now

N60-02

1.0mm

Buy Now

N60-03

1.3mm

Buy Now

N60-04

1.6mm

Buy Now

N60-05

2.0mm

Buy Now

N60-06

2.6mm

Buy Now

N60-07

3.0mm

Buy Now

N60-08

4.2x1.5mm

Buy Now

N60-09

6.2x1.5mm

Buy Now

Recommended Extra:

C5045

Nozzle Quick Changer

Buy Now

Optional / Recommended extras for the FR-400


Part No.

Description

Availability

C5045

Nozzle Quick Changer

Buy Now

Various

Nozzle Cleaning Pins / Drills

Buy Now

FR-830

Underboard Heater

Buy Now

FA-430

Fume Extractor / Air Purifier

Buy Now

C1390C

Omnivise PCB Holder

Buy Now

C5027

PCB Stand

Buy Now

FT640

FT641

Tweezers

Various

Desolder braid

Buy Now

SMF12P

Flux Pen

Buy Now

FLU400DB

Flux Cleaner

Buy Now

FG100B

Tip Thermometer

Buy Now

106 Series

Wire Processing Tools

Buy Now

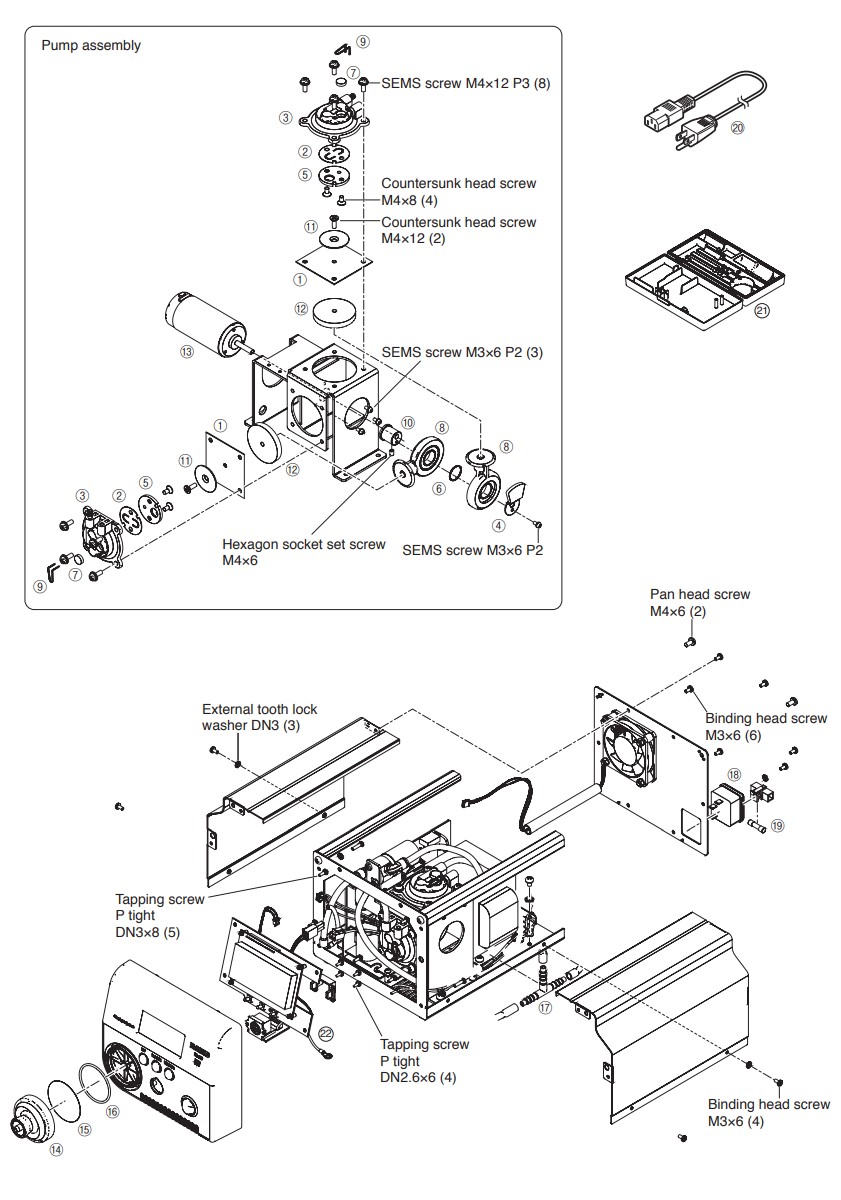

Replacement and Spare Parts for the FR-400 Station

Ref.


Part No.

Description

Availability

1.

A1013

Diaphragm

Buy Now

2.

A1014

Valve Plate

Buy Now

3.

B1050

Pump Head

Buy Now

4.

B1053

Balance Weight

Buy Now

5.

B1056

Fixing Plate

Buy Now

6.

B1057

Ring For Bearing

Buy Now

7.

B1059

Exhaust Filter

Buy Now

8.

B1312

Crank

Buy Now

9.

B1313

Filter Retaining Pin

Buy Now

10.

B2060

Crank Shaft

Buy Now

12.

B2085

Diaphragm Setting Plate

Buy Now

13.

B2506

Damper

Buy Now

14.

B3428

Motor

Buy Now

15.

A5020

Filter

Buy Now

16.

B5077

O-Ring

Buy Now

17.

B3414

Inner Hose Joint

Buy Now

18.

B2384

Inlet

Buy Now

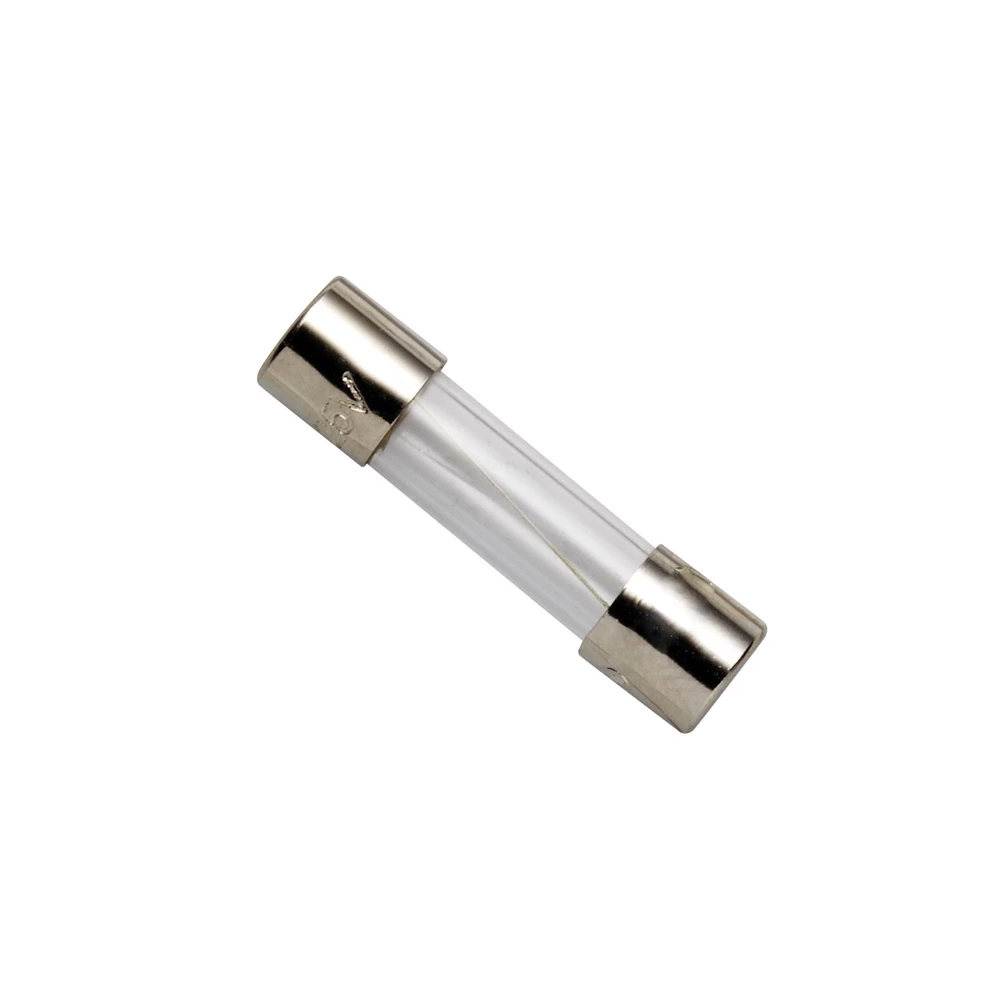

19.

B3675

Fuse 250V-4A

Buy Now

20.

B2425

Power Lead (UK Plug)

Buy Now

21.

C5011

Tool Box

Buy Now

22.

B5090

P.W.B for Control with LCD Connector

Please Contact Us

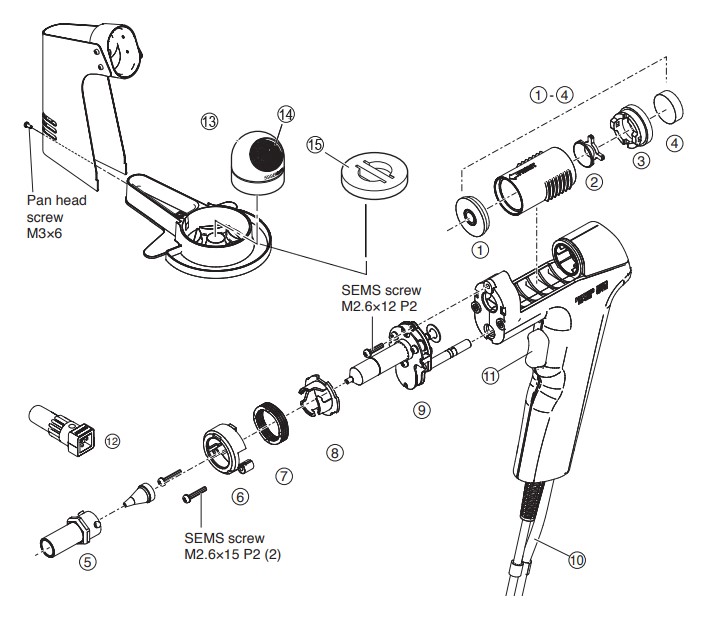

Replacements for the FR4003 Desoldering Tool included with the FR-400

Ref.


Part No.

Description

Availability

1-11

FR4003-81

FR-4003 Desoldering Tool

Buy Now

1-4

B5184

Filter Pipe Assembly

Buy Now

1.

A5017

Front Holder

Buy Now

2.

B5080

Pre Filter

Buy Now

3.

A5018

Filter Holder

Buy Now

4.

A5045

Ceramic Paper Filter

Buy Now

5.

B5221

Enclosure Pipe

Buy Now

6.

B5226

Wave Spring

Buy Now

7.

B5225

Movable Joint

Buy Now

8.

A5054

Heating Element

Buy Now

9.

B5101

Hose

Buy Now

10.

B5257

Trigger

12.

B5082

Nozzle Wrench

Buy Now

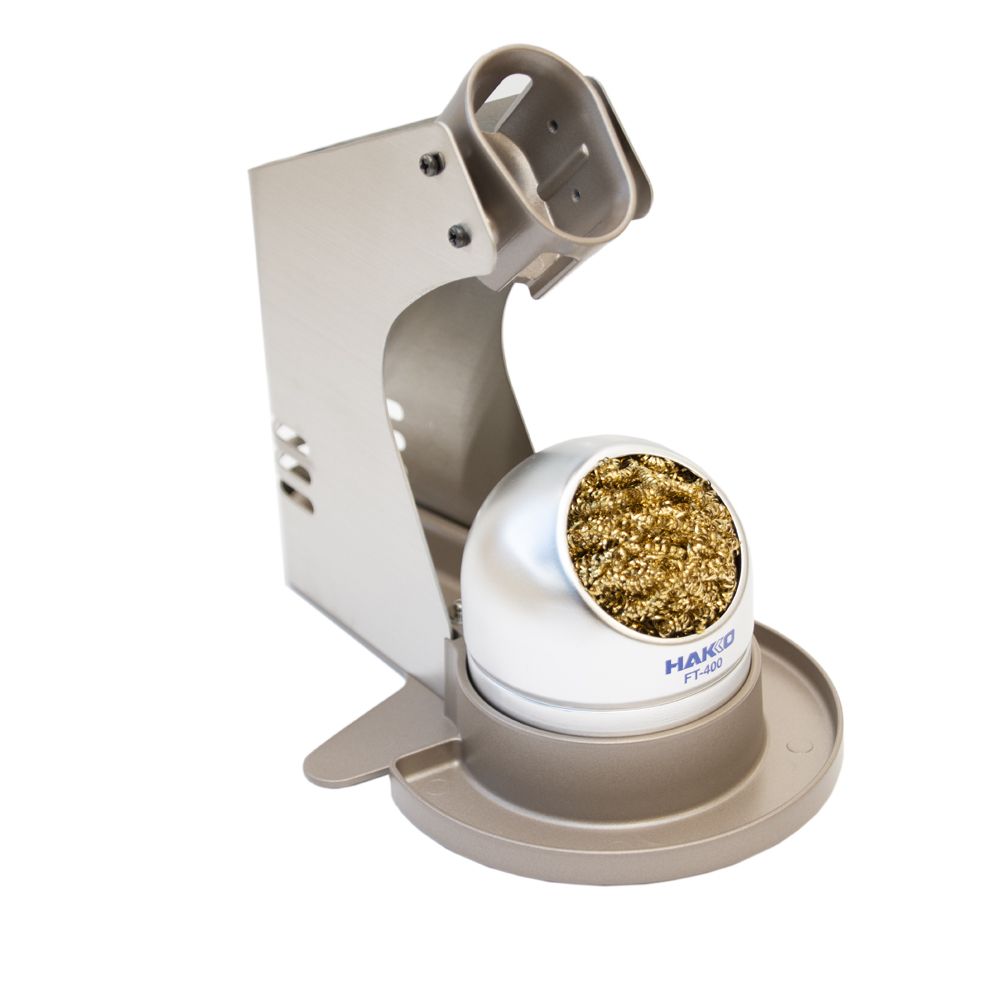

13.+14.

FH400-82

Stand with Cleaning Wire

Buy Now

13.+16.

FH400-81

Stand with Cleaning Sponge

Contact Us

14.

FT400-81

Cleaning Wire and Pot

Buy Now

15.

599-029

Cleaning Wire

Buy Now

16.

A1519

Cleaning Sponge

Buy Now

Manuals

Manual Size
Hakko FR-400 Instruction Manual 3,814kb Download
