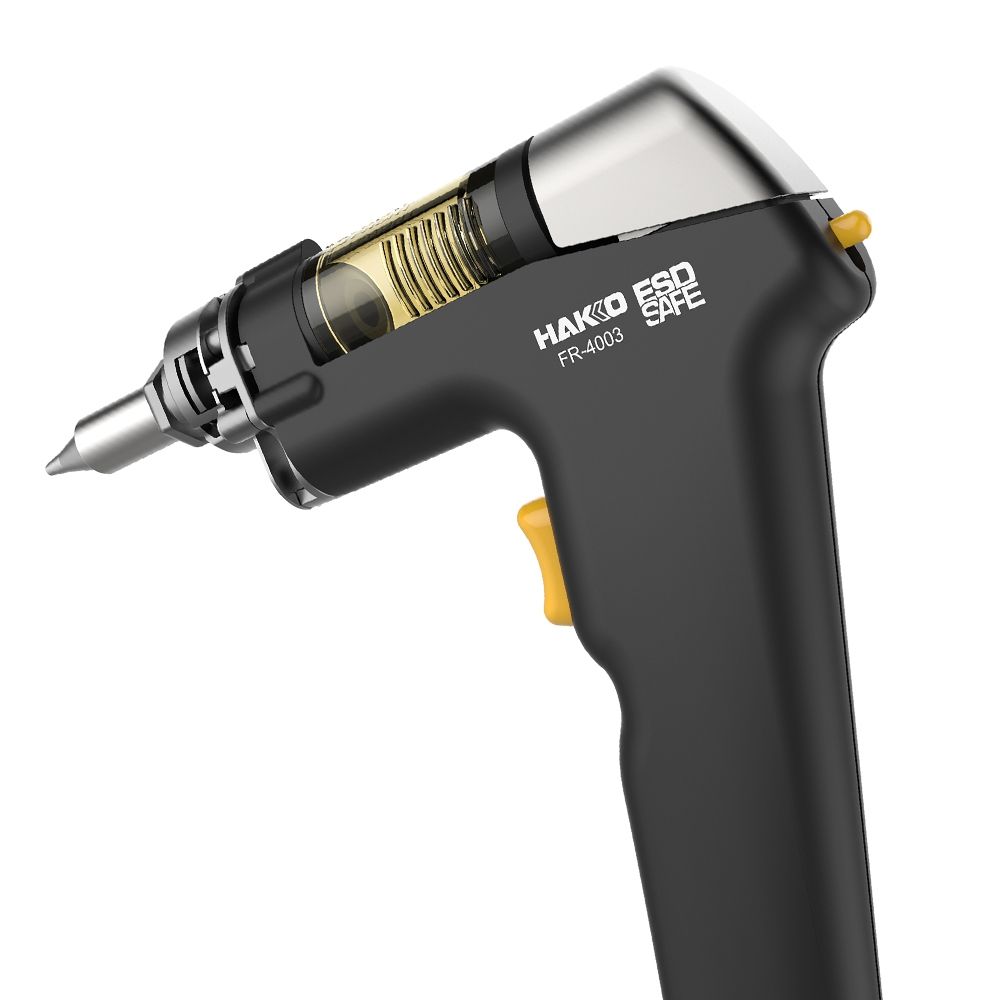

FR4003-81 Heavy Duty Desoldering Tool

SKU: HFR4003-81

Hakko
Availability:

Low stock – Order soon


Replacment Heavy Duty Desoldering Tool for the FR-400
Note: This Tool Replaces the FR4001
Quick and secure desoldering even on high heat capacity and high heat dissipation PWB with super power
Anti Clogging Function

£364.34 Excl. VAT

Low stock – Order soon

300 W tremendous power enables nearly impossible desoldering on P.W.B with high heat capacity and high heat dissipation property.

Secure desoldering, valve function that suctions with high pressure

Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.

Reduction of solder clogging

Improvement in heating core

Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.

Featuring ACF (Anti Clogging Function)

ACF ensures suctioned solder be carried to filter pipe by keeping pump running for a second after releasing trigger.

Improvement in maintainability

Easy heater replacement

H K Wentworth - HAKKO UK and Ireland distributor

Easy heater replacement by removing 3 screws on the part of heating core.

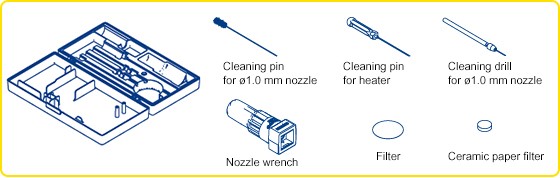

Tool box for maintenance kit

A tool box (HAKKO C5011 Purchased Separately) contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.

H K Wentworth - HAKKO UK and Ireland distributor

Larger filer and more transparency

When desoldering, flux is also suctioned. Flux can cause degradation of suction performance if it enters inside the pump. To avoid the degradation, filter is attached on the front panel. The new filter is larger than the previous type to enhance greater adsorption property. Also the transparent filter cover makes it easy to check filter condition.

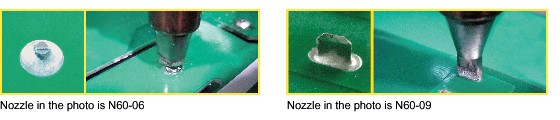

Lineup of nozzles for large components

Nozzles applicable to shapes like 2 mm or larger diameter lead or flat termination are lined up.

H K Wentworth - HAKKO UK and Ireland distributor

Model No. Packing List
No.FR-4003 Desoldering tool(FR-4003) Standard 1.0mm Nozzle
Power consumption 300W (29V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Standard nozzle Φ1.0mm type (No.N60-02)
Cord length 1.2m
Total length 183mm (with Φ1.0mm nozzle)
Weight 270g (with Φ1.0mm nozzle)
* Total length and weight (w/o cord, hose)

N60 Nozzles for the FR-4003

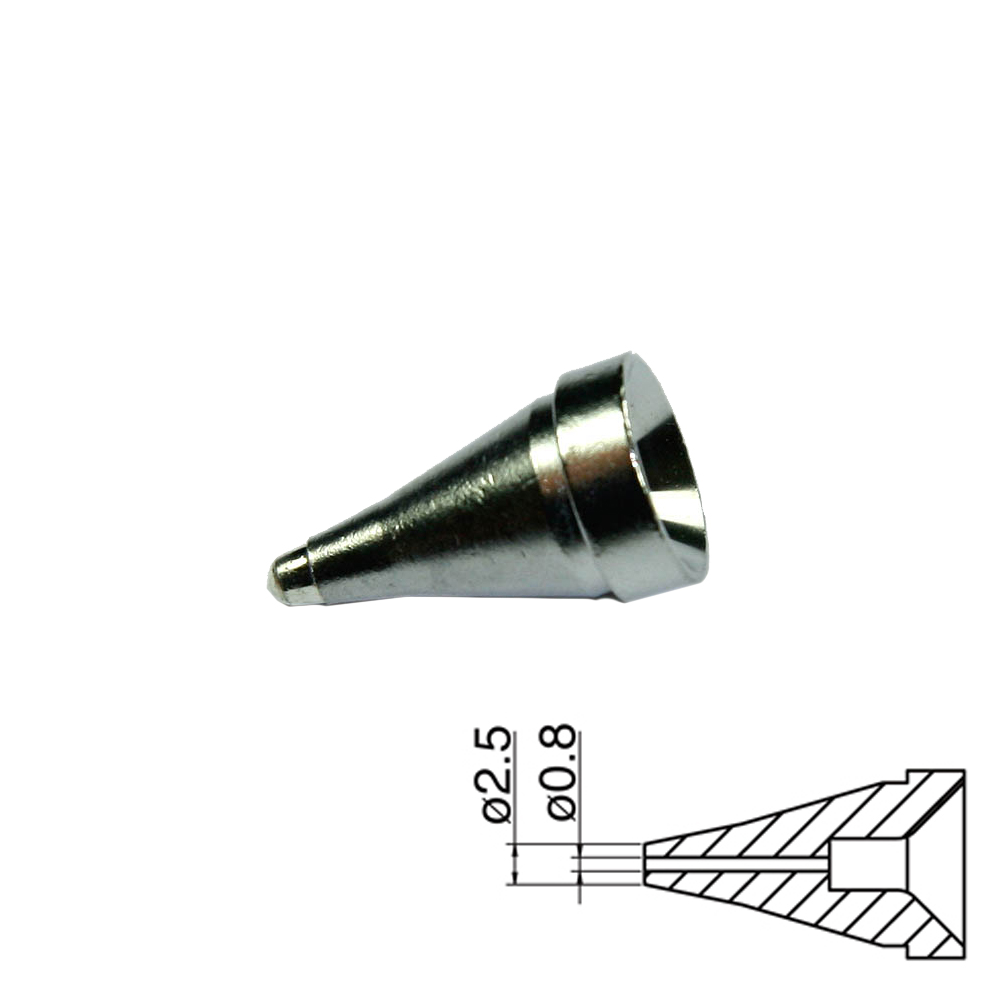

N60-01

0.8mm

Buy Now

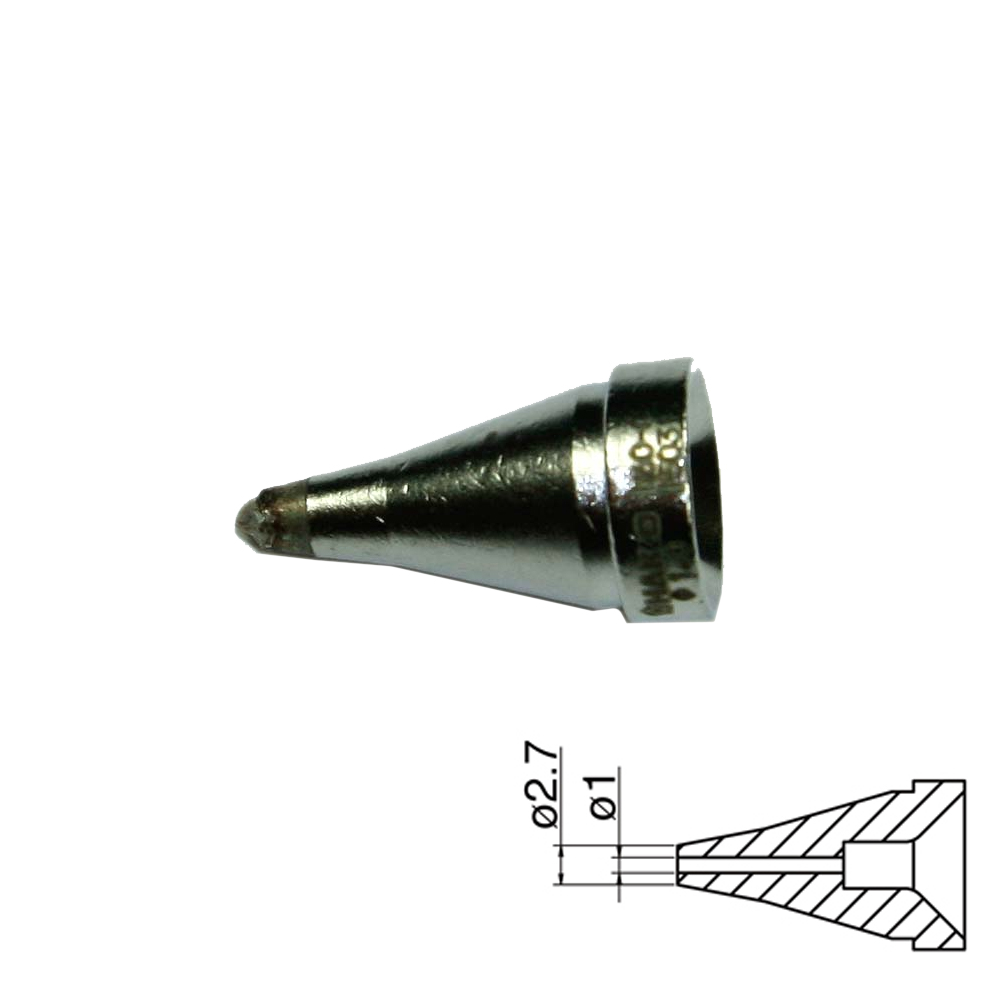

N60-02

1.0mm

Buy Now

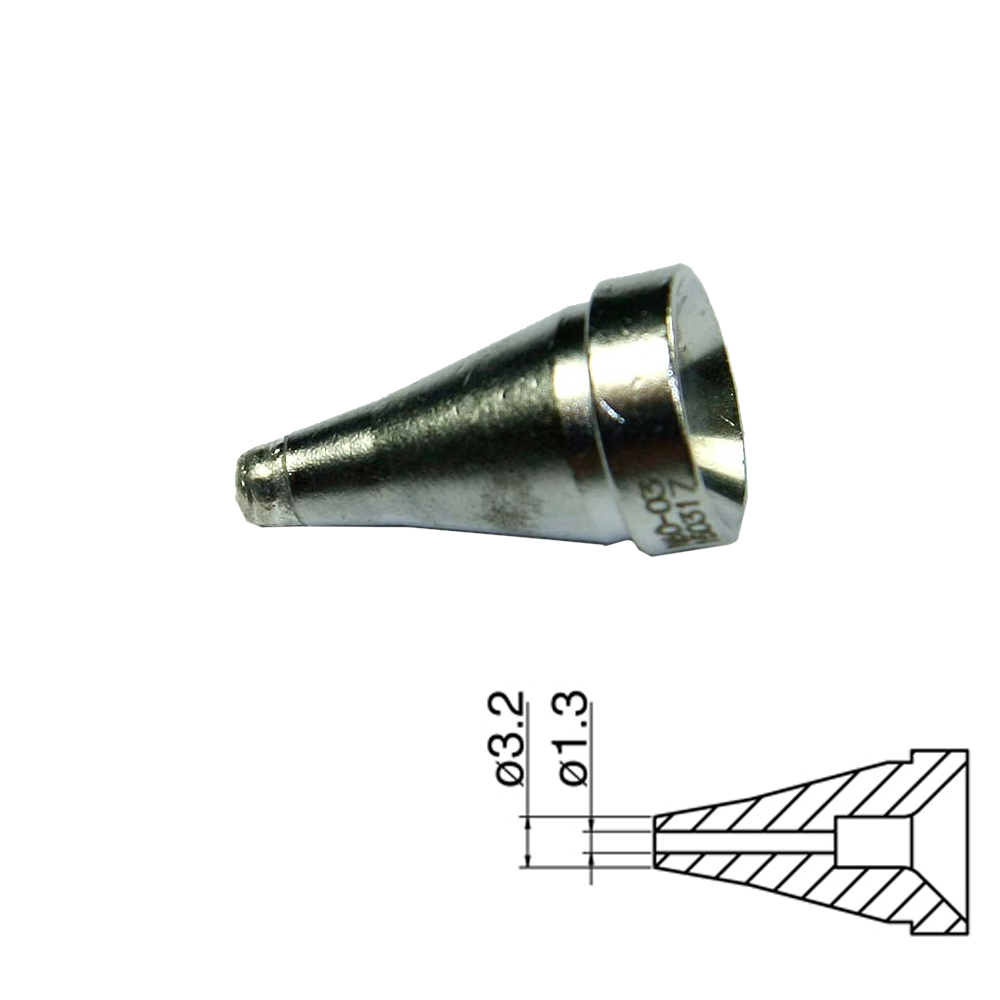

N60-03

1.3mm

Buy Now

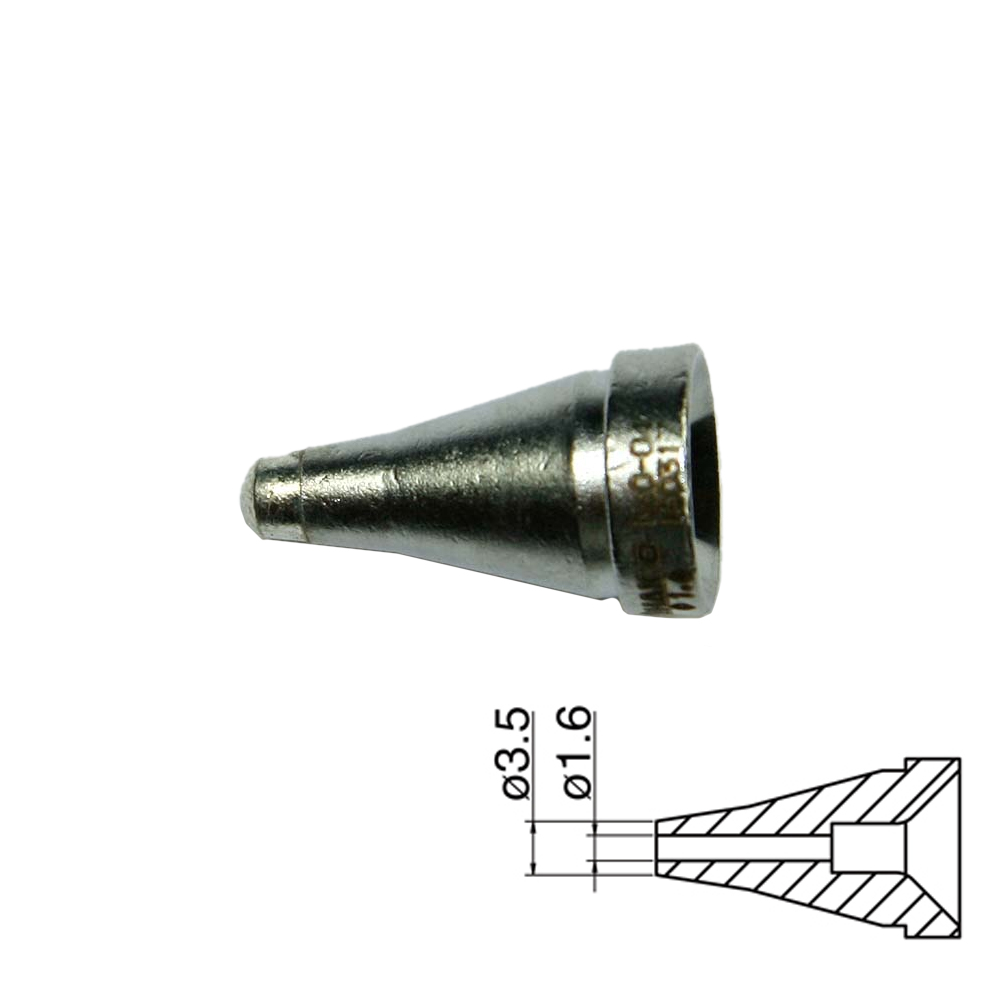

N60-04

1.6mm

Buy Now

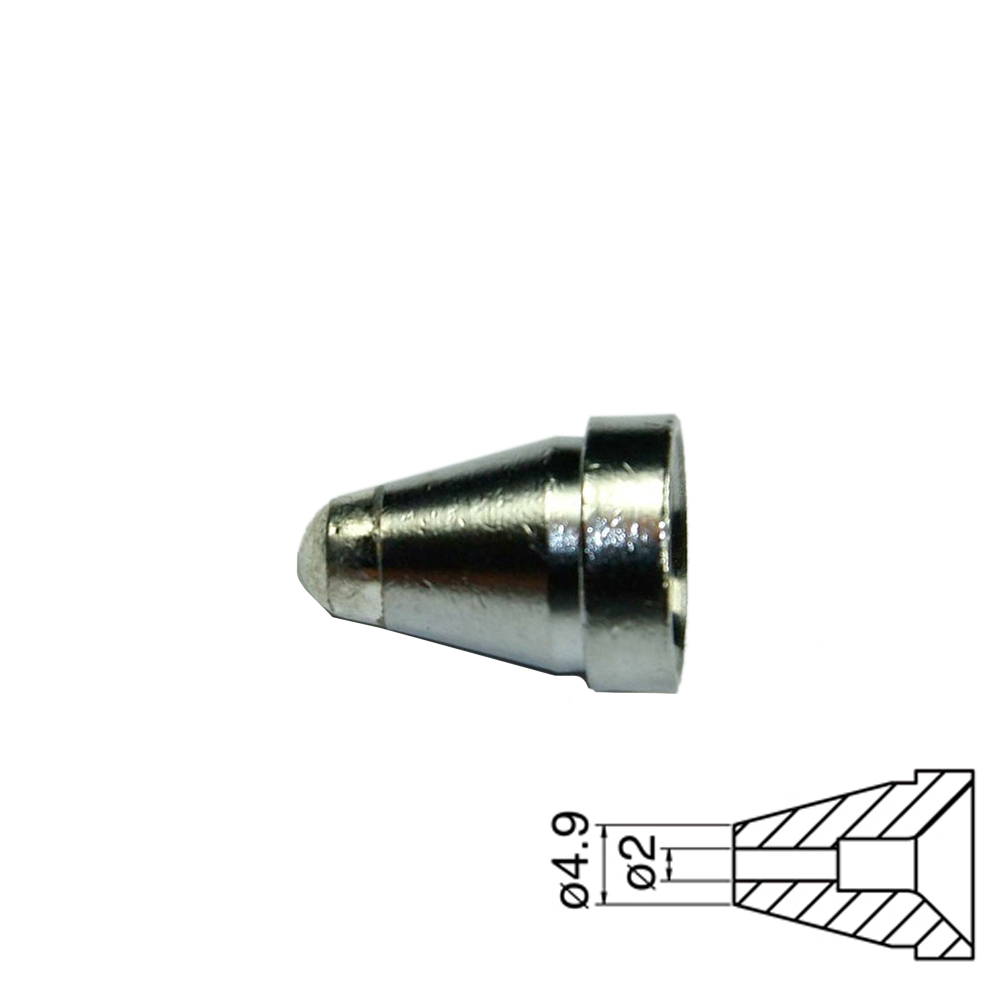

N60-05

2.0mm

Buy Now

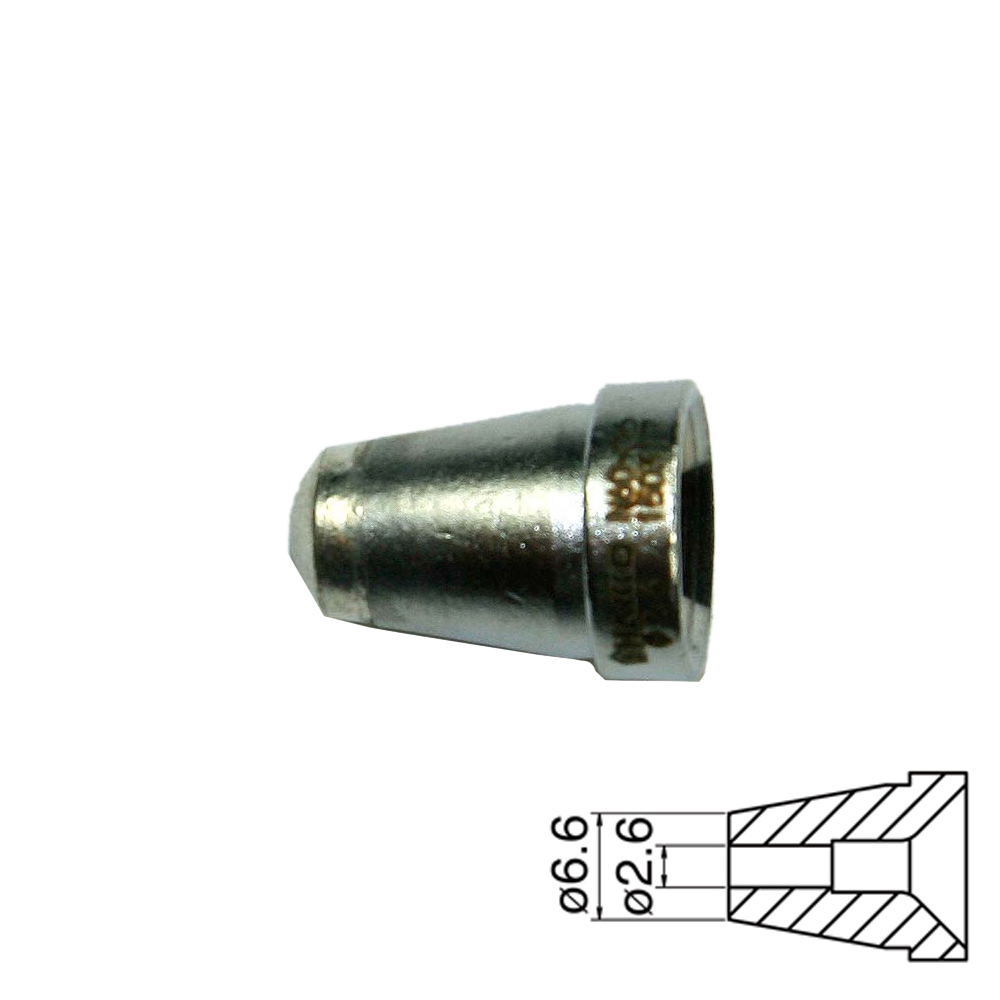

N60-06

2.6mm

Buy Now

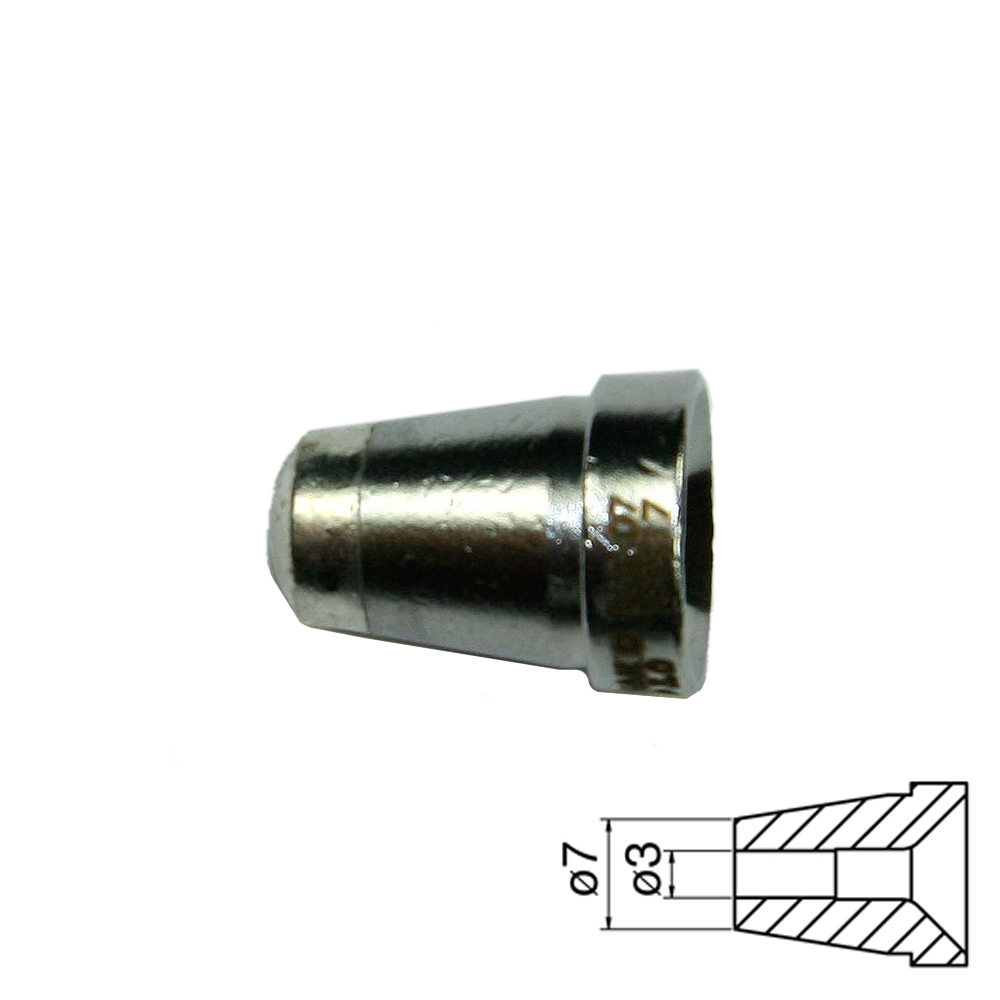

N60-07

3.0mm

Buy Now

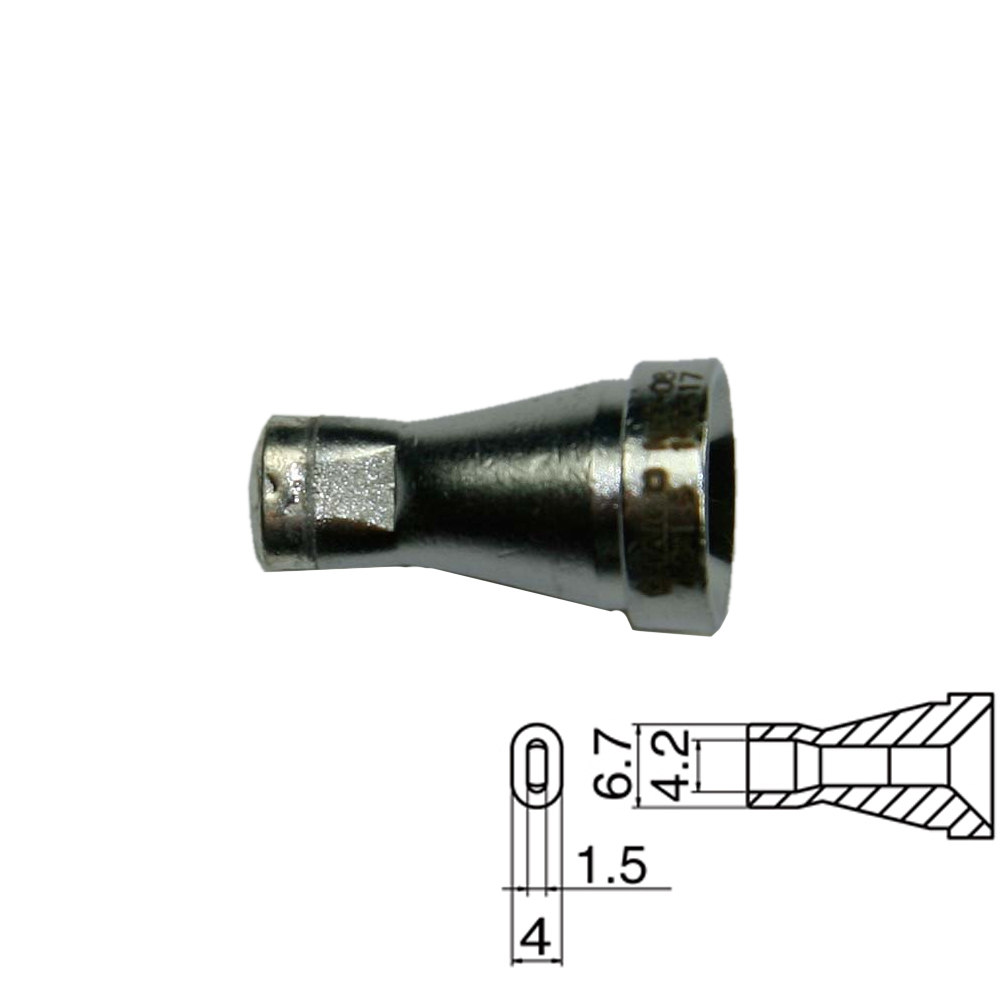

N60-08

4.2x1.5mm

Buy Now

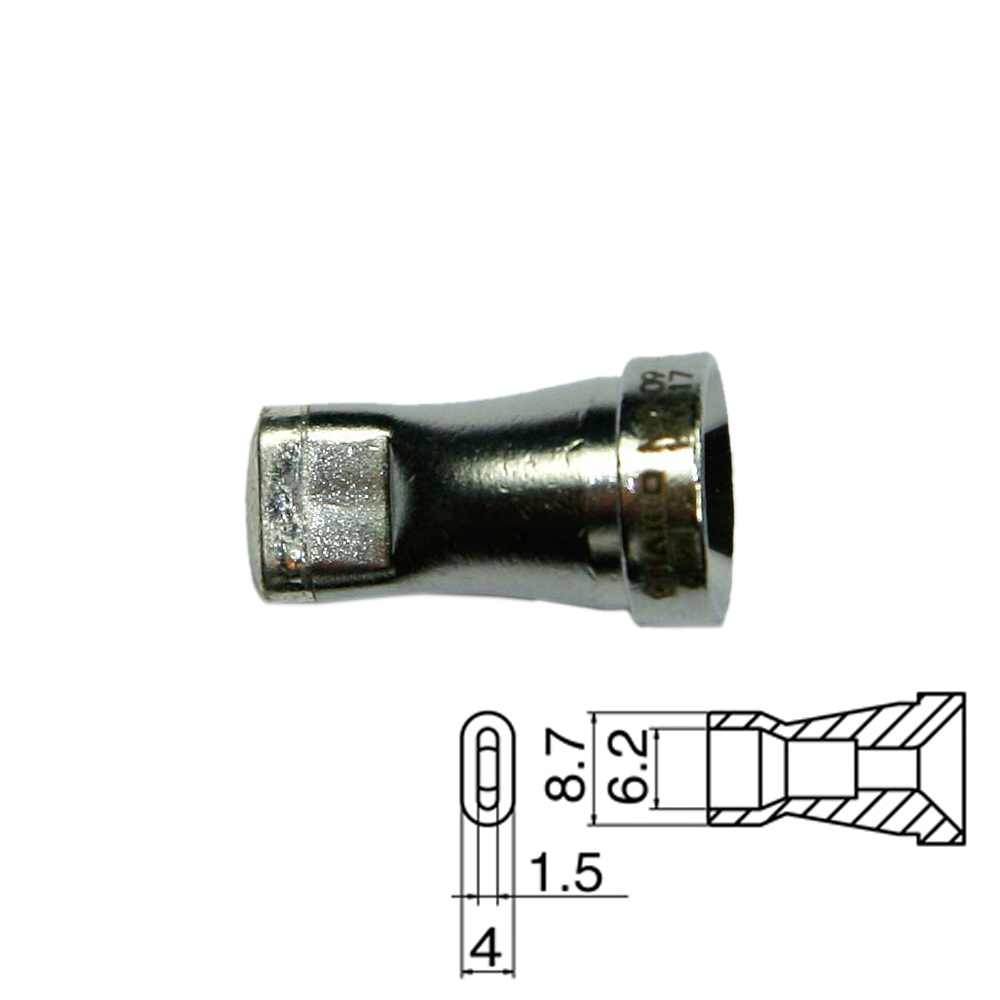

N60-09

6.2x1.5mm

Buy Now

Recommended Extra:

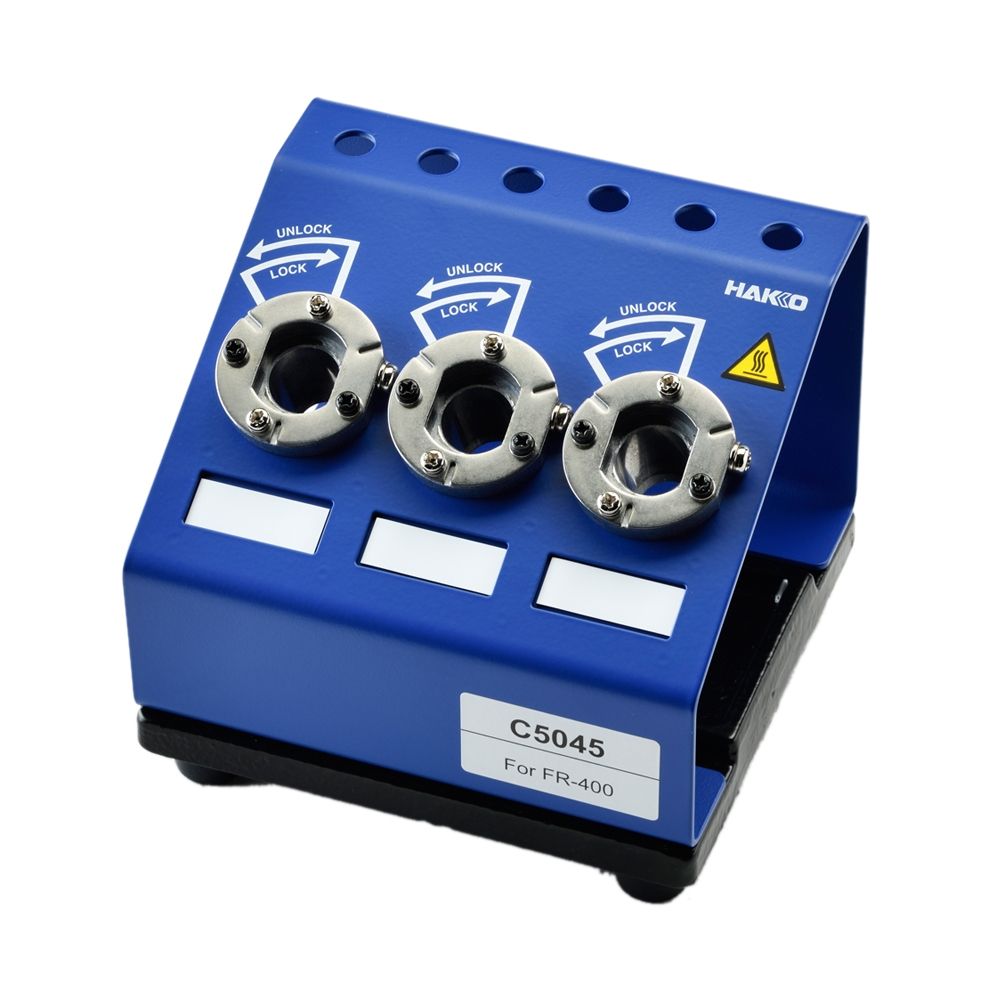

C5045

Nozzle Quick Changer

Buy Now

Optional / Recommended extras for the FR-4003

Image Part No. Description Availability
C5045 Nozzle Quick Changer Buy Now
Various Nozzle Cleaning Pins / Drills Buy Now

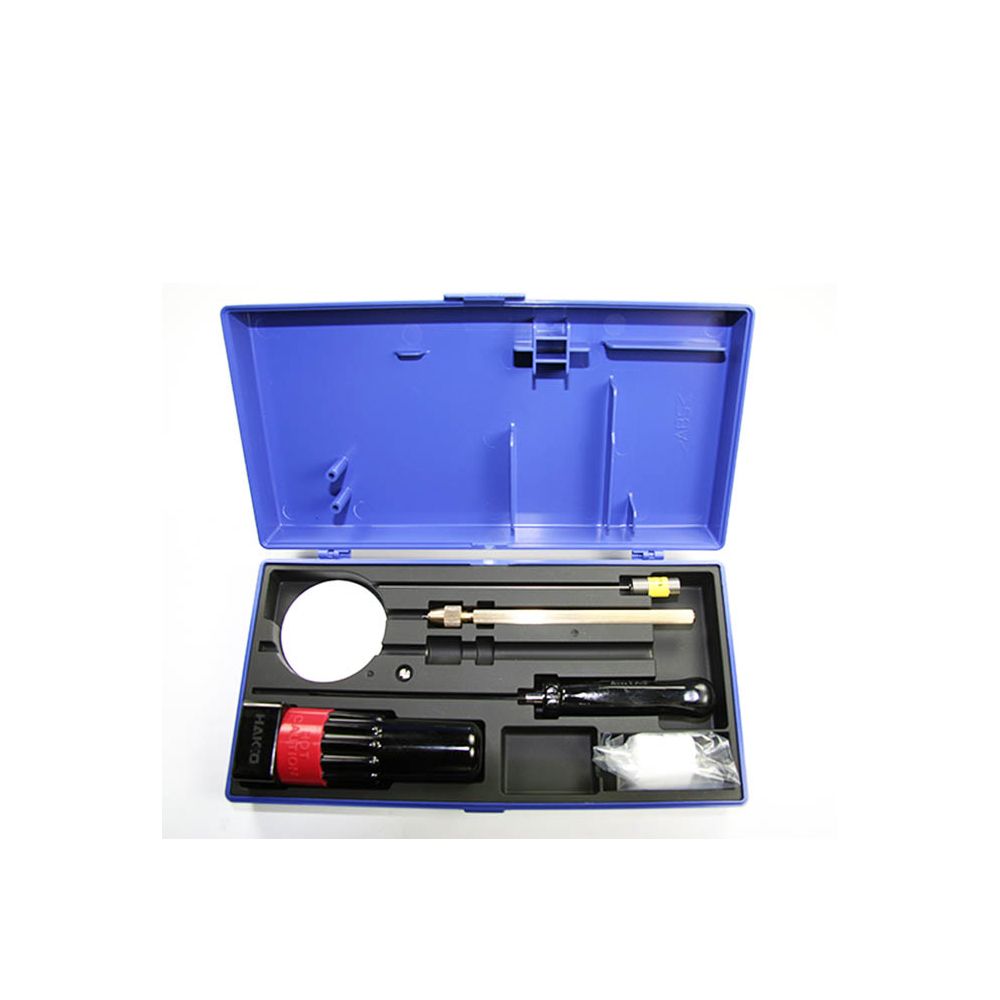

C5011 Maintenance Toolbox Buy Now

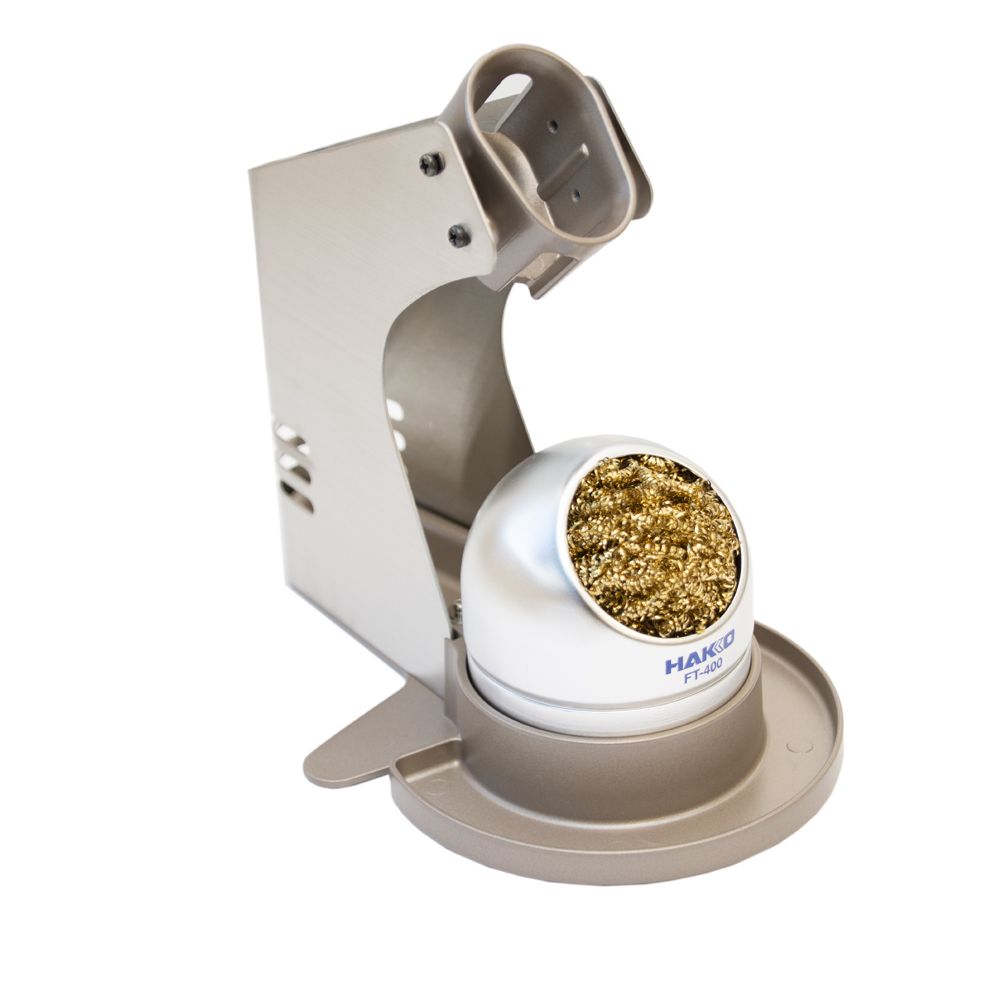

FH400 Iron Stand + Cleaning Wire Buy Now
FT400 Cleaning Wire Pot Buy Now

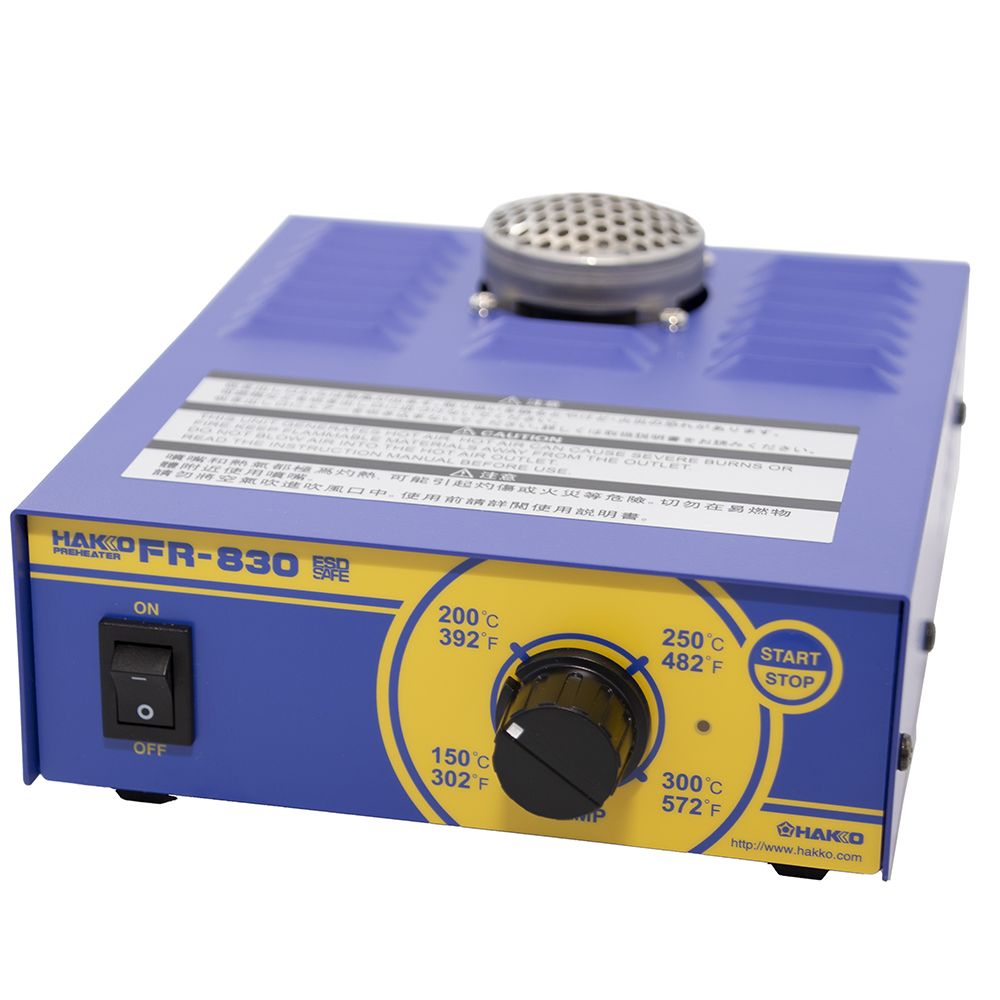

FR-830 Underboard Heater Buy Now

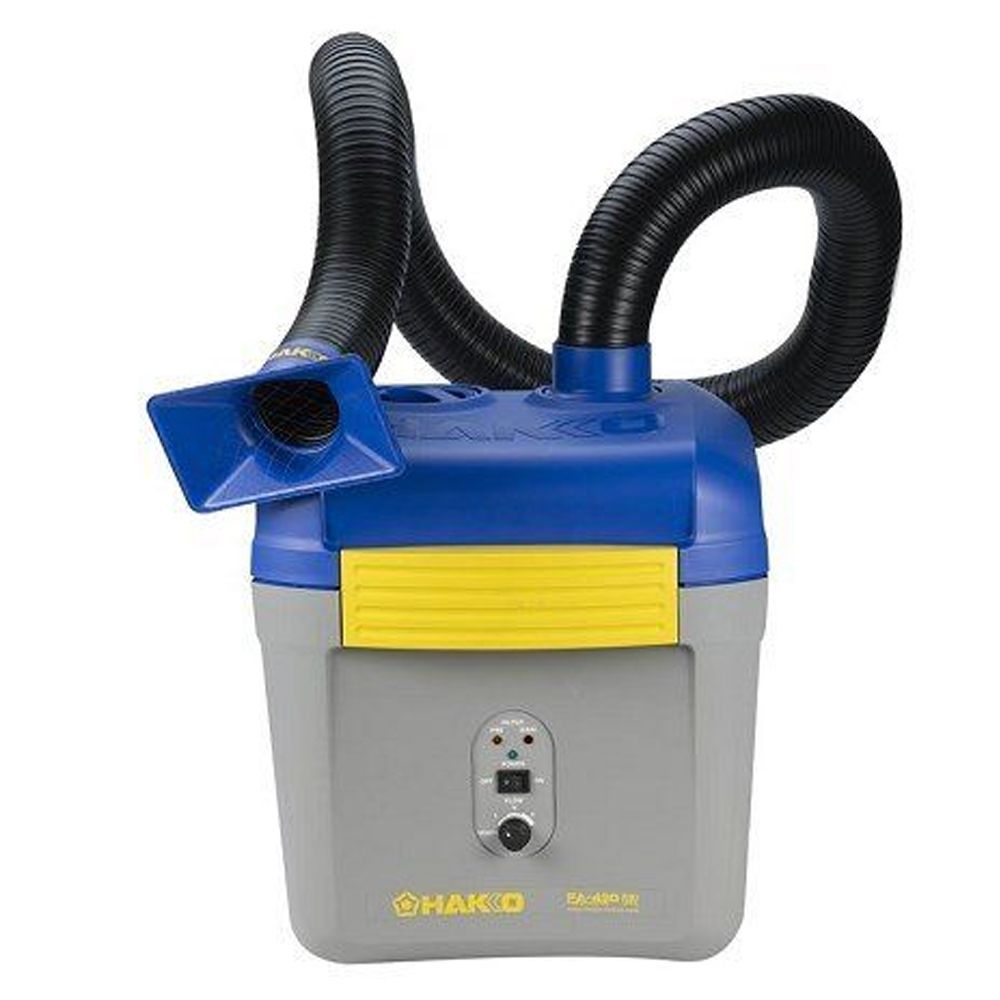

FA-430 Fume Extractor / Air Purifier Buy Now
C1390C Omnivise PCB Holder Buy Now
C5027 PCB Stand Buy Now
FT640 FT641 Tweezers
Various Desolder braid Buy Now

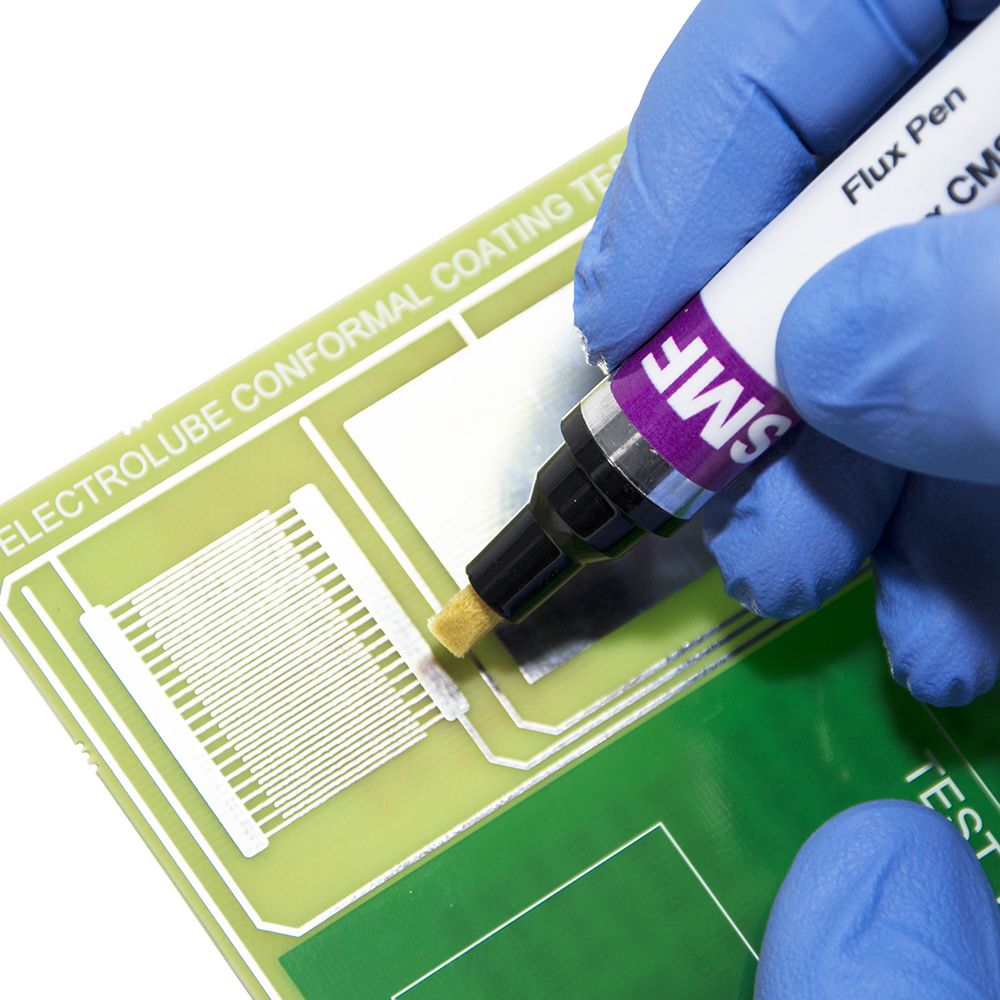

SMF12P Flux Pen Buy Now

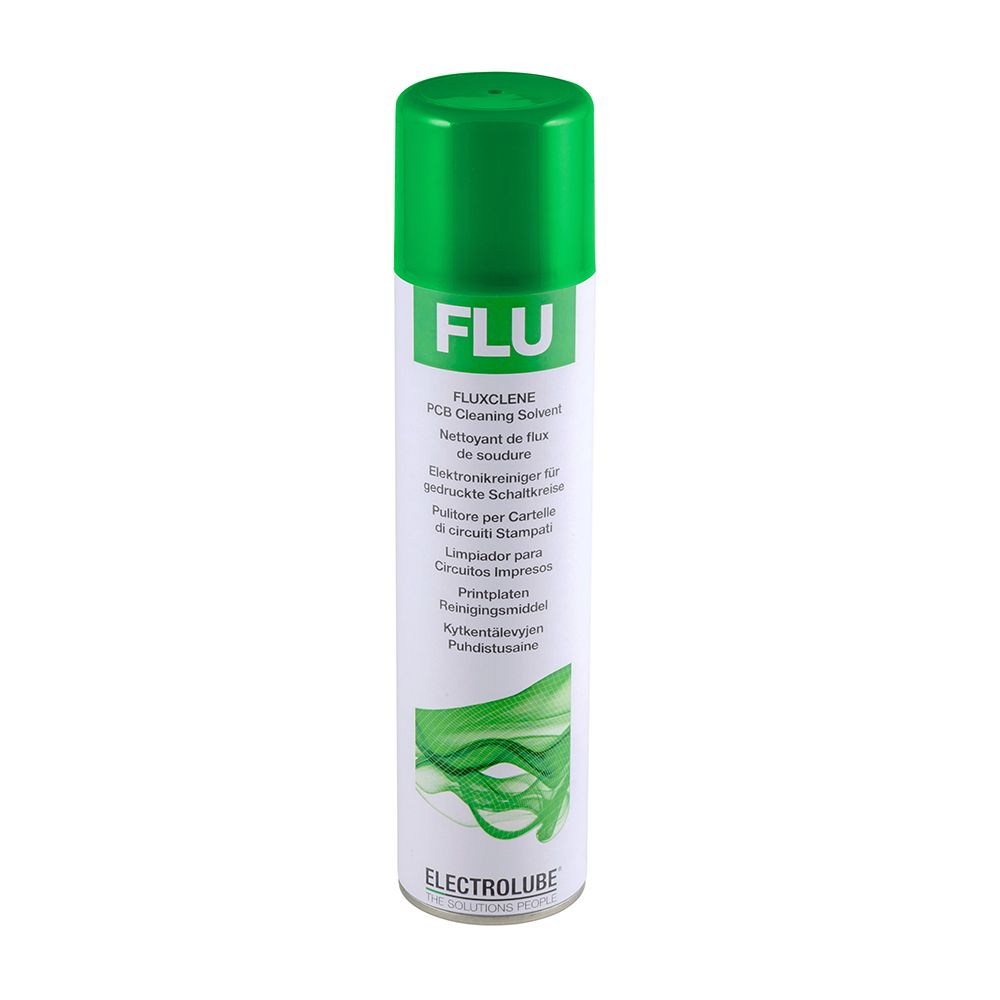

FLU400DB Flux Cleaner Buy Now
FG100B Tip Thermometer Buy Now
106 Series Wire Processing Tools Buy Now

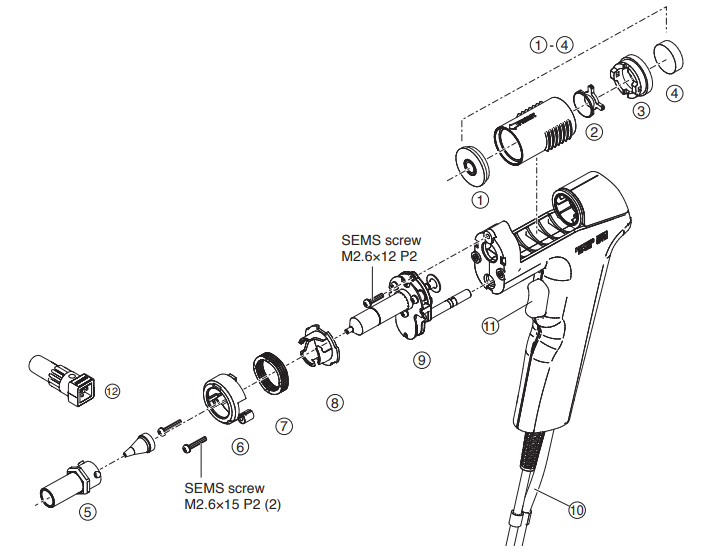

Replacement and Spare Parts for the FR-400 Station

Ref. Image Part No. Description Availability
1-11 FR4003-81 FR-4003 Desoldering Tool Buy Now

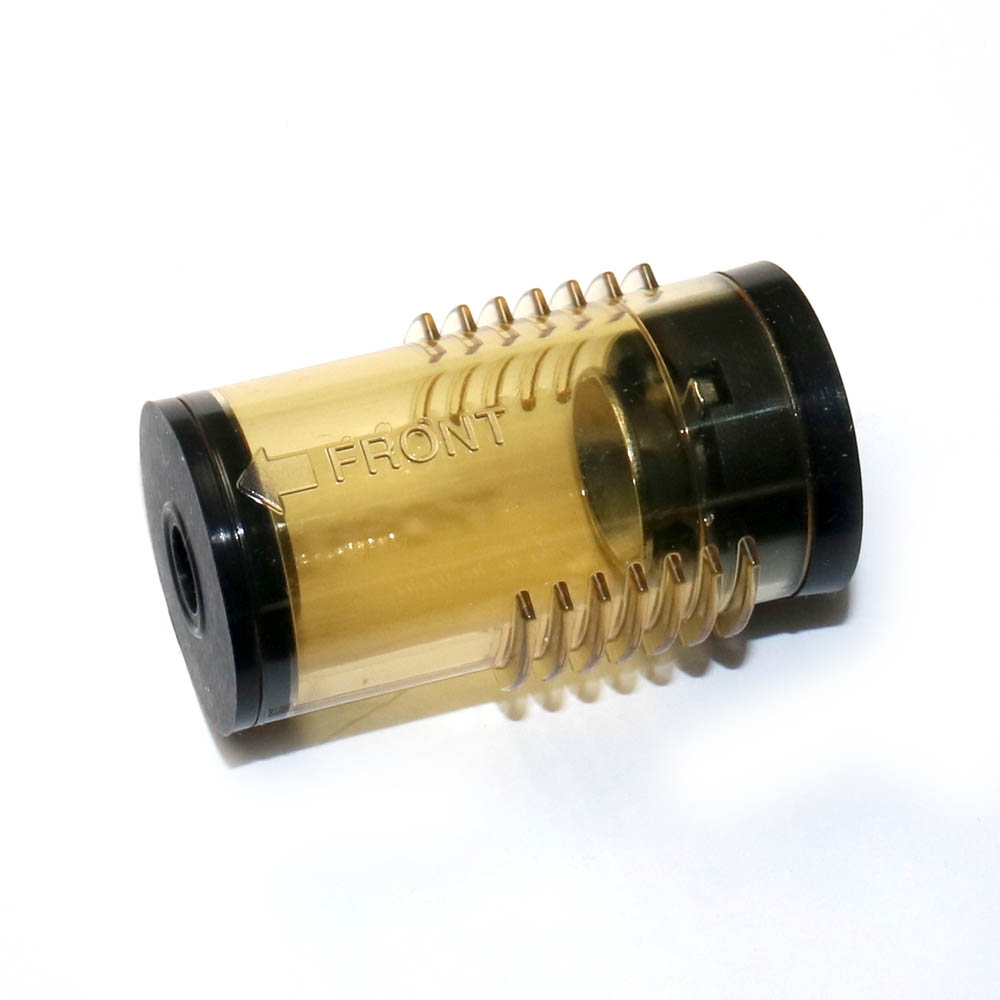

1-4 B5184 Filter Pipe Assembly Buy Now

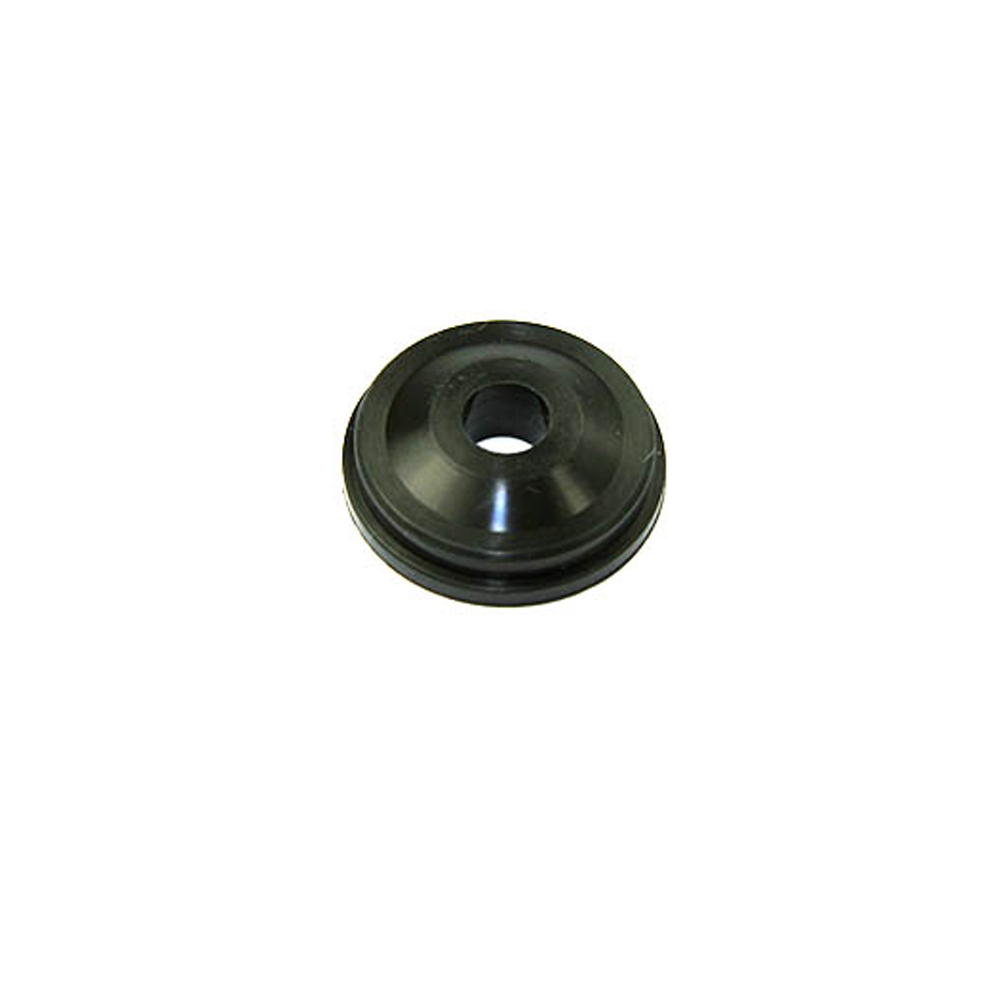

1. A5017 Front Holder Buy Now

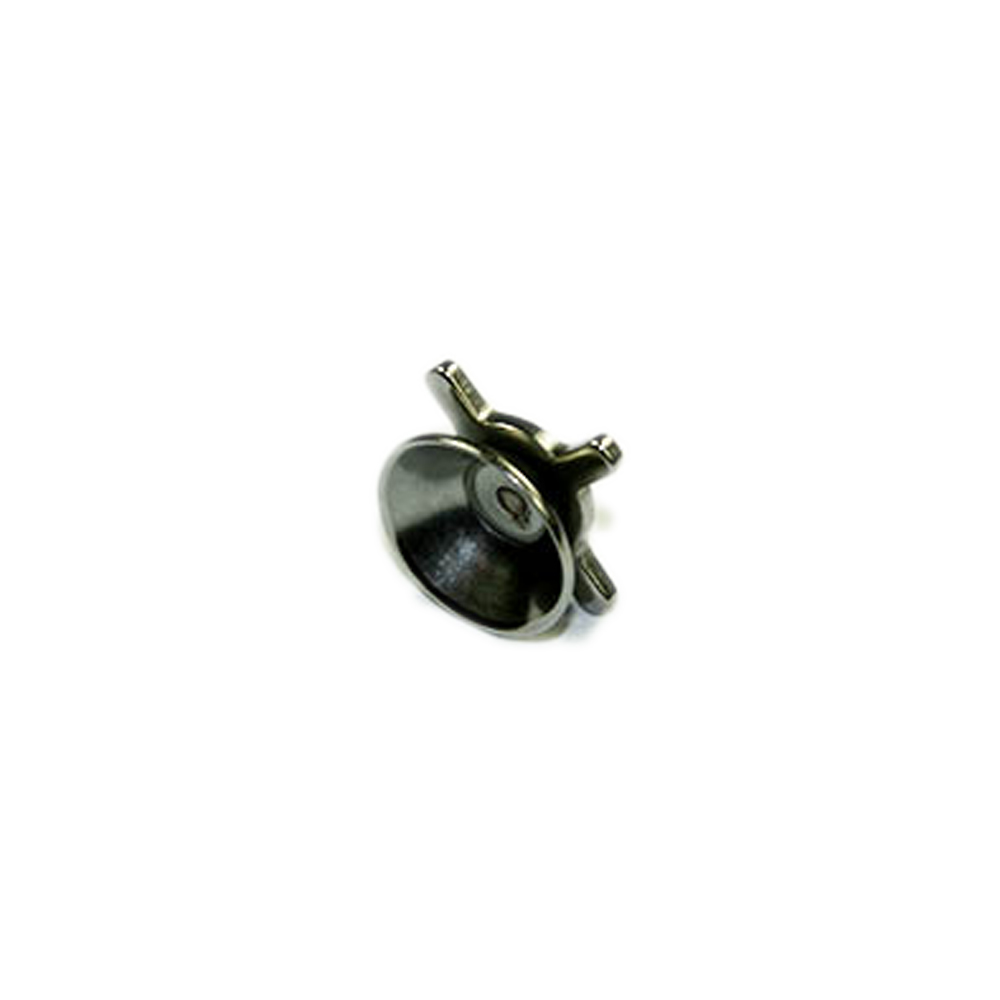

2. B5080 Pre Filter Buy Now

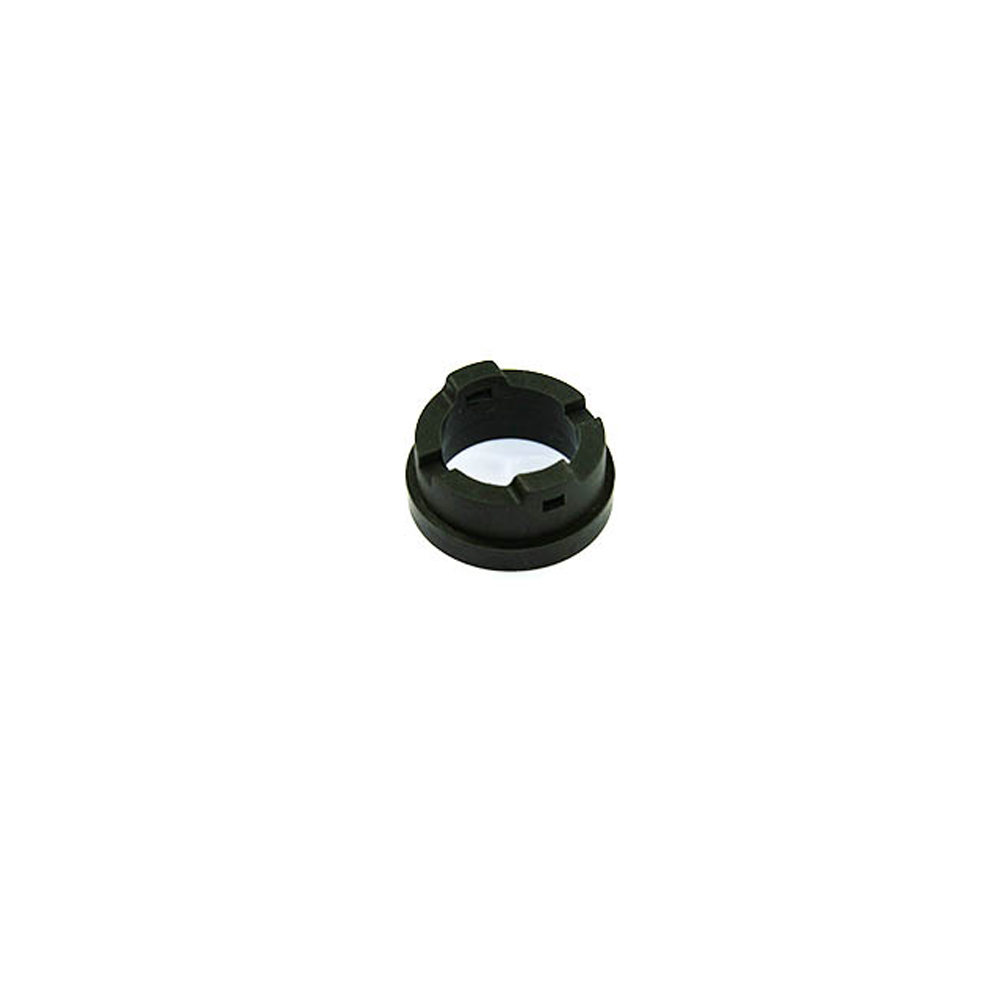

3. A5018 Filter Holder Buy Now

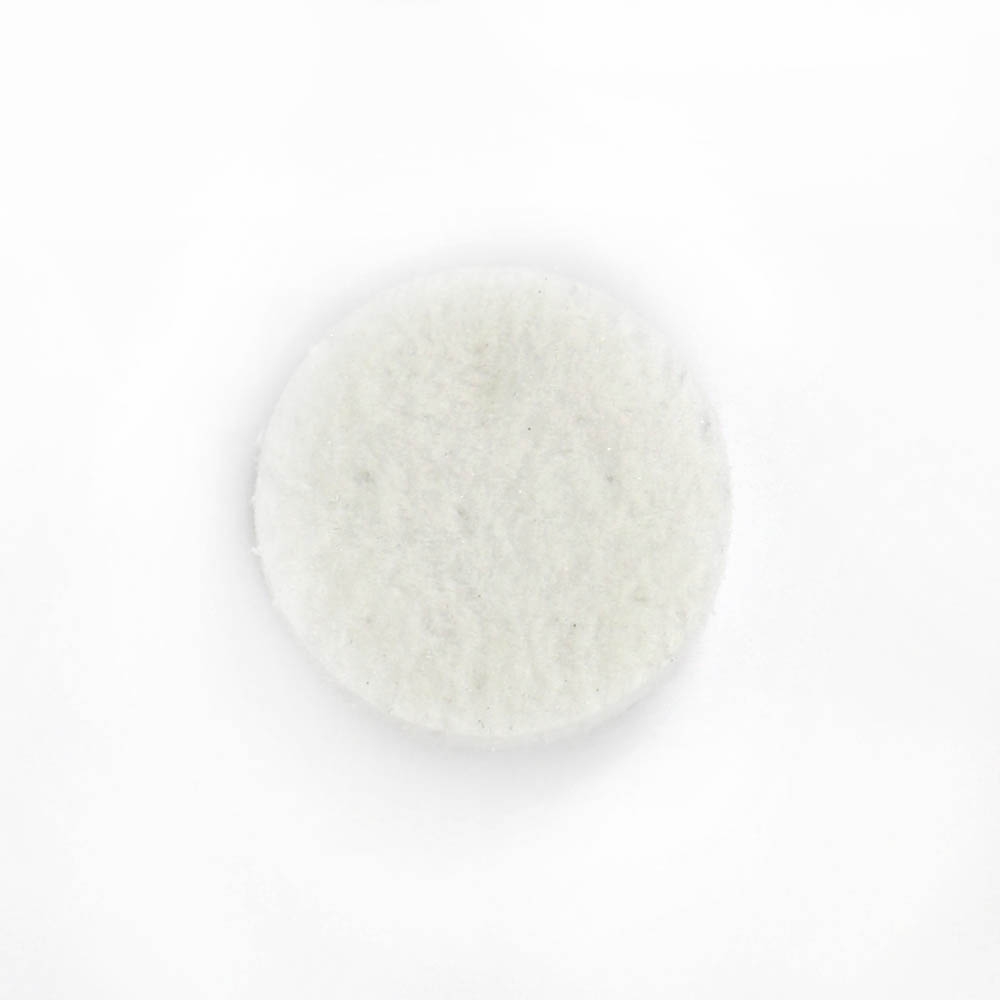

4. A5045 Ceramic Paper Filter Buy Now

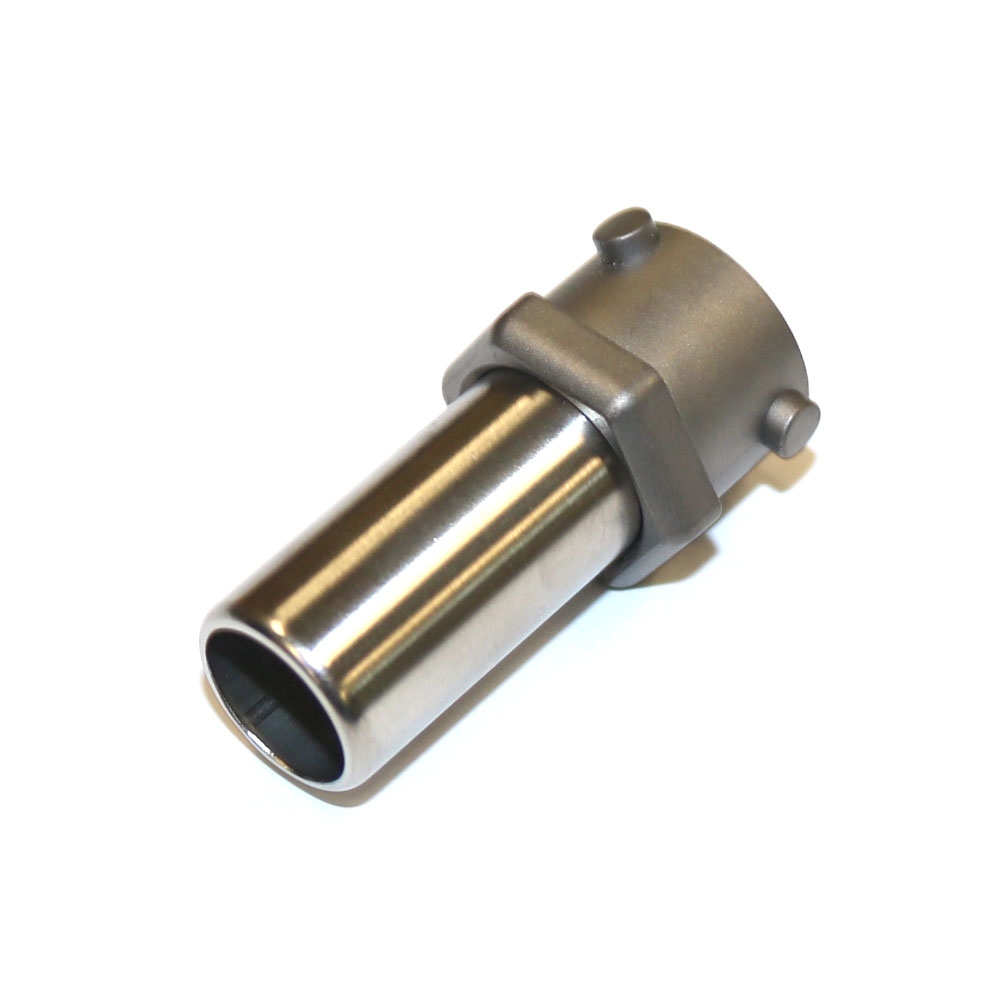

5. B5221 Enclosure Pipe Buy Now

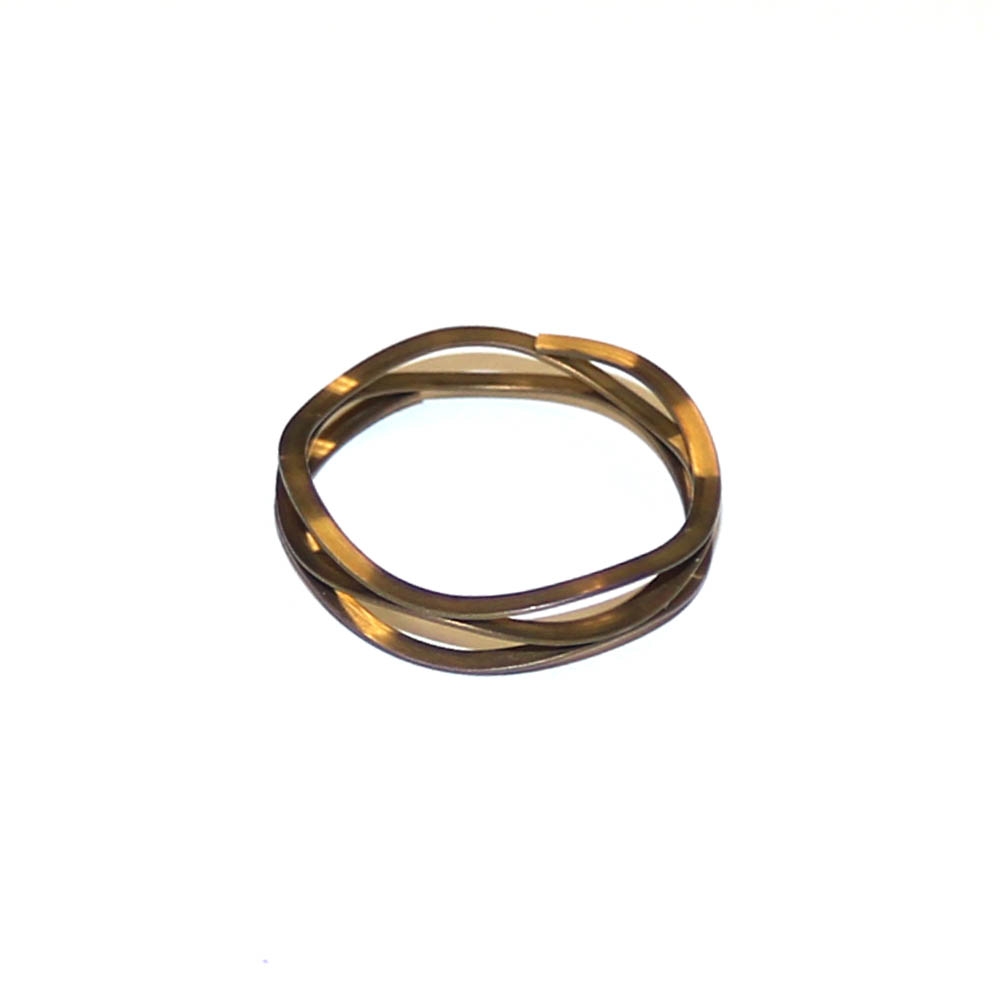

6. B5226 Wave Spring Buy Now

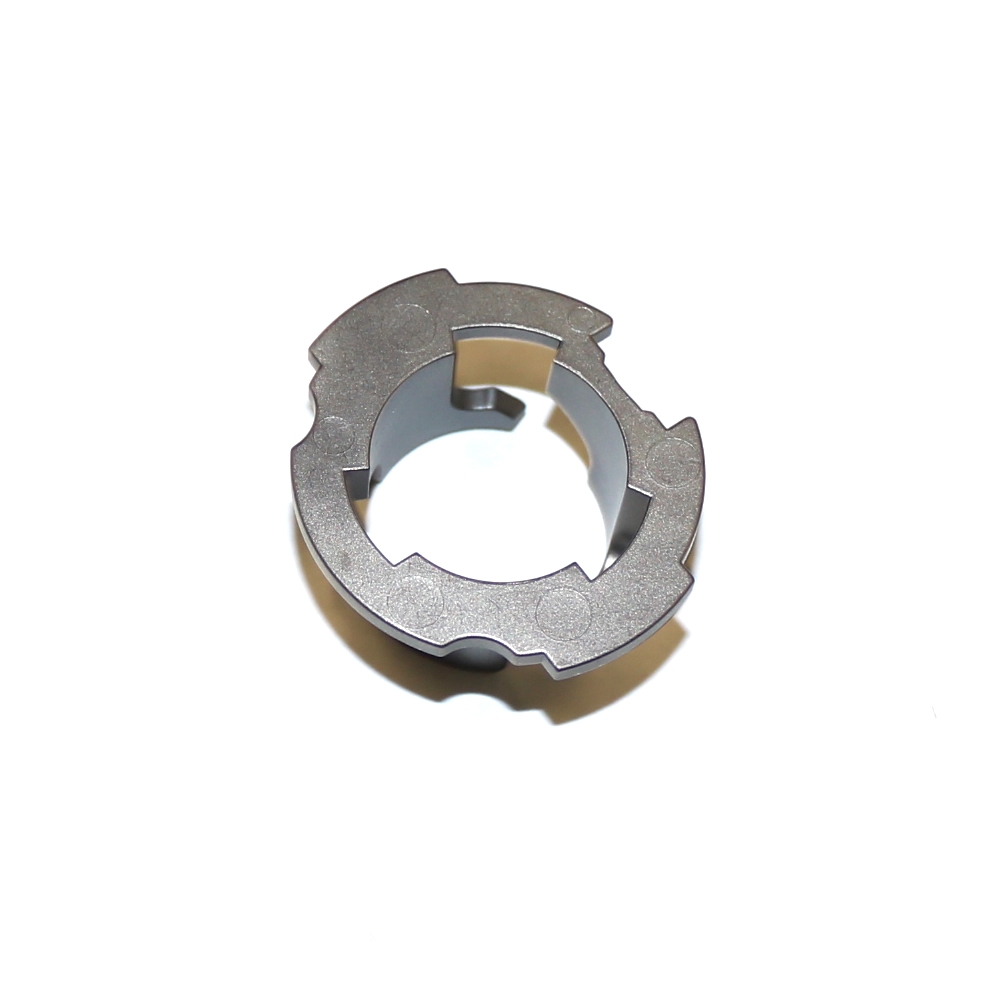

7. B5225 Movable Joint Buy Now
8. A5054 Heating Element Buy Now

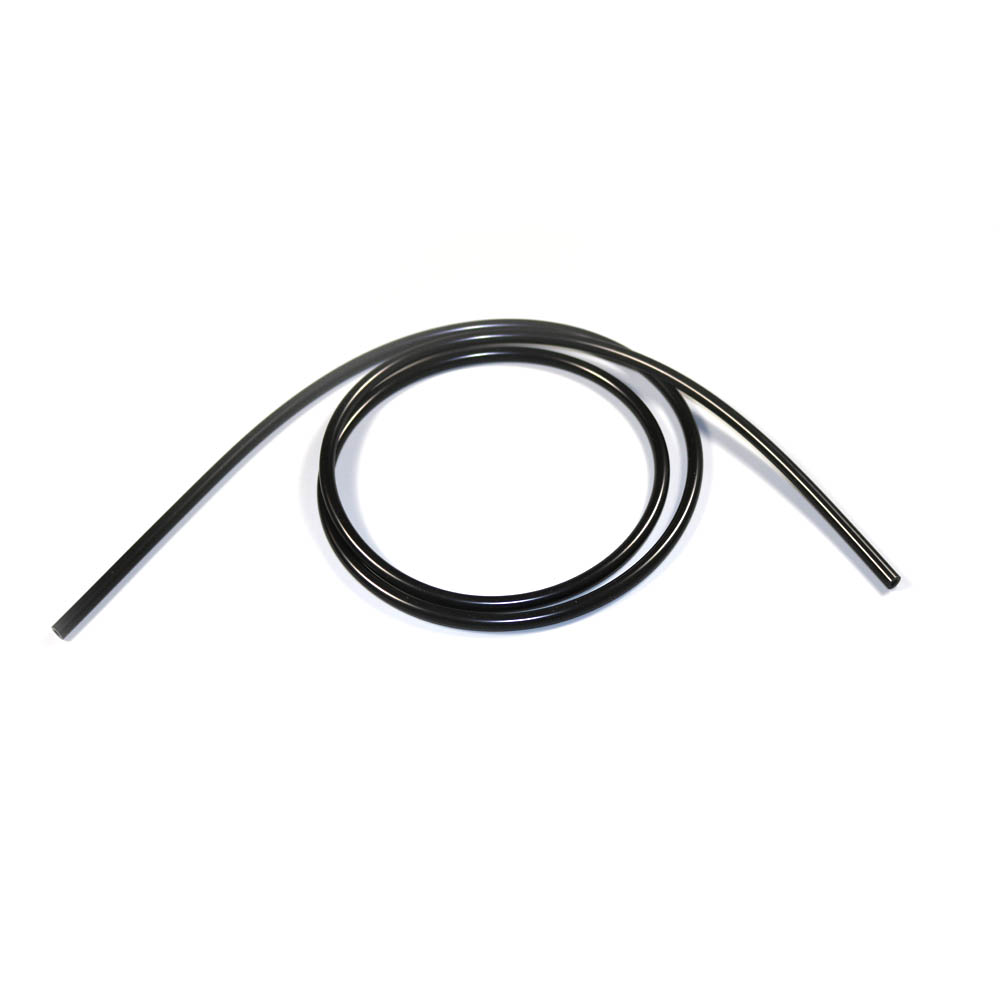

9. B5101 Hose Buy Now
10. B5257 Trigger
12. B5082 Nozzle Wrench Buy Now
