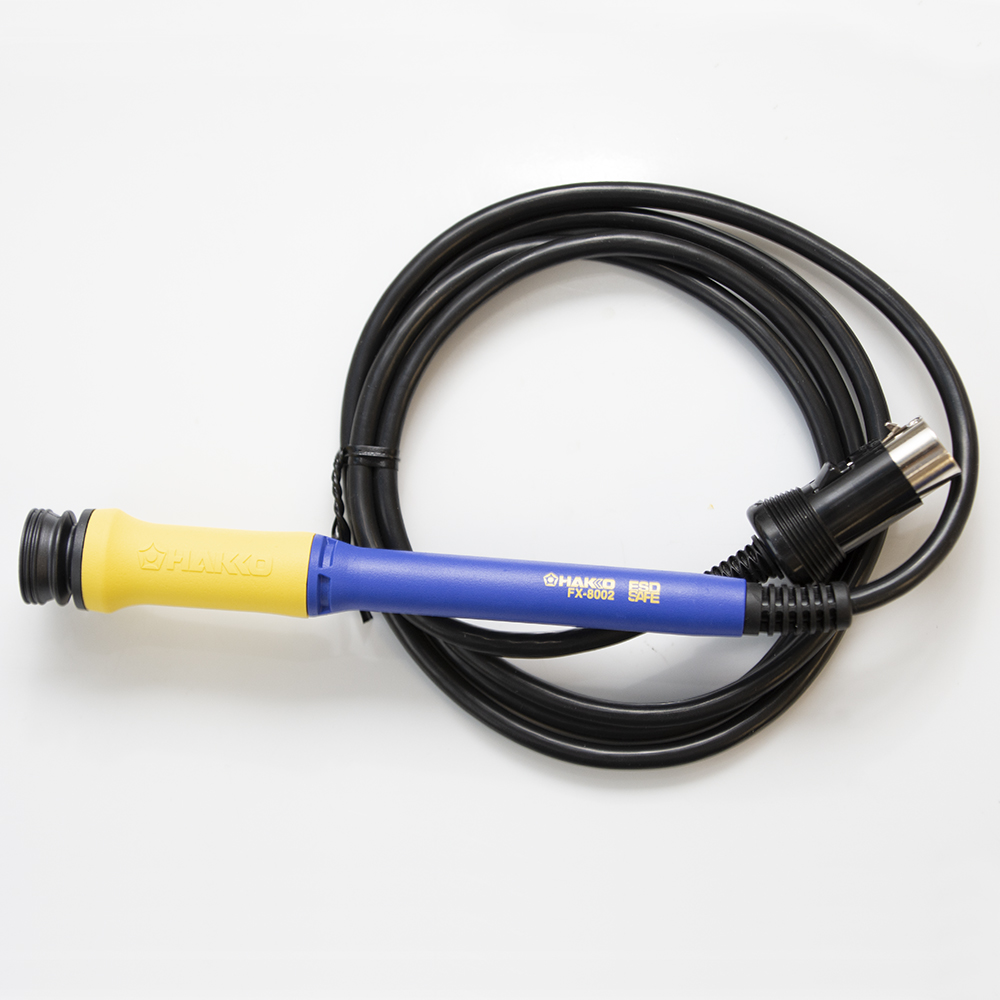

FX8002 Heavy Duty Soldering Iron 300W (Hand Piece)

SKU: HFX8002-81

Hakko
Availability:

In stock


Heavy Duty Soldering Iron for use with FX-801 High Power Soldering Station (300W)
Light weight handpiece provides good workability and reduces burden in hand soldering.
T33 Tips Not Included

£74.51 Excl. VAT

In stock

FX8002 High Powered Soldering Iron for use with FX-801 heavy duty soldering station.

Note: Needs T33 Tips Purchased separately

H K Wentworth - HAKKO UK and Ireland distributor

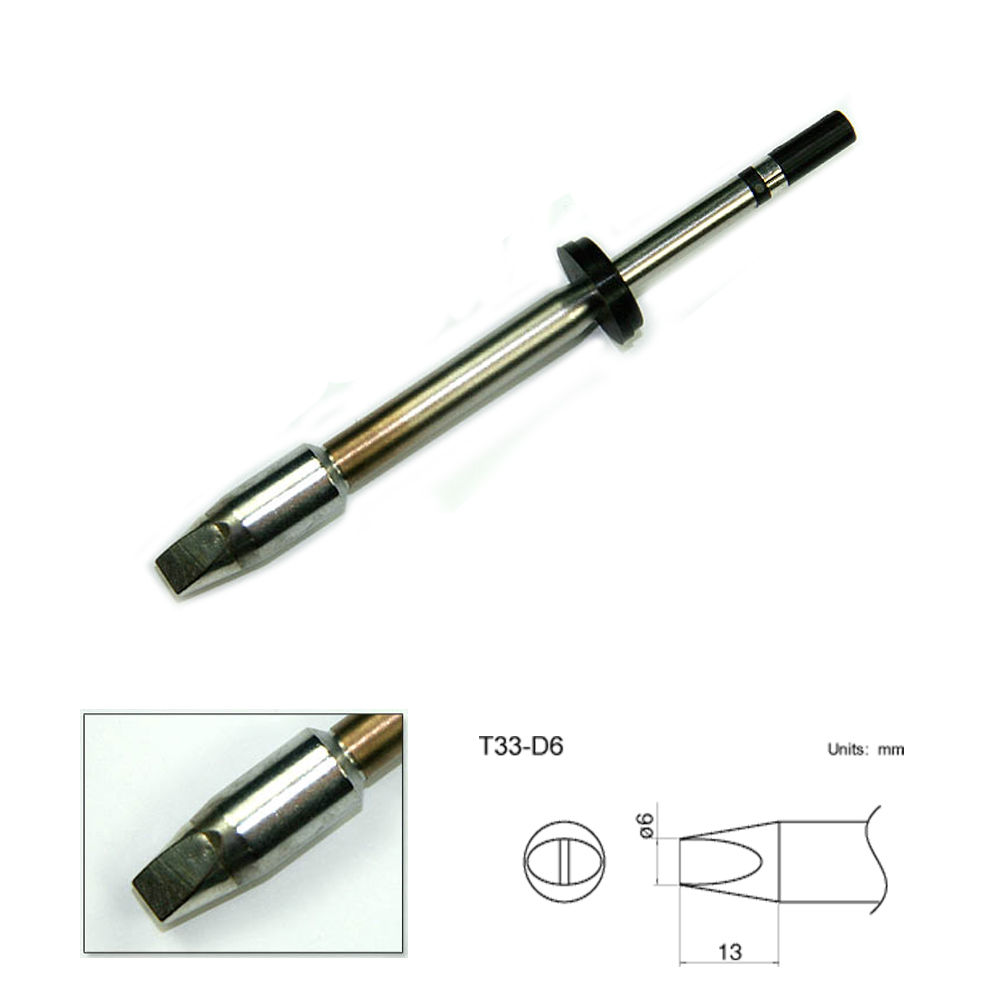

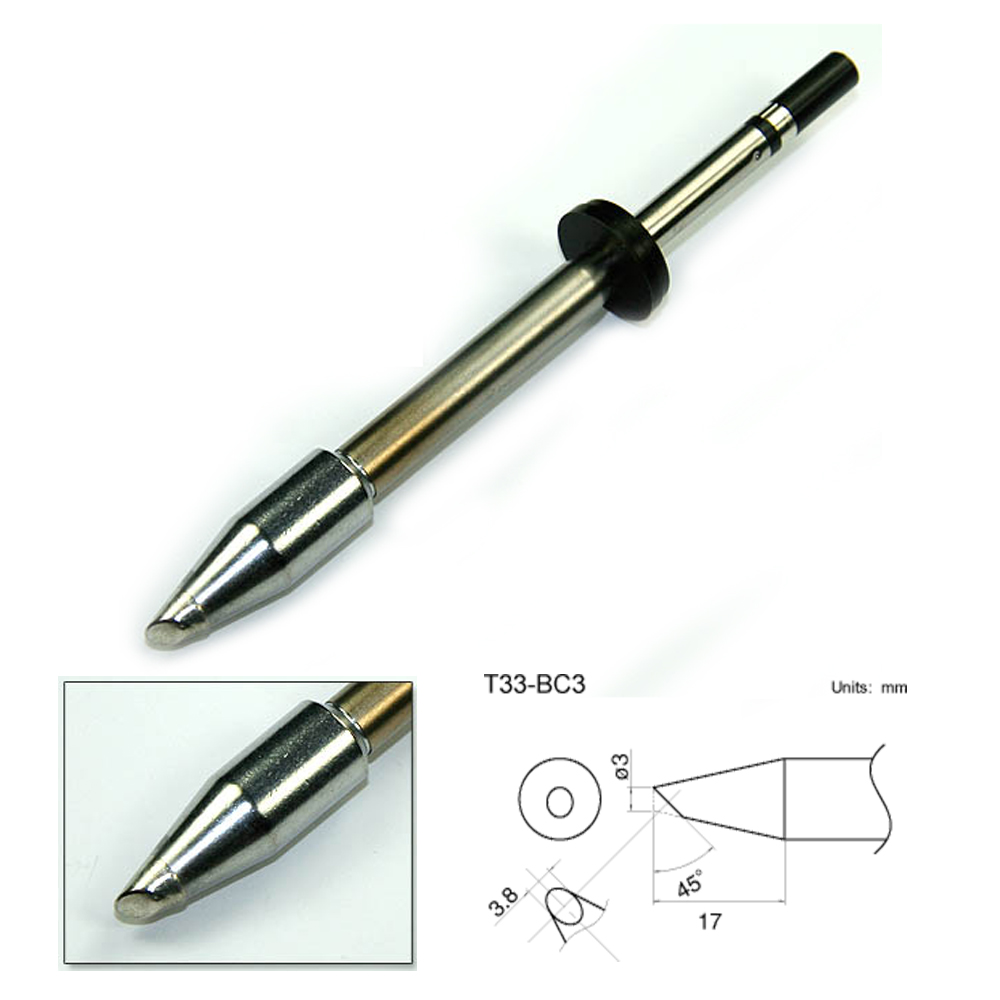

A wide variety of tip shapes

In addition to regular type tips, now slim type tips are added to the tip line-up to cover a wide range of applications. The composite tip, tip integrated with composite heater, makes tip replacement very easy.

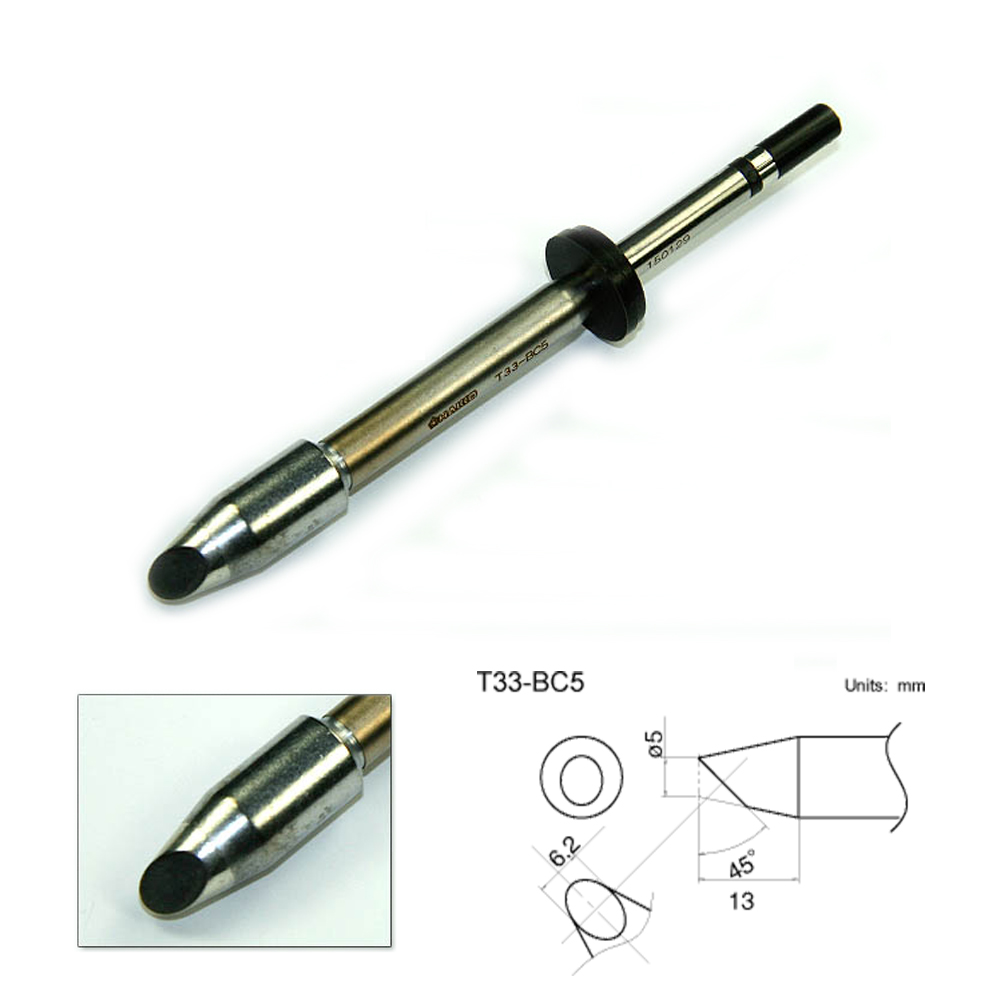

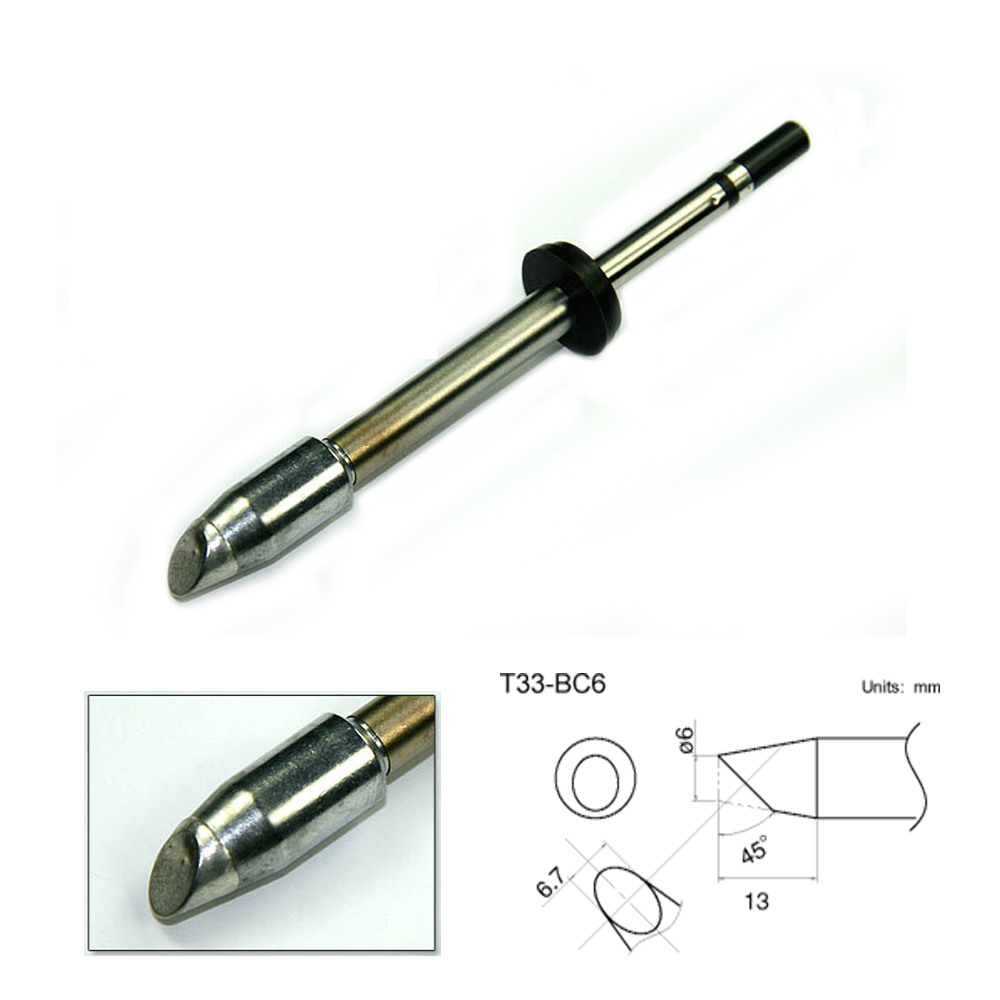

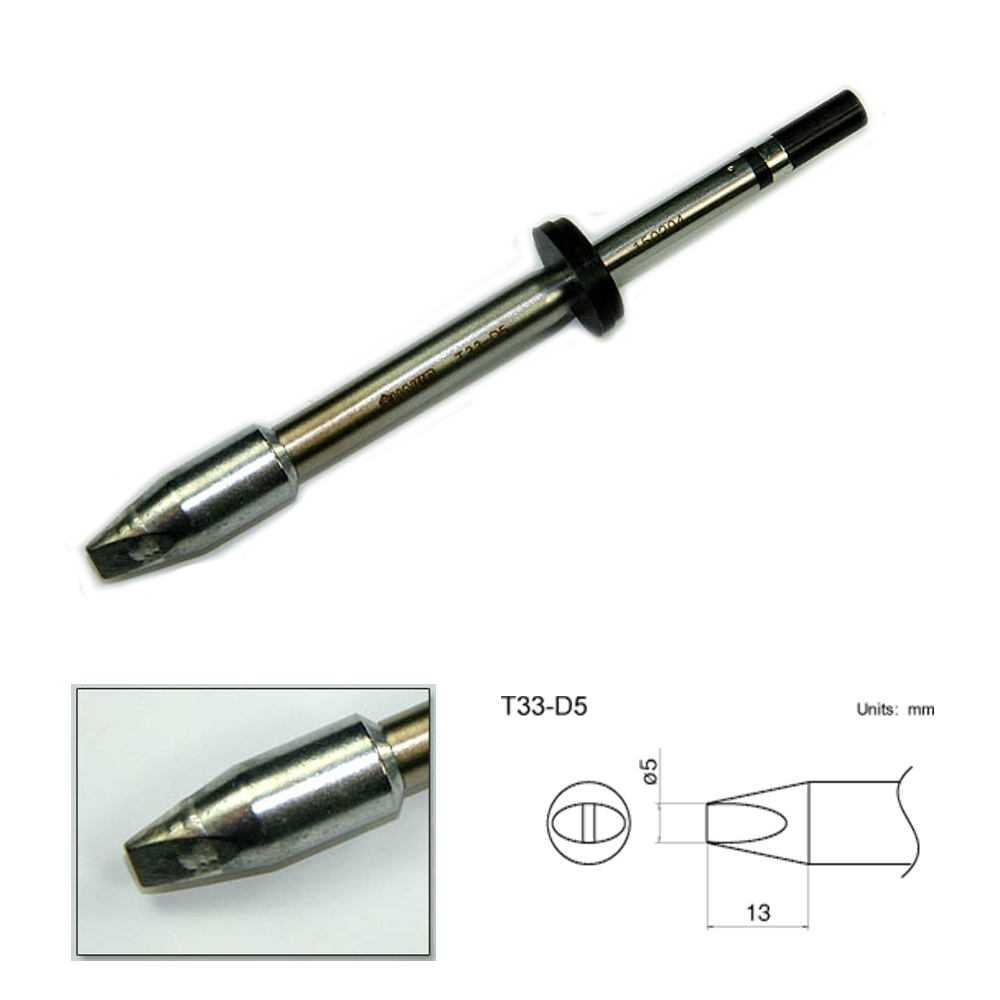

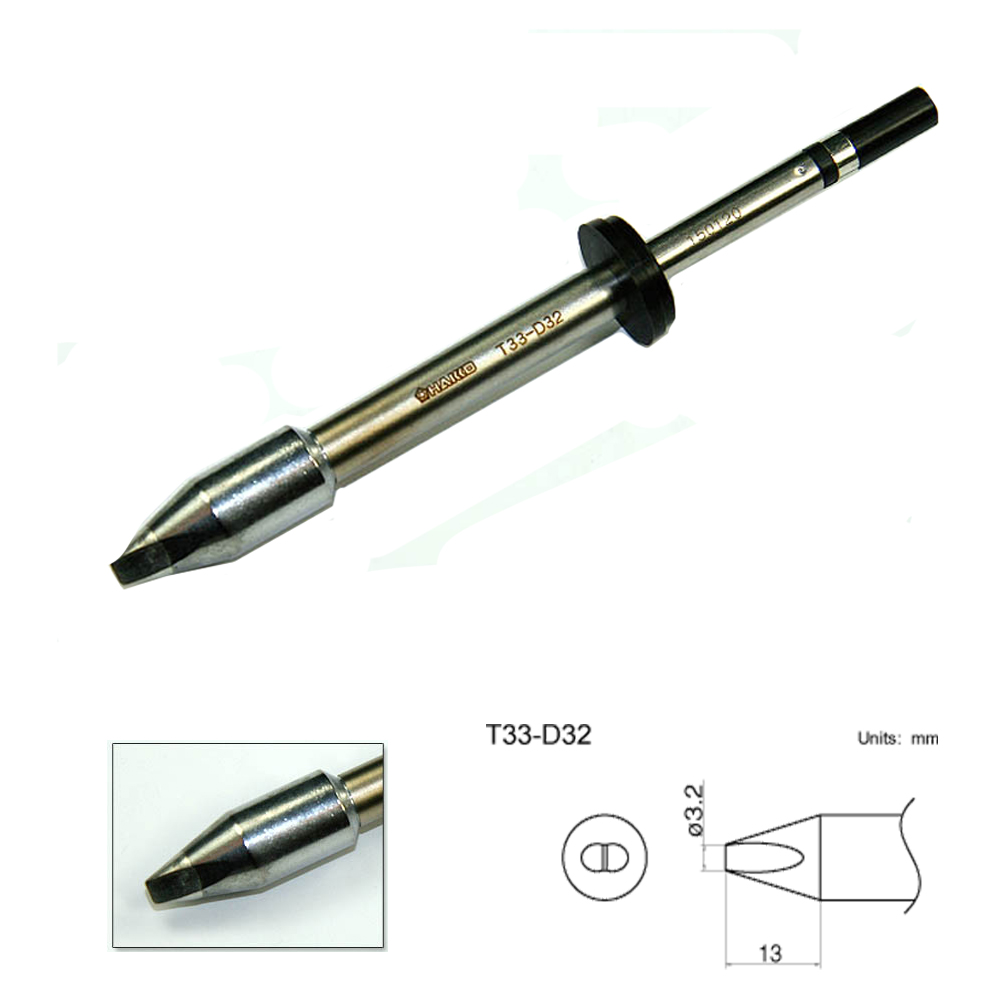

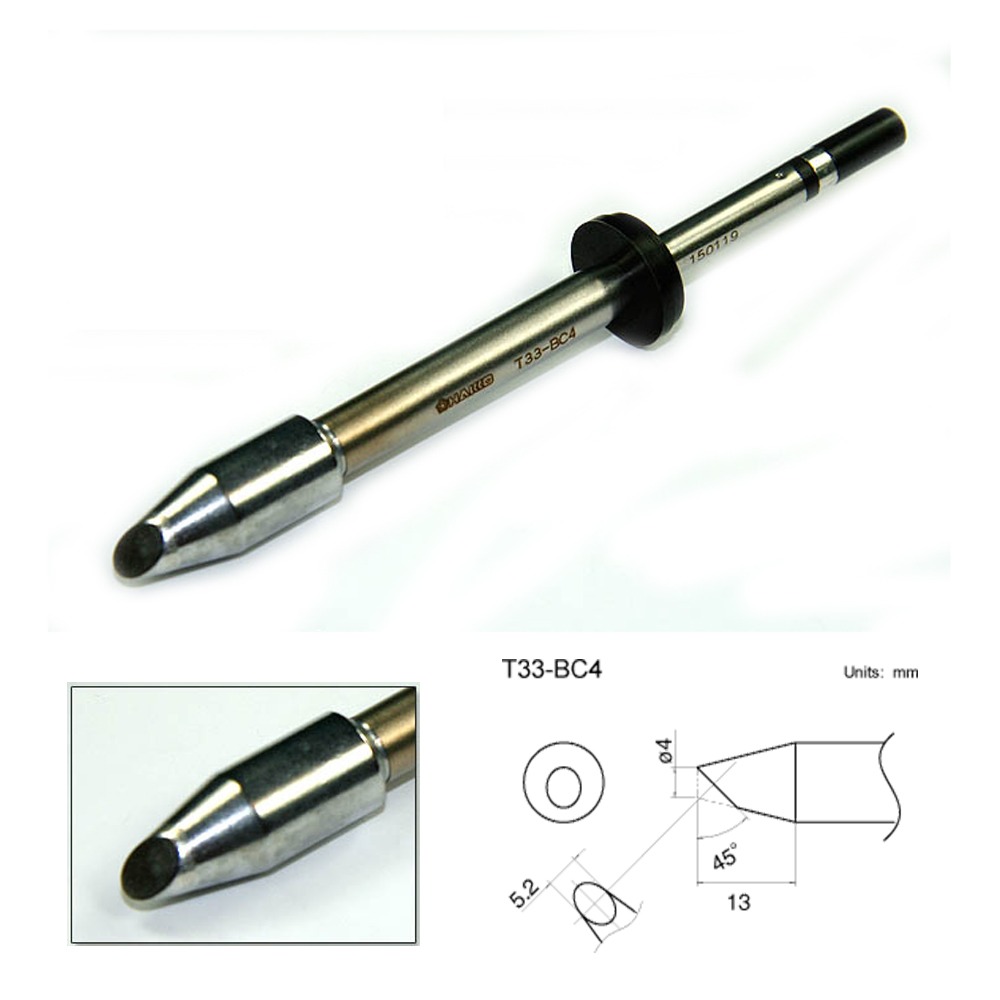

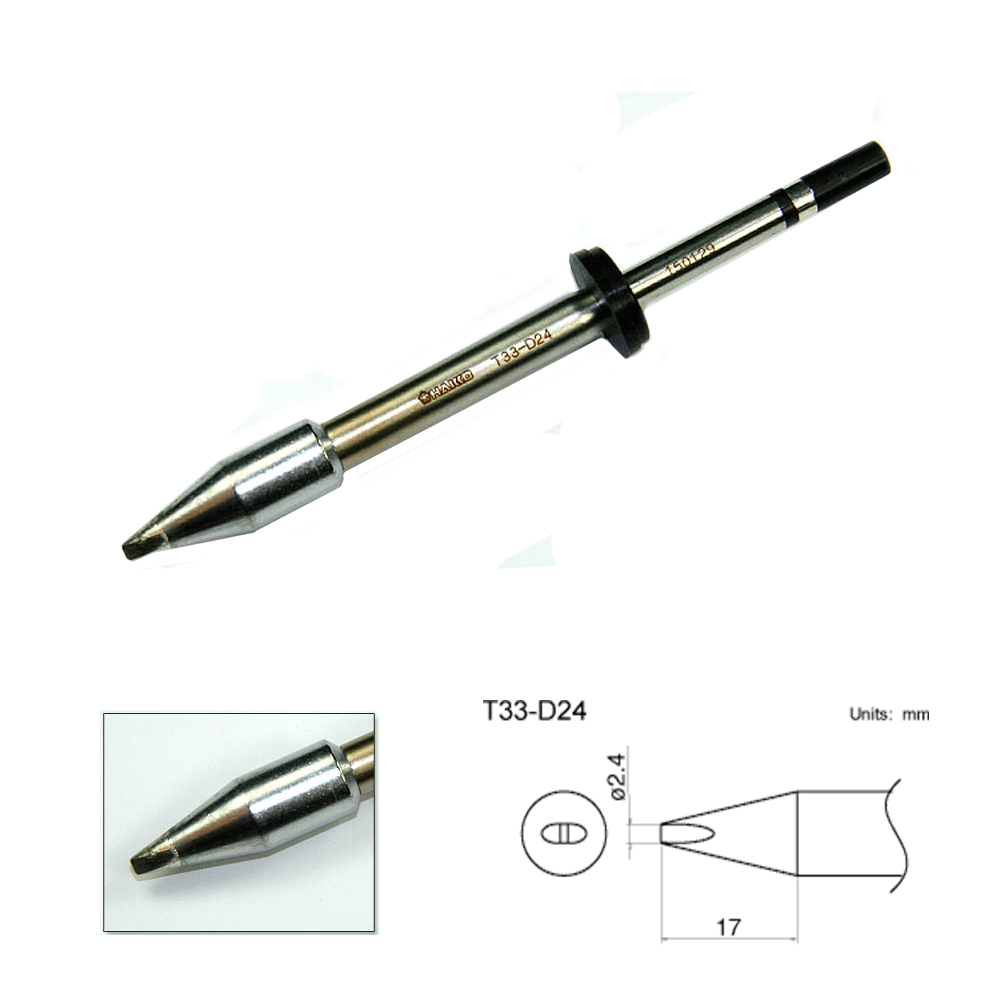

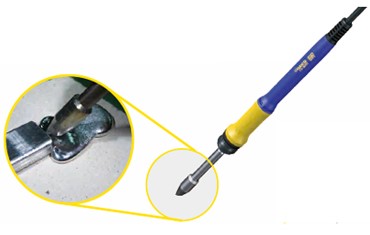

Regular type

Best suited for components with high thermal mass such as transformers and coils.

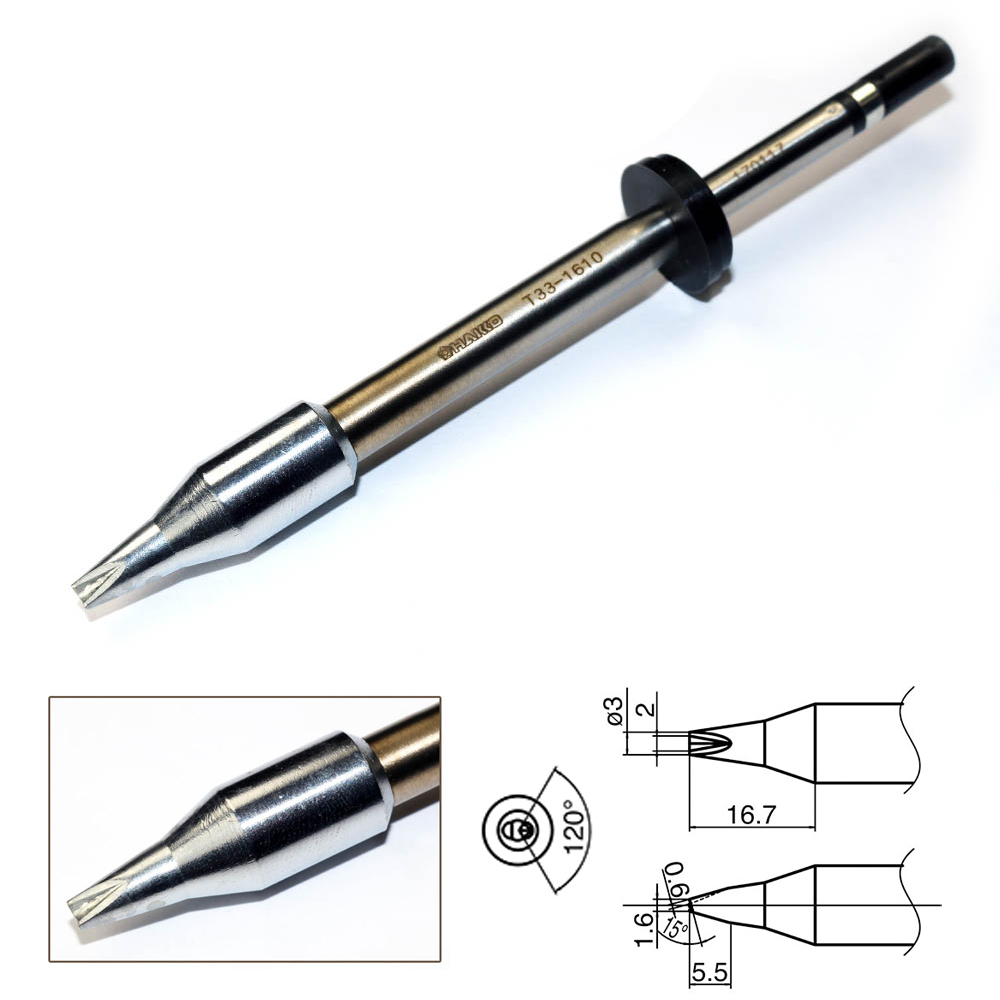

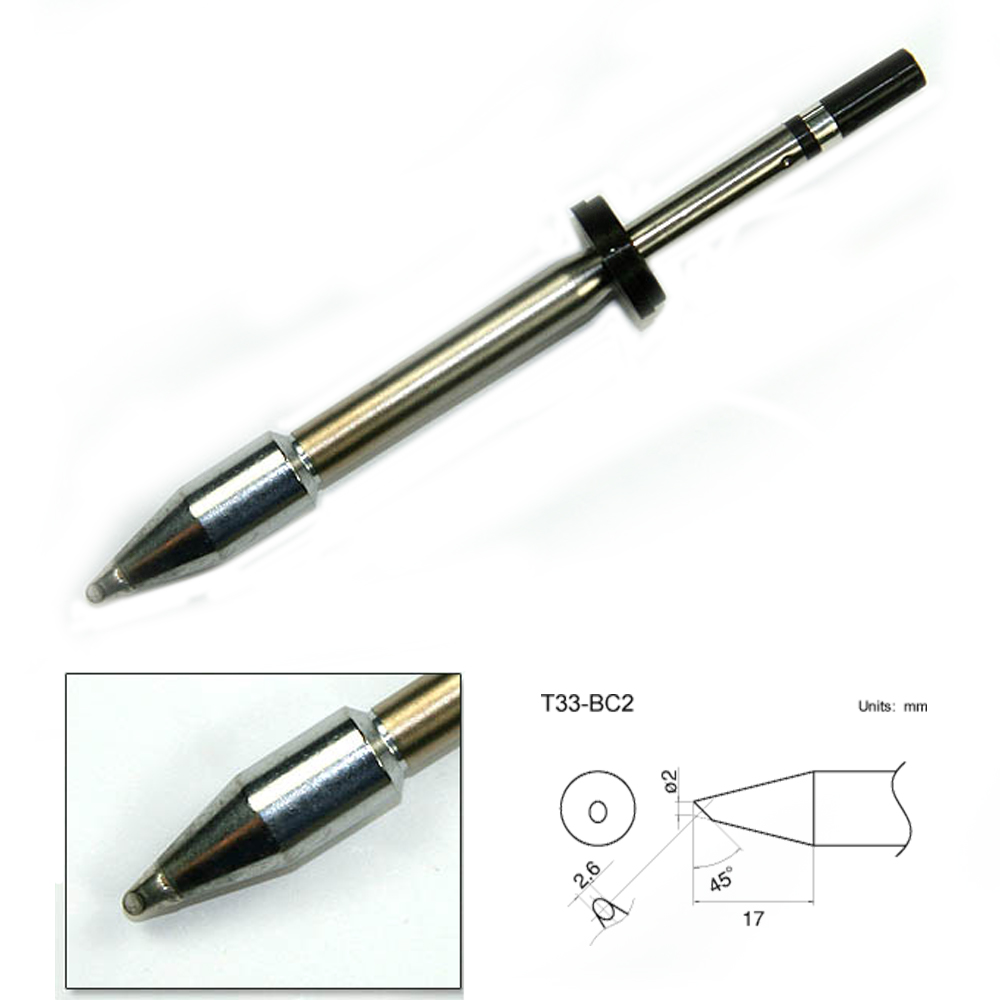

T33 Series Regular Type

H K Wentworth - HAKKO UK and Ireland distributor

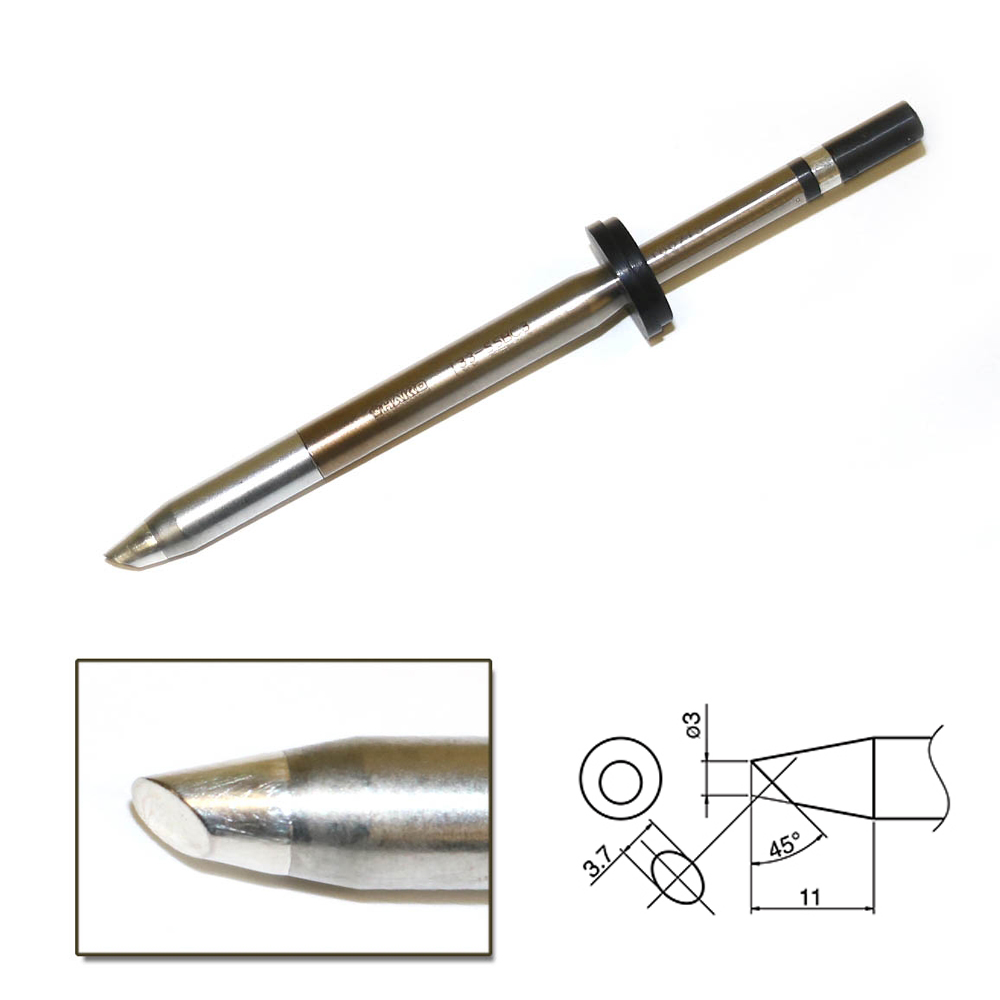

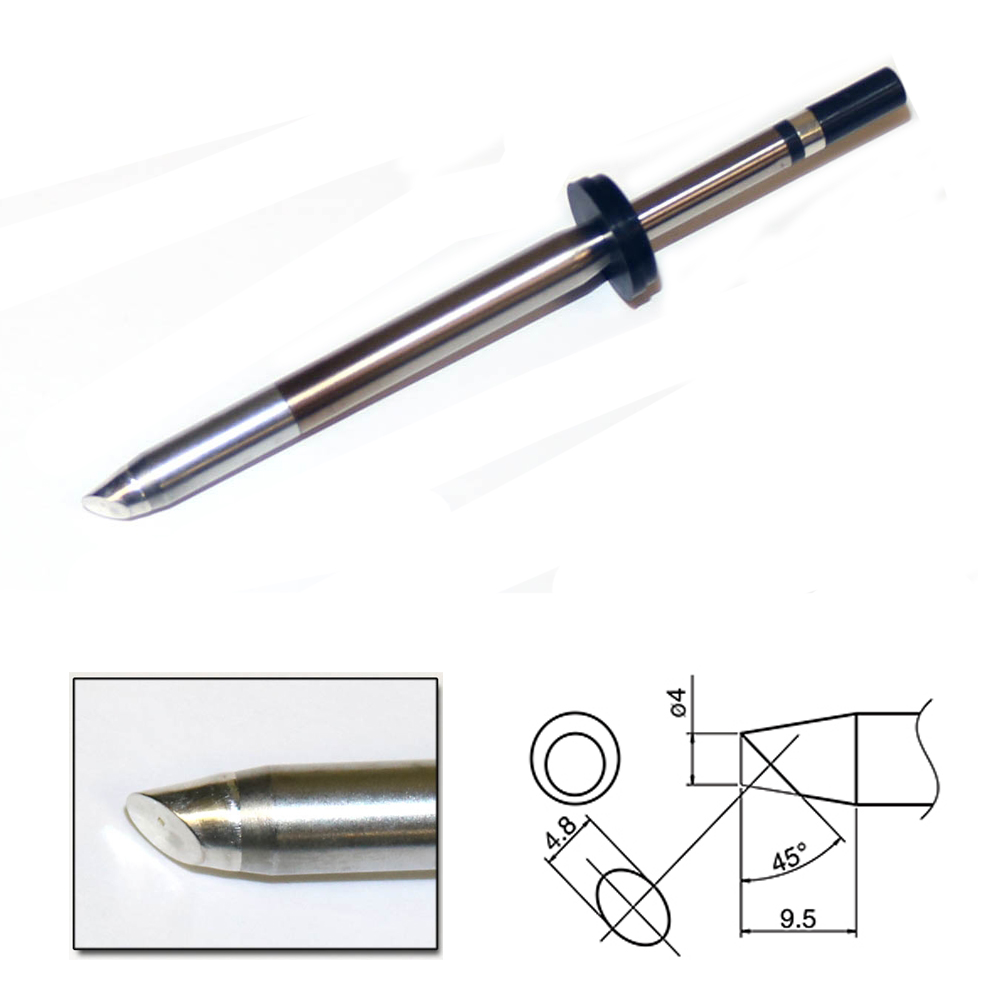

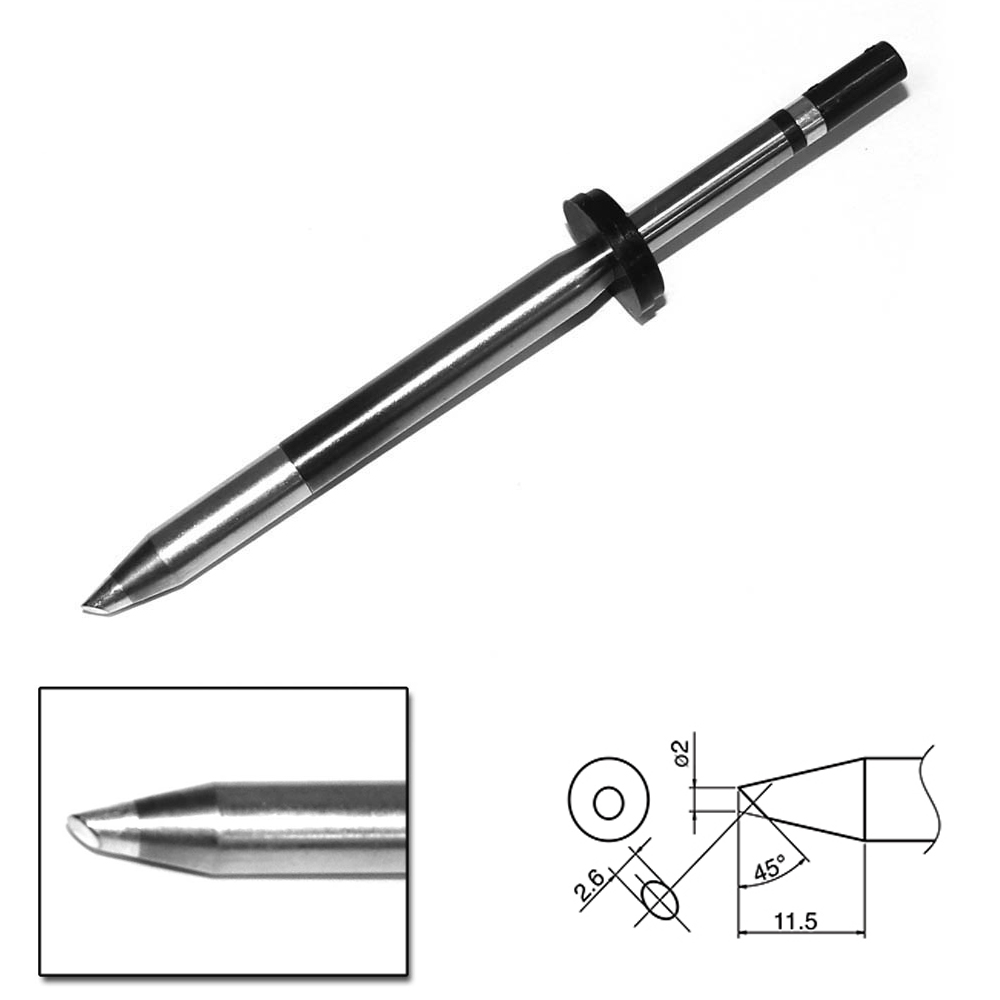

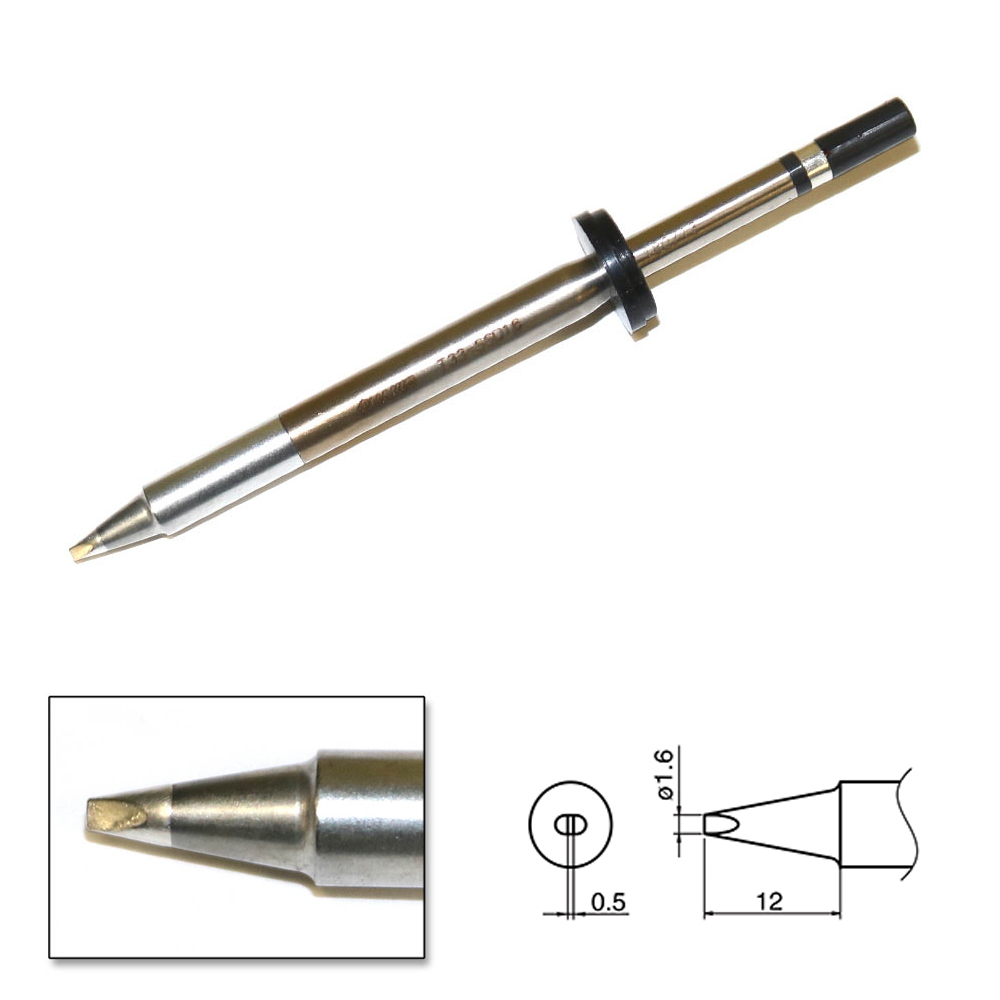

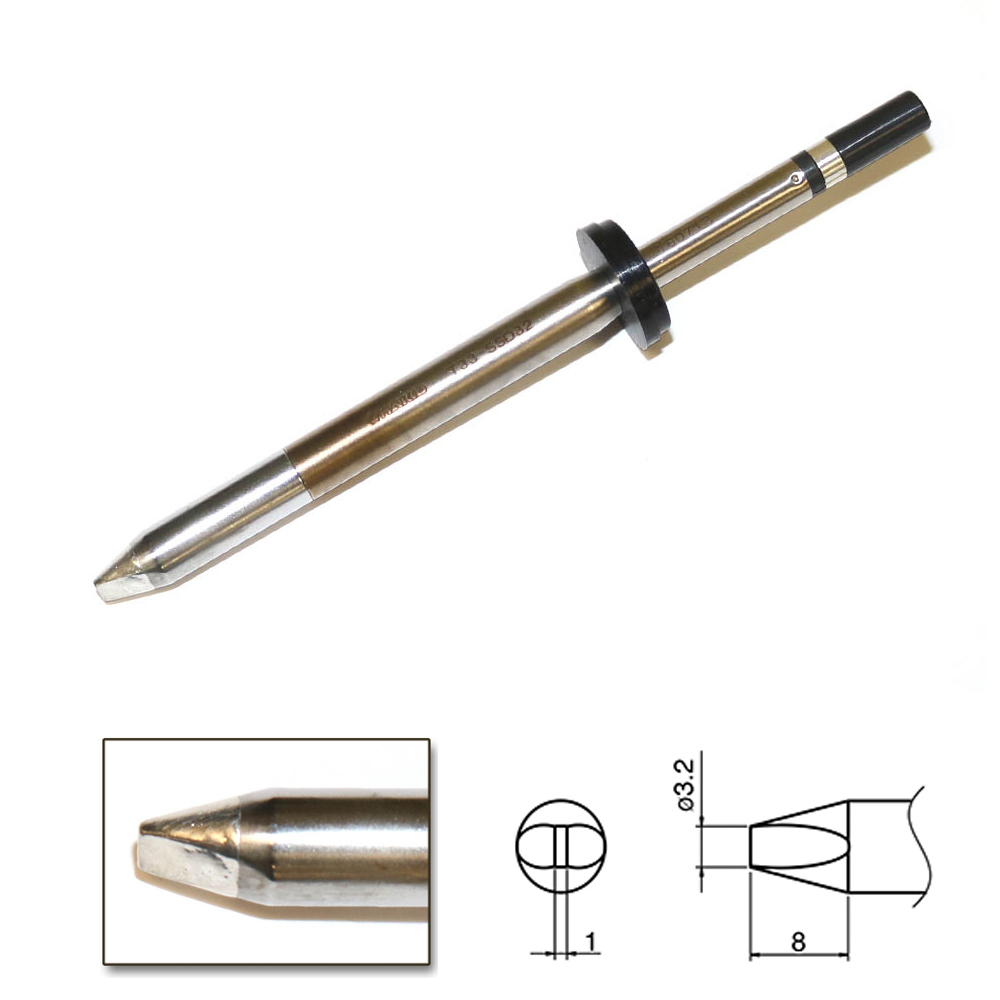

Slim type

Slimmed-down tips for narrow spaces without losing of enough power.

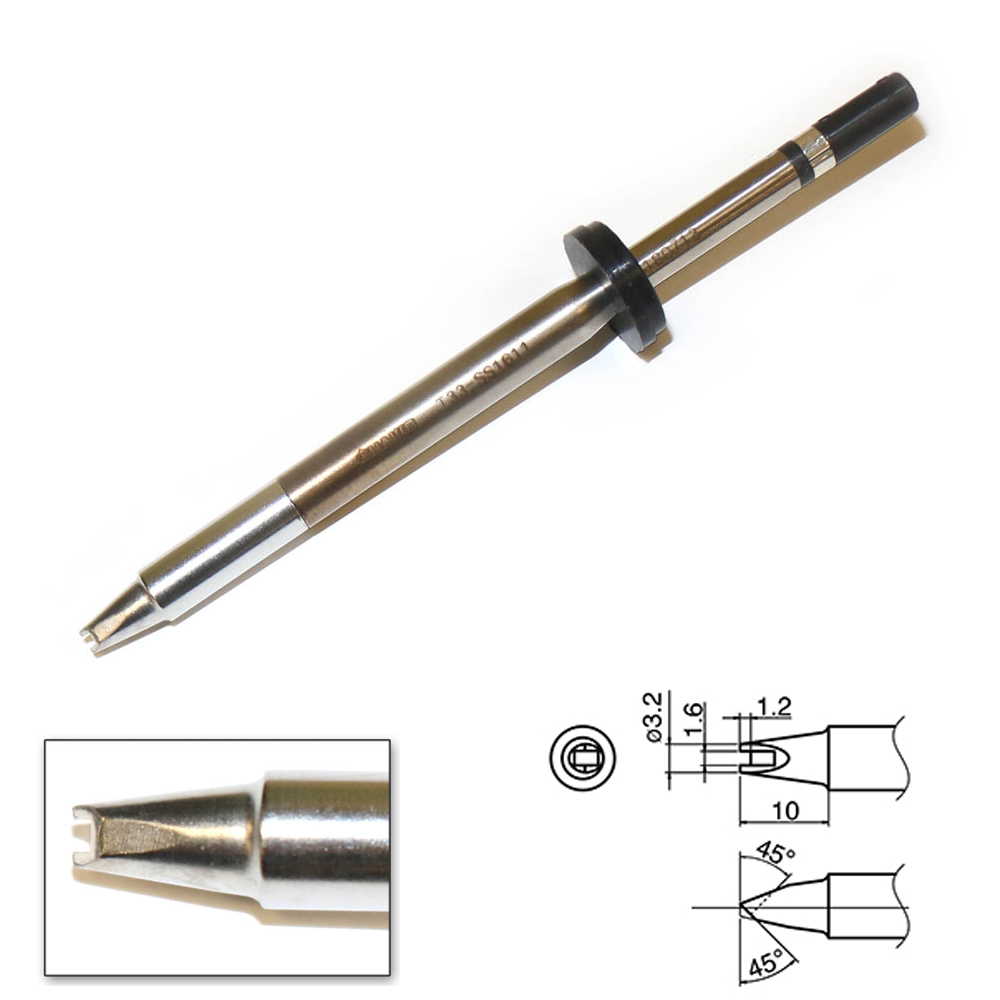

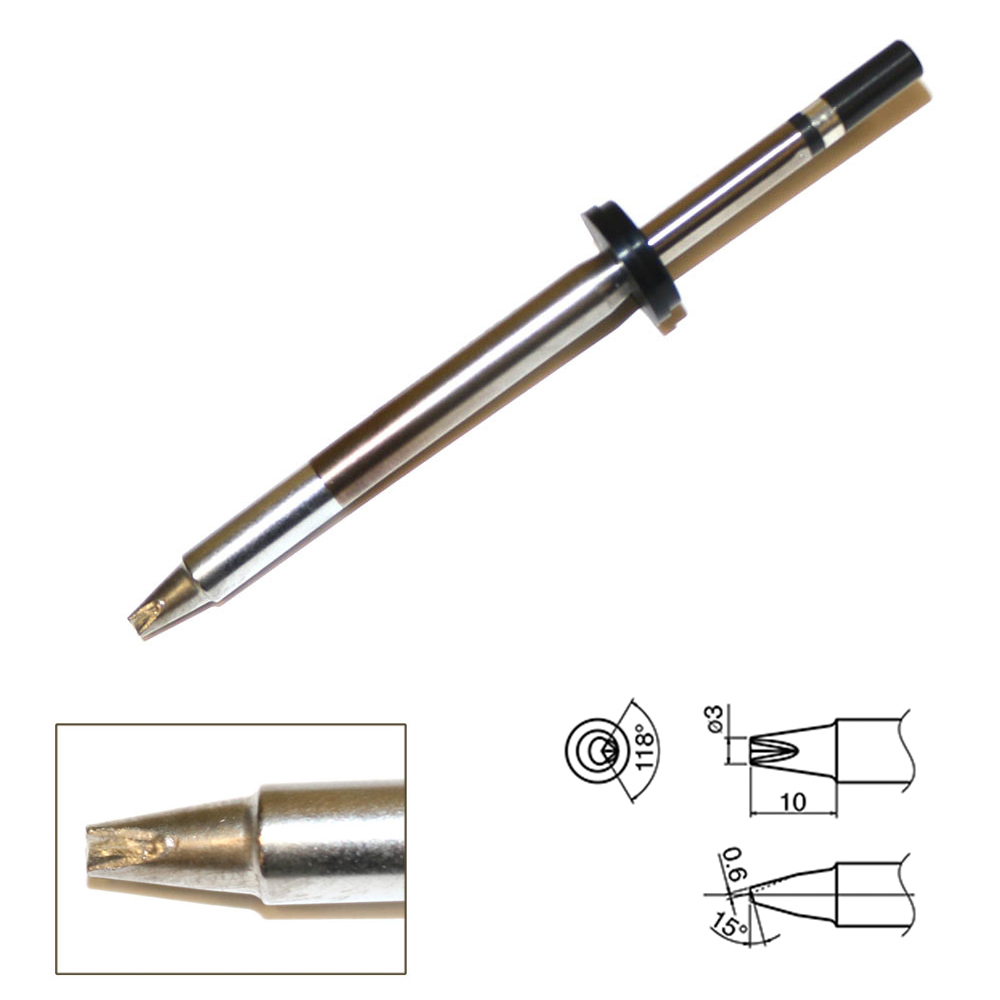

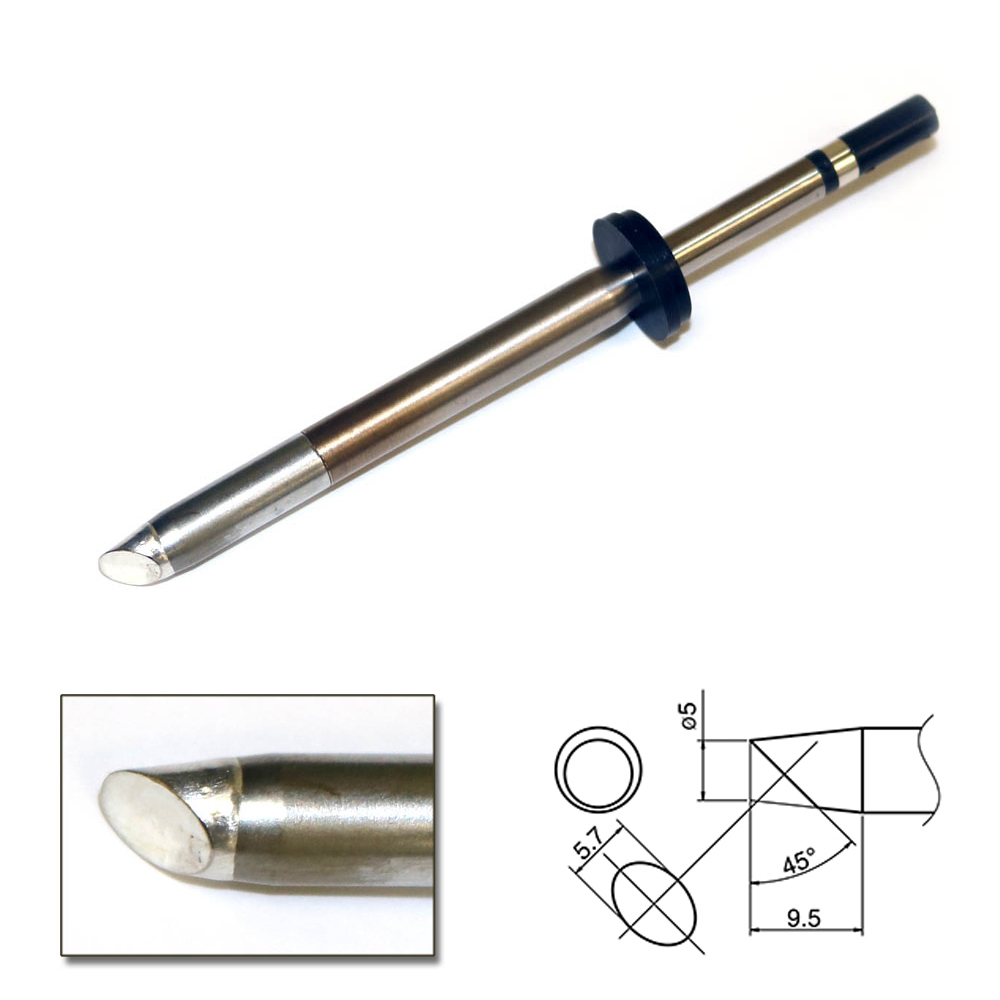

T33 Series Slim Type

H K Wentworth - HAKKO UK and Ireland distributor

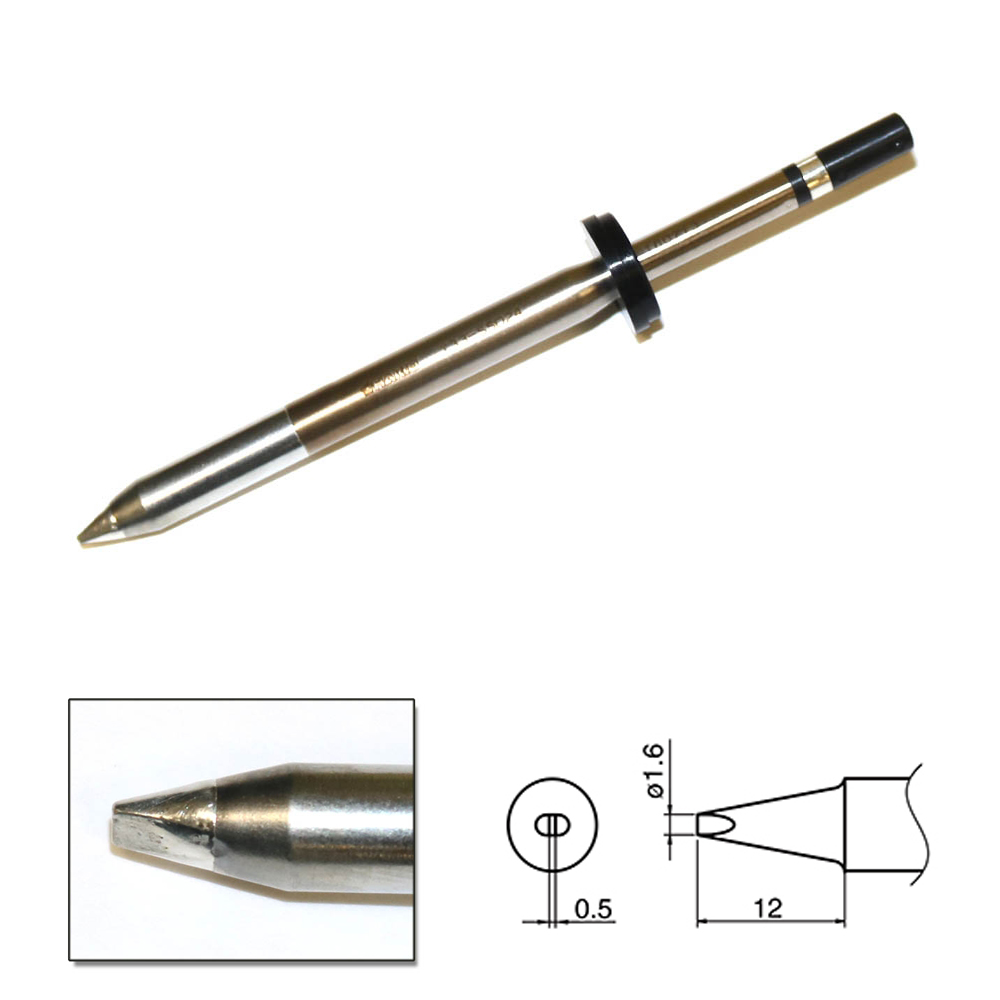

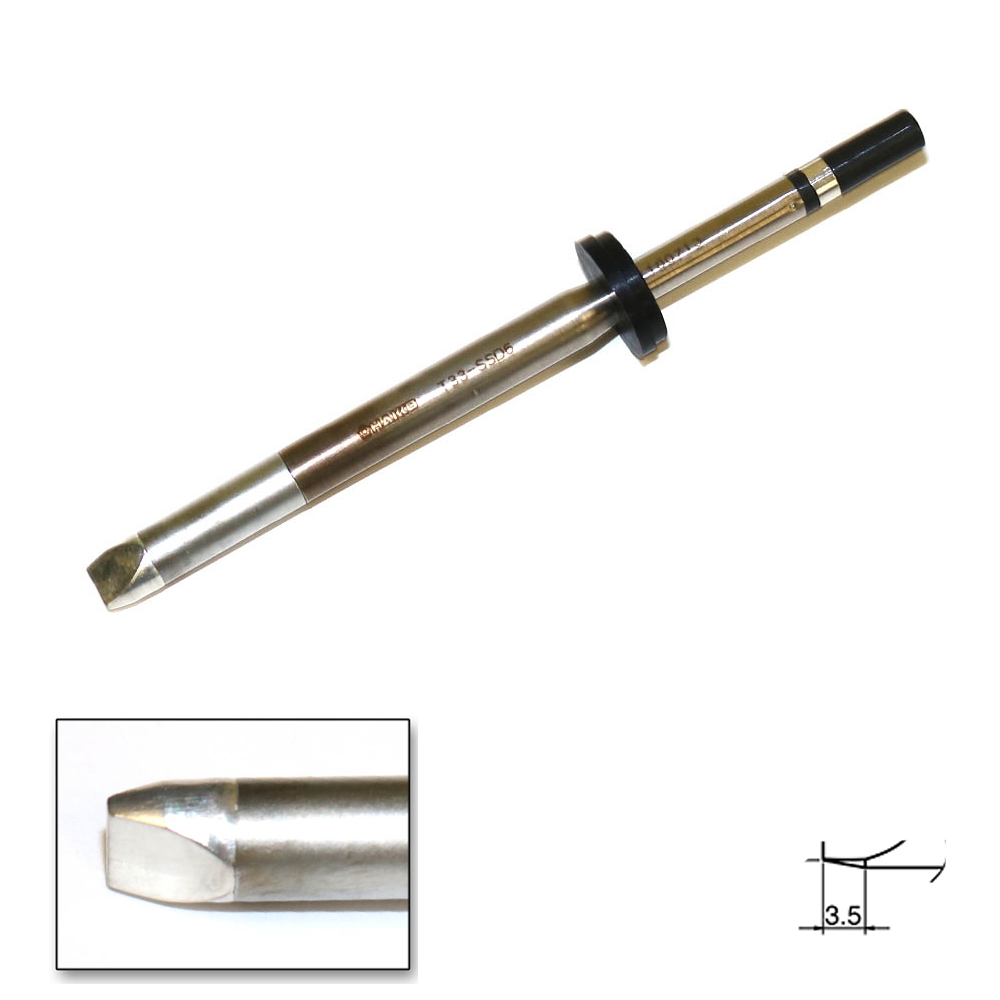

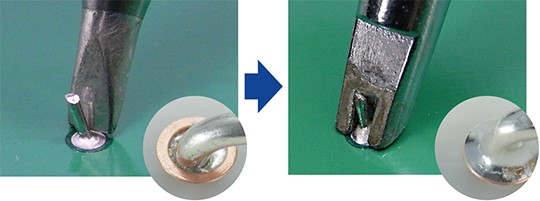

Slim type Shape-2.4SSD

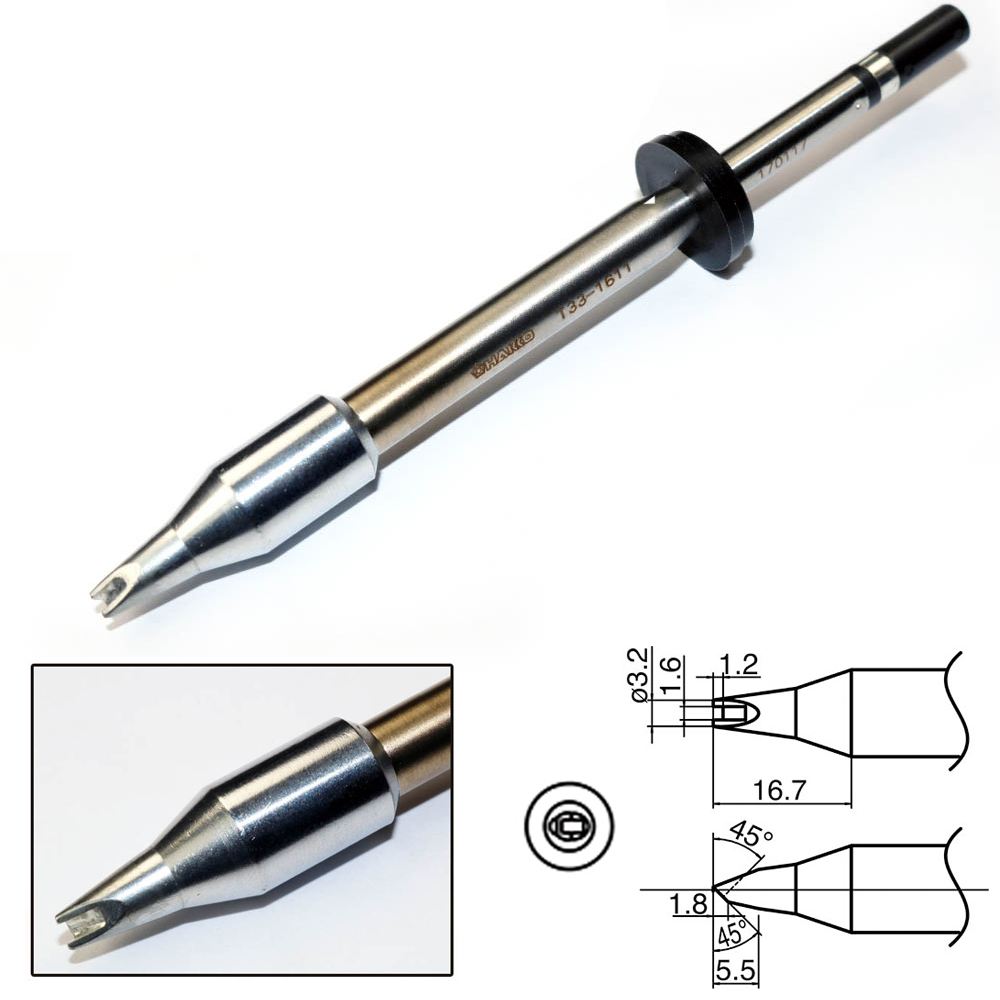

Shape Concave

By the tip design to make larger contact area with land pattern for better thermal transfer, it improves through hole fill and soldering on high thermal mass PWB.
H K Wentworth - HAKKO UK and Ireland distributor
Insufficient flow-up Successful flow-up

Packing List

FX8002-81 High Powered Soldering Iron (Hand piece only)

Specifications

Power consumption 260W (29V)
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 228mm (with 4BC tip)
Weight
50g (with 4BC tip)

Soldering Tip / Nozzle

Replacement Parts

Part Number Description

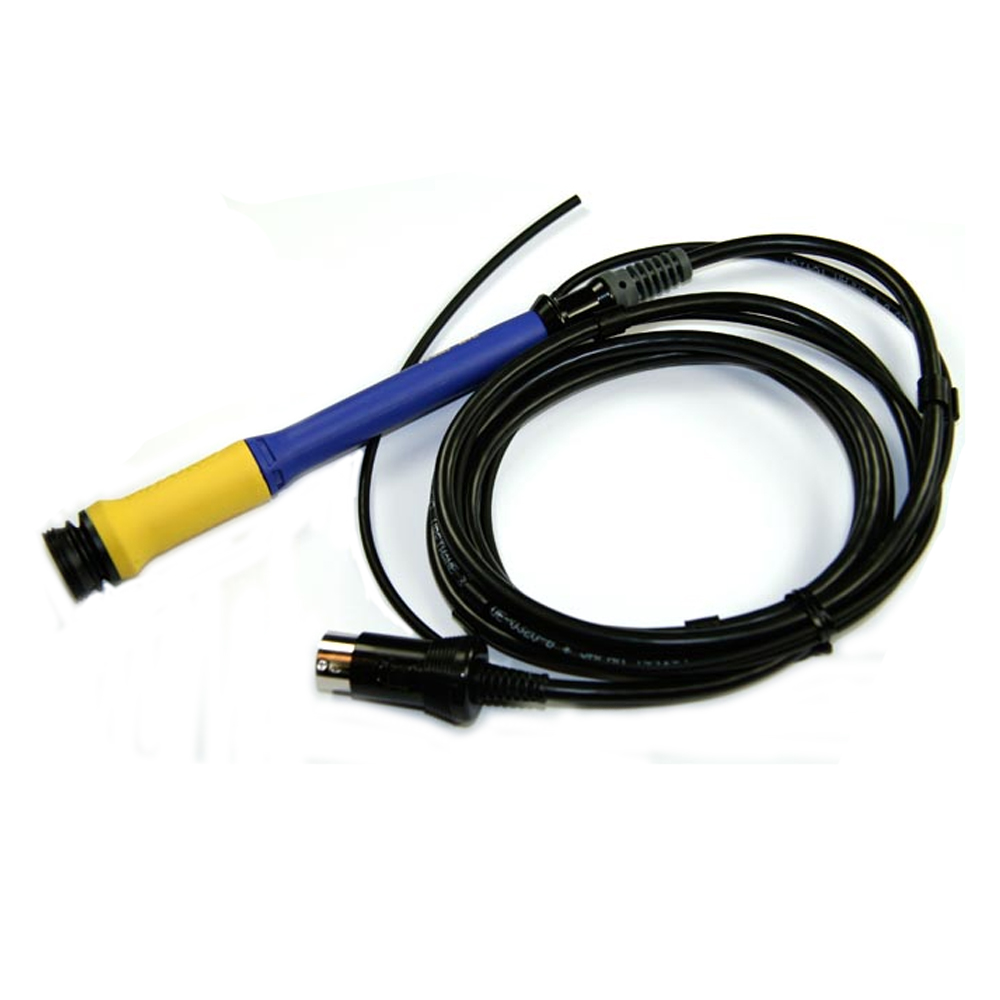

FX8003-81

Nitrogen Soldering Iron (Requires Nitrogen source, eg. Hakko Generator)

Buy

FG100B

Digital Tip Thermometer

Buy
FA-430

Under Desk Fume Extractor

B3251 FX301B-11

Solder Pot Bath

Buy

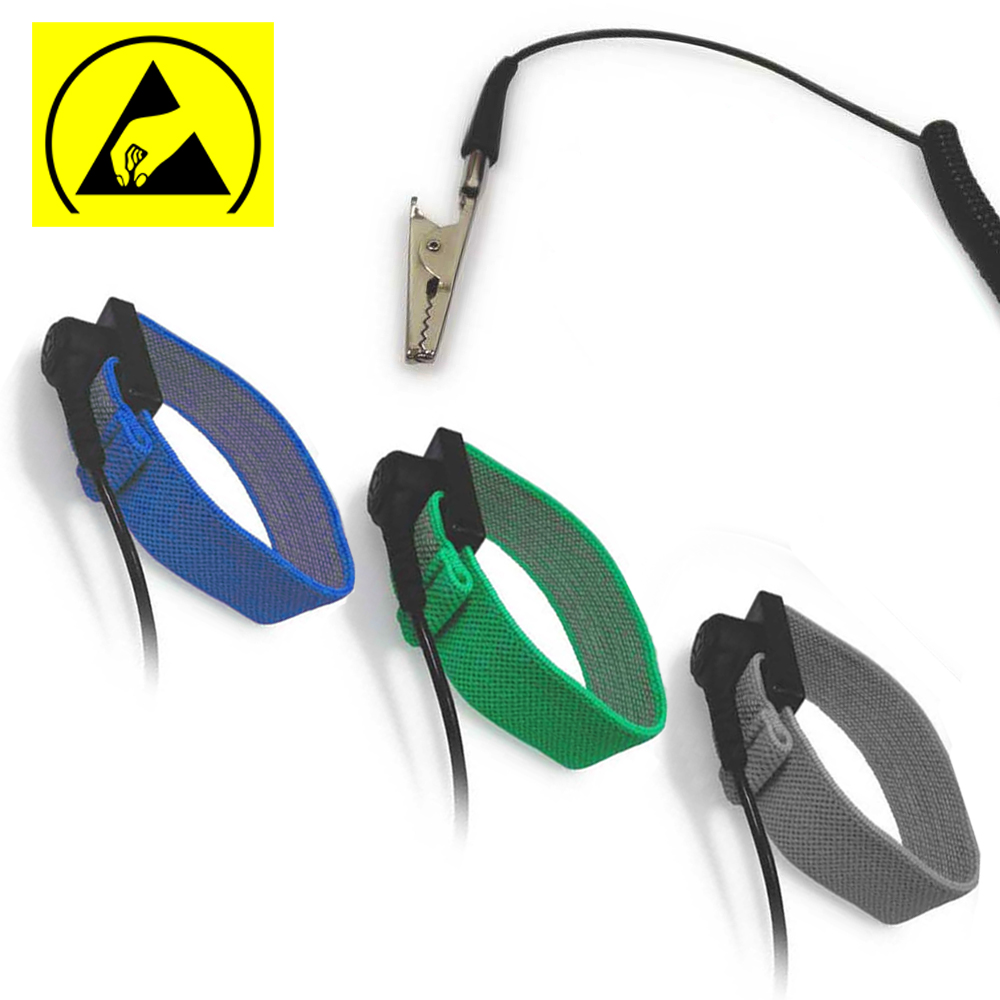

B3251 442B

Anti-Static Wrist Strap

Buy
FT700-15 Tip Cleaning / Polishing Station Buy
611-1

Solder Wire Holder

Buy

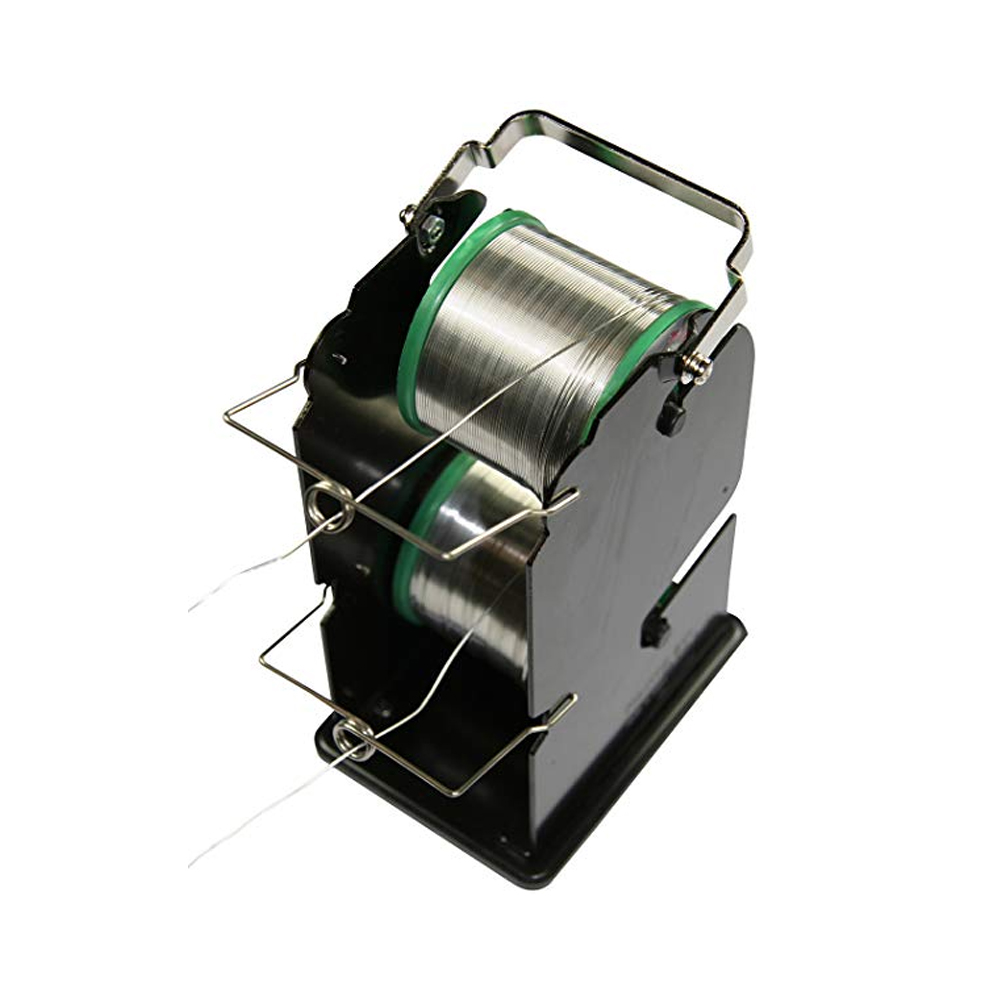

611-2 Double Solder Wire Holder Buy

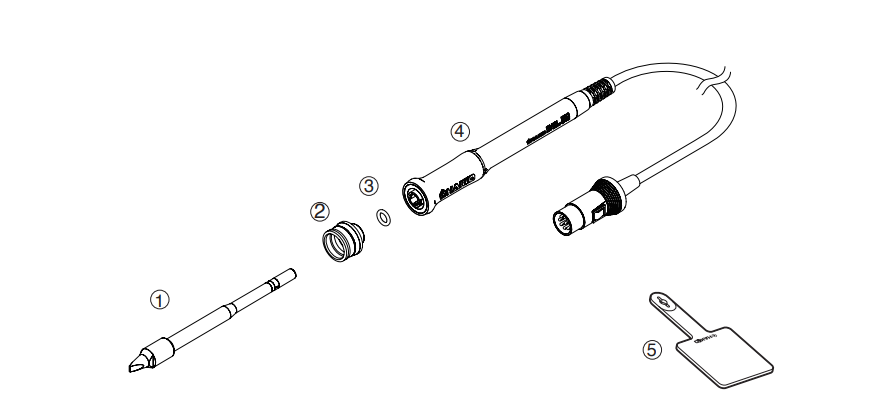

FX-8002-81

FX8002-81 Soldering Iron

1. T33 Tip

See Tips Tab

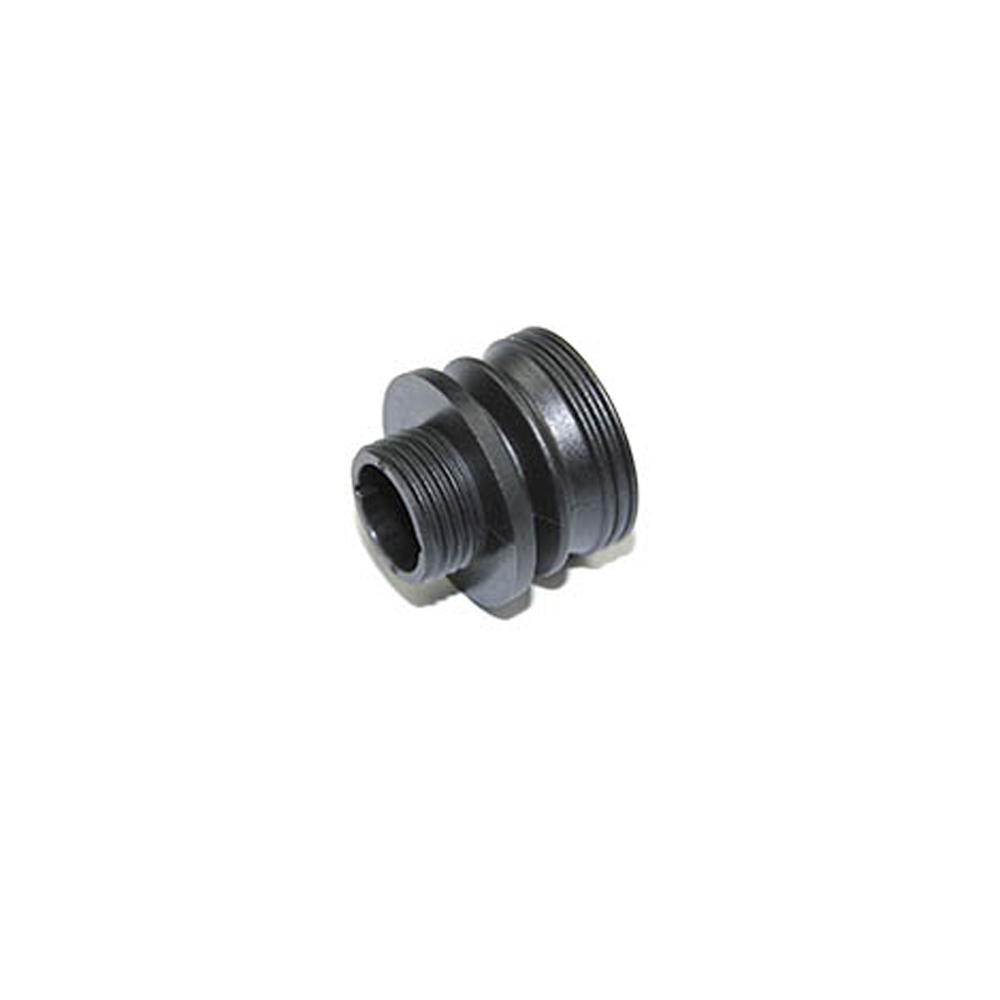

B3251 2. B5071

Nipple With O-Ring

Buy

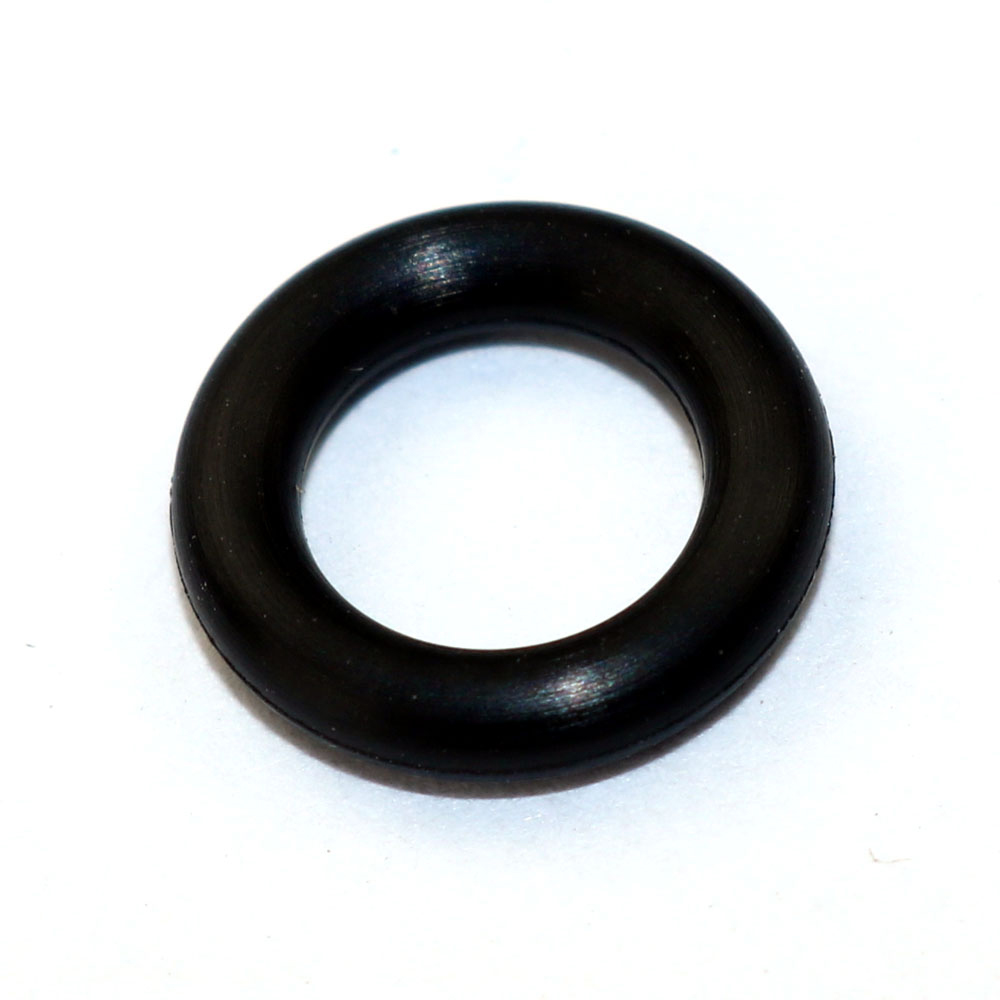

B3251 3. B2578

O-Ring

Buy
4. FX-8002-81

Hand Piece

5. B2300 Heat Resistant Pad Buy

Tech Tips

Category Title
Top Tips Top Tips for Successful Soldering and De-Soldering Processes
Weight 0.1122 kg
