FR-811 Advanced Hot Air Rework Station

SKU: HFR811-16

Hakko
Availability:

Available for order*


Professional Hot Air Rework Station with USB connection
Possible to make full-scale thermal profiles with 6-zone hot air and a bottom heater (optional).
Possible to measure and record temperature of components and PWB with type K thermocouple.
The dedicated software to link a station and a computer for easy and quick settings.
Easy data transfer through an USB cable

£1,491.84 Excl. VAT

Available for order*

Introducing a high-spec hot air rework station
with excellent cost performance

Operate on a computer with the dedicated software

H K Wentworth - HAKKO UK and Ireland distributor

The functions needed for SMD rework are in a compact body

A low cost SMD rework can be assembled with FR811, dedicated software and options.

Possible to make full-scale thermal profiles with 6-zone hot air and a bottom heater.
A basic thermal profile is composed of the 5 parts shown above. FR811 Advanced Hot Air Rework Station can provide 6 zones in which temperature, time, and air flow are controlled. Therefore FR-811 can make a full-scale thermal profile which is close to reflow profiles made by a reflow oven. H K Wentworth - HAKKO UK and Ireland distributor
Record thermal data
By connecting a thermocouple included with FR811 Advanced Hot Air Rework Station, the temperature of the component or circuit board can be measured and recorded. In addition, if “TC LINK” is set, the heater output can be automatically controlled so that the temperature of the thermocouple attached to the component or circuit board follows the set profile. H K Wentworth - HAKKO UK and Ireland distributor
Operation on a PC for various settings
By connecting FR811 Advanced Hot Air Rework Station and a computer with a USB cable and using the dedicated software which comes as standard, a set thermal profile and actual temperature change can be shown in a graph in real time. Also, change of thermal profile and fine adjustment in a profile can be made on a computer operation. (After making changes, it is necessary to resend the data to FR811.)
In addition, the set values and graph can be saved in csv format.
H K Wentworth - HAKKO UK and Ireland distributor
Linked operation with bottom heater
FR811 Advanced Hot Air Rework Station can control on/off timing and output of the bottom heater, which is available optionally. H K Wentworth - HAKKO UK and Ireland distributor

High power and large volume hot air for quick removal of components

A tool that can provide powerful hot airflow for repairing high heat capacity circuit boards that require high blow volume and high output, and sufficient hot airflow for appropriate blow volume and high output for high-density mounting substrates.

H K Wentworth - HAKKO UK and Ireland distributor

New user friendly functions for SMD rework

New type of nozzles for improving temperature characteristics
The new nozzles improve work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzles) H K Wentworth - HAKKO UK and Ireland distributor
Vacuum pickup function
The vacuum pickup function is to pick up a component with a suction pad and vacuum.
It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.
H K Wentworth - HAKKO UK and Ireland distributor
Pickup indicator
By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible. H K Wentworth - HAKKO UK and Ireland distributor

Interface designed for intuitive operation. Possible to link to a PC

Easy-to-read LCD
Equipped with a high-visibility LCD to make it easy to check the various product settings or operation status. Indications are displayed using graphics as well as letters and numbers so information can be checked intuitively. H K Wentworth - HAKKO UK and Ireland distributor
Easy-to-operate multi-direction control knob
The multi-direction control knob makes it easy to make and change settings shown in the LCD.
There are several ways of knob movements, dialing, pressing, and tilting up and down and left to right for quick operation.
H K Wentworth - HAKKO UK and Ireland distributor
Link to a PC (A USB I/F terminal available)
A USB I/F terminal is available to link to a computer. The dedicated software, which can display and record various settings or temperature data on a computer screen in real time, is included. H K Wentworth - HAKKO UK and Ireland distributor
A USB device terminal for easy data transfer
Data can be transferred through a USB memory even without a computer. H K Wentworth - HAKKO UK and Ireland distributor

Use conventional HAKKO nozzles

Align the projection part, attach the conventional nozzle to the heater pipe.

H K Wentworth - HAKKO UK and Ireland distributor

*The heater pipe of HAKKO FR810 (discontinued) has two projection parts. In order to use the conventional nozzle, put the conversion adaptor on the heater pipe that was included in your purchased HAKKO FR810 as one of standard accessories.
Click here for details.

Simple nozzle removal and easy maintenance

Nozzle can be changed quickly when working with a wide range of components. Conventional HAKKO nozzles can be used by using a special conversion adapter (option).
Heater replacement is also simple.

Quick-change N51 nozzles Simple heater replacement
H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor
Simple, tool-free removal and attachment. Simply remove four screws to replace heater.

Can also create a simple thermal profile (same as HAKKO FR810B)

Timer function

Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.

Chain presets function for making a simple thermal profile

The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps)
This can improve work efficiency a lot by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.

H K Wentworth - HAKKO UK and Ireland distributor

Auto sleep and auto shutoff features

To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically.
If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off. Access to settings can be restricted by the password function.

Assembly of a low-cost SMD rework system

A low cost rework system can be assembled with a bottom heater, a grip fixture, and a board holder.

H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor
Grip Fixture L
A board holder can be easily attached to the large baseplate
Grip Fixture M
Recommended if a bottom heater is not required or in case of use of a bottom heater other than the dedicated model for FR811.
C5024 A dedicated bottom heater for FR811
Equipped with carbon heaters.
Heating area is divided into 2 sections.
H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor H K Wentworth - HAKKO UK and Ireland distributor
C5027 Board Holder
Makes it easy to set and remove a P.W.B and to make fine adjustments after setting.
Board Clip
Accepts even irregular-shaped PWB.
Board Support Unit
Supports PWB from underneath to minimize warping.
  1. FR811 Station with handpiece and Instructions,
  2. Power Cord (B2425)
  3. Grip stand assembly (C5033)
  4. Vacuum pipe control knob (with screw) (B3023)
  5. Suction Pads (qty 2 each of Ø3 mm (A1520), Ø5 mm (A1439), Ø7.6 mm(A1438)),
  6. USB cable (B5129)
  7. Software (CD-ROM)
  8. Thermocouple, (B5128)
  9. Heat resistant pad, (B2300)
  10. Temperature distribution chart.

FR-811 Specifications:

Model No. FR811
Power consumption AC100V:700W AC110V:840W AC120V:820W AC220V:1,100W AC230V:1,200W AC240V:1,300W
Temperature range 50 to 600ºC
・Station
Power consumption 30W
Air flow 001-100% (5 to 115L/min.)
Dimensions 160(W)×145(H)×220(D)mm
Weight 1.5kg
・Handpiece (Hot air)
Power consumption AC100V:670W AC110V:810W AC120V:790W AC220V:1,070W AC230V:1,170W AC240V:1,270W
Total length 250mm
Weight 180g
* Total length and weight for handpiece (w/o cord) * Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.

Recommended / Optional Extras FR-811

Image Part Number Description Availability
C5024 Underboard Heater Buy Now
C5027 Board Holder Buy Now
C5028 Grip Fixture S Buy Now
C5029 Grip Fixture L Buy Now
B5059 Adaptor / for fixture (C1392B) Buy Now
B5127 Thermocouple 0.1mm Buy Now
B5130 Heat Resistant Tape Buy Now
FG-100B C1541 Thermometer Hot Air Station Probe Buy Now Buy Now
Image FT640 / FT641 Tweezers
106 Series Wire Processing Tools Buy Now
SMF012P Flux Pen Buy Now
FLU400DB Flux Cleaning Solvent Buy Now
Various Desolder Braid Buy Now
FA-430 Fume Extractor and Air Purifier Buy Now
393 Vacuum Pump Pick Up Tool Buy Now
394 Battery Powered Vacuum Pump Pick Up Tool Buy Now
FR-830 Under Board Heater Buy Now
Ref. Image Part Number Description Availability
1.&2. A5007 Heating Element Assembly Buy Now
1. A5024 Heating Element Buy Now
2. B5049 Mica + Cover Buy Now
3. B5045 Heater cover Pipe Buy Now
4. B5091 Handle with Cord Assembly Buy Now

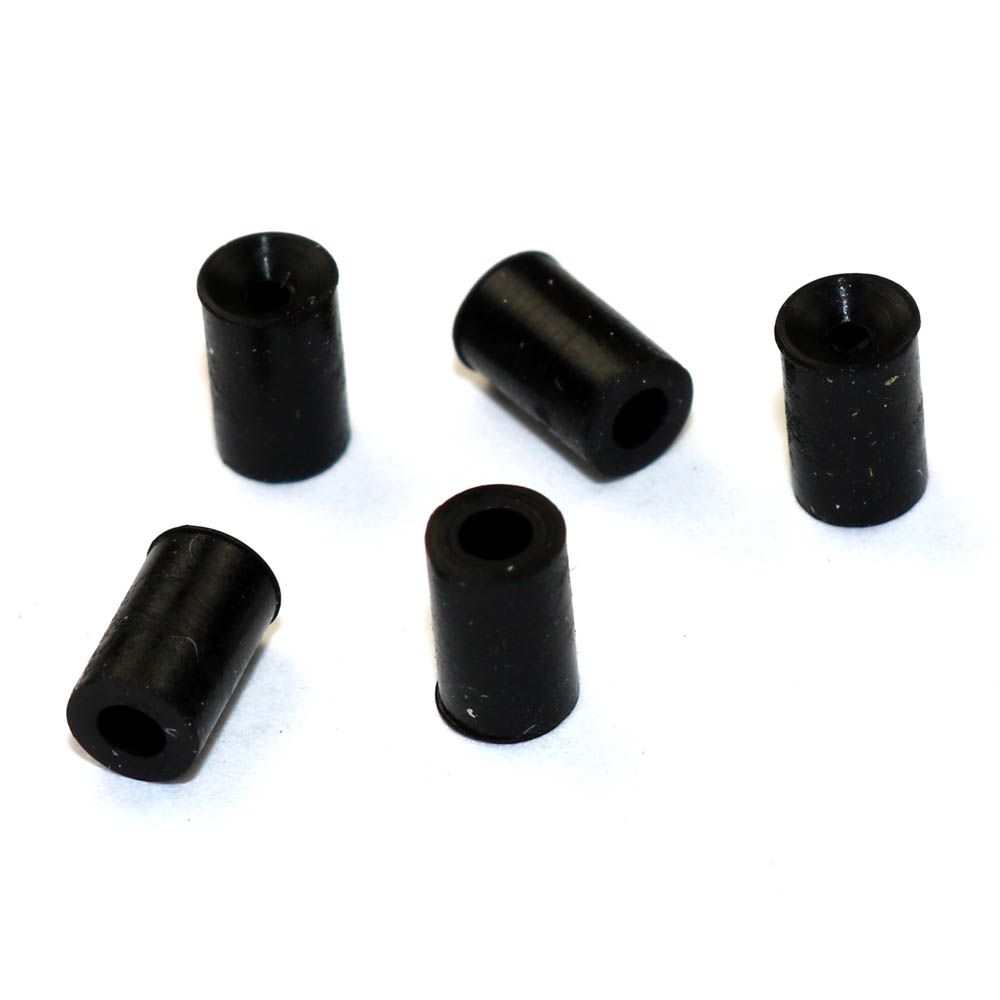

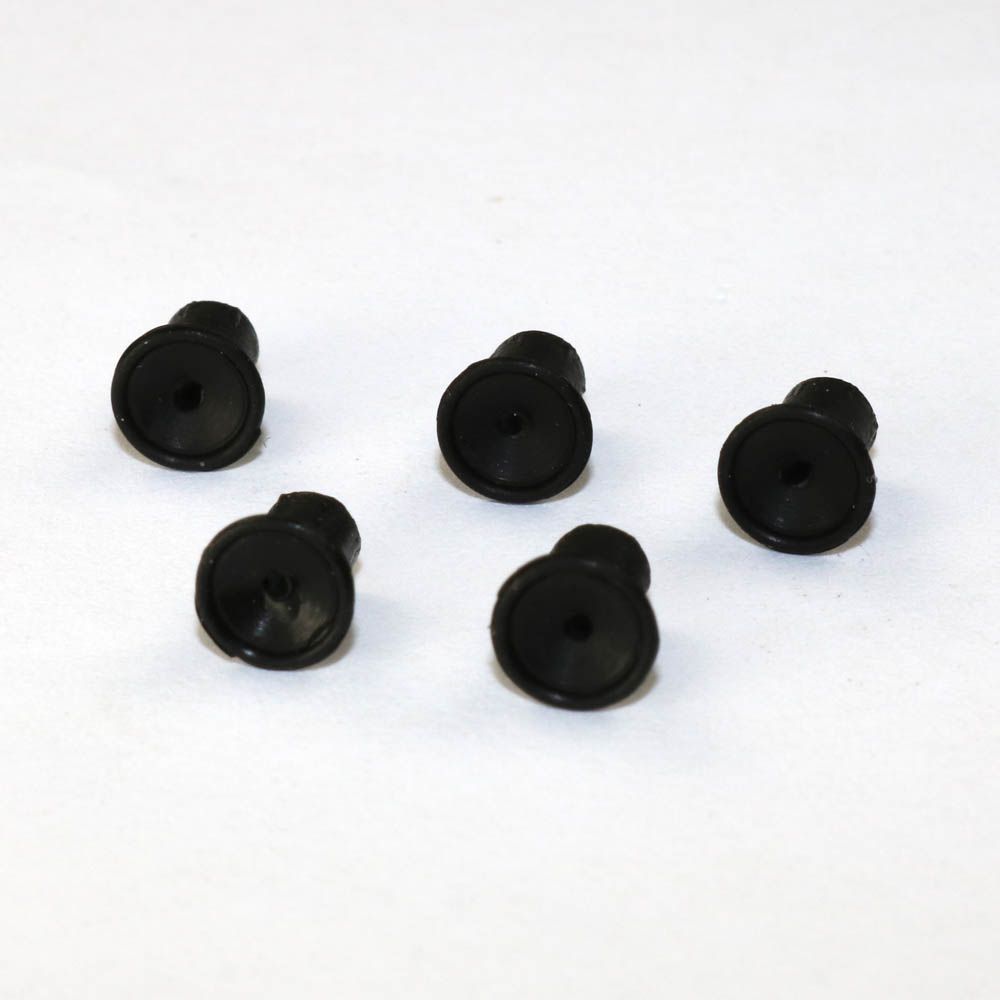

5. A1520 A1439 A1438 Vacuum Pick Up Pad 3mm Vacuum Pick Up Pad 5mm Vacuum Pick Up Pad 7.6mm Buy Now Buy Now Buy Now
6. B3023 Vacuum Pipe Adjustment Knob Buy Now
7. B5043 Joint Hose Buy Now
8. B5052 Fan Buy Now
9. B5053 Power Unit Buy Now
10. B5095 P.W.B for LCD Buy Now
11. B5060 Fuse 250V 6.3A Buy Now
12. C5033 Grip Stand Assembly Buy Now
13. B5094 P.W.B for Control Buy Now
14. B5096 P.W.B for encoder Switch Buy Now
15. B5097 P.W.B for USB Buy Now
16. B2425 Power Lead (British Plug) Buy Now
17. B2384 Power Inlet Buy Now
18. B5092 Pump Buy Now
19. B2300 Heat Resistant Pad Buy Now
20. B5128 Thermocouple 0.2mm with connector Buy Now
21. B5129 USB Cable Buy Now
Weight 2.6987 kg
