FG-101B Soldering Iron Tester and Thermometer

SKU: HFG101B-22

Hakko
Availability:

In stock


FG-101B Soldering Iron Tester measures tip temperature, leak voltage, and tip-to-ground resistance.
Leak voltage and tip-to-ground resistance can be easily measured due to automatic self-correction of the zero point.
Calibration Certificate included
Long Life, Easy to change Sensors

£727.04 Excl. VAT

In stock

Soldering Iron Tester and Thermometer for measurement of tip temperature, leak voltage, and tip to ground resistance

For the daily maintenance of soldering station

Control of “tip temperature”, “leak voltage”, and “tip to ground resistance” is required for a grounded soldering station for electronic components.

H K Wentworth - HAKKO UK and Ireland distributor

H K Wentworth - HAKKO UK and Ireland distributor

Human error-free operation

H K Wentworth - HAKKO UK and Ireland distributor 1. AUTO HOLD function
The measurement will end automatically when the displayed tip temperature is stabilized. Individual differences in temperature measurement can be minimized.2. Data send function (infrared)
Measurement result can be sent to IoT capable soldering station, such as FN-1010, and be recorded automatically.
Human errors in manual recording can be eliminated.

Option Adapter module

H K Wentworth - HAKKO UK and Ireland distributorH K Wentworth - HAKKO UK and Ireland distributor
By connecting FG101B-22 Soldering Iron Tester and Thermometer and IoT capable soldering station, such as FN1010, with adapter module, data transfer can be easy and smooth.

The excecution example of “Auto Cal” when connected to FN1010.

Long life sensor AS5000 (with certificate of conformance) is equipped as standard.

Lasts 30 times longer than a conventional sensor.
*Based on our in-house test
Save troubles of sensor replacements and enhance stable measurement for a long time.

H K Wentworth - HAKKO UK and Ireland distributor

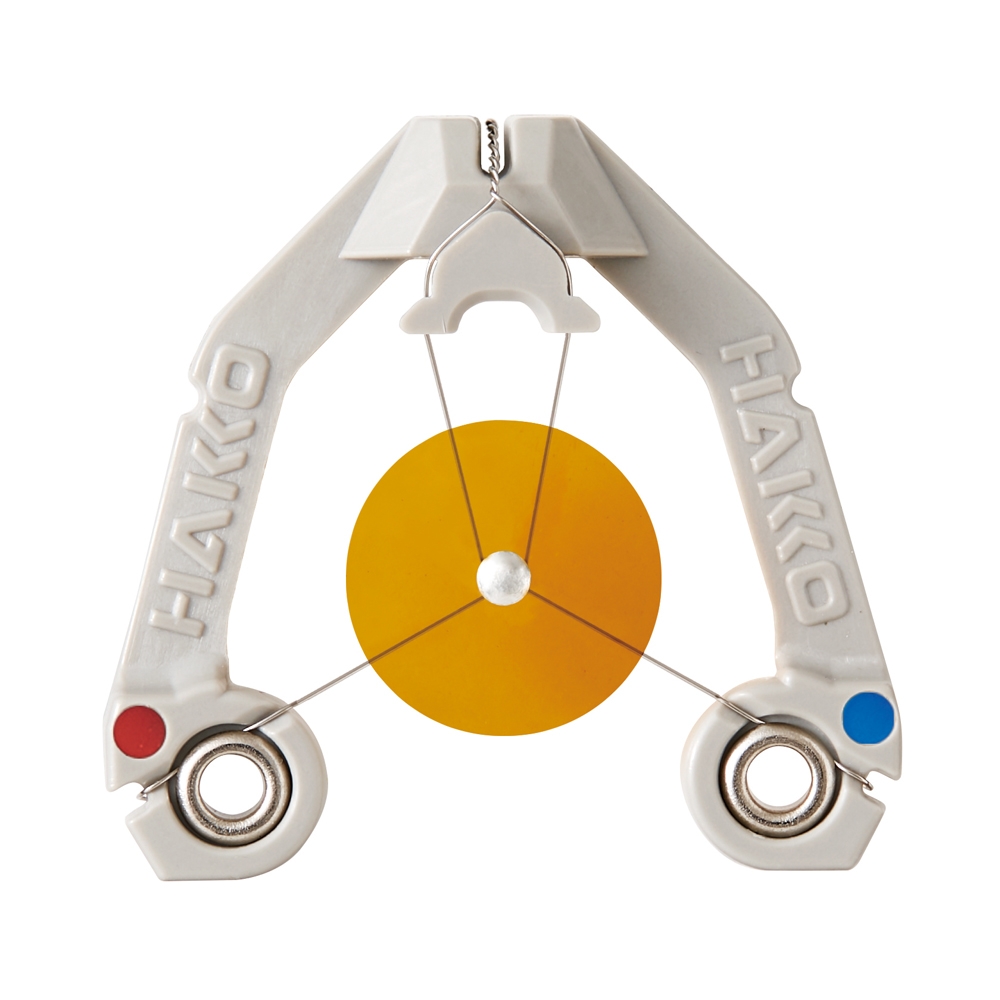

Part No. AS5000

MAX HOLD Function (Temperature measurement)

Max measured tip temperature will be displayed.
This function can be useful for quality control of components and P.W.B.

Temperature Measurement Count Function

Number of tip temperature measurement will be automatically counted.
This function can be useful for control of changing sensor.

AUTO ZERO Function

The zero point error of measuring instruments can be corrected by simply pressing the AUTO ZERO button and waiting for the display to return to normal.

Temperature probe

Use of a temperature probe makes it possible to measure the temperature of molten solder in a solder pot and hot air.

H K Wentworth - HAKKO UK and Ireland distributor

HAKKO FG101B should be calibrated regularly as a Tester / Meter.

For details, please contact us or the distributors in your country.

contact us

Connecting the thermometer (HAKKO FG101B)

  1. Connect HAKKO FG101B and HAKKO FN1010 with adapter moduleH K Wentworth - HAKKO UK and Ireland distributor
  2. Select “Auto Cal” from the menu on FN-1010 and excute it.
    H K Wentworth - HAKKO UK and Ireland distributor
  3. According to the instruction of the display on FN1010, measure the temperature, leak voltage and

tip to ground resistance in sequence.
The measurement mode of FG101B is automatically changed for each mearuring item.
When “Auto Cal” has been performed, if the measured temperature is within a previously set temperature range, it will be judged as passed and stored in the main body, and the product will return to normal operation.
If the measured temperature is outside the temperature range, the offset value will be calculated from the measurement results, and control will be performed using the new offset value. If it is outside the set range, temperature measurement and sending will be performed repeatedly for the previously set number of retries.

  1. H K Wentworth - HAKKO UK and Ireland distributor
  1. The result will be automatically recorded in HAKKO FN1010 once the measurement is completed.
Model No. Packing List
FG-101B
1. FG101B + Instructions 2. Power Lead (B2425) 3. Conduction Wire (B1950) 4. Ground Clip (B1754) 5. Fuse (B1258) 6. Sensor (AS5000)
HAKKO FG-101B should be calibrated regularly as a Tester / Meter. For details, please contact us
Model No. FG-101B
Power consumption 3.6W (220-240V)
Temperature resolution 1ºC
Temperature measurement range 0 to 700ºC
Temperature precision ±3ºC (300 to 600ºC) ±5ºC (other than above)
Temperature sensor K (CA)type thermocouple
Voltage resolution 0.1mV
Voltage measurement range 0 to 40mV
Voltage precision ± (5% of reading + 1 digit)
Resistance resolution 0.1Ω
Resistance measurement range 0 to 40Ω
Resistance precision ± (5% of reading + 1 digit)
Display LCD : 3 1/2digits
Operating environment Ambient temperature/humidity range : 0 to 40ºC, max.80% RH (without condensation)
Environmental conditions Applicable rated pollution degree 2 (According to IEC/UL 61010-1)
Dimensions 211(W)×53(H)×126(D)mm
Weight 0.95kg
* Temperature sensor can only be used ti measure temperatures below 500ºC. To measure higher temperatures, use an applicable temperature probe.

FG-101B Recommended / Optional Extras

Image Part No. Description Availability
A1310 Sensor Probe Adaptor (Soldering Pot) Buy Now
C1541 Sensor Probe Adaptor (Hot Air Tools) Buy Now
Image CX1002 Sensor Probe Adaptor (Robot) Contact Us
A1556 Sensor A Buy Now
A1557 Sensor B Buy Now
FT-700 Tip Cleaner + Polisher Buy Now
C5055 Adaptor Module (FN1010 IOT Soldering) Buy Now

FG-101B Spare and Replacement Parts

Image Part No. Description Availability
B2425 Power Lead (British Plug) Buy Now
B1752 Conduction Plate Buy Now
B1754 Ground Clip Buy Now
B1950 Conduction Wire Buy Now
B1258 Fuse 250V 3.15A Buy Now
AS5000 191-212 Sensor Sensor Buy Now Buy Now
Weight 1.55 kg
