FV310 Hot Air Gun

SKU: HFV310-22

Hakko
Availability:

Low stock – Order soon


  • Hot air blower with variable temperature and airflow
  • Stepless control on temperature and airflow for optimal settings
  • High performance and long life heating element

£157.50 Excl. VAT

Low stock – Order soon

Features

Powerful & Fine

The new heating gun with stepless control for the maximum temperature increased by 80 and maximum airflow increased by 25% from the conventional models.

H K Wentworth - HAKKO UK and Ireland distributor

Stepless control on temperature and airflow for optimal settings

Fine control of temperature and air flow for a variety of applications contributes to improvement of work efficiency.

H K Wentworth - HAKKO UK and Ireland distributor
H K Wentworth - HAKKO UK and Ireland distributor

High performance and long life heating element

Use of ceramic insulator for greater heat storage and heating performance.

H K Wentworth - HAKKO UK and Ireland distributor

Easy replacement of heating element

It requires only a screwdriver to replace heating element.

H K Wentworth - HAKKO UK and Ireland distributor

Safety design for fall-prevention during hands-free operation

Anti-slip rubbers on the back improve stability and safety during hands-free operation.
Slide button (switch), temperature and air flow knobs are positioned at where it is easy to operate even during hands-free operation.

H K Wentworth - HAKKO UK and Ireland distributor

Use of stand, an option part, secures stability for hands-free application.

H K Wentworth - HAKKO UK and Ireland distributor

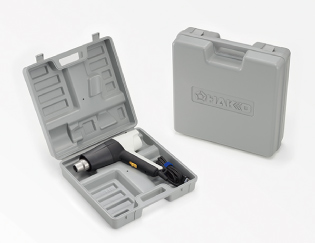

A carrying case as standard

It can store optional parts to carry together with unit.

H K Wentworth - HAKKO UK and Ireland distributor

Examples of use (Including optional parts)

H K Wentworth - HAKKO UK and Ireland distributor

Usage/Applications

1. Set the slide button (switch) to OFF and insert the plug of the power cord into an outlet.
* Use a power outlet rated at 12 A or greater for 110 V, 5 A or greater for 220 – 240 V.

H K Wentworth - HAKKO UK and Ireland distributor

2. Turn the slide button (switch) to “Ⅱ”. Hot air will come out of the pipe.

H K Wentworth - HAKKO UK and Ireland distributor

3. Turn the temperature/air flow control knobs to adjust temperature/air flow.
* The larger the number, the higher the temperature/air flow.

H K Wentworth - HAKKO UK and Ireland distributor

4. After use, turn the slide button (switch) to “Ⅰ” and allow the unit to cool down.

H K Wentworth - HAKKO UK and Ireland distributor

After use, allow it to cool down for at least 90 seconds.

Before storing the heating gun, allow it to cool down for at least 5 minutes.

Packing List

Model No. Packing list
FV-310 fv310

FV-310 Unit, Instruction manual

Specifications

Model No. FV-310
Power consumption 1000W
Maximum temperature 530ºC (80 to 530ºC continuously variable)
Air velocity 600m/min.
Air flow 0.15 to 0.25m3/min.
Dimensions 240(W)×190(H)×70(D)mm
Weight 0.6kg

* Maximum temperature is approximate one which measured at the point 10mm from the pipe.
* Dimensions and weight (w/o cord)

N70 Series (for FV-310)

Replacement Parts

Part No. Name Specifications
photo:B5154 B5154 Fun unit with motor Buy
photo:B5162 B5162 Pipe cover Buy
photo:B5163 B5163 Enclosure pipe with mica Buy

Option

Part No. Name Specifications
photo:N70-01 N70-01 Nozzle
* Nozzle holder No.N70-05 is required separately.
spatula type, 20mm Buy
photo:N70-02 N70-02 Nozzle spatula type, 62mm Buy
photo:N70-03 N70-03 Nozzle hook type, 20mm Buy
photo:N70-04 N70-04 Nozzle hook type, 40mm Buy
photo:N70-05 N70-05 Nozzle holder Buy
photo:N70-06 N70-06 Nozzle
* Nozzle holder No.N70-05 is required separately.
single, 12mm Buy

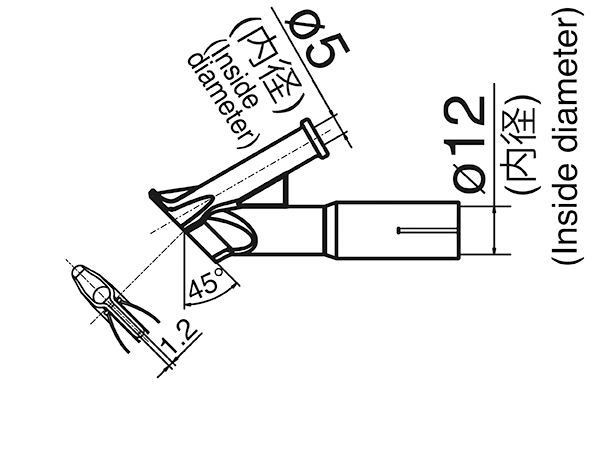

photo:N70-07 N70-07 Nozzle
* Nozzle holder No.N70-05 is required separately.
V type, for 4 mm welding rod
photo:A1115 A1115 Roller Buy
photo:B5166 B5166 Stand
Weight 1.82 kg
