FN-1102 Nitrogen Soldering Iron

SKU: HFN1102-81


Available for order*

N2 soldering iron 95W (21V) designed for FN-1010
Tips NOT Included

£348.10 Excl. VAT

Available for order*

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

N2 soldering iron for soldering tip T36 series
Solderability is increased by the effect of heated N2 gas.

N2 soldering iron HAKKO FN1102-81 Nitrogen Soldering Iron

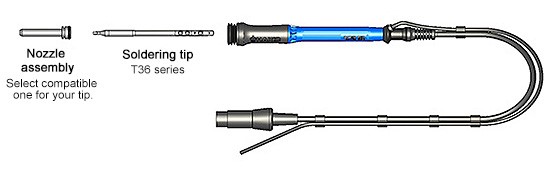

FN-1102, IoT capable iron for N2, consists of the parts shown below.
It needs to be connected to temperature control station sold separately.

FN1102-81 Nitrogen Soldering Iron

Optional tip T36 series for FN1102-81 Nitrogen Soldering Iron

When purchasing this unit, please buy your desired soldering tip and with nozzle assembly together.

Soldering tip T36 series

Effects of N2 system

(1) Improving wettability
Heated N2 gas improves solderability, and prevents components from getting bridges when working even with lead-free solder or high-temperature solder.

(2) Preventing oxidation
Heated N2 gas reduces the oxidization of tips (iron plating). As a result, the wettability of tips is improved.

(3) Preheating effect
N2 gas assists soldering iron to heat the objects effectively. It contributes to work at lower setting temperature without spoiling work efficiency.

H K Wentworth - HAKKO UK and Ireland distributor

N2 system required equipments

1. N2 soldering iron HAKKO FN-1102
2. Comaptible soldering station for FN-1102
3. Soldering tip T36 series and nozzle assemblies for FN-1102
4. N2 generator HAKKO FX-780/FX-781
5. N2 Flowmeter HAKKO FX-791

* Required Regulator, Filters, Compressor etc. separately

Compatible soldering station for FN-1102

Soldering tip T36 series and nozzle assemblies

Other required equipments

FN1102-81 Nitrogen Soldering Iron

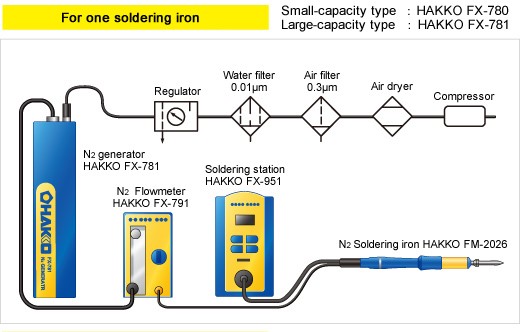

For one soldering
FN1102-81 For one soldering

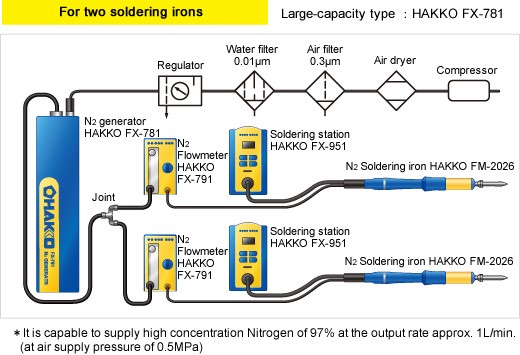

For two soldering irons
FN1102-81 For two soldering irons
Tip Nozzle Required
Tip Shape Part No. Part No. Part Name
B T36-B B5233 Nozzle Assembly A
0.8D T36-D08
1.6D T36-D16
2.4D T36-D24
I T36-I
0.2JS T36-JS02
0.5B T36-B2 B5234 Nozzle Assembly B
2BC T36-BC2
0.2JS T36-J02
1BC T36-BC1 B5235 Nozzle Assembly C
1C T36-C1
3BC T36-BC3 B5236 Nozzle Assembly D
4C T36-BC4
5.2D T36-D52 B5237 Nozzle Assembly E
3.2DL T36-DL32
K T36-K

Soldering Tip / Nozzle

T36 Series

Replacement Parts

Part No. Name Specifications
photo:B2972 B5217 B5217 Nipple with Sealing valve Buy
photo:B2876 B5218 B5218 Sealing valve Buy


Part No. Name Specifications
FH210-81 FH-210-81 Iron holder Buy
photo:FM2026-05 FT401-81 FT-401 Tip cleaner Buy

Tech Tips

Weight 0.2219 kg
