373 Solder Feeder

SKU: H373-9

Hakko
Availability:

Available for order*


Solder Feed System that can work on manual or auto settings to free up your hand for other work.
Can be opperated on full auto or by the use of a foot pump (purchased separately)
Adjust the feed speed and timing settings to maximise efficency based on your work rate or project.

£344.65 Excl. VAT

Available for order*

The Hakko 373-9 Solder Feeder makes soldering easy by feeding solder directly to your soldering iron by special guide pipes attached to your iron, freeing up your hands and ensuring the solder supply is smooth and efficient.

Please note:  1.6mm Lead Free Solder is not suitable for this machine.

Key Features:

Speed Adjustment:

The 373-9 Solder Feeder allows the user to easily adjust both the speed at which the solder is fed through to your soldering iron, as well as the amount of time it feeds for in order to maximise efficiency depending on your individual work rate or project requirements.

H K Wentworth - HAKKO UK and Ireland distributor

Operate in AUTO or MANUAL mode

AUTO MODE : If you press the feed switch, solder will be fed with set time and speed independently of length of pressing time.

MANUAL MODE : Solder will be fed with set speed during pressing the feed switch.

With the solder return mechanism

After feed solder, the specified length of solder can be returned.
Soldering robots may need this solder return function. Amount of solder return is adjustable within 0 to 5 mm.

With the solder return mechanism

HAKKO 374 with anti-solder-balling function is also available.

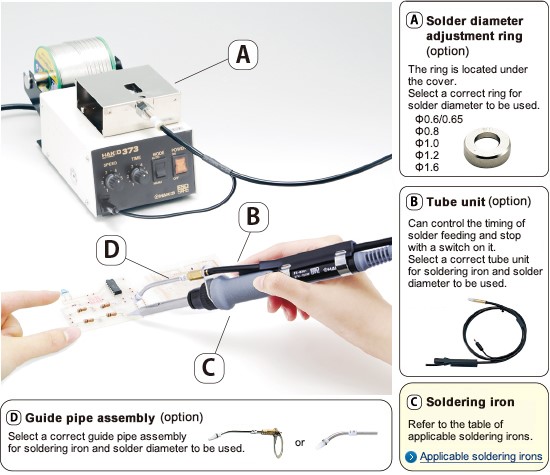

Soldering for one-handed operation

For applicable soldering irons or the part numbers of option parts, click here.



H K Wentworth - HAKKO UK and Ireland distributor

Soldering with a feeder pen

For the part numbers of feeder pen or option parts, click here.

Part Number Description Suitable For Irons Buy Button
B1649 Foot Switch For 373, 374, 375 N/A Buy Now
C1234 Feeder Pen <A> 0.6-1.0mm N/A Buy Now
C1235 Feeder Pen <B> 1.2-1.6mm N/A Buy Now
B1699 Nozzle  0.6mm 902, 903, 904 Buy Now
B1700 Nozzle  0.8mm 902, 903, 904 Buy Now
B1701 Nozzle  1.0mm 902, 903, 904 Buy Now
B1702 Nozzle  1.2mm 902, 903, 904 Buy Now
B1703 Nozzle  1.6mm 902, 903, 904 Buy Now
B1704 Guide Pipe Assembly <A> 0.6-1.0mm 900M,  920-922 N452, N453 Buy Now
B1705 Guide Pipe Assembly <B>1.2-1.6 900M,  920-922 N452, N453 Buy Now
B1706 Guide Pipe Assembly <C> 0.6-1.0mm 900L,  918, N454 Buy Now
B1707 Guide Pipe Assembly <D>1.2-1.6 900L, 918, N454 Buy Now
B1805 Iron Recepticle n/a Buy Now
B2143 Tube Assembly <J> 0.6-1.0mm 907.908.953, FX-8801. FX-8805 Buy Now
B2144 Tube Assembly <K> 1.2-1.6 907.908.953, FX-8801. FX-8805 Buy Now
B2145 Tube Assembly <L> 1.6mm 907.908 Contact Us
B2146 Guide Pipe Assembly 0.6mm 907, 953, FX-8801 Buy Now
B2147 Guide Pipe Assembly/0.8mm 907, 953, FX-8801 Buy Now
B2148 Guide Pipe Assembly/1.0mm 907, 953, FX-8801 Buy Now
B2149 Guide Pipe Assembly/1.2mm 907, 953, FX-8801 Buy Now
B2150 Guide Pipe Assembly/1.6mm 907, FX-8801 Buy Now
B2151 Guide Pipe Assembly/0.6mm 908, FX-8805 Buy Now
B2152 Guide Pipe Assembly/0.8mm 908, FX-8805 Buy Now
B2153 Guide Pipe Assembly/1.0mm 908, FX-8805 Buy Now
B2154 Guide Pipe Assembly/1.2mm 908, FX-8805 Buy Now
B2155 Guide Pipe Assembly/1.6mm 908, FX-8805 Buy Now
B2156 Guide Pipe Assembly/1.6mm  -907 FOR 374. FX-8801 907, FX-8801 Contact Us
B2157 Guide Pipe Assembly/1.6mm  -908 FOR 374. FX-8805 908, FX-8805 Contact Us
B3477 Tube Assembly <M> 0.6-1.0mm  W/Switch FM-2027 , FM2030 Buy Now
B3478 Tube Assembly <N> 1.2mm  W/Switch FM-2027 , FM2030 Buy Now
B3479 Tube Assembly <P> 0.6-1.0mm  W/Switch 912 Buy Now
B3480 Tube Assembly <Q> 1.2mm  W/Switch 912 Buy Now
B3481 Guide Pipe Assembly/0.6mm 912,FM-2027, FM-2028 Buy Now
B3482 Guide Pipe Assembly/0.8mm 912, FM-2027, Buy Now
B3483 Guide Pipe Assembly/1.0mm FM-2028 Buy Now
B3484 Guide Pipe Assembly/1.2mm 912, FM-2027, Buy Now
B3485 Guide Pipe Assembly <J> 0.6-1.0mm FM-2027, FM-2028, 912 Contact Us
B3486 Guide Pipe Assembly <K> 1.2mm FM-2027, FM-2028, 912 Contact Us
B3563 Tube Assembly <R> 0.6-1.0mm FX8301 Buy Now
B3564 Tube Assembly <S> 1.2-1.6mm FX8301 Buy Now
B3566 Guide Pipe Assembly/0.6mm FX8301 Buy Now
B3567 Guide Pipe Assembly/0.8mm FX8301 Buy Now
B3568 Guide Pipe Assembly/1.0mm FX8301 Buy Now
B3569 Guide Pipe Assembly/1.2mm FX8301 Buy Now
B3570 Guide Pipe Assembly/1.6mm FX8301 Buy Now
B3726 Guide Pipe Assembly/0.6mm FM-2030 Buy Now
B3727 Guide Pipe Assembly/0.8mm FM-2030 Buy Now
B3728 Guide Pipe Assembly/1.0mm FM-2030 Buy Now
B3729 Guide Pipe Assembly/1.2mm FM-2030 Buy Now
B5268 Guide Pipe Assembly/0.6mm 0.65mm BF Type FM-2027, FM-2028, FX-1001 Contact Us
B5269 Guide Pipe Assembly/0.8mm BF Type FM-2027, FM-2028, FX-1001 Contact Us
B5270 Guide Pipe Assembly/1.0mm BF Type FM-2027, FM-2028, FX-1001 Contact Us
B5271 Guide Pipe Assembly/1.2mm BF Type FM-2027, FM-2028, FX-1001 Contact Us
B5272 Guide Pipe Assembly/0.6mm . 0.65mm BF Type FX8801, FX8805, FX8002, FX8301, FM2030, FN1101 Contact Us
B5273 Guide Pipe Assembly/0.8mm BF Type FX8801, FX8805, FX8002, FX8301, FM2030, FN1101 Contact Us
B5274 Guide Pipe Assembly/1.0mm BF Type FX8801, FX8805, FX8002, FX8301, FM2030, FN1101 Contact Us
B5275 Guide Pipe Assembly/1.2mm BF Type FX8801, FX8805, FX8002, FX8301, FM2030, FN1101 Contact Us
C5056 Tube Assembly/BF Type 0.6-1.0mm W/Hexagon Wrench FM-2027. FM-2028 FX-1001 Contact Us
C5057 Tube Assembly/BF Type 1.2mm W/Hexagon Wrench FM-2027, FM-2028, FX-1001 Contact Us
C5058 Tube Assembly/BF Type 0.6-1.0mm W/Hexagon Wrench FM-2030, FN-1101, FX-8002, FX-8301, FX-8801, FX-8805 Contact Us
C5059 Tube Assembly/BF Type 1.2mm W/Hexagon Wrench FM-2030, FN-1101, FX-8002, FX-8301, FX-8801, FX-8805 Contact Us

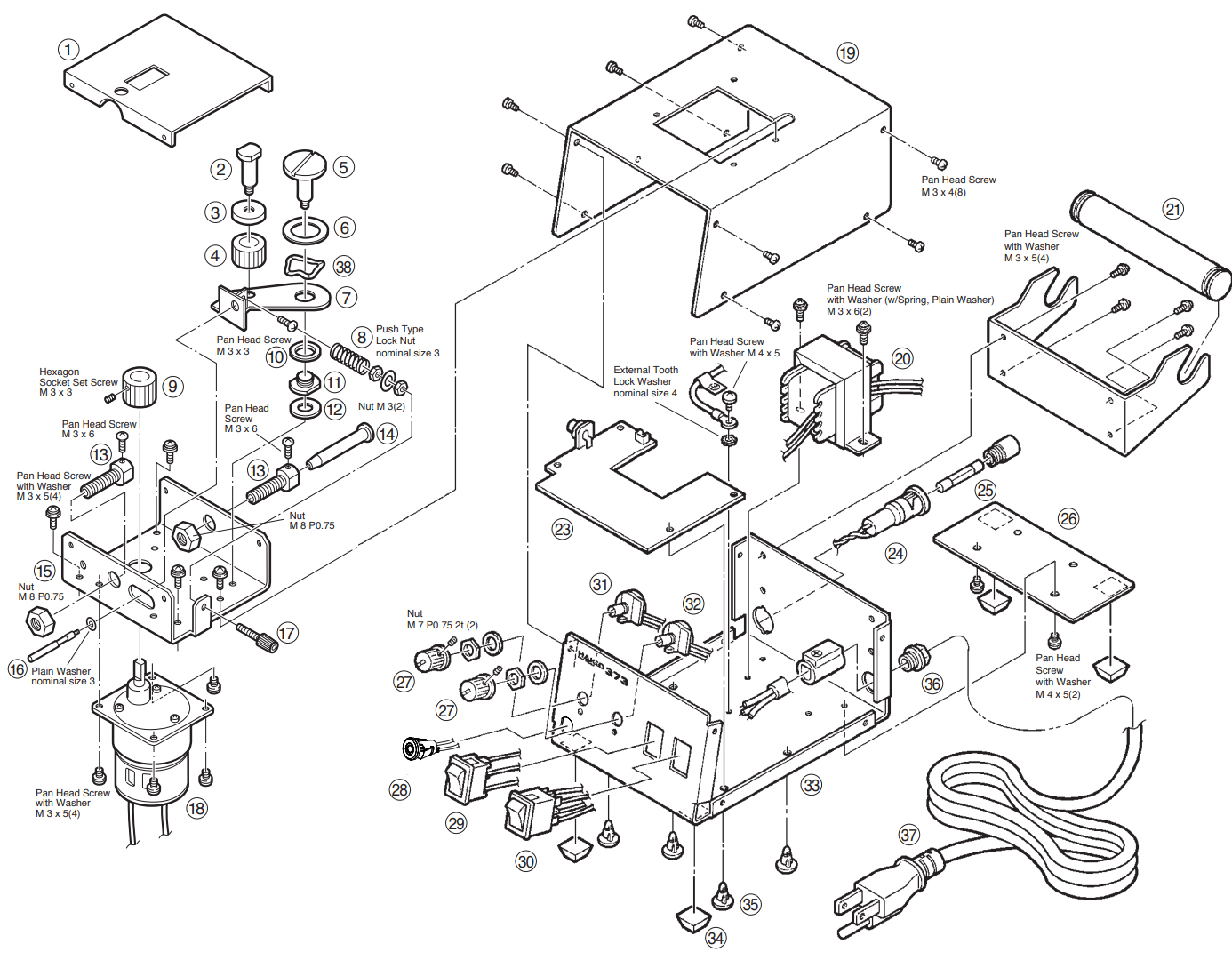

373 Solder Feeder
Item No. Image Part Number Description Availability
1. B1897 Cover for Feeding Unit Please Contact Us
2. B1882 Tension Gear Guide Shaft Please Contact Us

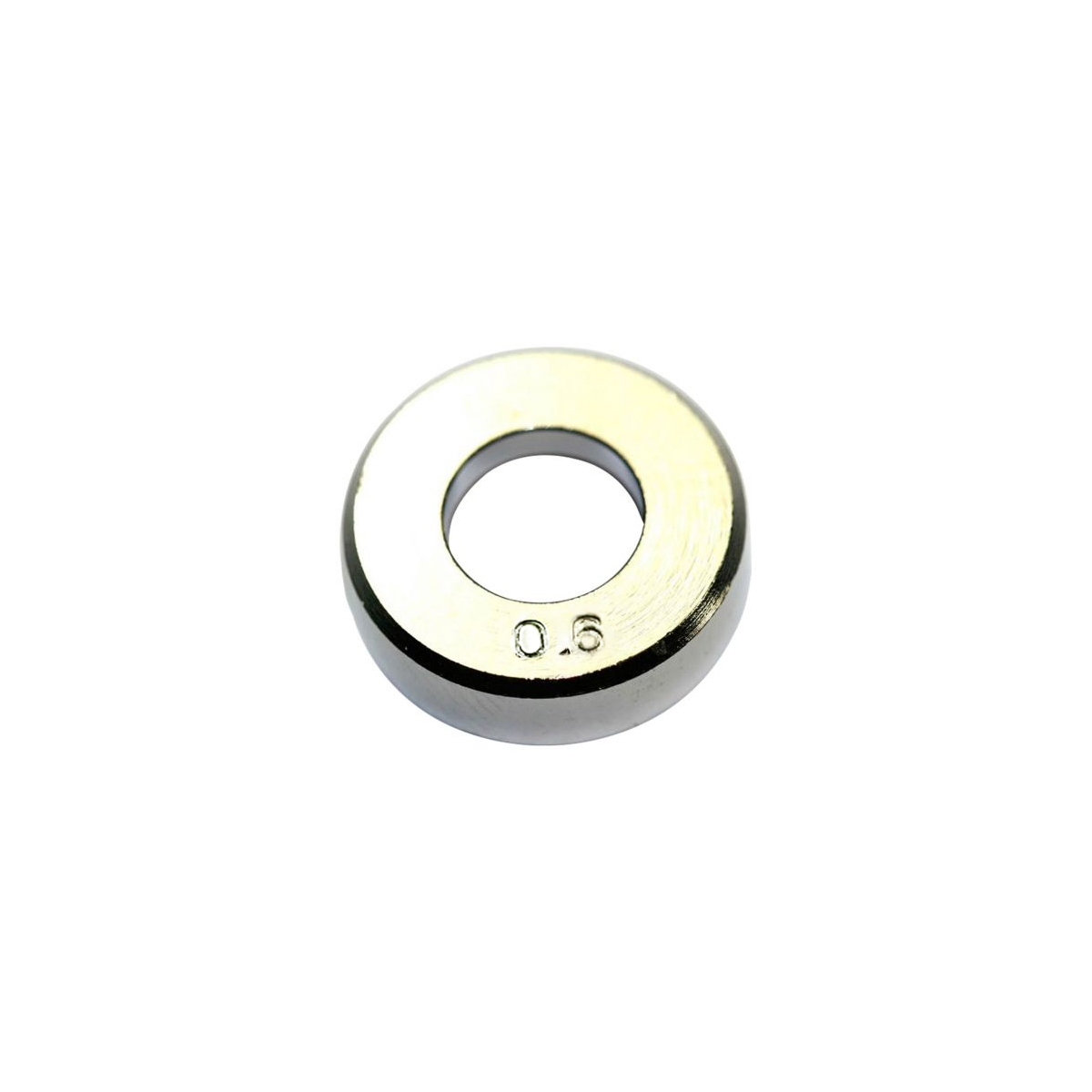

3. B1626 Solder diameter adjustment ring 0.6mm Buy Now
B1627 Solder diameter adjustment ring 0.8mm Buy Now
B1628 Solder diameter adjustment ring 1.0mm Buy Now
B1629 Solder diameter adjustment ring 1.2mm Buy Now

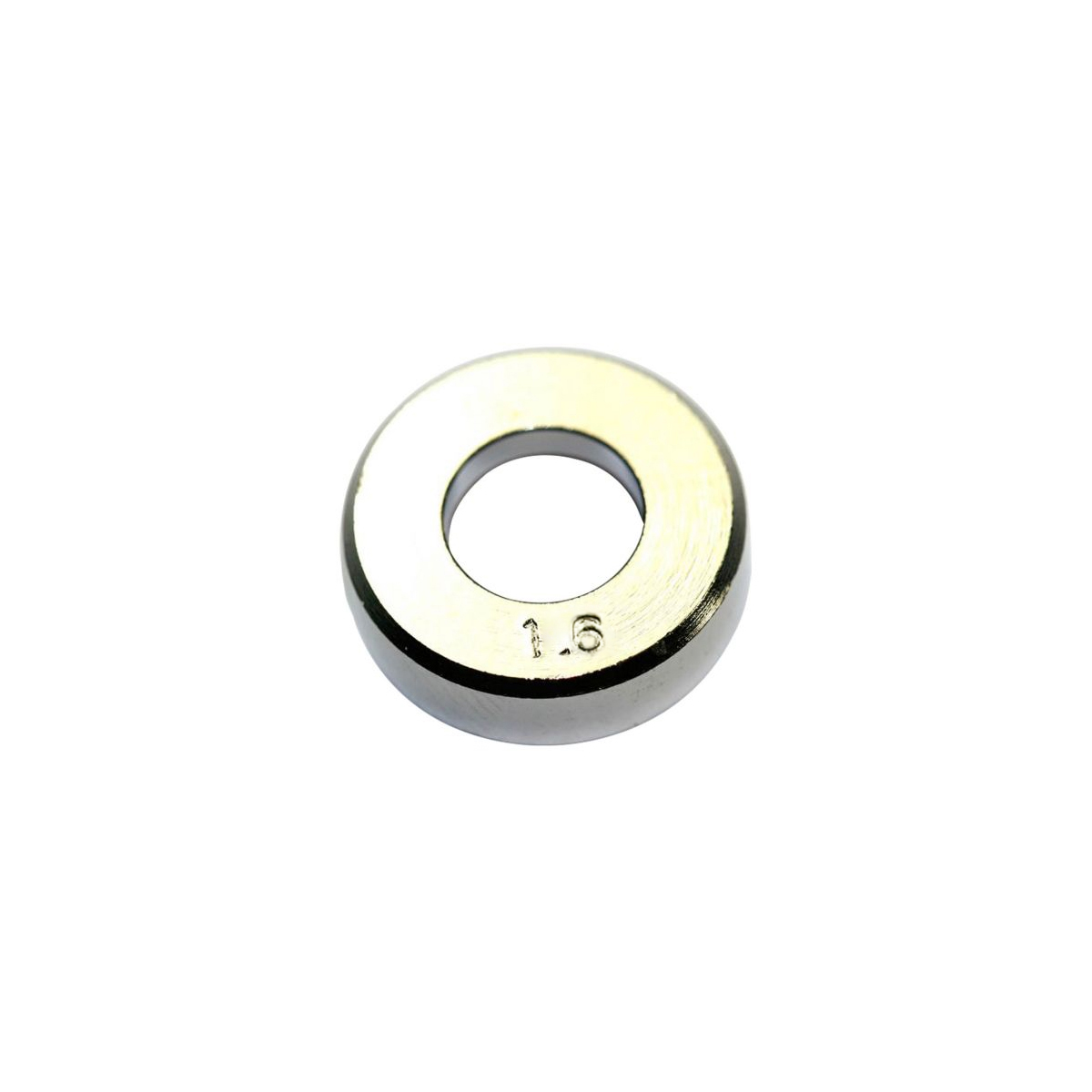

B1630 Solder diameter adjustment ring 1.6mm Buy Now

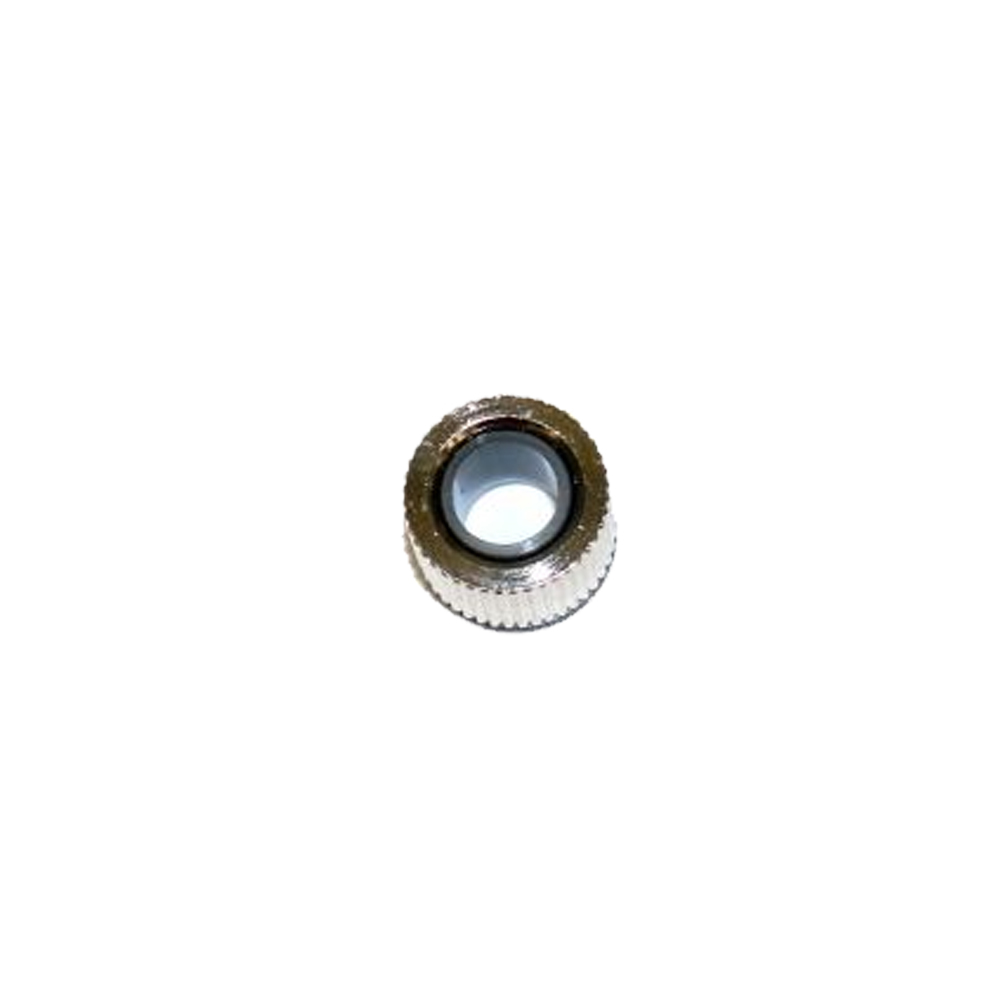

4. B1885 Tension Gear Buy Now
5. B1886 Tension Lever Fixing Shaft Please Contact Us
6. B1908 Washer Please Contact Us
7. B1894 Tension Lever Please Contact Us
8. B1883 Tension Spring Please Contact Us

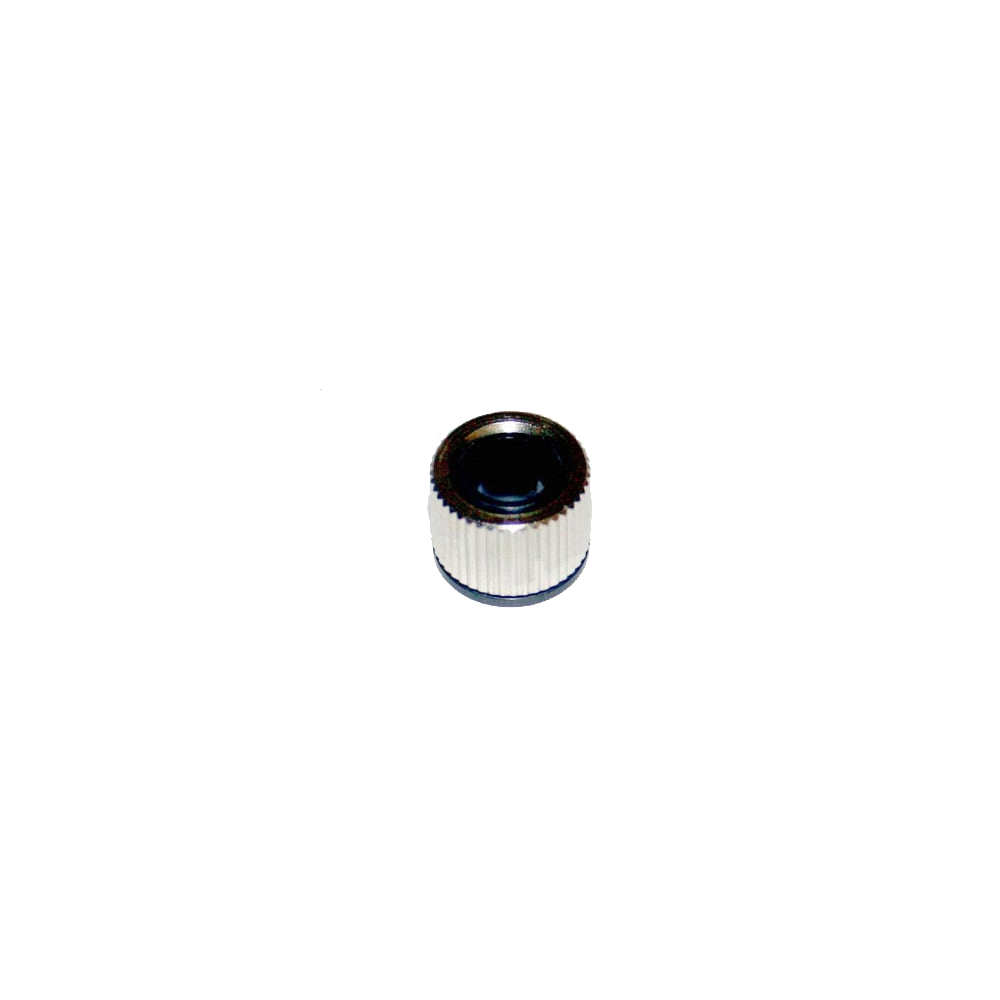

9. B1881 Feed Gear Buy Now
10. B1887 Washer Please Contact Us
11. B1888 Tension Lever Fixing Guide Please Contact Us
12. B1889 Tension Lever Fixing Washer Buy Now
13. B1890 Nozzle Support Please Contact Us
14. B1892 Supply Nozzle Please Contact Us
15. B1891 Motor Fixing Plate Please Contact Us
16. B1893 Release Lever Please Contact Us
17. B1884 Tension Adjustment Knob Please Contact Us

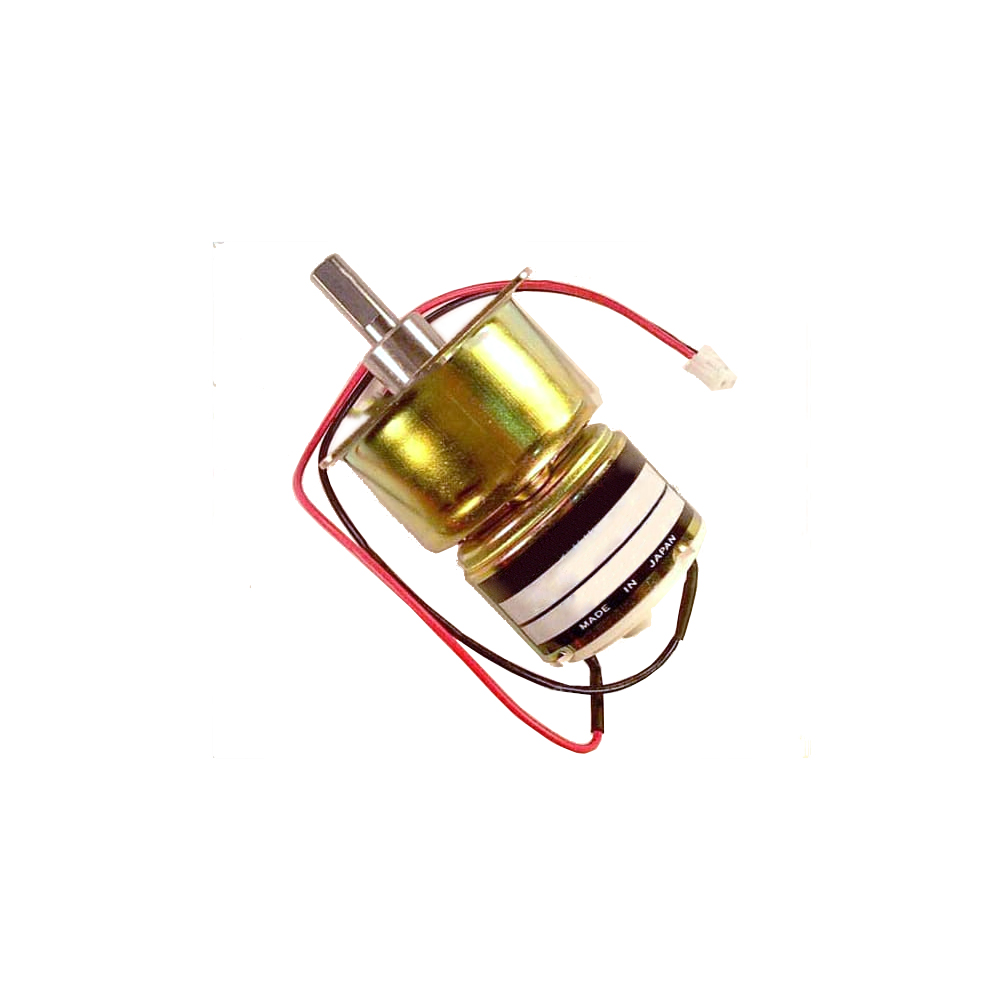

18. B1880 Motor Buy Now
19. B1898 Cover Please Contact Us
20. Image B1911 Transformer Please Contact Us
21. B1901 Solder Bobbin Shaft Please Contact Us
22. B1902 Solder Bobbin Support Please Contact Us
23. B1899 Printed Circuit Board Please Contact Us
24. B1041 Fuse Holder  (no Fuse inc.) Buy Now
B1134 Fuse Holder Small (no Fuse inc.) Buy Now

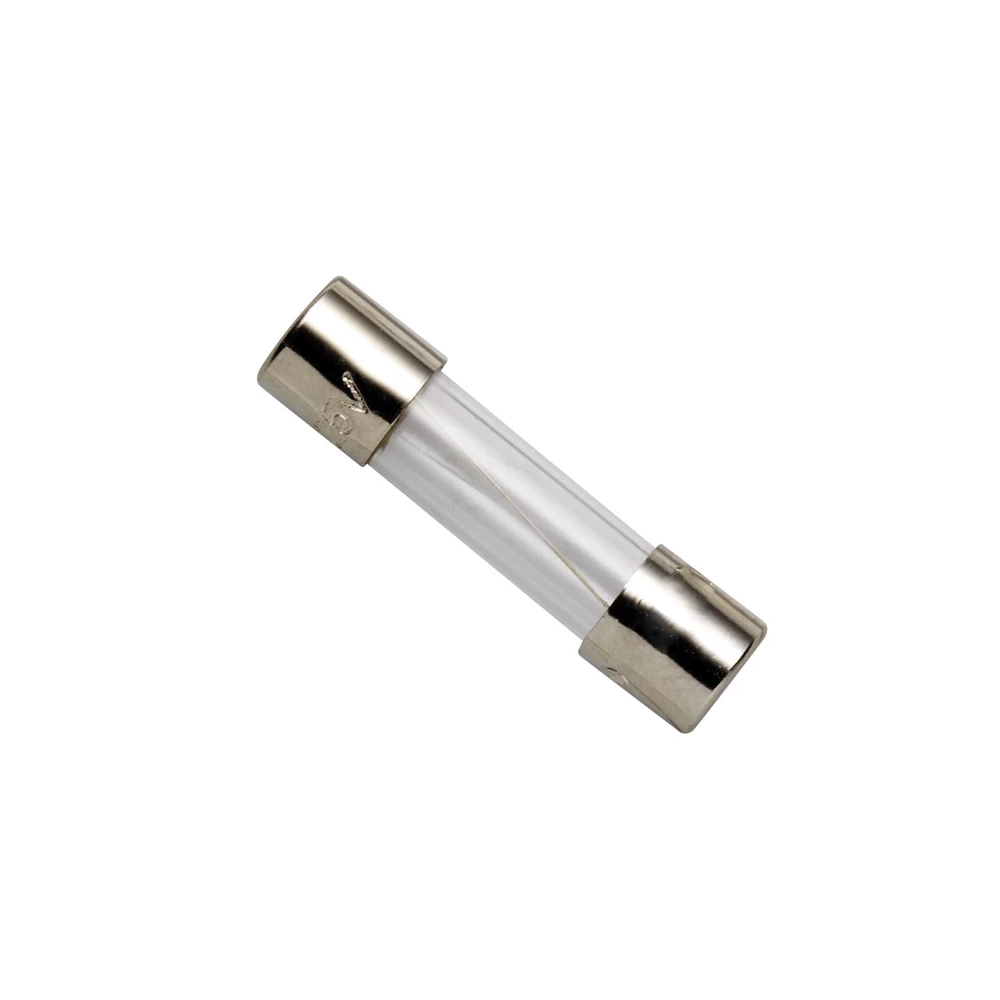

25. B1138 Fuse 250-1A/220 230, 240V Buy Now
B1139 Fuse Small 250-1A/220, 230V Buy Now
26. B1895 Chassis Support Plate Please Contact Us

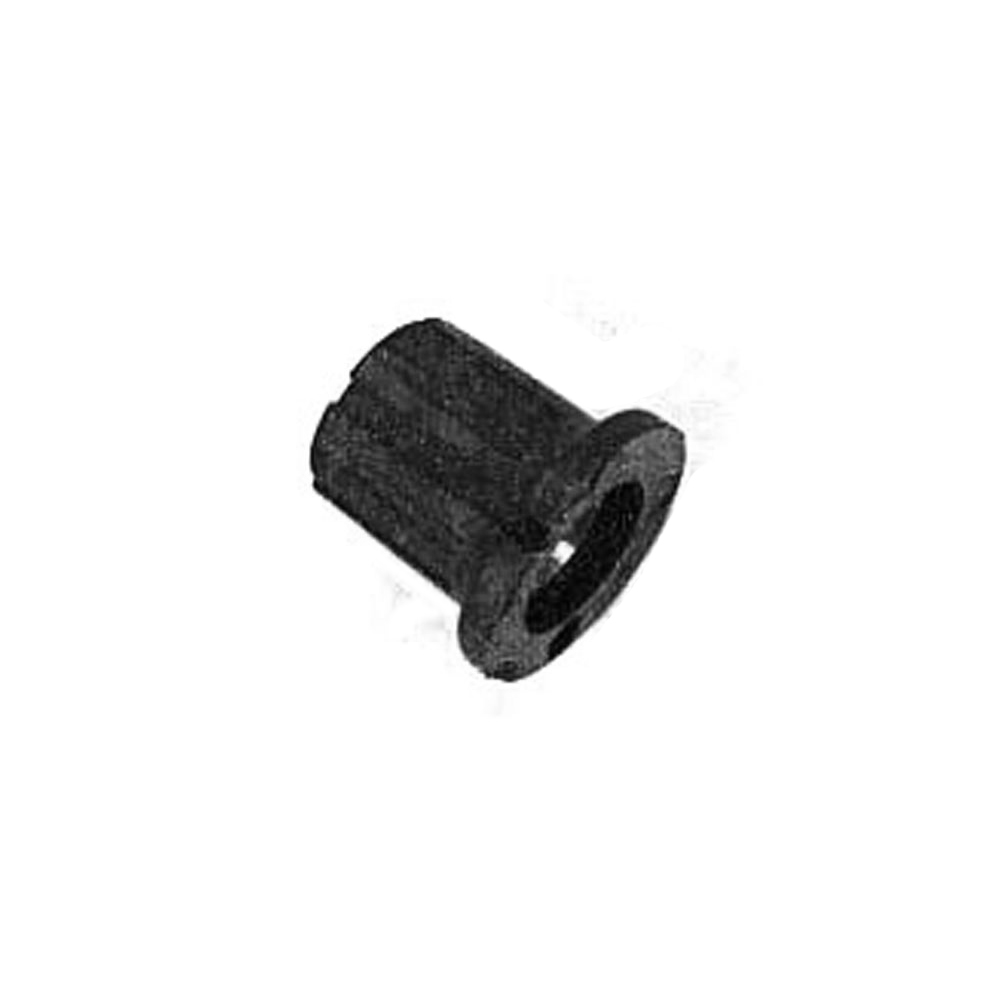

27. B1904 Knob Buy Now
28. B5131 Mini Jack Please Contact Us

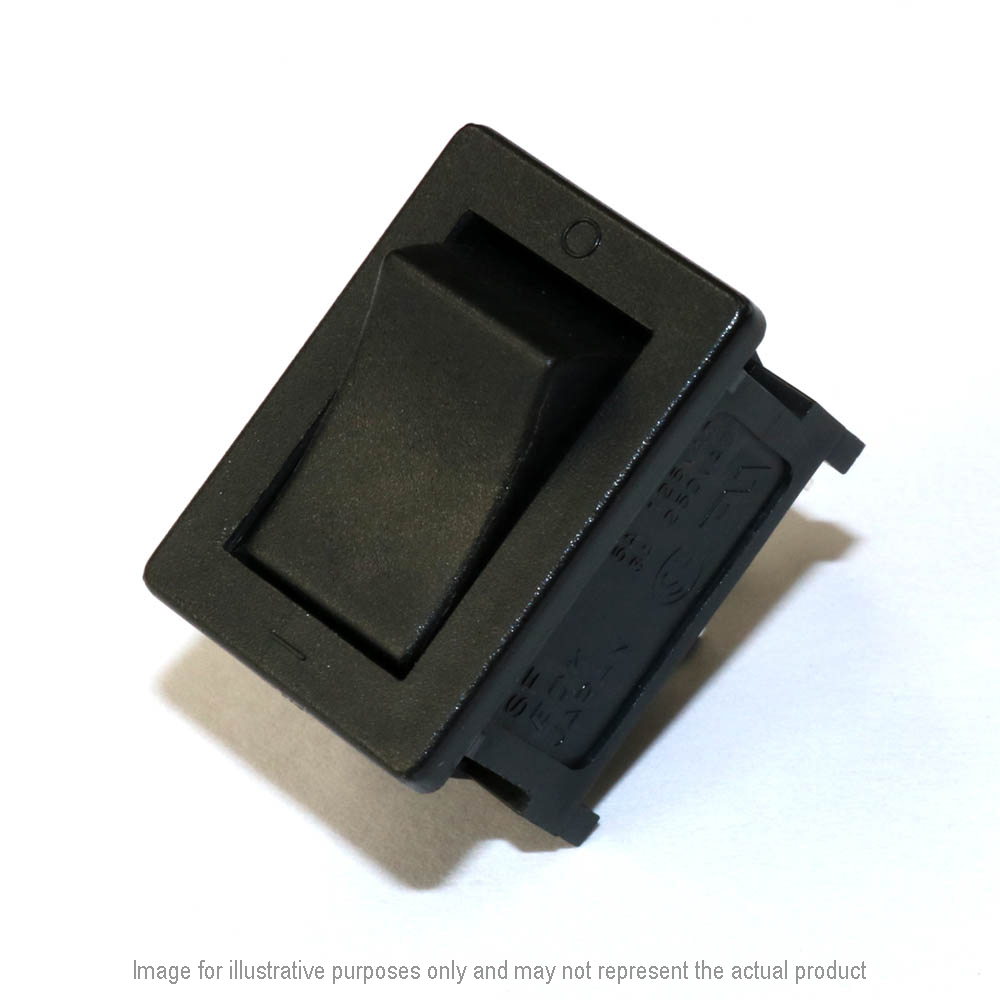

29. B1906 Switch Buy Now

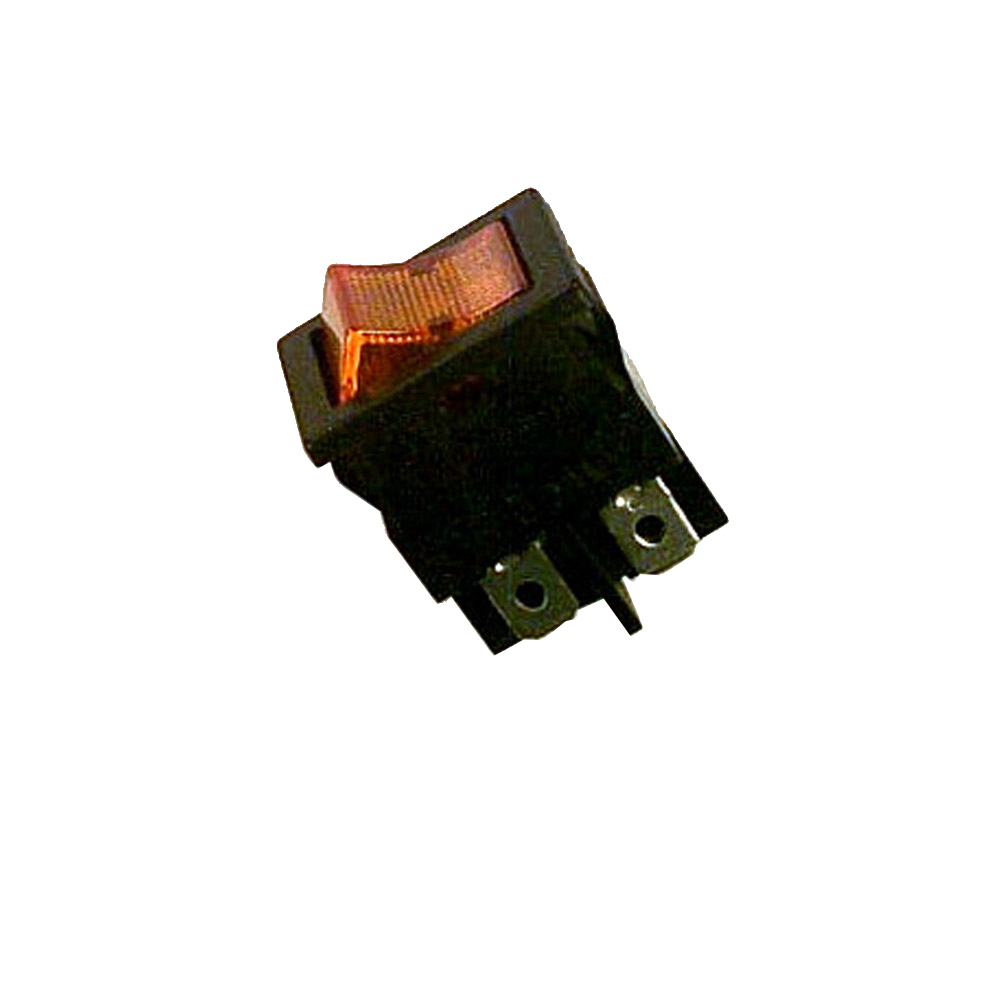

30. B2604 Power Switch Buy Now
31. B1197 Potentiometer for Feed Speed Control Please Contact Us
32. B1905 Potentiometer for Feed Time Control Please Contact Us
33. B1896 Chassis Please Contact Us
34. B1037 Rubber Stopper Buy Now
35. Image B1114 Locking Spacer Discontinued

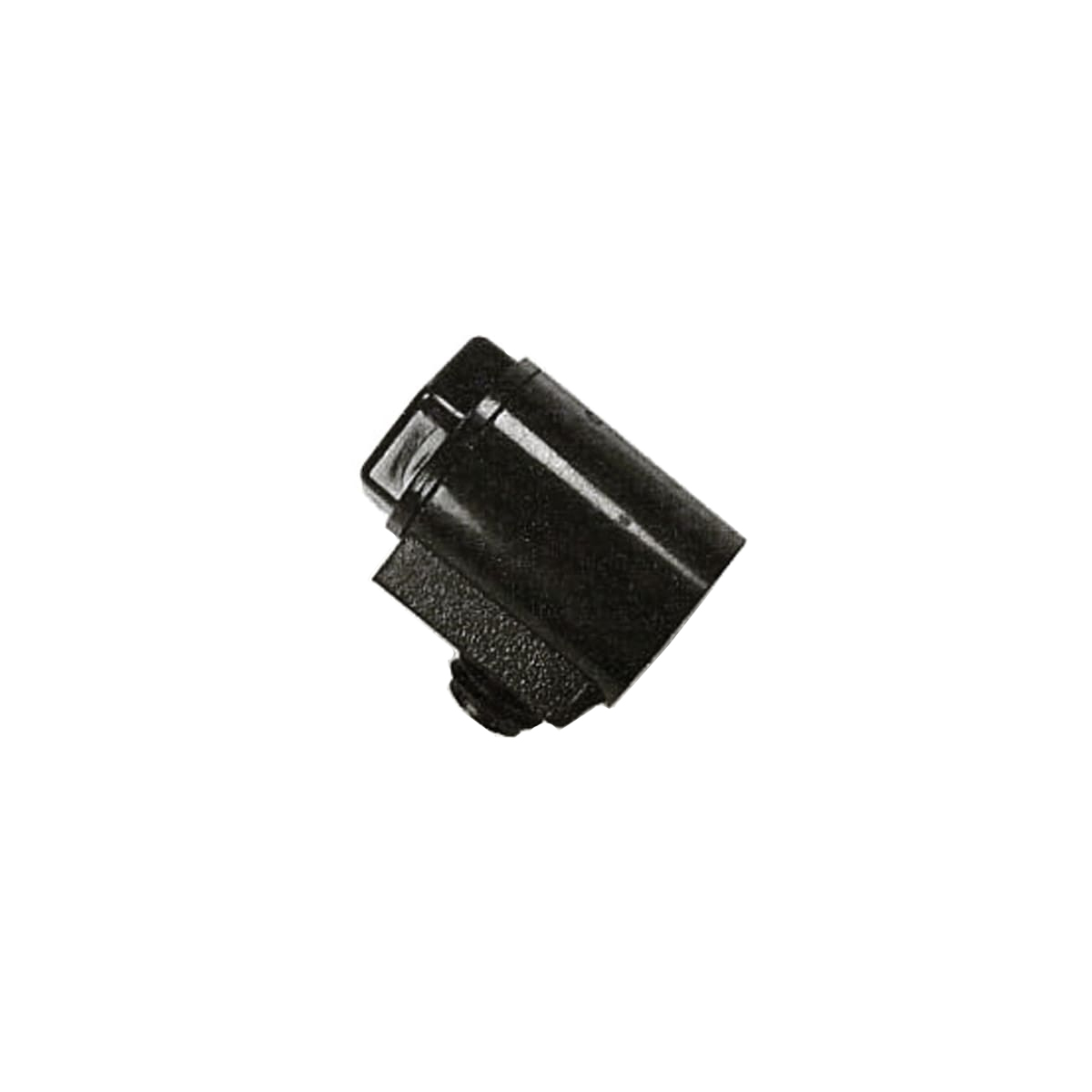

36. B1208 Cord Stopper Buy Now

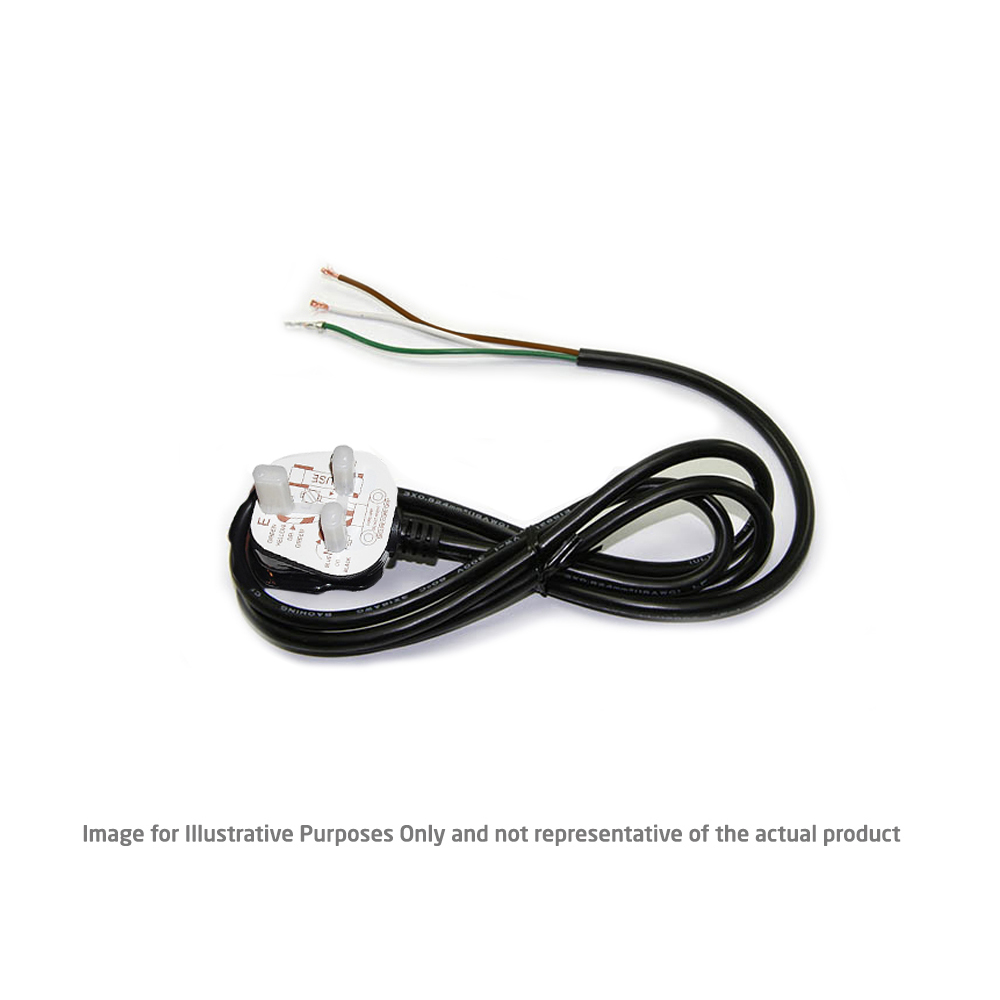

37. B2087 3 Core Power Lead BS Plug Buy Now

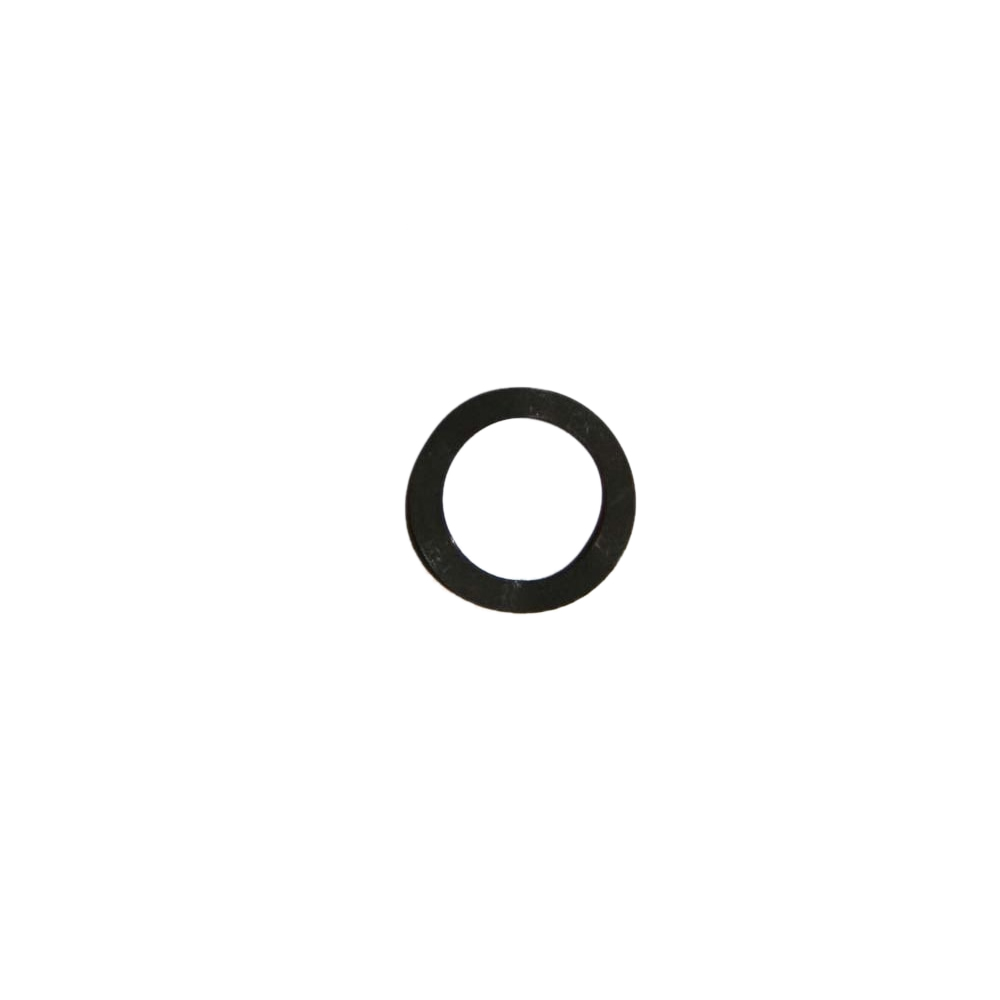

38. B2684 Wave Washer Buy Now

Manuals


H373-9 Manual (PDF) 1.24MB Download
Weight 1.7751 kg
