How to mount the iron receptacle B2850/B2848

The iron receptacle B2850 and B2848 are supplied together with two different types of mounting screws respectively (see the photo below). Which screw to use depends on the type of iron holder on which the receptacle is to be mounted. In the following mounting instructions, the iron receptacle B2848 for the HAKKO FM-2023 is used as an example.

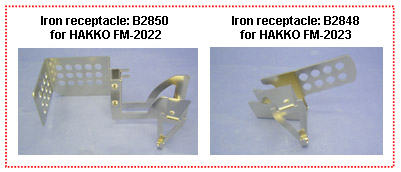

Iron receptacle: B2850 for HAKKO FM-2022, Iron receptacle: B2848 for HAKKO FM-2023
Iron holder: For No.634, 635 & FH-100   Iron holder: For No.FH-200 (current model)
For No.634, 635 & FH-100 These two types of
screws are
supplied together with B2850 and B2848 respectively.
For No.FH-200 (current model)

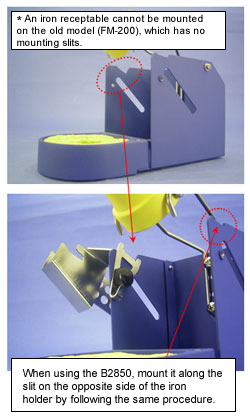

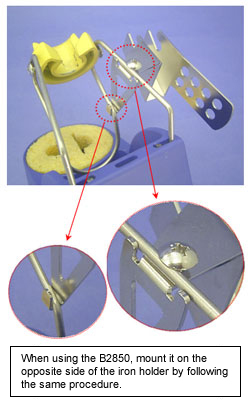

When using the B2850, mount it on the opposite side of the iron holder by following the same procedure.   When using the B2850, mount it along the slit on the opposite side of the iron holder by following the same procedure.
